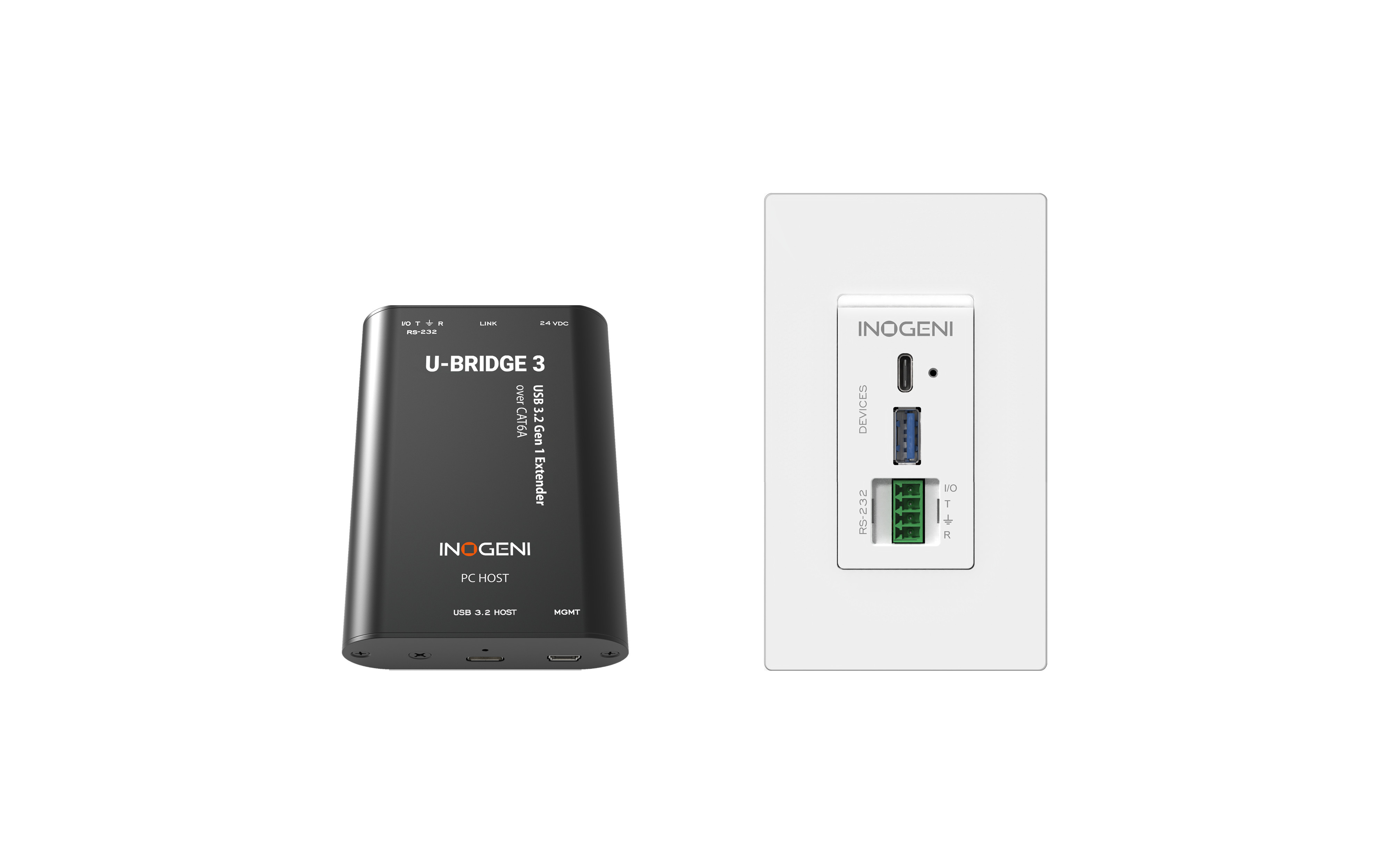

Inogeni U-BRIDGE USB 3.2 Camera & Device Extender w/ Wall Plate

About: Inogeni U-BRIDGE USB 3.2 Camera & Device Extender w/ Wall Plate

The new INOGENI U-BRIDGE 3 WP multi-device extender with a wall plate for any USB 3.0 device is the solution to interoperability challenges AV installers encounter when reliable long-distance USB camera extension is required. The U-BRIDGE 3 WP video camera and audio extender enables SuperSpeed USB 3.0 connections up to 100 m/330 ft. over a single CAT6A cable.

• High-performance USB connectivity
  • USB 3.2 Gen 1/5Gbps backward-compatible with USB 3.1 Gen 1/3.0/2.0
  • Reliable long-distance USB camera extension maintains high-quality, uncompressed video
  • DEVICE wall plate ports: 1x USB-A and 1x USB-C
  • PC HOST port: Lockable USB-C connector
• Advanced video + camera control integration
  • 4K video camera and audio extender enables SuperSpeed connections
  • Perfectly compatible with cameras and UC CODECs
  • Connect high-quality PTZ cameras and video bars, DSP, HID devices or mouse and keyboard
  • RS-232 extension for VISCA or control by either the PC HOST or DEVICE wall plate
• Reliable performance meets elegant design and practical installation
  • Powered by either the PC HOST or DEVICE wall plate
  • Nice and sleek wall plate design to fit in a professional office design environment
  • Link: Up to 100 m/330 ft. over a single CAT6A cable Discover the INO-CAT6A cable
  • Tie slot to secure the CAT6A cable for a clean, secure, and worry-free installation
  • Includes one Decora-style wall plate (1-gang format), replaceable for custom installations or color matching.
  • TAA-compliant and made in Canada
• Ideal for USB camera extension (100 m/330 ft.) in videoconferencing rooms
  • The U-BRIDGE 3 WP multi-device extender with a wall plate is fully compatible with all USB cameras, including professional-grade equipment as well as PTZ cameras, such as AVer, Logitech, Jabra, ClearOne, Huddly, HuddleCamHD, PTZOptics, Lumens, Marshall, and web cameras.
• Versatile SuperSpeed USB 3.0 proven technology
  • U-BRIDGE 3 WP supports all USB 3.0/2.0 devices. It is designed for use with up to 3 devices simultaneously, such as USB cameras, videobar, DSP, HID devices, whiteboards, microphones, audio devices, and any other high-bandwith USB devices (hard drives, flash drives or keyboards).
  • Can be powered from either the PC host or the camera/device wall-plate end of this solution
  • Provides plug-and-play convenience with no software drivers required
  • Works with all major operating systems, including Windows, macOS, and Linux
  • 5-year warranty for added peace of mind
  • Enables device access and control of USB devices

How it works​

Extend your USB 3.0 devices to any INOGENI USB input, CODEC, or videoconferencing system.

The U-BRIDGE 3 WP offers unmatched versatility and reliability and extends up to 3 USB 3.0 connections (1 USB-A and 1 USB-C) up to 100 m (330 ft.), far beyond the standard 3-meter cable limit. Designed specifically for USB 3.0 devices and systems, the U-BRIDGE 3 accommodates a range of peripherals, including cameras, microphones, audio devices, and more. Its backward compatibility with USB 2.0 ensures seamless integration with a variety of devices. It provides 1.8A that can be shared between USB ports to enhance functionality and convenience.

Operating seamlessly within any setup, the U-BRIDGE 3 WP facilitates connections to PC hosts and INOGENI devices and offers compatibility with leading videoconferencing systems, such as Microsoft Teams Rooms, Zoom Rooms, and more.

The U-BRIDGE 3 WP features an elegant, removable cap over the RS-232 port, providing a clean, professional look with easy access when needed.

Features

The U-BRIDGE 3 WP offers versatility and reliability for USB 3.0 extensions of up to 100 m (330 ft). U-BRIDGE 3 WP enables users to extend USB connections beyond the standard 3 m (10 ft.) cable limit for USB 3.0 peripheral devices.

Designed for extension of USB 3.0 devices and systems

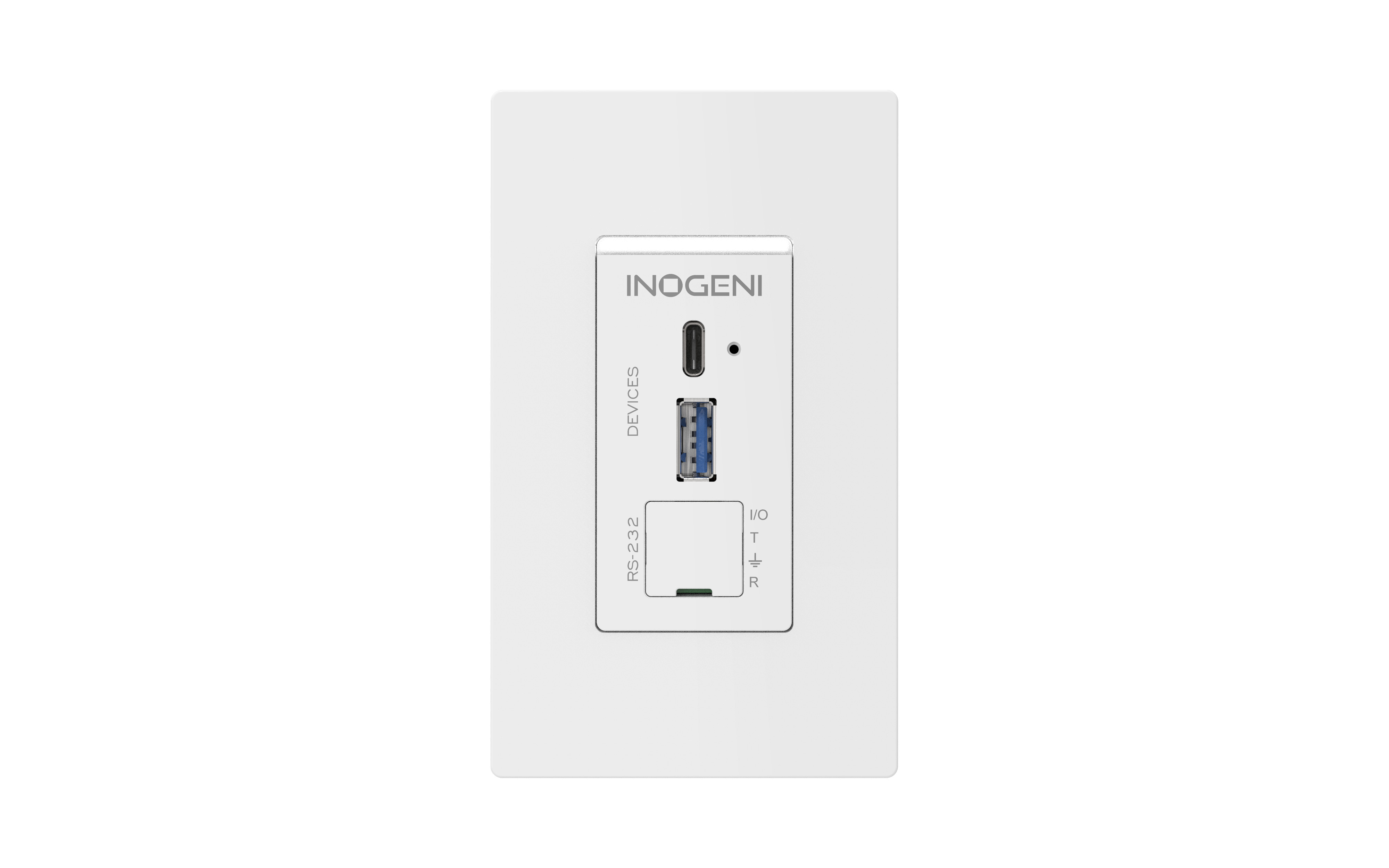

• DEVICE wall plate side:
  • USB 3.2 Gen 1; backward-compatible with USB 3.1 Gen 1/3.0/2.0
  • 1x USB-C and 1x USB-A
  • Supports cameras, videobar, DSP, HID devices, whiteboards, microphones, audio devices, and any other USB devices (hard drives, flash drives or keyboards)
  • Provides up to 1.8A to be shared between the 3 USB ports
  • Powered by either the wall plate DEVICE or the PC host module

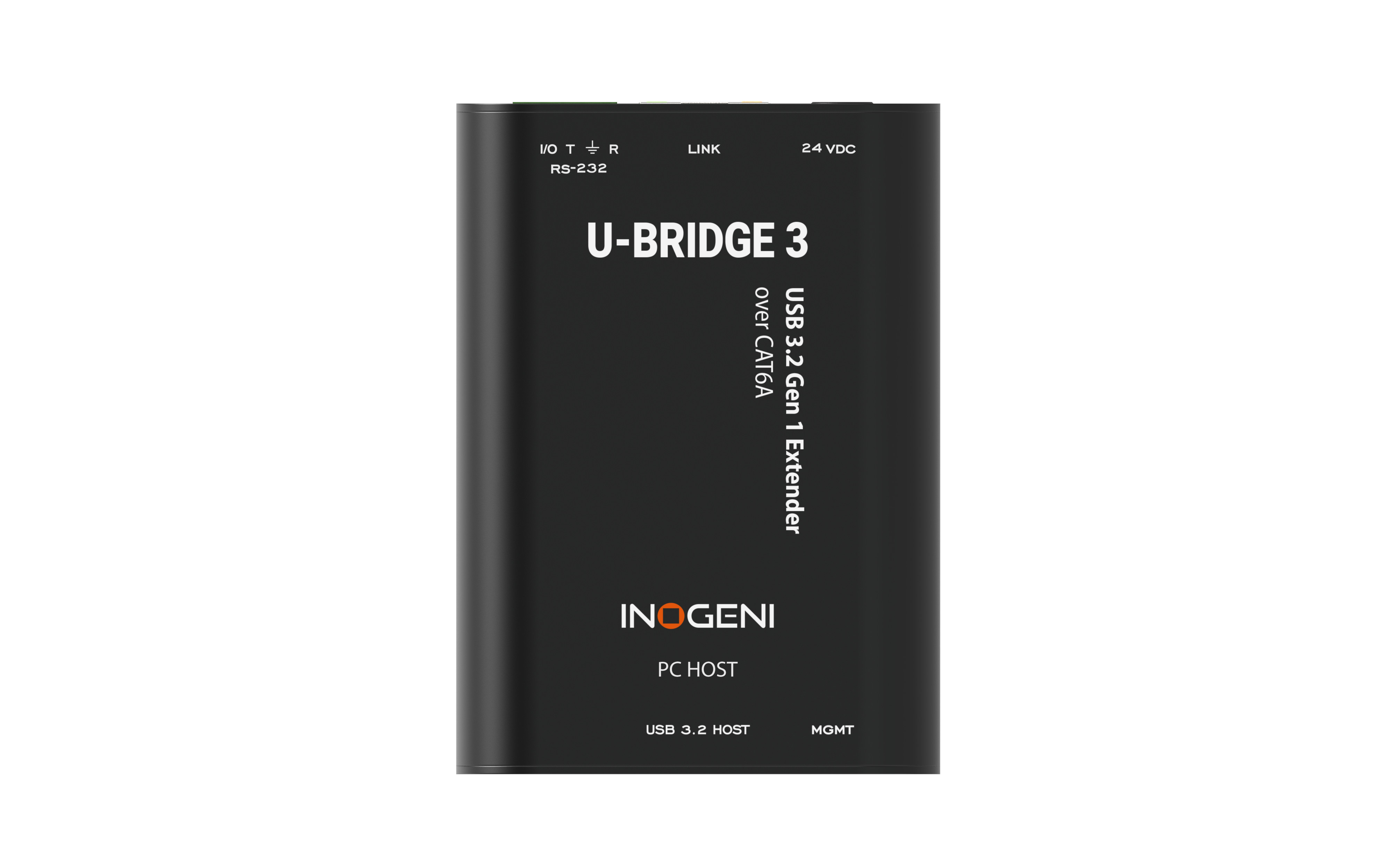

• PC HOST side:
  • 1 USB-C 3.2 Gen 1; backward-compatible with USB 3.1 Gen 1/3.0/2.0
  • SuperSpeed USB at 5 Gbps
  • Connect to a laptop or any UC videoconference system, such as Microsoft Teams Rooms (MTR), Zoom Rooms, CODECs or Room PC from Lenovo, Poly, Crestron, Cisco, Logitech, Q-SYS or Barco
  • Powered by either the DEVICE or the PC HOST module
• LINK
  • Up to 100 m/330 ft. extension.
  • Reliable HDBaseT extension over CAT6A cable. (Discover the INO-CAT6A cable)
  • Use PoC (power over cable) to power up the entire system from either end.
• INOGENI devices before or after the U-BRIDGE 3 WP:
  • Mixers and switchers:  SHARE2, SHARE2U, CAM300, CAM230, TOGGLE, TOGGLE ROOMS
  • Converters: 4KX-PLUS, 4KXUSB3, 4K2USB3, HD2USB3 and the U-CAM
• Mass storage acceleration for USB 3.0 device bulk transfers.
• SuperSpeed USB suite of features:
  • Transparent USB extension
  • True plug and play; no software drivers required
  • Works with all major operating systems:  Windows, macOSTM, and Linux.
• Easy to install with a mounting solution
• Integrated cable tie slot to secure the CAT6A cable to the device using your own tie wrap — for a clean, secure, and worry-free installation.
• Includes one Decora-style wall plate (North American 1-gang format), replaceable for custom installations or color matching.
• The U-BRIDGE 3 WP uses the standard North American 1-gang format, but it is also certified for international use (CE, FCC, UKCA, RoHS, IEC 62368, SoV, RCM, NOM).
• Warranty
  • 5 years

Plug & Go

INOGENI has developed an advanced testing procedure to ensure reliability and avoid interoperability issues for the USB 3.0 extension. U-BRIDGE 3 WP connects a USB 3.0 camera and device or an INOGENI device to any PC or videoconferencing system, such as Microsoft Teams Rooms (MTR), Zoom Rooms, CODECs as well as Room PCs from Lenovo, Poly, Crestron, Cisco, Logitech, MAXHUB, Q-SYS and Barco.

Compatible with all cameras and devices (microphones, etc.)

The U-BRIDGE 3 WP is fully compatible with all USB cameras (USB3/5 Gbps and is backward-compatible with USB 2.0), including professional-grade equipment, such as AVer, Logitech, Jabra, ClearOne, Huddly, HuddleCamHD, PTZOptics, Lumens, Marshall, and web cameras.

Specifications

• Link
  • Technology: HDBaseT-USB3
  • Range: Direct connect up to 100 m (330 ft.) over CAT6A U/FTP
  • Medium: CAT6A U/FTP (Discover the INO-CAT6A cable)
    • NOTE: We do not recommend using a crimp tool for attaching terminations. Instead, we highly recommend utilizing toolless terminations to ensure the preservation of signal integrity.
• USB
  • Speeds
    • USB 3.2 Gen1 / USB 3.1 Gen1 / USB 3.0: up to 5 Gbps
    • USB 2.0: up to 480 Mbps
      • NOTE: USB-C DisplayPort Alternate Mode is not supported.
  • Transfers support
    • Bulk, isochronous, interrupt and control types
    • Built-in hardware acceleration for isochronous and bulk transfers

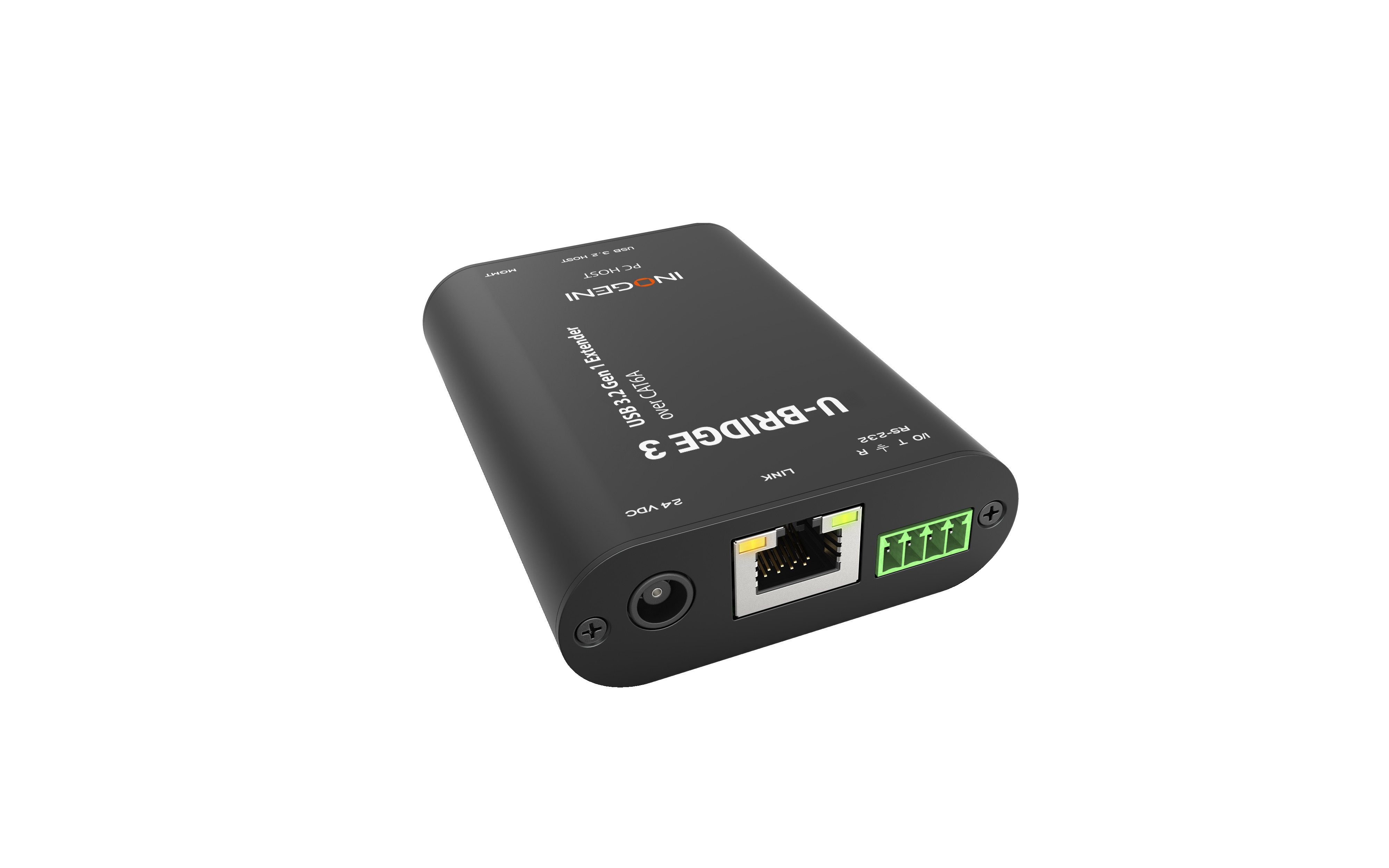

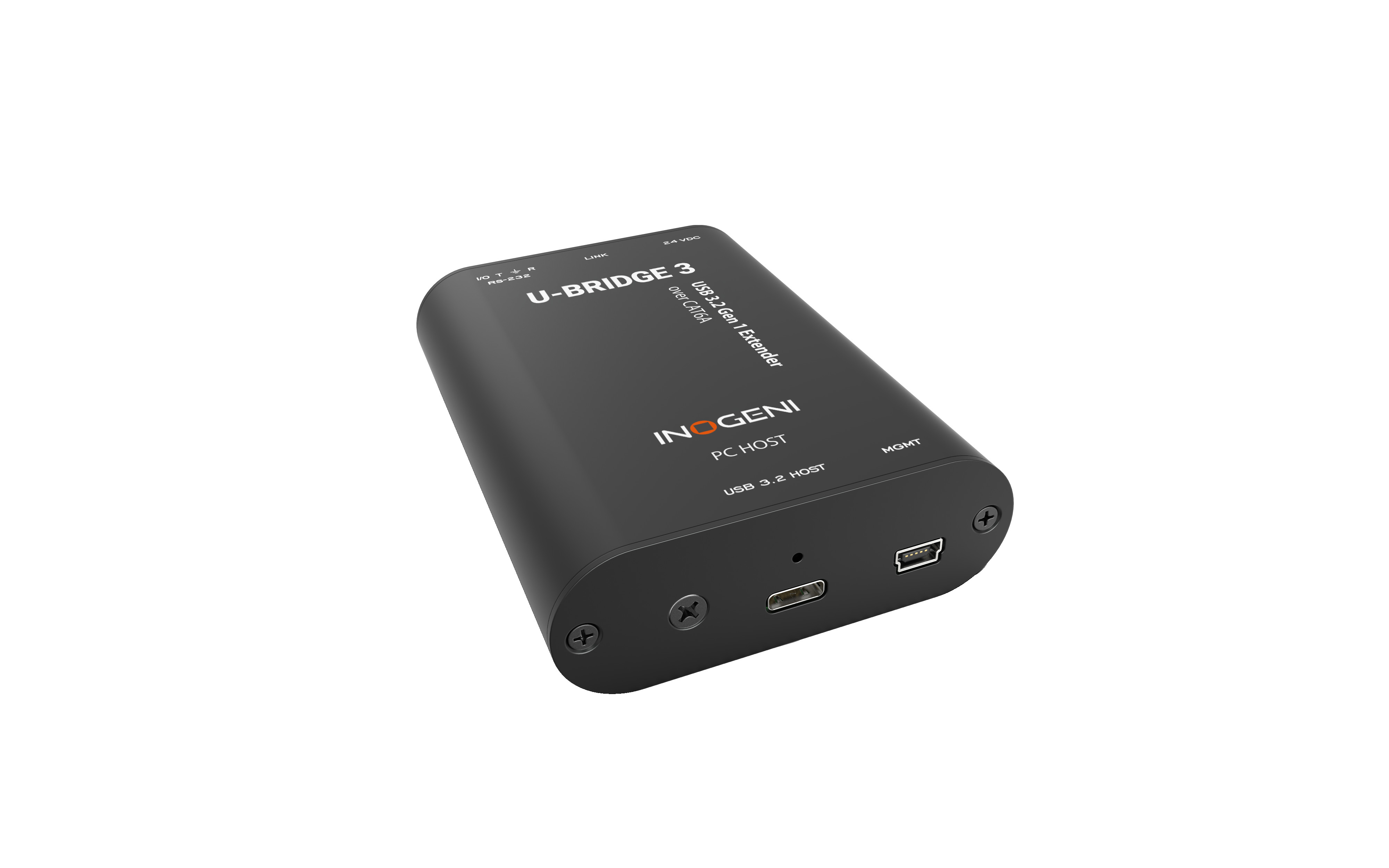

• PC Host extender

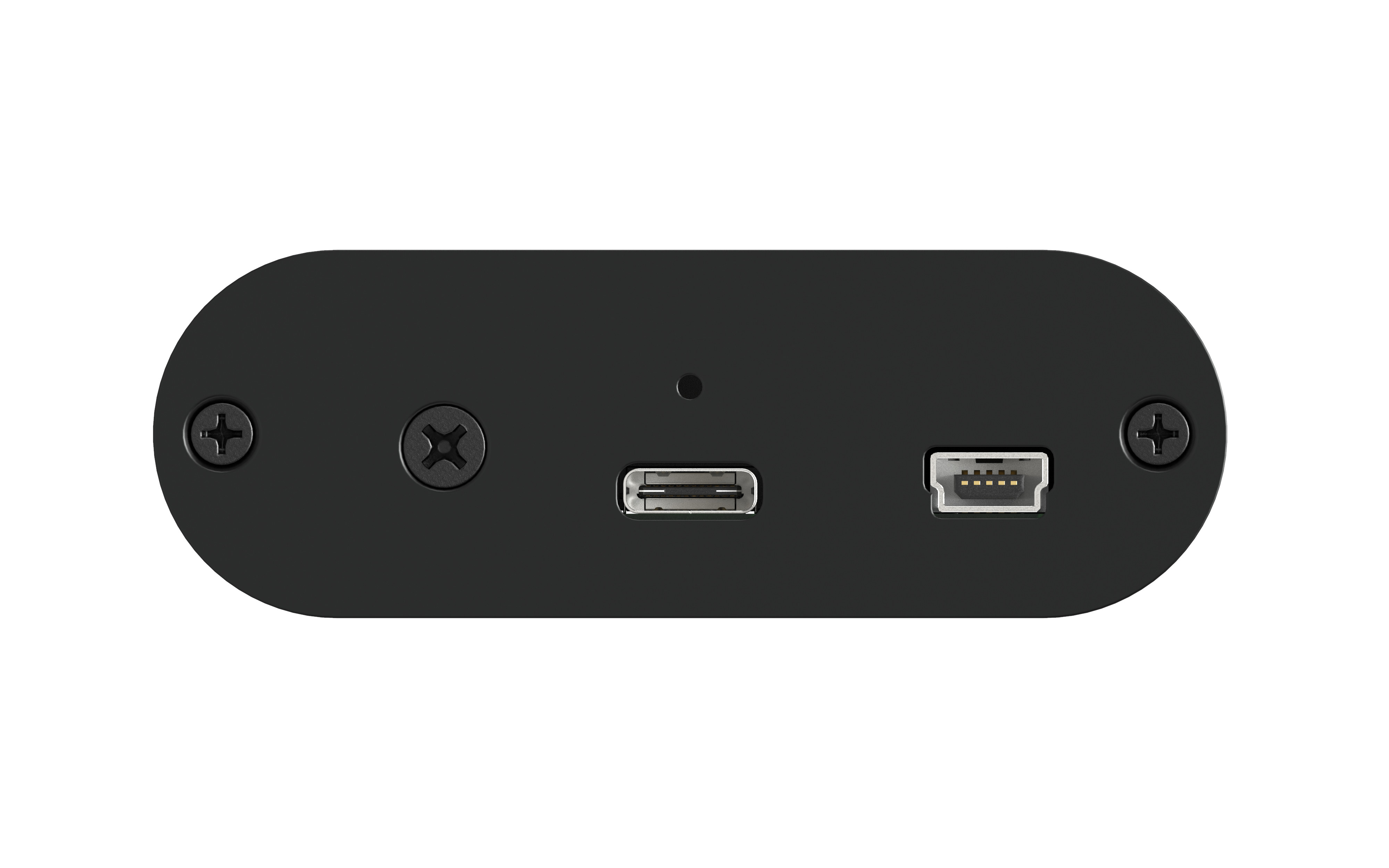

  • USB connector: 1x USB Type-C receptacle with mounting screw hole
  • Link connector: 1x RJ45
  • Dimensions (WxLxH): 2.76 x 3.82 x 0.90 inch (7.0 x 9.7 x 2.3 cm)
  • Weight: 0.37 lb (170 g)
  • Mounting: Bracket provided
  • Enclosure material: Black anodized aluminum case
  • RS-232 connector
    • Passthrough serial connection
    • By default, I/O pin is an input
    • +1.8V logic (maximum)

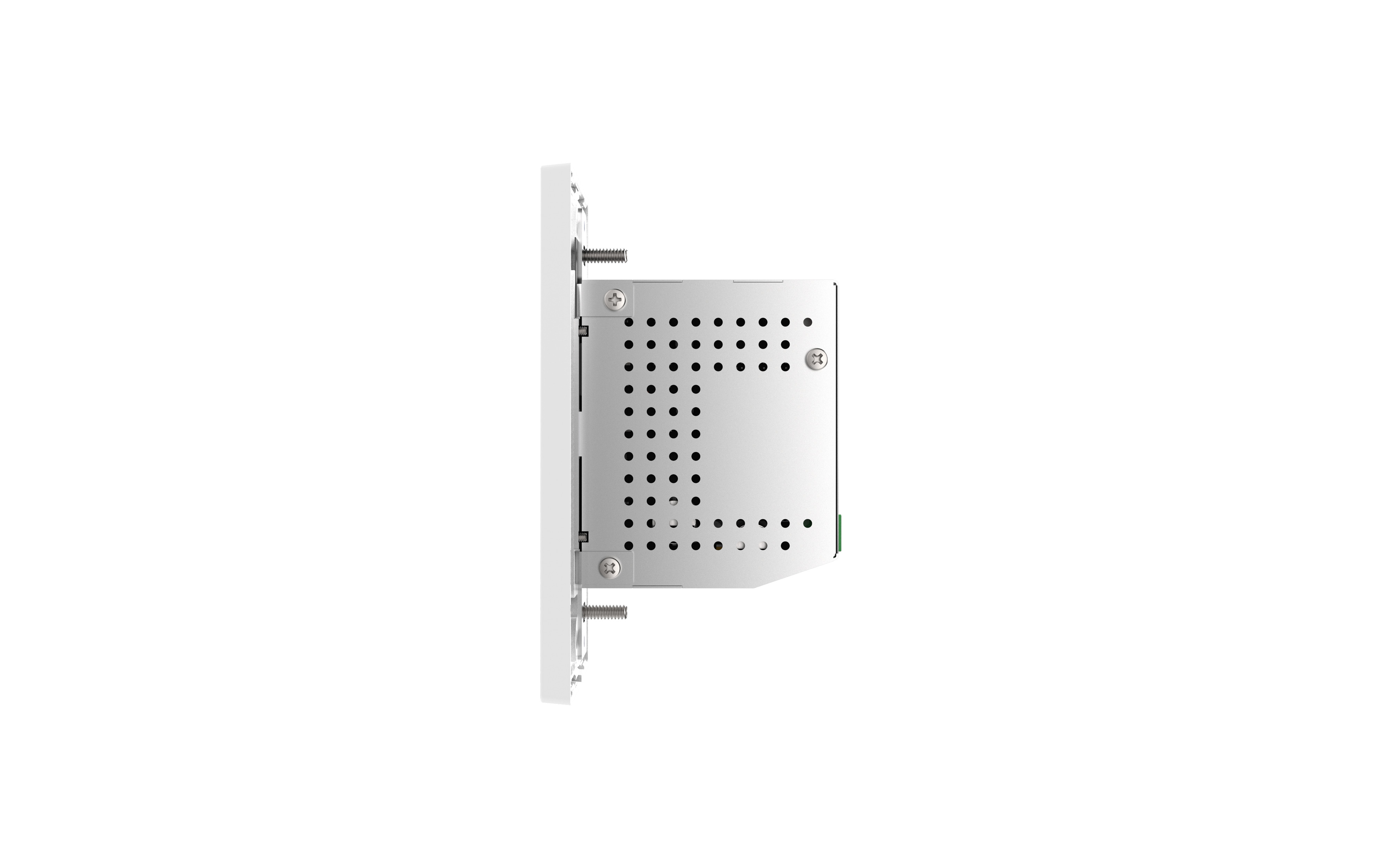

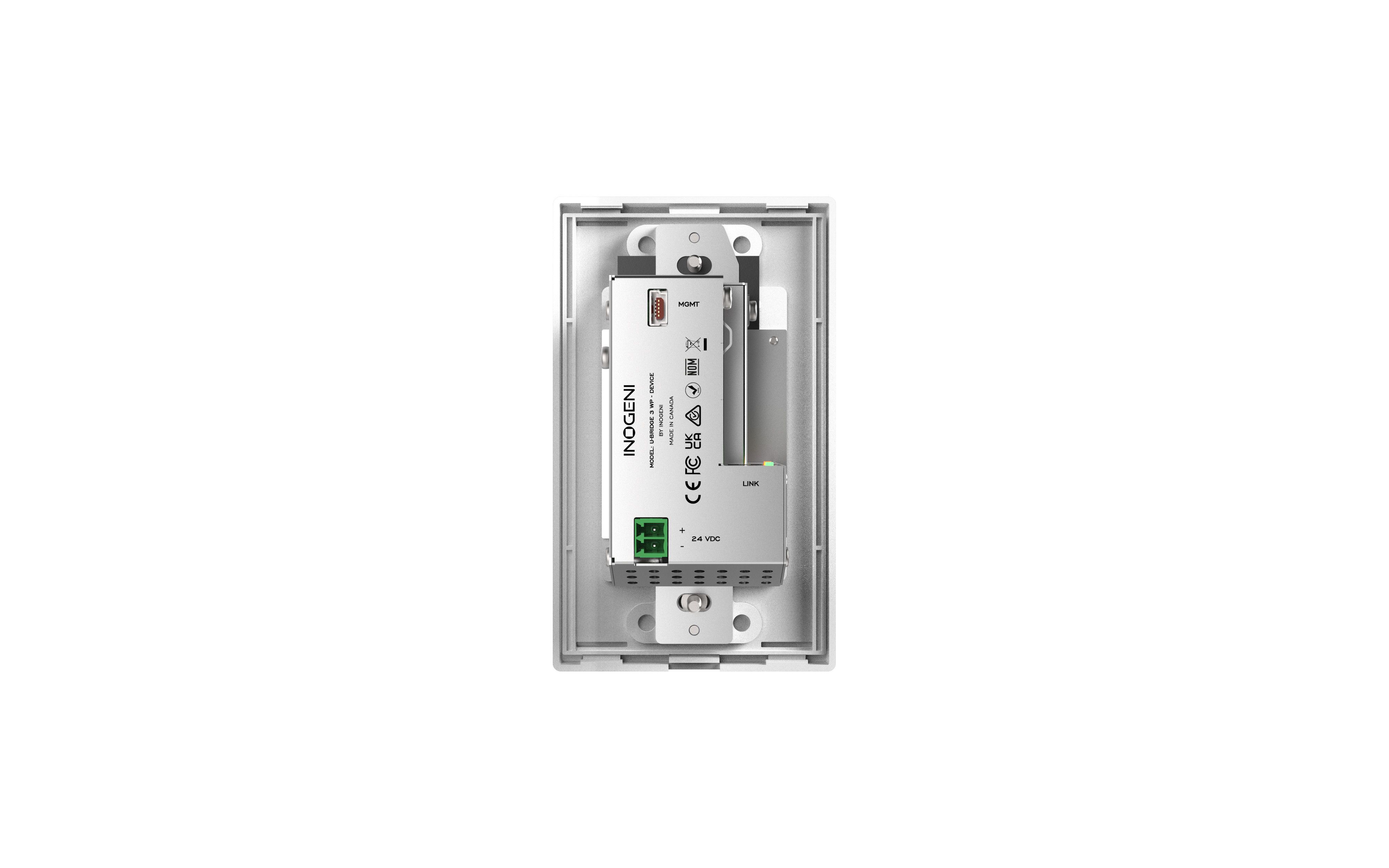

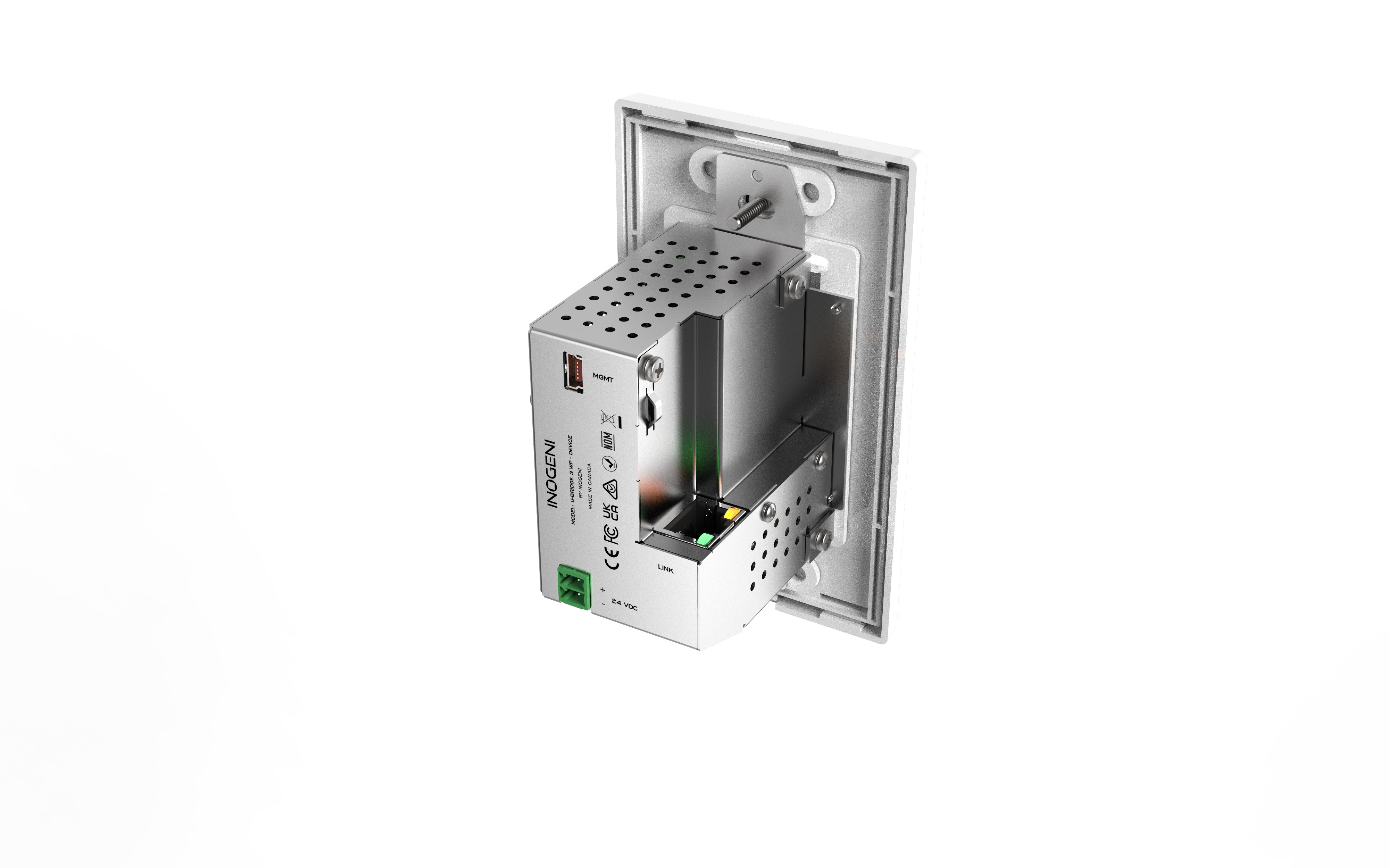

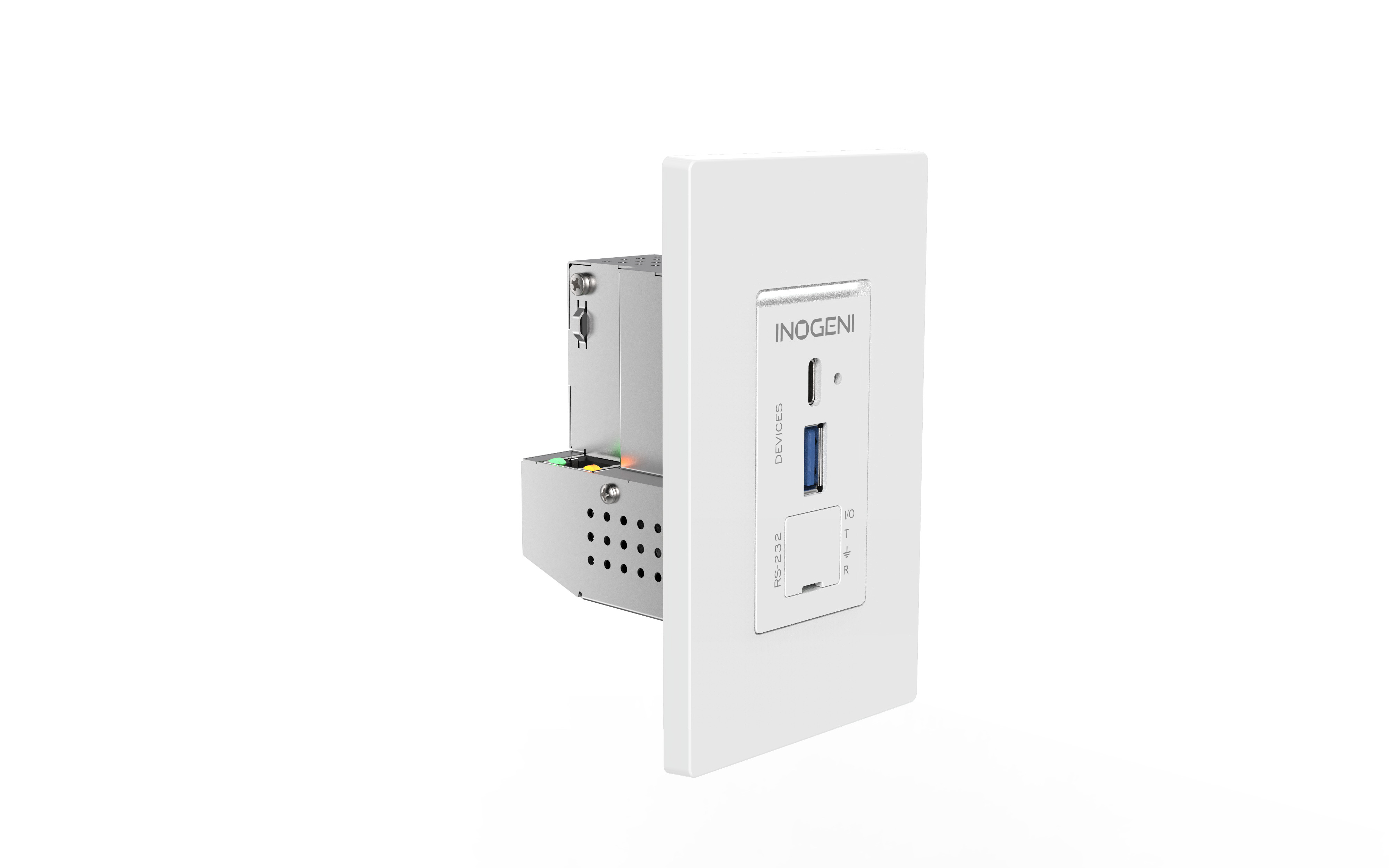

• Device wall plate extender
  • USB connector
    • 1x USB-A receptable
    • 1x USB-C receptacle with mounting screw hole
  • Link connector: 1x RJ45
  • Available current: Up to 1.8A shared between ports
  • Dimensions (WxLxH): 2.74 x 4.60 x 2.59 (6.95 x 11.69 x 6.59 cm)
  • Weight: 0.42 lb  (190 g)
  • Mounting: 1-gang wall plate
  • Enclosure material: Metal enclosure
  • RS-232 connector
    • Passthrough serial connection
    • By default, I/O pin is an output
    • GND or OPEN
• Compability
  • Consumed USB tiers
    • Up to 2 tiers
    • In USB 2.0, USB devices connected are reported to the same USB tier.
    • In USB 3.0, the device introduces two tiers in the USB path.
• Physical details
  • Dimensions (WxLxH)
    • Host: 2.76 x 3.82 x 0.90 inch (7.0 x 9.7 x 2.3 cm)
    • Wall Plate: 2.74 x 4.60 x 2.59 (6.95 x 11.69 x 6.59 cm)
  • Weight
    • Host: 0.37 lb (170 g)
    • Wall Plate: 0.42 lb  (190 g)
  • Power supply: 100-240V AC Input, 24V 1.5A DC output
    • Apply at either PC HOST or DEVICE modules
  • Operating temperature: 0°C to 50°C (32°F to 122°F)
  • Storage temperature: -20°C to 70°C (-4°F to 158°F)
  • Operating humidity: 20% to 80% relative humidity, non-condensing
  • Storage humidity: 10% to 90% relative humidity, non-condensing
  • Installation
    • CAT6A cable: Integrated cable tie slot to secure the CAT6A cable to the device using your own tie wrap — for a clean, secure, and worry-free installation.
    • Universal wall plate: Includes one Decora-style wall plate (North American 1-gang format), replaceable for custom installations or color matching.
    • International: The U-BRIDGE 3 WP uses the standard North American 1-gang format, but it is also certified for international use (CE, FCC, UKCA, RoHS, IEC 62368, SoV, RCM, NOM).
  • Warranty: 5 years
  • Certifications
    • Certifications device: FCC, CE, UKCA, RoHS, IEC62368, SoV, RCM, NOM
    • Certifications – Power supply 36W: FCC, CE, UKCA, CB, UL, TUV, EMC
    • TAA-compliant: Yes

What's in the Box

• 1x PC HOST extender module
• 1x DEVICE wall plate extender module
• 1x USB 3.0 Type-C to Type-C cable
• 1x USB 3.0 Type-C to Type-A cable
• 1x USB-mini to USB-A cable
• 1x installation guide
• 2x mounting brackets for the power supply
• 1x mounting clip for the PCHOST module
• 2x 4-pos terminal blocks
• 1x 2-pos terminal block
• 8x black wood screws
• 1x 1-gang drywall clip
• 1x Decora plate (1-gang standard format)
• 1x power supply 100-240V AC Input, 24V 1.5A DC output
  • International power adapter with country-specific cord (North America, EU, UK, Australia/NZ, or Japan)
