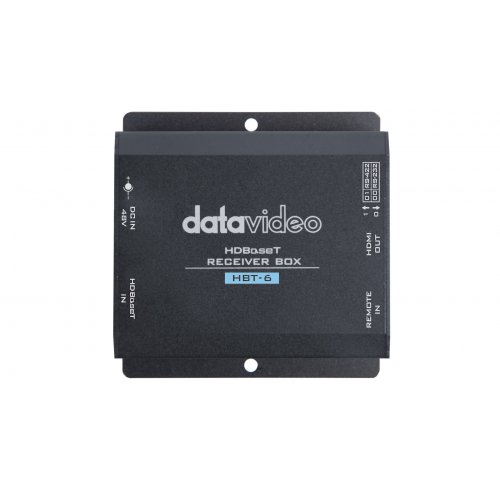

Datavideo HBT-6 HDBaseT Receiver Box

About: Datavideo HBT-6 HDBaseT Receiver Box

The HBT-6 transmits HDMI signals up to 60m at 1080p and 35m at 4K@30 using Cat 6 cable

Supports HDMI Deep Color & full 3D & 4K@30 (HDBaseT technology)

HDMI Deep Color supports better color depths. To giving your display device a great image.

The extender supports Ultra HD and Full HD resolution

Transmits HDMI signals up to 60m at 1080p and 35m at 4K@30 using Cat 6 cable The extender supports Ultra HD and Full HD resolution and the accompanying digital audio.

Receiver can be powered directly by a power supply, or by Power over Ethernet from the transmitter

HBT-6 receiver can be powered by the same single power source using Power-over-Ethernet (PoE), easy to install for various applications. Support 12V power out for remotely located equipment.

HDCP compliant

Can perfectly display the video source with HDCP in high clarity with zero interruption.

Supports control over RS-232/ RS-422

HBT-6 offers RS-232/RS-422 control signals, which allow to control the source device from the display location.

Supports default EDID and EDID learning from the display

EDID pass-through passes signal between the source and display

Dolby TrueHD & DTS Master audio support

Supports Dolby Digital, DTS-HD and Dolby TrueHD audio

Specifications

• Video/Audio Input -  1x HDBaseT RJ-45
• Video/Audio Output -  1x HDMI
• Supported Video Format
  • 3840x2160p: 30/29.97/25/24/23.98
  • 1080p: 60/59.94/50/30/29.97/25/24/23.98
  • 1080i: 60/59.94/50, 720p: 60/59.94/50
  • 525i59.94 NTSC, 625i50 PAL
• Video Process
  • 4K2K30 4:4:4 8bit
  • 4K2K60 4:2:0 8bit
• Video bandwidth -  Single-link 340MHz [10.2Gbps]
• DVIP -  ---
• RS-422/ RS-232 -  YES
• Power -  DC IN: DC 48V
• PoE Output -  30W
• HDBaseT Distance
  • 1080p@60 60m (198ft) by CAT6 cable
  • 4K2K@30 35m (114ft) by CAT6 cable
• HDMI compliance -  HDMI Deep Color, full 3D & 4K2K@30
• HDCP compliance -  HDCP 2.2/1.4
• Audio support
  • Surround sound [up to 7.1ch)
  • Stereo digital audio
• Dimension (LxWxH) -  3.46 x 2.99 x 1.18 in (88 x 76 x 30 mm)
• Weight -  0.34 lb (154 g)
• Operating Temp. Range -  0~40 °C

What's in the Box

• 1x HBT-6 main unit
• 1x AC cord
• 1x DC 48V power adaptor
• 2x Screw
