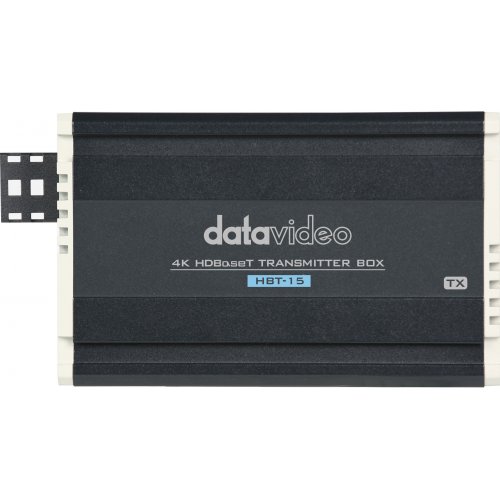

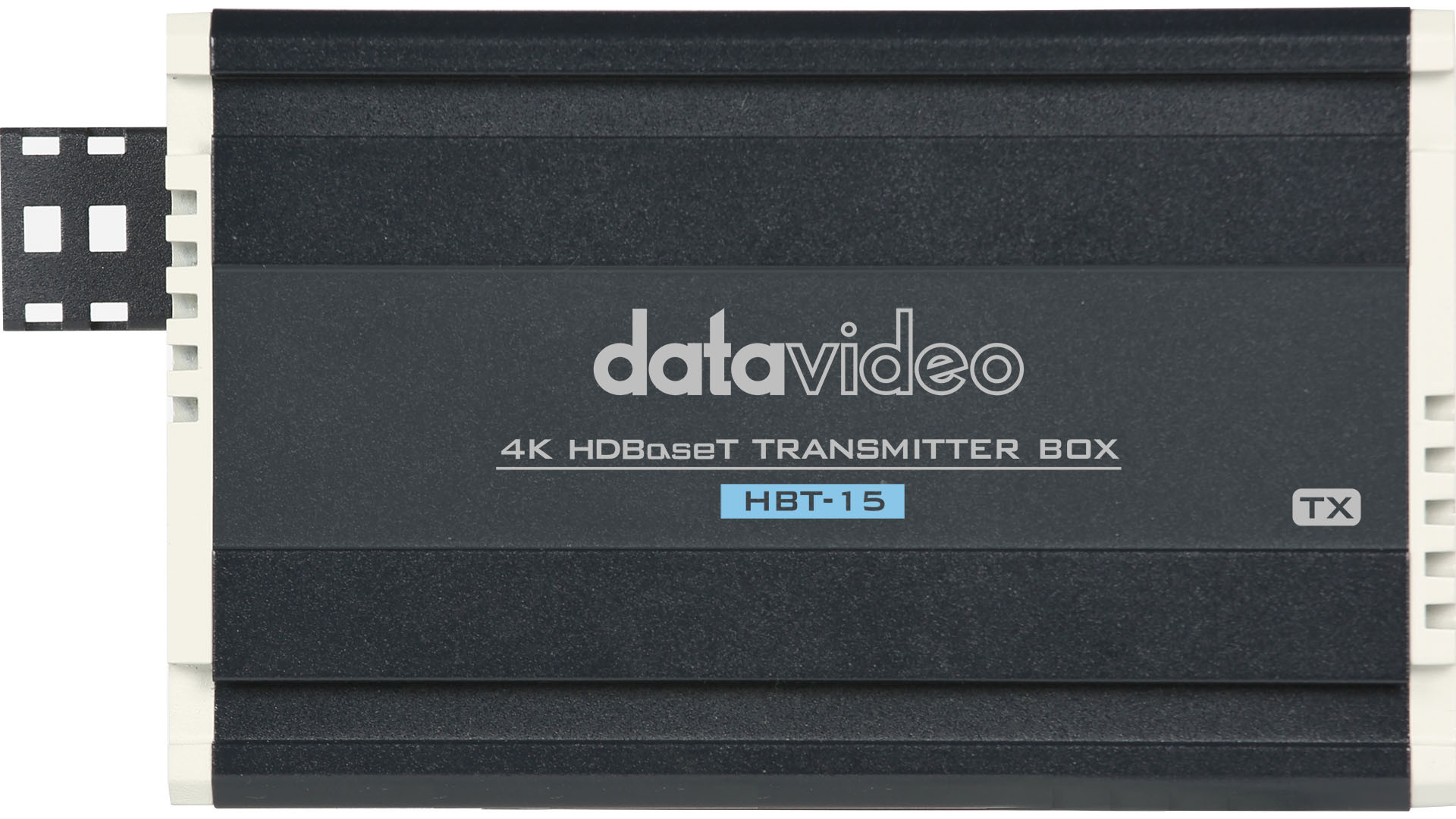

Datavideo HBT-15 4K HDBaseT Transmitter Box

About: Datavideo HBT-15 4K HDBaseT Transmitter Box

The HBT-15 is a long distance 4K HDBaseT Transmitter that carries 4K video, control, tally, and power over one ethernet cable. It is designed to interface between transmitting and receiving HDBaseT devices. The HBT-15 Transmitter transmits up to 4K 2160P image quality video up to 100m.​

Transmits HDMI signals up to 100m at 2160p using Cat 6A or above cable.

The extender supports Ultra HD and Full HD resolution and the accompanying digital audio.

HDMI Deep Color supports better color depths

HDMI Deep Color supports better color depths. To giving your display device a great image.

Receiver can be powered directly by a power supply, or by Power over Ethernet from the transmitter.

HBT-15 transmitter can be powered by the same single power source using Power-over-Ethernet (PoE+), easy to install for various applications. Support 12V power out for remotely located equipment.

HDCP compliant

Can perfectly display the video source with HDCP in high clarity with zero interruption.

Support DVIP, RS-422, and RS-232 control protocols.

HBT-15 offers DVIP, RS-232/RS-422 control signals, which allow to control the source device from the display location.

Supports default EDID and EDID learning from the display

EDID pass-through passes signal between the source and display

Dolby TrueHD & DTS Master audio support

Supports Dolby Digital, DTS-HD and Dolby TrueHD audio

Aluminum Alloy and Heavy Duty Design

Super sturdy and durable. HBT-15 has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.

Specifications

• Video/Audio Input -  1x HDMI 2.0
• Video/Audio Output -  1x HDBaseT RJ-45
• Supported Video Format
  • 2160p: 60/59.94/50/30/29.97/25
  • 1080p: 60/59.94/50/30/29.97/25
  • 1080i: 60/59.94/50
  • 720p: 60/59.94/50
  • 480i: 59.94
  • 576i: 50
• Video Process
  • 4K2K60 4:4:4 8bits
  • 4K2K60 4:2:0 10bits
• Video bandwidth -  Single-link 600MHz [18Gbps]

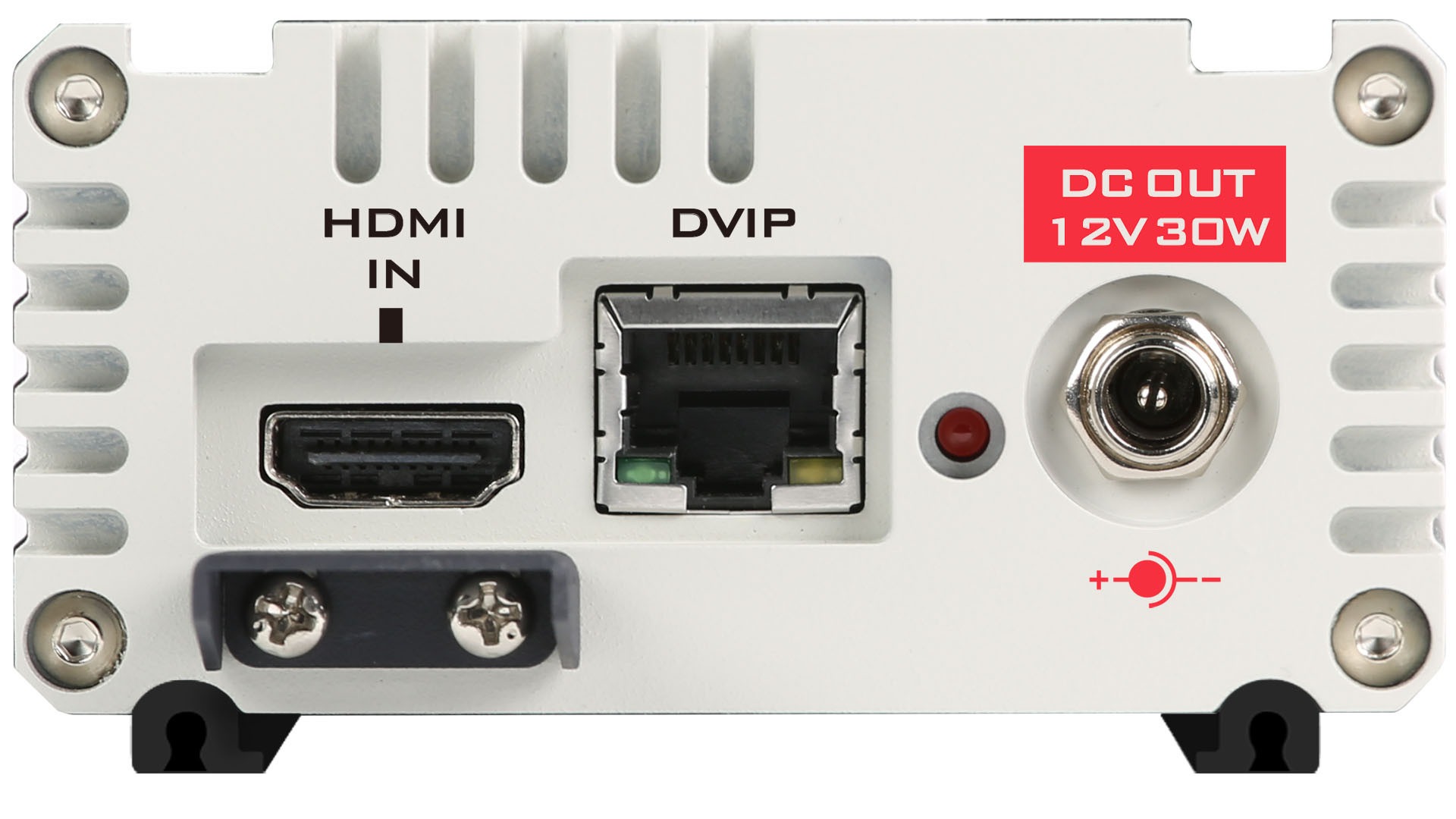

• DVIP -  1x RJ-45 (output)

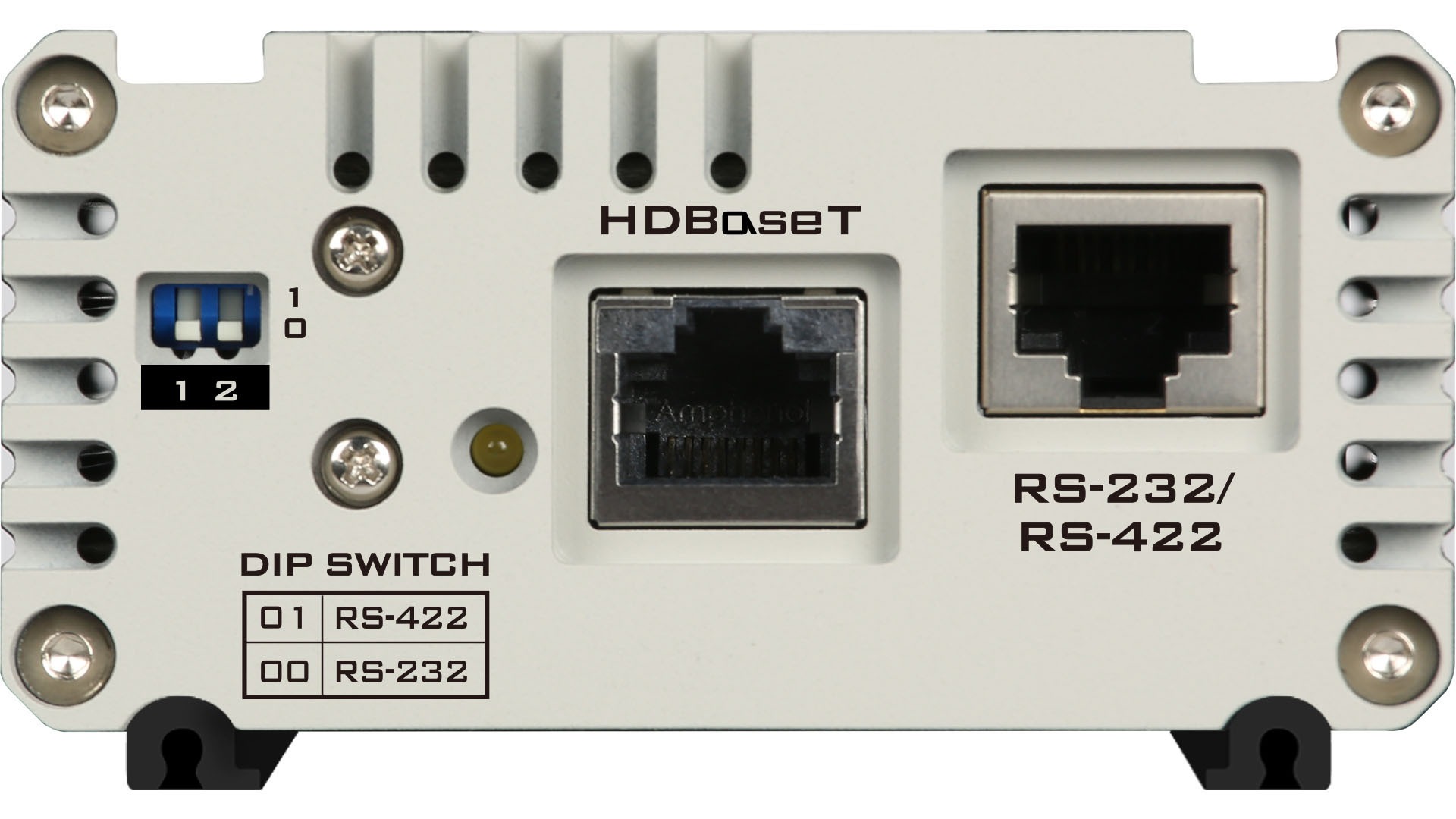

• RS-422/ RS-232 -  RJ-45 x1
• Power -  DC Out: 12V 30W
• PoE Output -  ---
• HDBaseT Distance -  2160p60/59.94/50 Up to 100m by CAT. 6A Cable (Resolution downward supported)
• HDMI compliance -  HDMI 2.0
• HDCP compliance -  HDCP 2.2/1.4 (Bypass)
• Audio support -  Surround sound (up to 7.1ch)
• Dimension (LxWxH) -  6.18 x 3.35 x 1.81 in (157 x 85 x 46 mm)
• Weight -  1.04 lb (474 g)
• Operating Temp. Range -  0~40 °C

What's in the Box

• 1x HBT-15 main unit
• 1x DC to DC cable
