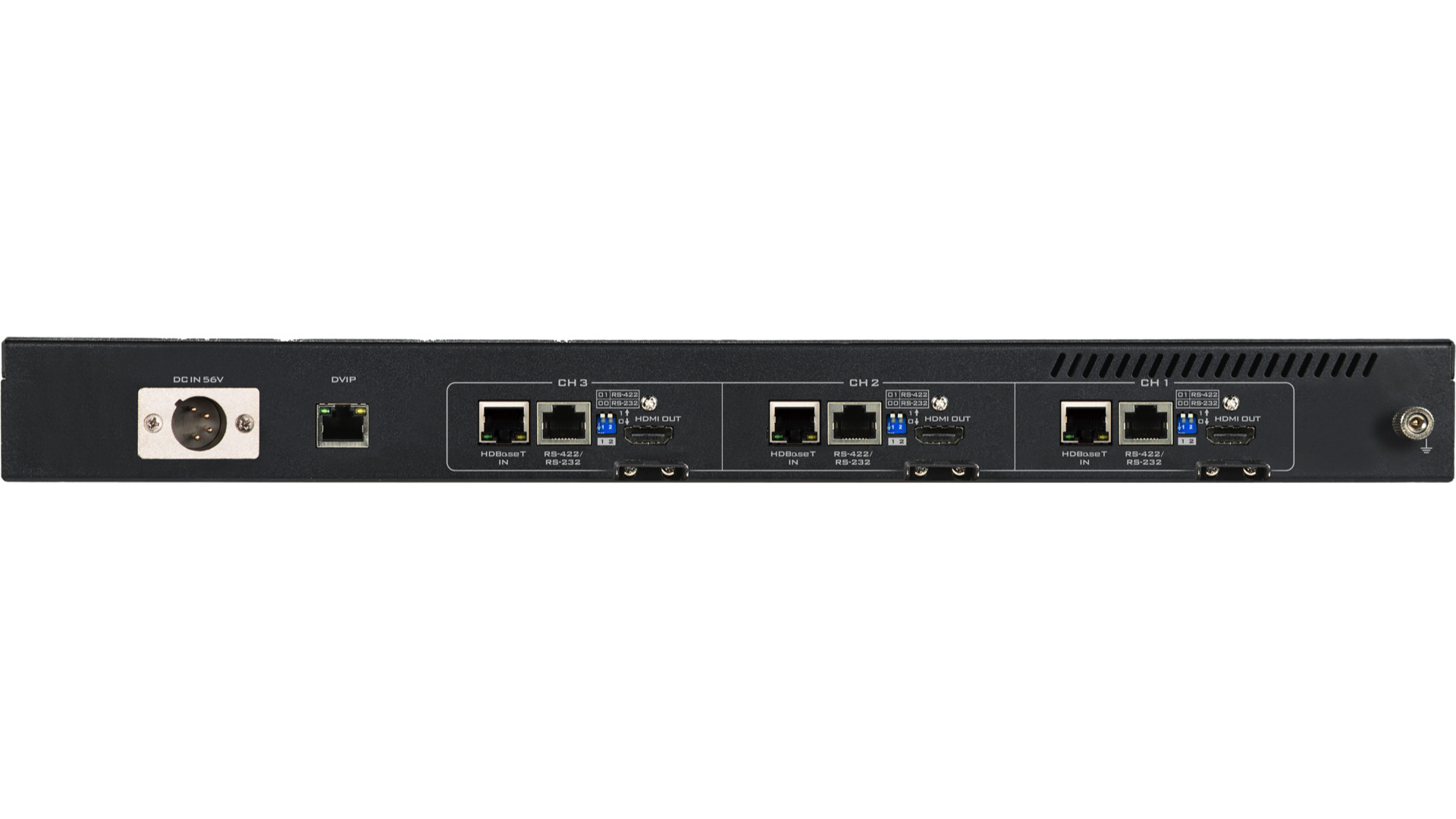

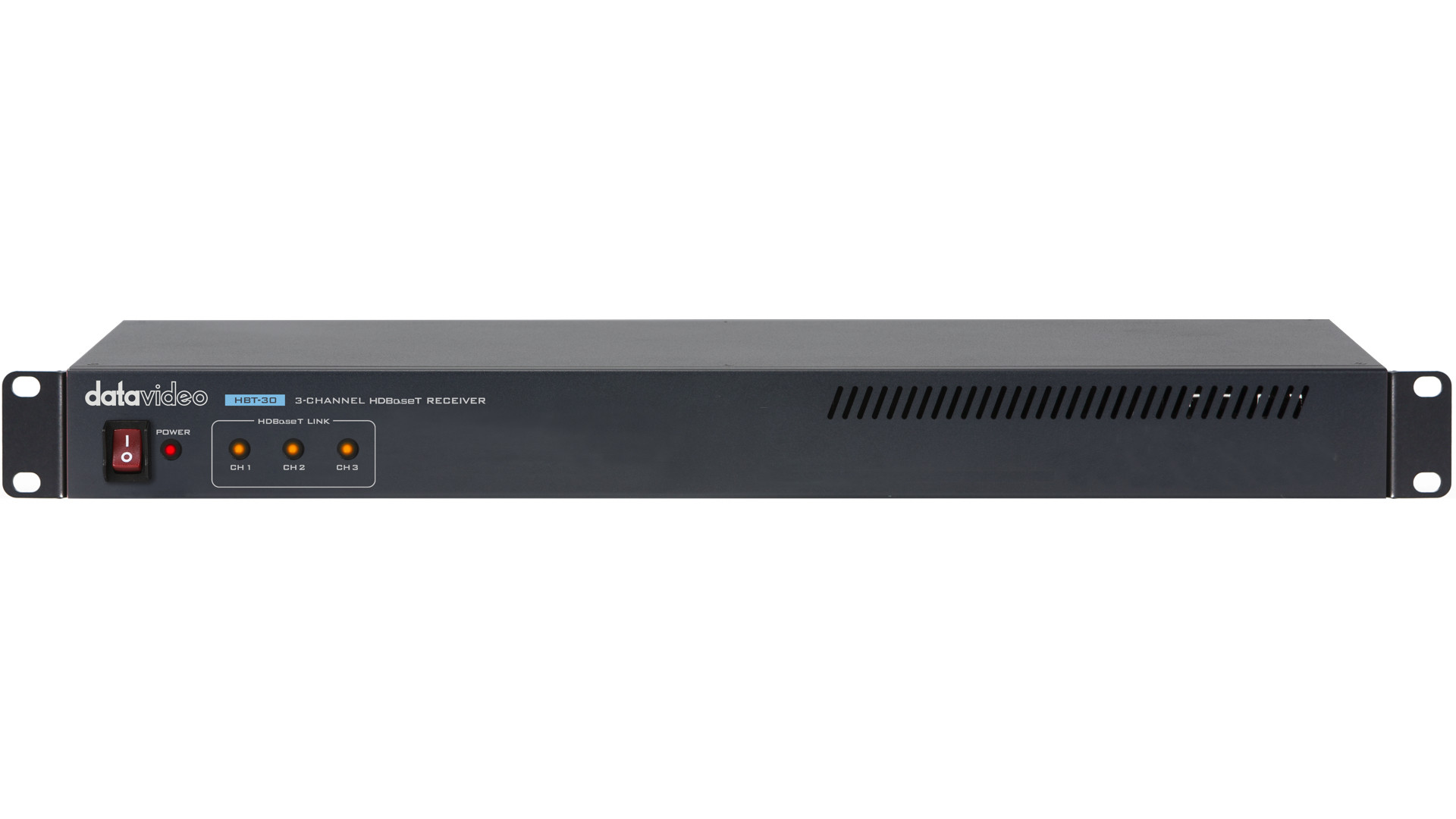

Datavideo HBT-30 3-Channel HDBaseT Receiver with HDMI Outputs

About: Datavideo HBT-30 3-Channel HDBaseT Receiver with HDMI Outputs

An essential link to connect all your equipment for your 4K live production, the HBT-30 supplies power, Ultra HD 4K50/60 video signal, and camera control up to 3 devices up to 100 meters distance. It simultaneously outputs HDMI, RS-422 and IP control signals.

Seamlessly add HDBaseT to your 4K HDMI Workflow

HBT-30 can power the PTZ video cameras via PoE, transmit signals over a single ethernet cable to and from the camera and can be used to remotely control various camera parameters such as iris, presets and etc. Most importantly, it can output HDMI signal to your switcher.

Integrate camera control, switcher and recorder operations

HBT-30 transmits HDMI signal (up to Ultra HD 4K 50/60 ) as well as camera control. With the HBT-30, the system can be integrated as a  camera controller, video switcher, and ISO recorder.

Perfect solution for your HDMI workflow

Remote control of camera functions via RS-422 or DVIP with HDMI video transmission (up to Ultra HD 4K 50/60 ) up to 3 cameras simultaneously up to 100 meter.

Control your camera from 100 meter away

Control up to three HDBaseT cameras from a single receiver. With HBT-30, you no longer need individual HDBaseT receiver boxes per camera.

Specifications

• Video/Audio Input -  3x HDBaseT RJ-45
• Video/Audio Output -  3x HDMI 2.0
• Supported Video Format
  • 3840x2160p: 60/59.94/50/30/29.97/25/24/23.98
  • 1080p: 60/59.94/50/30/29.97/25/24/23.98
  • 1080i: 60/59.94/50
  • 720p: 60/59.94/50
  • 525i: 59.94 NTSC
  • 625i: 50 PAL
• Video Process
  • 4K60 4:4:4, 8bit
  • 4K60 4:2:2 10bit
  • 4K60 4:2:0 10bit
• Video bandwidth -  Single-link 594MHz [18Gbps]
• DVIP -  1x RJ-45 (input)
• RS-422/ RS-232 -  3x RJ-45 (RS-232/RS-422)
• Power -  DC IN: DC 56V
• PoE Output -  65W per channel
• HDBaseT Distance
  • ​1080p@60 up to 100M by CAT. 6A cable
  • 4K@60 up to 100M by CAT. 6A cable
• HDMI compliance -  HDMI Deep Color & 4K@60
• HDCP compliance -  HDCP 2.2/1.4 (Bypass)
• Audio support -  Surround Sound [up to 7.1 Channel) or Stereo Digital Audio
• Dimension (LxWxH) -  17.32 x 4.92 x 1.75 in (440 x 125 x 44.5 mm)
• Weight -  3.97 lb (1.8 kg)
• Operating Temp. Range -  0~40°

What's in the Box

• 1x HBT-30 main unit
• 1x AC cord
• 1x DC 56V power adaptor
