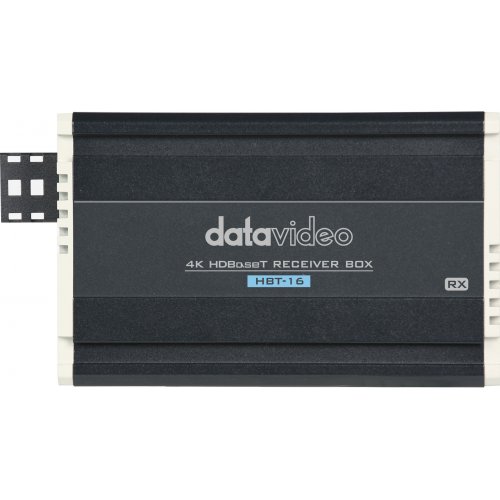

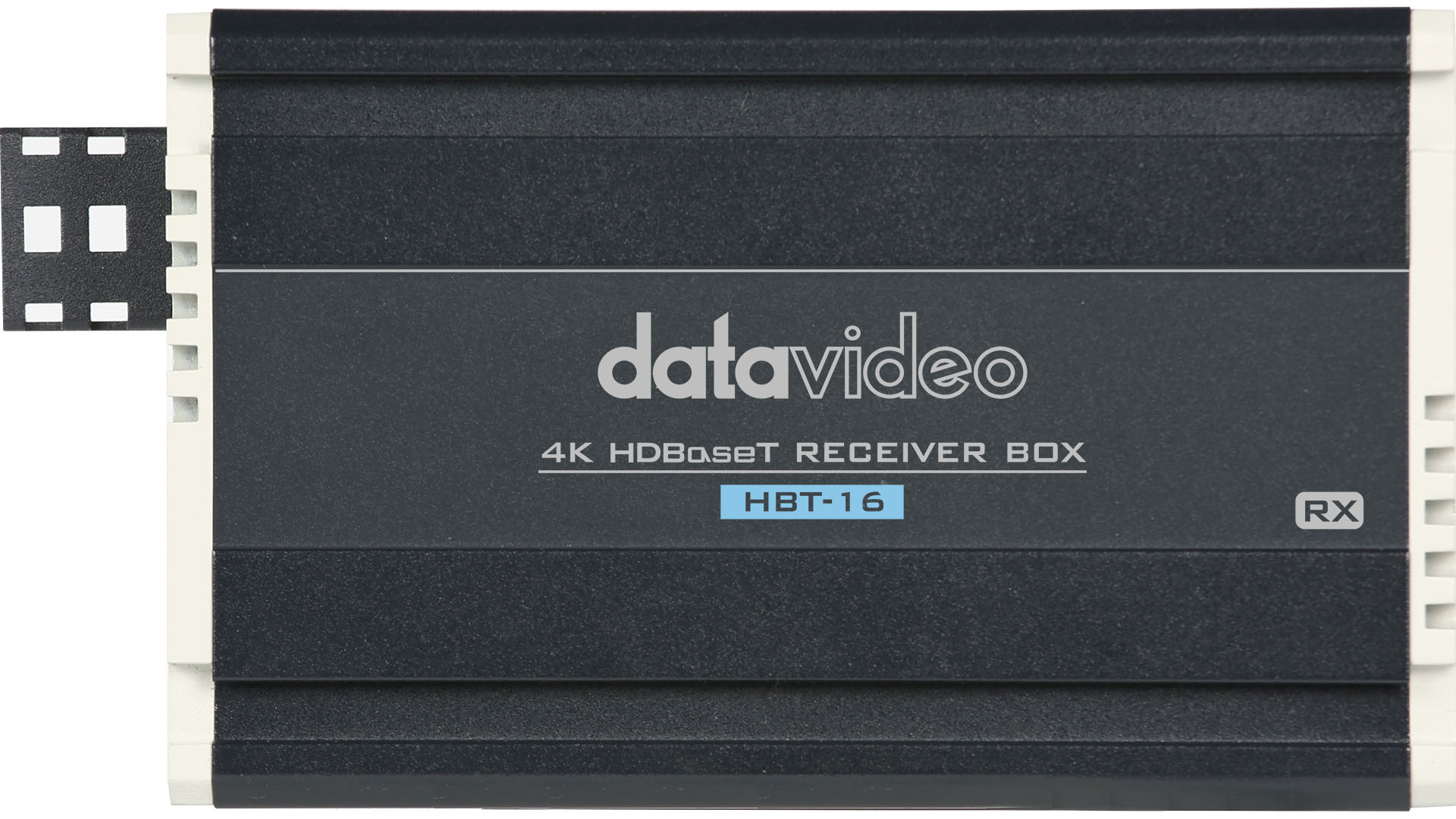

Datavideo HBT-16 4K HDBaseT Receiver Box

About: Datavideo HBT-16 4K HDBaseT Receiver Box

The HBT-16 is a long distance 4K HDBaseT receiver that accepts 4K video, tally, control, and power over one ethernet cable It is a HDBaseT receiver designed to use with an HDBaseT transmitter to receive signal between HDBaseT devices. The receiver accepts up to 4K 2160P image quality video.

Transmits video, audio, DVIP control, RS-422/232 control and PoE+ over a single Cat 7 cable.

With the 56V power connected to one end of the HBT-16 HDBaseT receiver

The HBT-16 will thus be able to power the transmitting device by PoE plus technology (PoE++).

HDBaseT connection between the transmitter and the receiver can be established using a single Ethernet cable.

HDMI video, DVIP control commands and power (PoE++) can be transmitted between the transmitter and the receiver over just one cable.

HDMI Deep Color supports better color depths

HDMI Deep Color supports better color depths. To giving your display device a great image.

Extends 2160P video transmission up to 100m.

Long distance 4K solution. Support up to 4K 50/59.94/60p and receives up to 4K2160P video from the transmitter.

HDCP compliant

Can perfectly display the video source with HDCP in high clarity with zero interruption.

Support DVIP, RS-422, and RS-232 control protocols.

HBT-16 offers DVIP, RS-232/RS-422 control signals, which allow to control the source device from the display location.

Supports default EDID and EDID learning from the display

EDID pass-through passes signal between the source and display.

Dolby TrueHD & DTS Master audio support

Supports Dolby Digital, DTS-HD and Dolby TrueHD audio

Aluminum Alloy and Heavy Duty Design

Super sturdy and durable. HBT-16 has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.

Specifications

• Video/Audio Input -  1x HDBaseT RJ-45

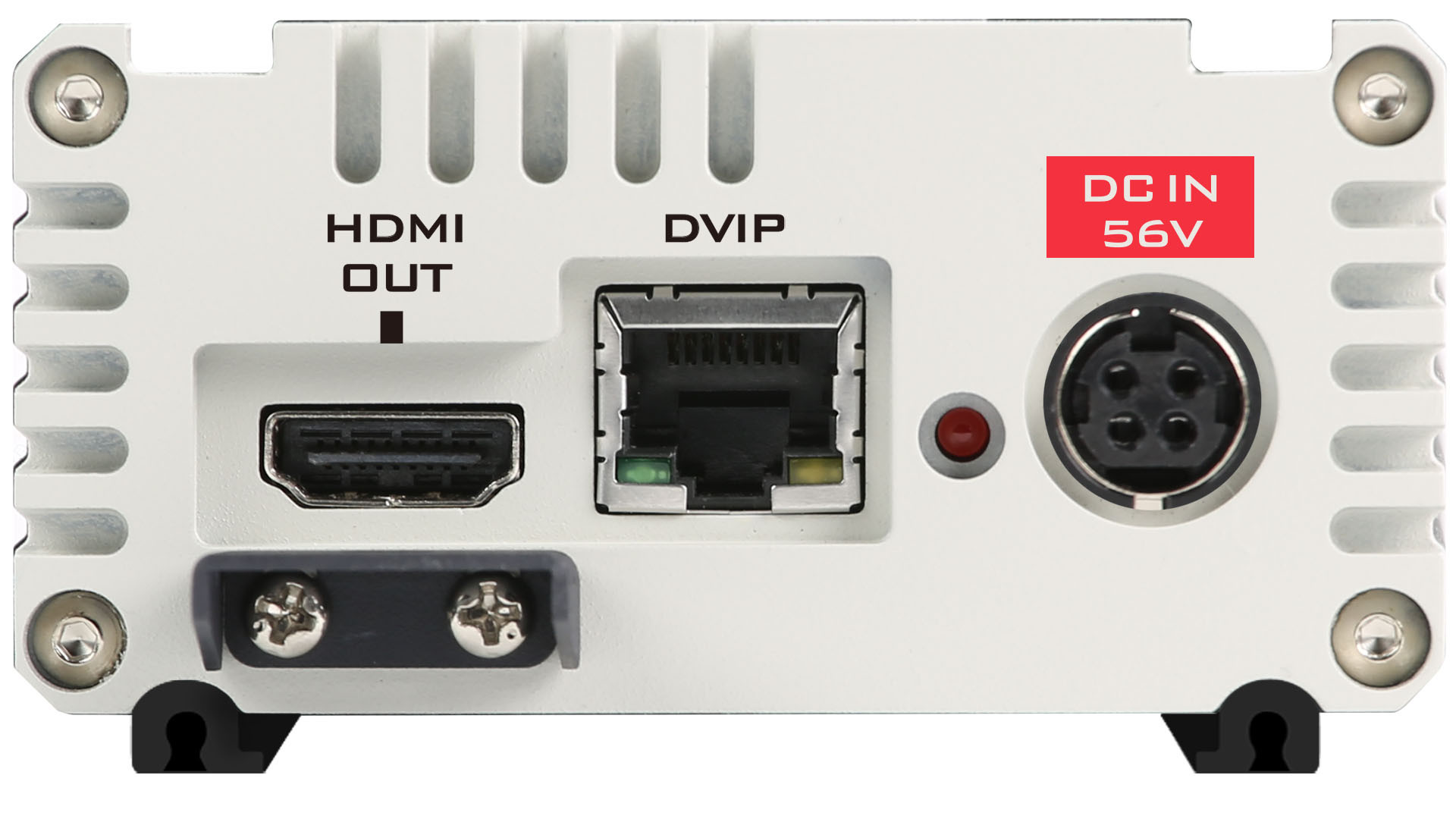

• Video/Audio Output -  1x HDMI 2.0
• Supported Video Format
  • 2160p: 60/59.94/50/30/29.97/25
  • 1080p: 60/59.94/50/30/29.97/25
  • 1080i: 60/59.94/50
  • 720p: 60/59.94/50
  • 480i: 59.94
  • 576i: 50
• Video Process
  • 4K2K60 4:4:4 8bits
  • 4K2K60 4:2:0 10bits
• Video bandwidth -  Single-link 600MHz [18Gbps]
• DVIP -  1x RJ-45 (input)

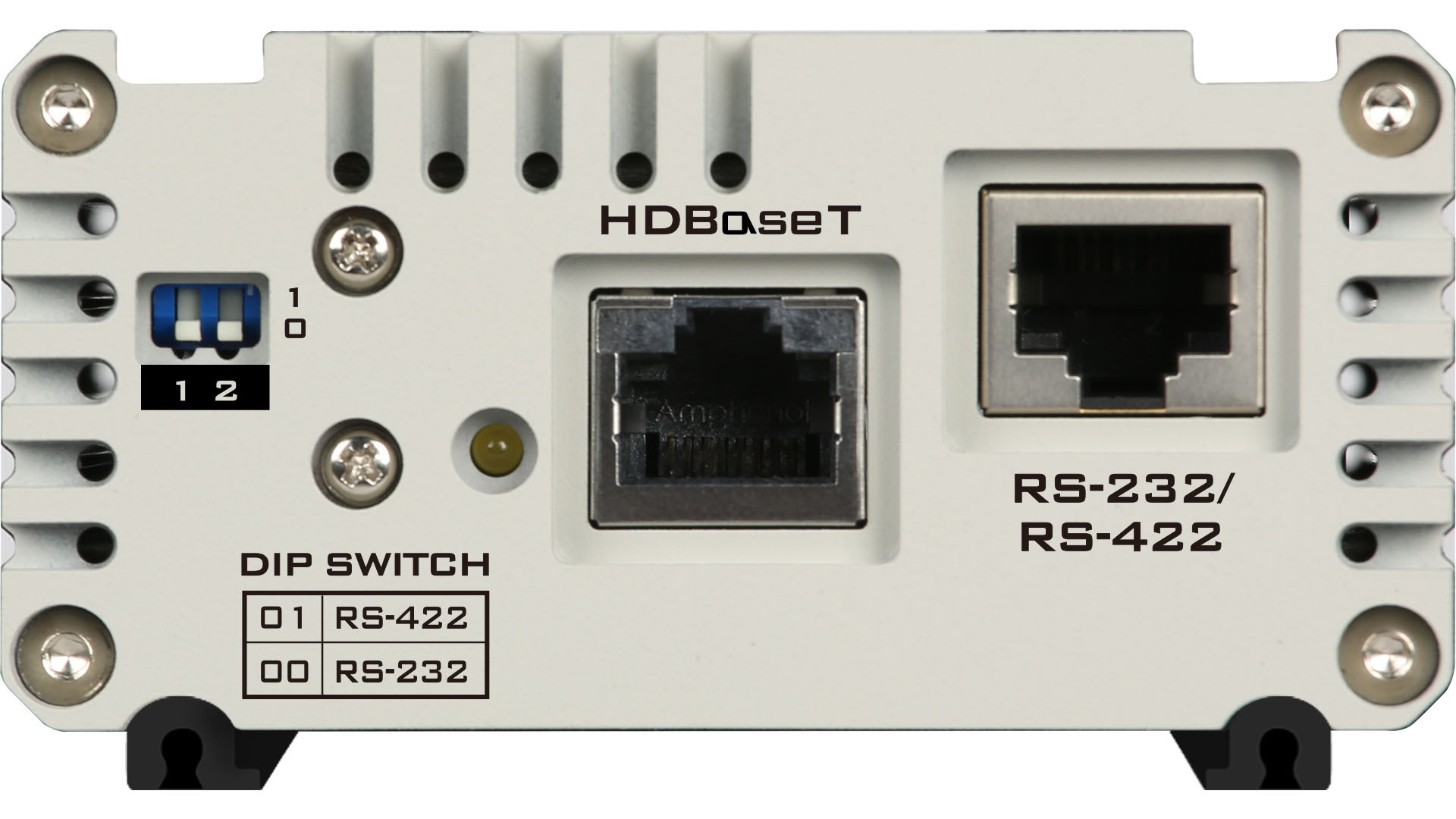

• RS-422/ RS-232 -  1x RJ-45
• Power -  DC IN: DC 56V
• PoE Output -  65W
• HDBaseT Distance -  2160p60/59.94/50 Up to 100m by CAT. 6A Cable (Resolution downward supported)
• HDMI compliance -  HDMI 2.0
• HDCP compliance -  HDCP 2.2/1.4 (Bypass)
• Audio support -  Surround sound (up to 7.1ch)
• Dimension (LxWxH) -  6.18 x 3.35 x 1.81 in (157 x 85 x 46 mm)
• Weight -  0.99 lb (450 g)
• Operating Temp. Range -  0~40°

What's in the Box

• 1x HBT-16 main unit
• 1x AC cord
• 1x DC 56V power adaptor
