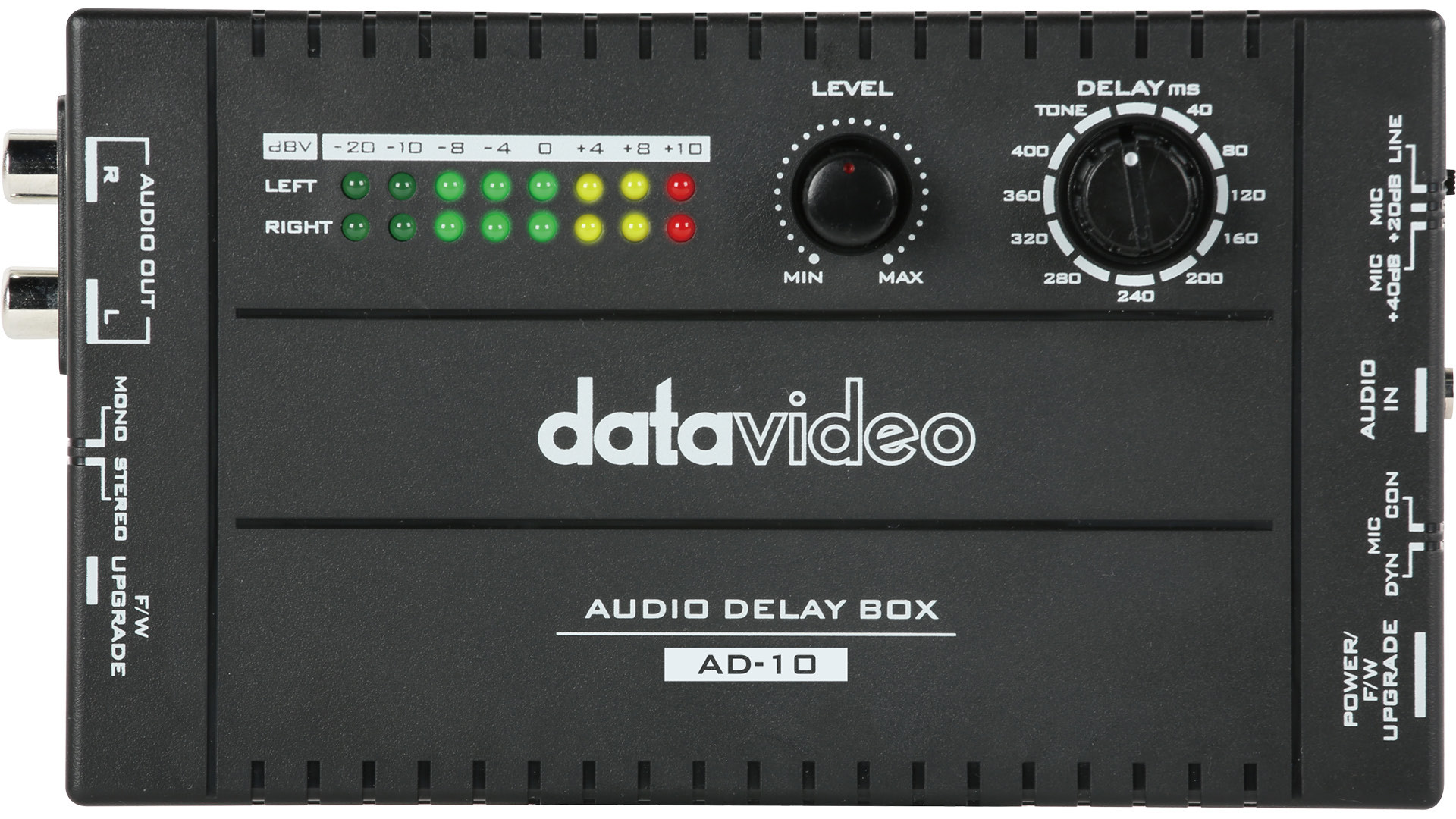

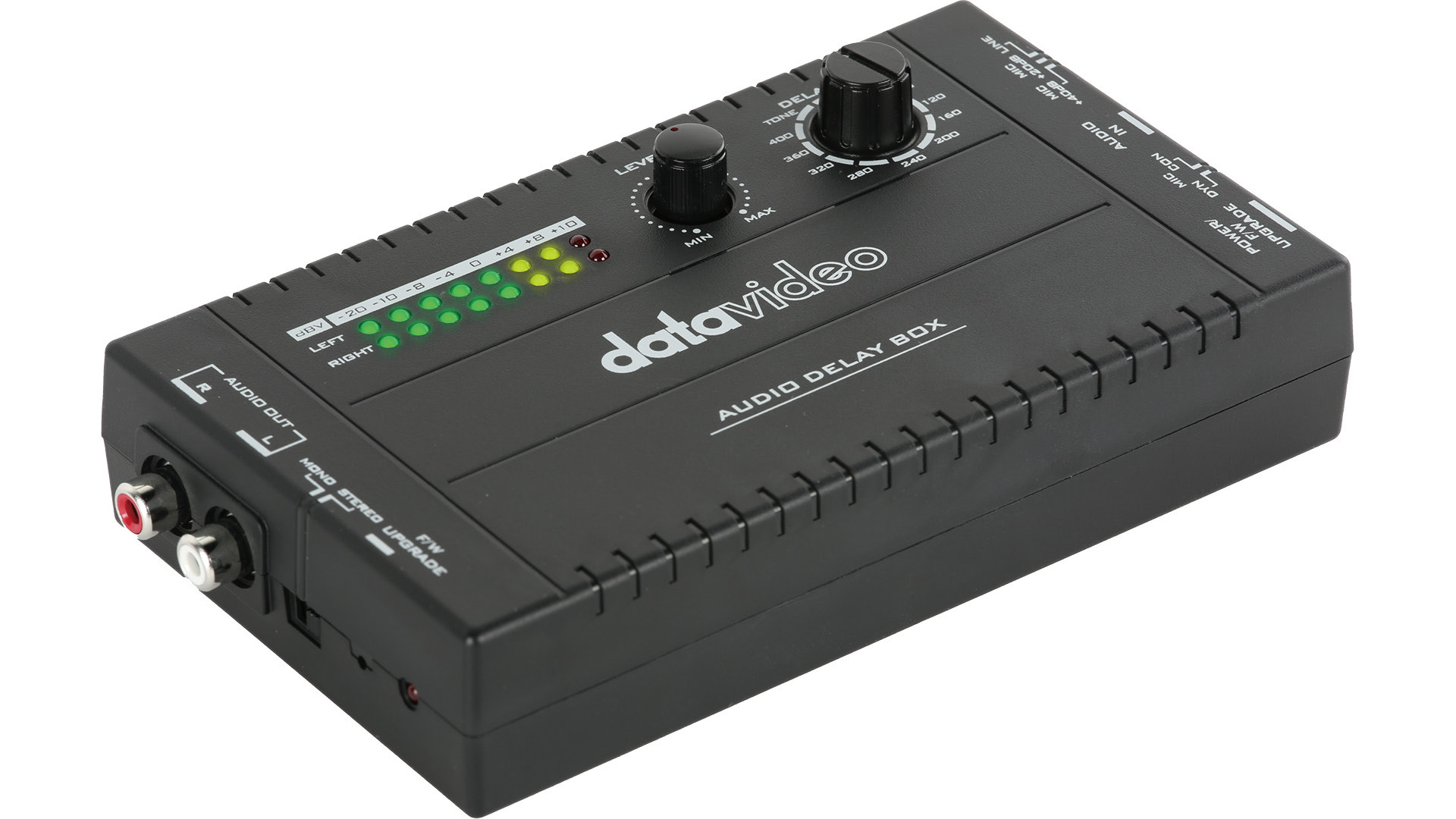

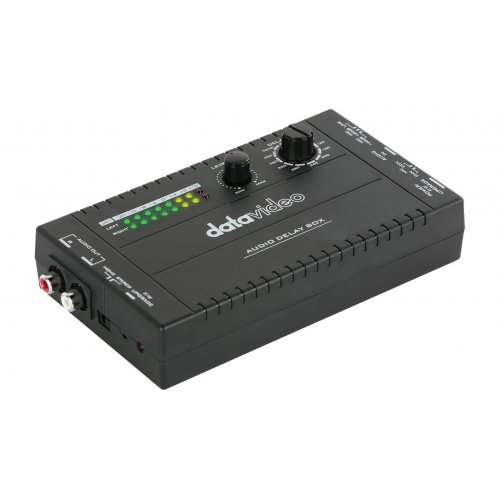

Datavideo AD-10 Audio Delay Box
Model: AD-10
About: Datavideo AD-10 Audio Delay Box
The Datavideo AD-10 is easy to control with clear LED indicators. Compact and lightweight, suitable for integration into any workflow.
Delay up to 400ms
Up to 400ms of sound delay range with easy to adjust knob design, synchronize video and sound with precision.
Power by external USB power supply
Convenient power supply available anywhere, make your work process smoother.
Full range of input options to meet a variety of needs
Switchable for Microphone input or Audio Line input, and switchable Condenser / Dynamic Microphone. Meet a wide range of microphone input requirements.
Compatible outputs

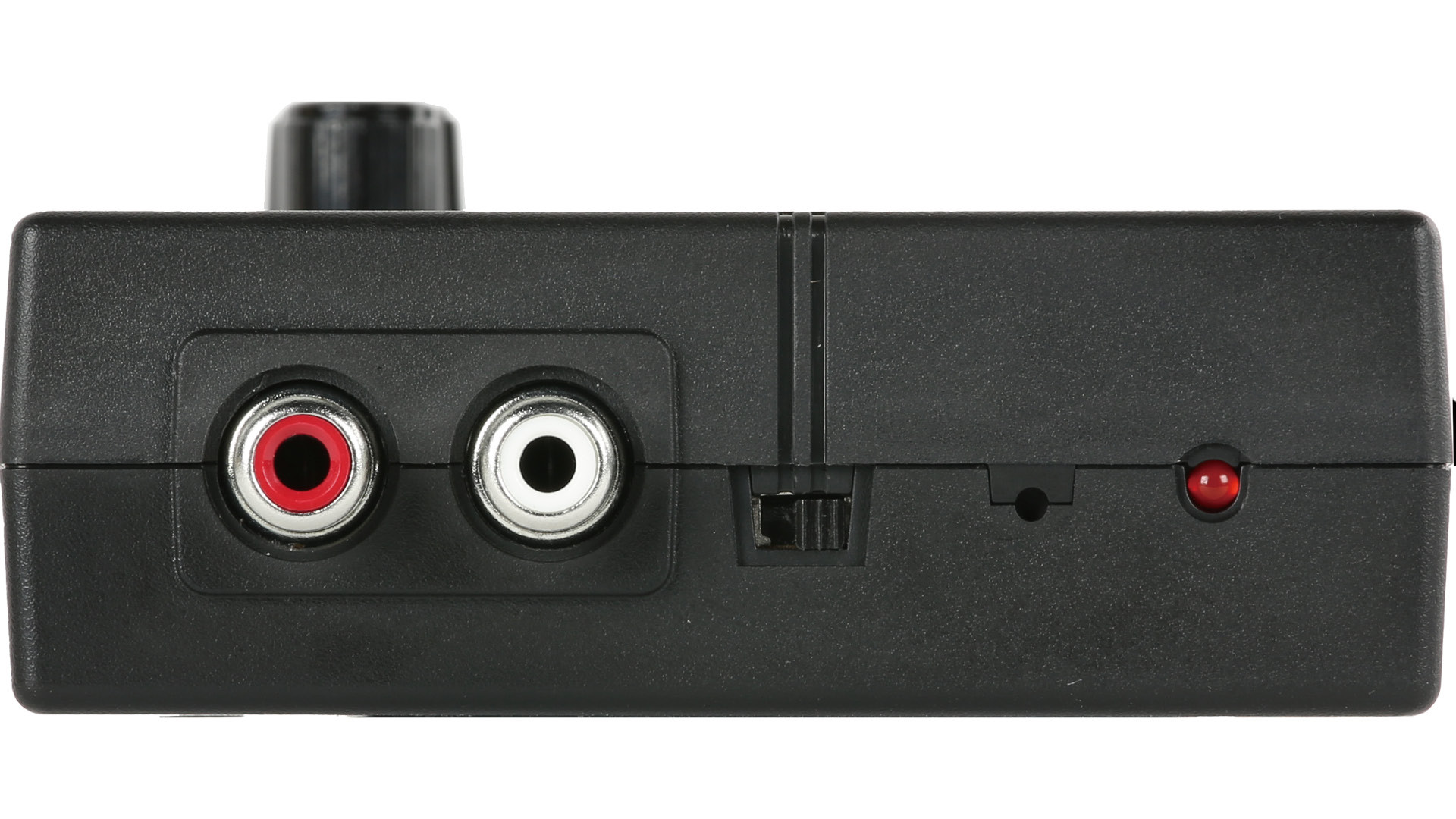

Switchable mono/stereo output. Stereo RCA output connectors for wide compatibility.
Specifications
- Audio Input
- 1 x 3.5mm Jack Socket
- ( Tip: Mic/Line (Left)、Ring: Mic/Line (Right)、Sleeve: GND)
- 16K ohms, MAX Line input Level: +10dBV
- Audio Output
- 2 x unbalanced stereo audio, RCA sockets 600 ohms, MAX=+10dBV
- Audio Indicator: 2 Rows (Left / Right)
- Audio Delay: Up to 400ms
- Audio Sample Rates: 48 KHz
- Special Feature
- Switchable for Microphone input or Audio Line input
- Switchable Condenser / Dynamic Microphone
- Stereo RCA output connectors for wide compatibility
- Chassis: Compact and lightweight design
- Power: USB Type C (5V/1A)
- Dimension (LxWxH): 151 x 88.5 x 30.7 mm
- Weight: 0.18 kg
- Operating Temp. Range: 0~40 °C
What's in the Box
- 1 x AD-10 product
- 1 x RCA to 3.5mm Cable
