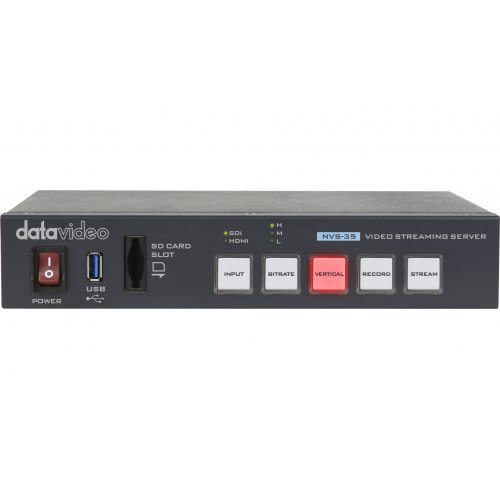

Datavideo NVS-35 Dual-Streaming Encoder/Recorder

About: Datavideo NVS-35 Dual-Streaming Encoder/Recorder

Features

• XLR 2ch or RCA in external audio in
• Audio Delay: 0-3000ms
• Storage: SD Card, USB 2.0 for HDD/SSD
• H.264 streaming and recording simultaneously.
• File System: FAT32/exFAT/NTFS
• Vertical video streaming for social media

Not only an encoder but also a recorder

• Simultaneous live streaming and recording in H.264 format is supported, suitable for a variety of applications.

Supports multiple inputs configurations

• HDMI/SDI video input is supported. For audio, XLR and RCA audio inputs are provided.

Direct recording to SD card, supports multiple file systems and continuous recording

• Support FAT32/exFAT/NTFS file systems, continuous recording without file size limitation.

Dual streaming to two different platforms or CDNs

• Simultaneously live streaming to two platforms such as Youtube and Facebook, thus gaining more viewers.

Vertical screen streaming

• There are about 50% of viewers using the smart phone to watch the video stream and 94% of them prefer vertical orientation. NVS-35 offers vertical screen streaming function and you can easily create a vertical oriented video with a few basic settings.

Selectable audio output

• Optional embedded audio/external audio/mixed audio, with wide compatibility.

Support SRT streaming protocol, no need to worry about unreliable network environment

• Many broadcasters have experienced pixelated video during live streaming, often due to unstable network environments caused by bandwidth volatility.
• Streaming RTMP over unreliable, low-bandwidth networks can cause issues. With dvCloud, you can now replace the RTMP protocol with SRT, which will fix most streaming issues you may have. SRT is better than RTMP because it handles problematic networks more efficiently.
• It requires less bandwidth, and it solves data errors faster. As a result, your viewers will experience a better stream, with less buffering and pixelization.

Build a reliable SRT live streaming workflow with all Datavideo products.

• Datavideo's wide range of encoders, cameras, and hand-carry switchers are fully supported by SRT and dvCloud. Datavideo encoders and dvCloud provide reliable streams over unreliable networks. By using a Datavideo encoder and dvCloud together, you can utilize SRT (instead of RTMP) on the initial problematic connection or "First Mile." After your video stream reaches dvCloud, you can depend on dvCloud's reliable, high-bandwidth network to deliver the stream to your favourite destinations, like Facebook and YouTube.

Specifications

• Video Input
  • HDMI x1
  • SDI x1
• Supported Video Input Resolution
  • 1080p 60/59.94/50
  • 1080p 30/29.97/25/24/23.98
  • 1080i 60/59.94/50
  • 720p 60/59.94/50
  • 480i 59.94, 576i 50
• Video Output
  • Support Down Scaling to 128x128
• Audio Input
  • 1 x HDMI embedded audio
  • (Audio depends on the source/ both stereo and mono supported)
  • 1 x SDI embedded audio
  • 1 × RCA (audio level calibration: +10/+12dB ~ -6dB)
  • 2 x XLR (audio level calibration: +10/+12dB ~ -6dB)
  • Mix (Embedded + RCA+XLR)
• Encode
  • H.264/AVC High Profile Level 4.1
• Video Bitrate
  • Record Only: Up to 16Mbps (1080p50/60)
  • Stream Only: Up to 10Mbps (1080p50/60)
  • Rec and Stream: Up to 36Mbps (1080p50/60) (dual stream)
• Video Rate Mode
  • CBR
• Audio Mode
  • Stereo/Mono
• Audio Bitrate
  • AAC-LC
  • Sample rate: 48KHz, 16bit
  • Configurable bit rate: 128K or 256K or 384K
• Streaming Protocols
  • TS over TCP/UDP (unicast & multicast)
  • RTSP over HTTP/TCP/UDP (RTSP Elementary Stream)
  • RTMP/RTMPS(Publish)
  • SRT
