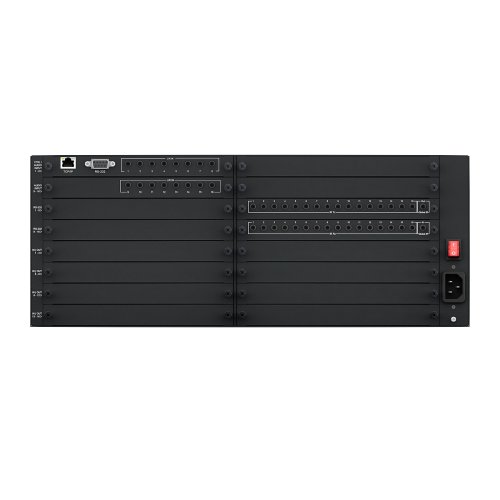

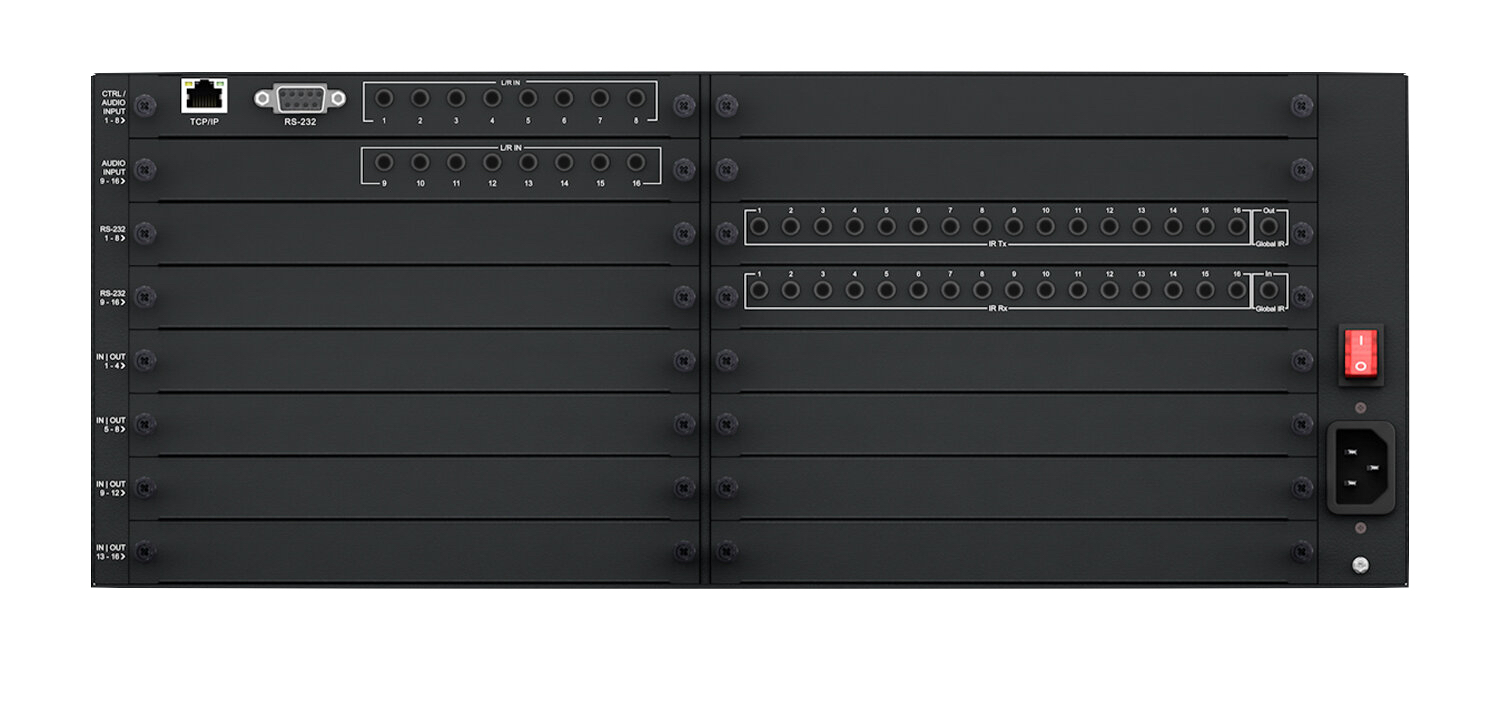

BLUSTREAM CUSTOMPRO-HUB16 Custom Pro Matrix Hub featuring 12x Modular Bays

About: BLUSTREAM CUSTOMPRO-HUB16 Custom Pro Matrix Hub featuring 12x Modular Bays

The Custom Pro Matrix achieves new levels of both performance and flexibility. The Custom Pro Hub16 features 12 x modular bays allowing AV integrators to easily specify their desired I/O structure and choose the additional control features required for a specific project. The Custom Pro Matrix has been specifically designed to operate in challenging AV environments. Its robust housing and interlocking board configuration make both installation and maintenance a seamless experience. Advanced optional features include HDMI and HDBaseT boards featuring CSC for support of all the latest 4K resolutions including 4K 60 Hz 4:4:4 colour space & HDR with independent down-scaling of 4K video inputs on CSC HDBaseT outputs to allow those displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays. Additional features include audio breakout with variable line level outputs, simultaneous HDBaseT / HDMI outputs, 2-way routed IR and RS-232 pass through.  A web browser interface module for control and configuration of the matrix is included as standard as well as analogue audio embedding per zone.

Features

• Custom Pro Matrix with 12 x modular bays for population of input / output / control boards
• Supports up to 16x video inputs and 16x video outputs using a combination of 2-way and 4-way interchangeable input and output boards
• Supports 4K UHD video up to 4K 60Hz 4:4:4*
• Optional Colour Space Conversion (CSC) boards support HDMI 2.0 18Gbps specification including HDR over HDBaseT
• Optional CSC boards feature independent downscaling of up to 4K 60Hz 4:4:4 video input to the following formats:
  • 1080p @ 60Hz (for screens that do not support 4K)
  • 4K 60Hz 4:2:0 (for screens that do not support full 18Gbps 4K 60Hz 4:4:4)
• 16 x analogue L/R audio inputs which can be embedded onto corresponding HDMI / HDBaseT zone outputs
• 16 x IR outputs for routed control of local source equipment
• 16 x IR inputs for distribution of IR to compatible Blustream HDBaseT Receivers
• Optional RS-232 control board for bi-directional IR control with Blustream HDBaseT Receivers
• Optional Analogue and Digital Audio breakout board with line-level volume control
• Web browser interface for control and configuration of Matrix
• Control of Matrix via front panel, RS-232, TCP/IP, IR and Web GUI
• Supports PoC (Power over Cable) when used with compatible Blustream HDBaseT Receivers
• 3rd Party drivers available for major control brands
• Advanced EDID management
• HDCP 2.2 compliant
  • *Full 4K 60Hz 4:4:4 support is subject to input / output boards specified

Specifications

• Audio Input Connectors: 16 x 3.5mm stereo jack (L/R)
• RS-232 serial ports: 1 x 9-pin RS-232 connector
• IR Input ports: 16 x 3.5mm stereo jack
• IR Output ports: 16 x 3.5mm mono jack
• TCP/IP Control: 1 x RJ45, female
• Rack-Mountable: 4U rack height, rack ears included
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Power Supply: Internal 100-240v AC
• Casing Dimensions without feet (WxHxD): 17.32 x 6.81 x 16.61 inch (440 x 173 x 422 mm)
• Dimensions Including Connections with feet (WxHxD): 17.32 x 7.01 x 16.93 inch (440 x 178 x 430 mm)
• Shipping Weight: 24.25 lb (11kg)

What's in the Box

• 1x CUSTOMPRO-HUB16(including Control Boards, and IR Routing Boards)
• 1x Rack Mounting Kit•IEC Power Cabling
• 1x Remote Control (REM16)
• 4x IR Emitter (IRE1)
• 5x IR Receiver (IRR)
• 5x IR 3.5mm - 3.5mm Stereo to Mono, 12V to 5V Control Cable (IRCAB)
• 1x Quick Reference Guide
