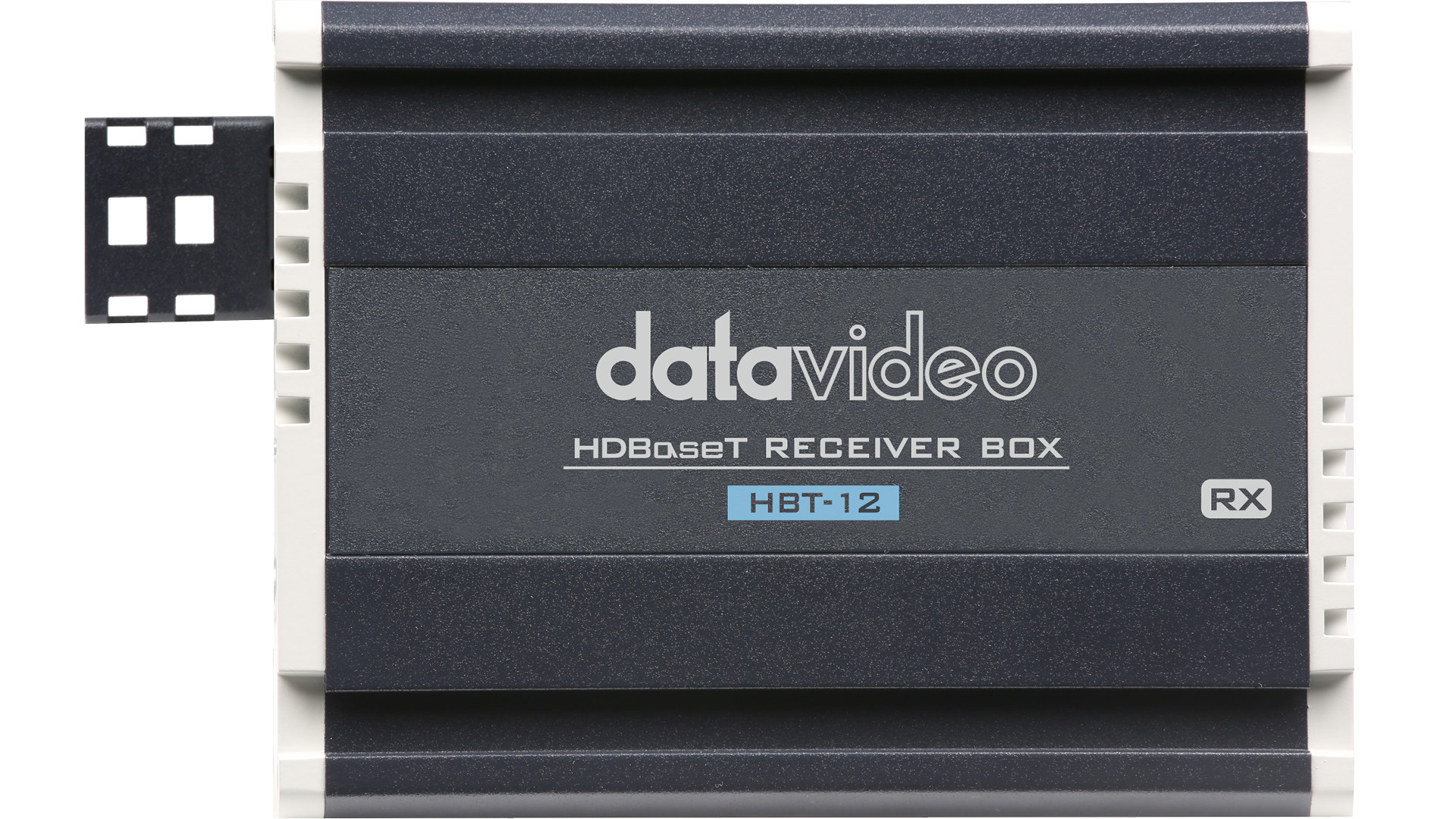

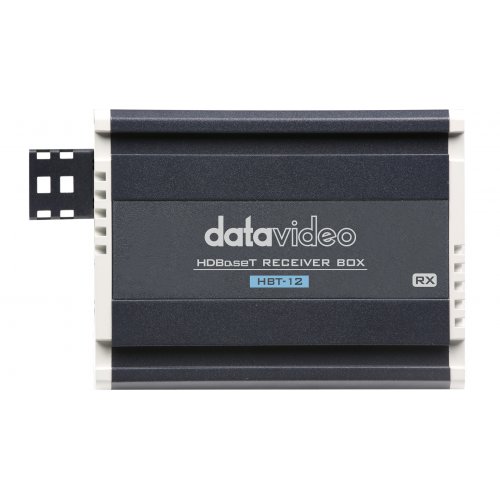

Datavideo HBT-12 HDBaseT Receiver Box

About: Datavideo HBT-12 HDBaseT Receiver Box

The HBT-12 is a long distance 4K solution and carry everything in one ethernet cable. It an HDBaseT receiver designed to interface between transmitting and receiving devices. The receiver accepts up to 4K image quality video.

With the 56V power connected to one end of the HBT-12 HDBaseT receiver

The HBT-12 will thus be able to power the transmitting device by PoE plus technology (PoE++).

HDBaseT connection between the transmitter and the receiver can be established using a single Ethernet cable.

HDMI video, DVIP control commands and power (PoE++) can be transmitted between the transmitter and the receiver over just one cable.

• Transmits video, audio, DVIP control, RS-422/232 control and PoE+ over a single Cat 7 cable.
• Extends video transmission to 120m.
• Support DVIP, RS-422, and RS-232 control protocols.

Long distance 4K solution

Support up to 4K 25/30p and receives up to 4Kx2K video from the transmitter.

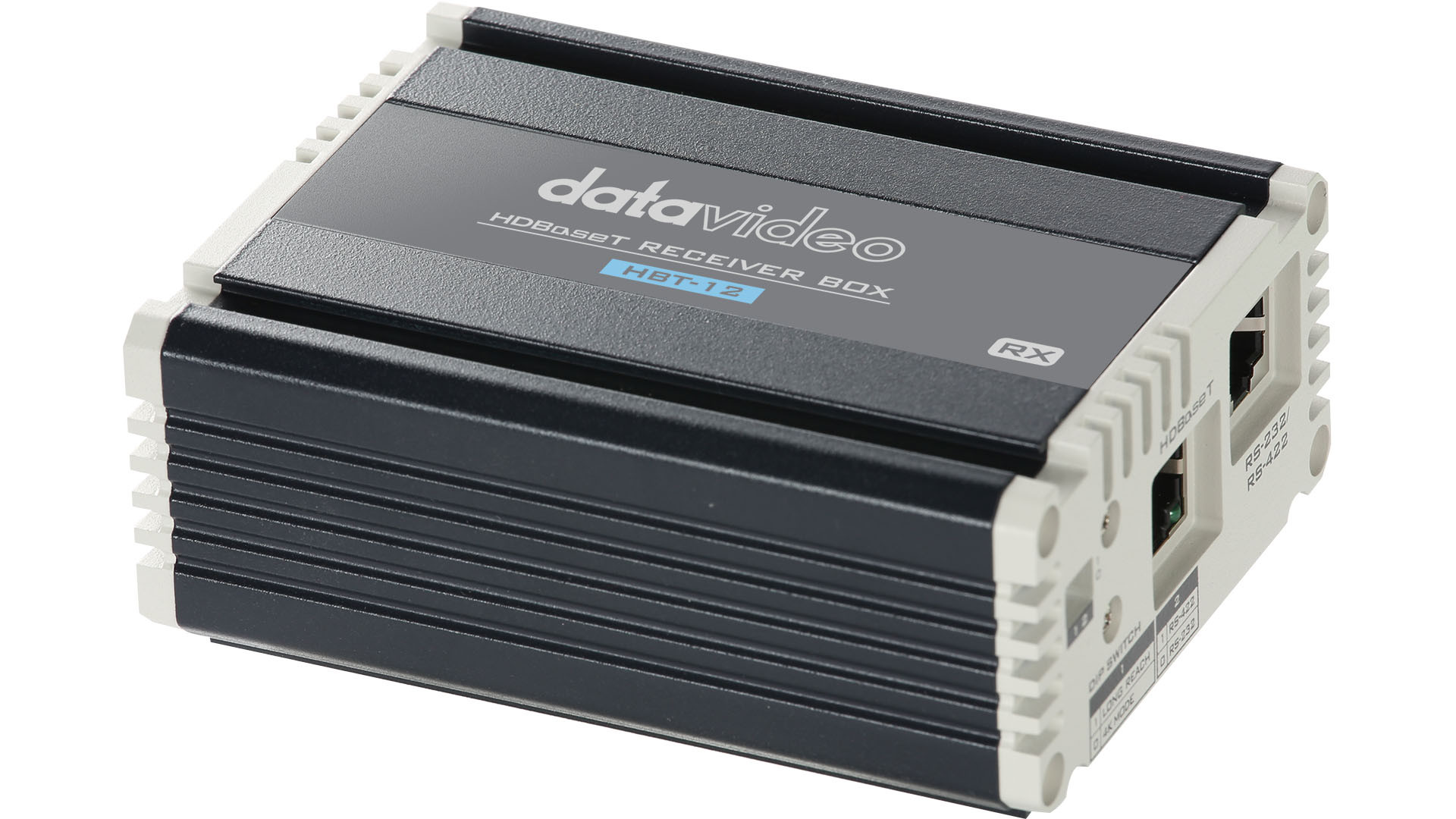

Aluminum Alloy and Heavy Duty Design

Super sturdy and durable. HBT-12 has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.

Specifications

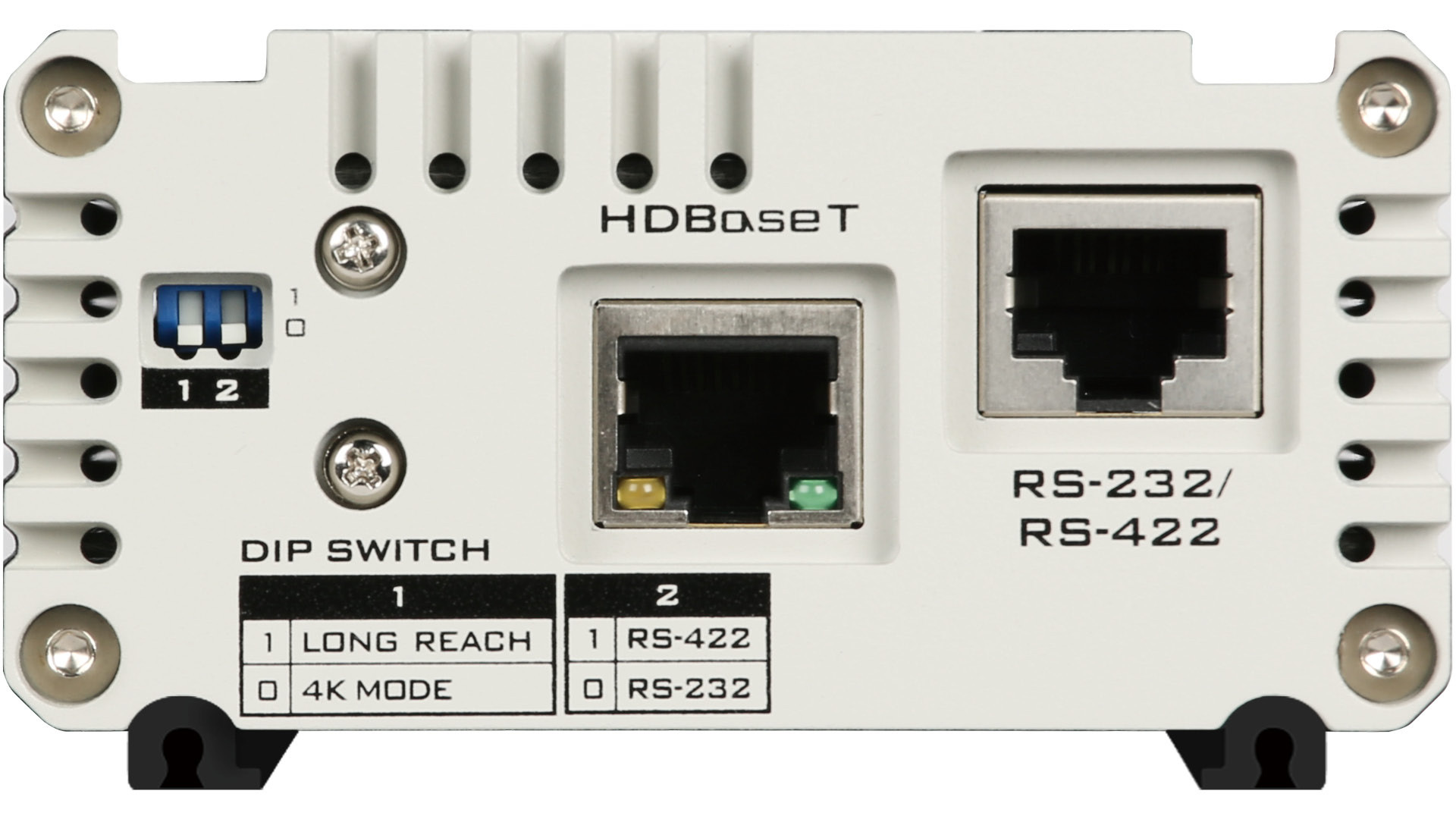

• Video/Audio Input -  1x HDBaseT RJ-45
• Video/Audio Output -  1x HDMI
• Supported Video Format
  • 3840x2160p: 30/29.97/25/24/23.98
  • 1080p: 60/59.94/50/30/29.97/25/24/23.98
  • 1080i: 60/59.94/50, 720p: 60/59.94/50
• Video Process -  ---
• Video bandwidth -  ---

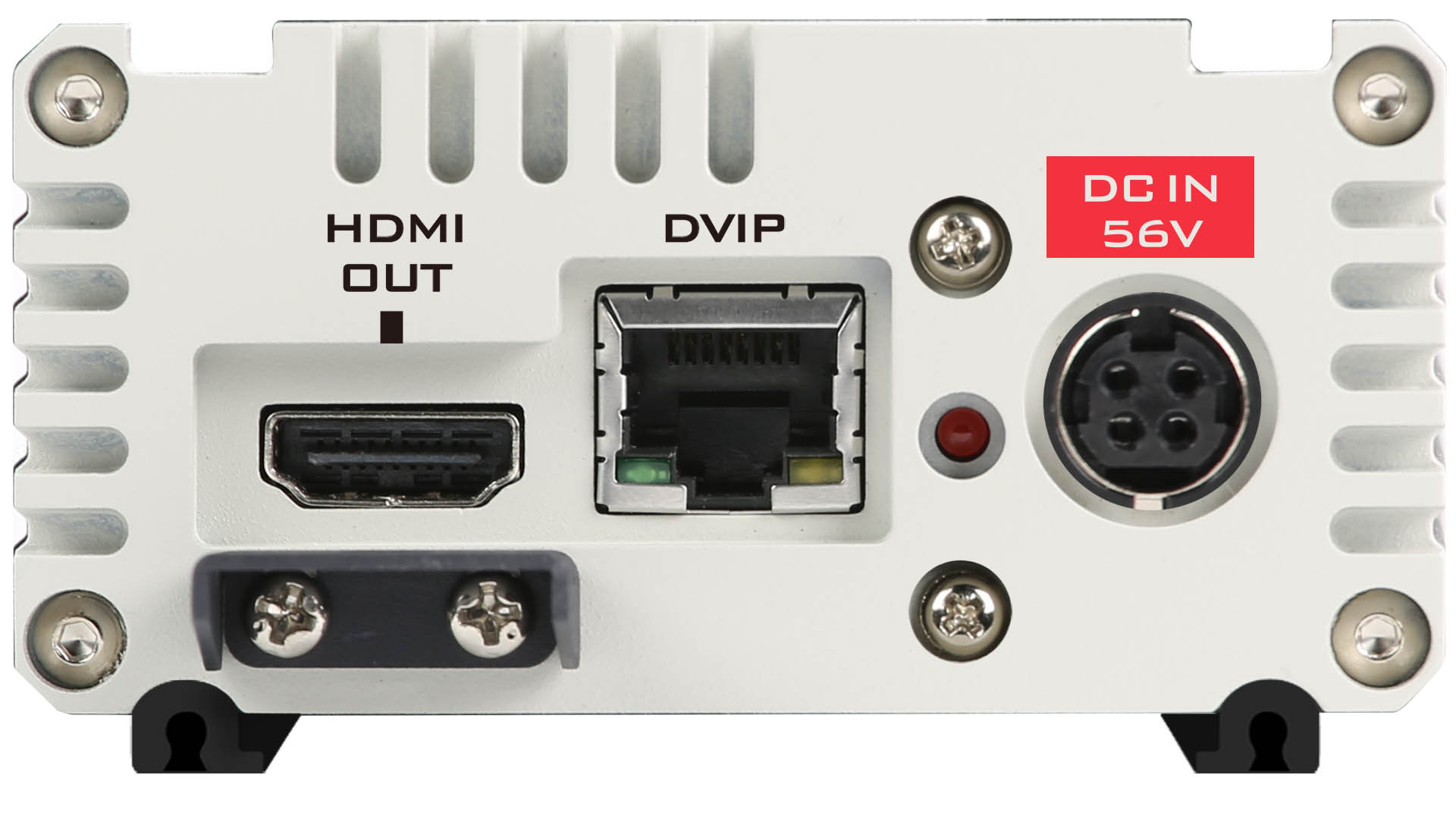

• DVIP -  1x  RJ-45 (input)
• RS-422/ RS-232 -   1x  RJ-45 (input)
• Power -  DC IN: DC 56V
• PoE Output -  65W
• HDBaseT Distance -  ​
  • 1080p@60 100m by CAT.7 cable
  • 4K2K@30 70m by CAT.7 cable
• HDMI compliance -   ---
• HDCP compliance -   ---
• Audio support -   ---
• Dimension (LxWxH) -  5.32 x 3.35 x 1.77 in (132 x 85 x 45 mm)
• Weight -  0.88 lb (400 g)
• Operating Temp. Range -  0~40 °C

What's in the Box

• 1x HBT-12 main unit
• 1x AC cord
• 1x DC 56V power adaptor
