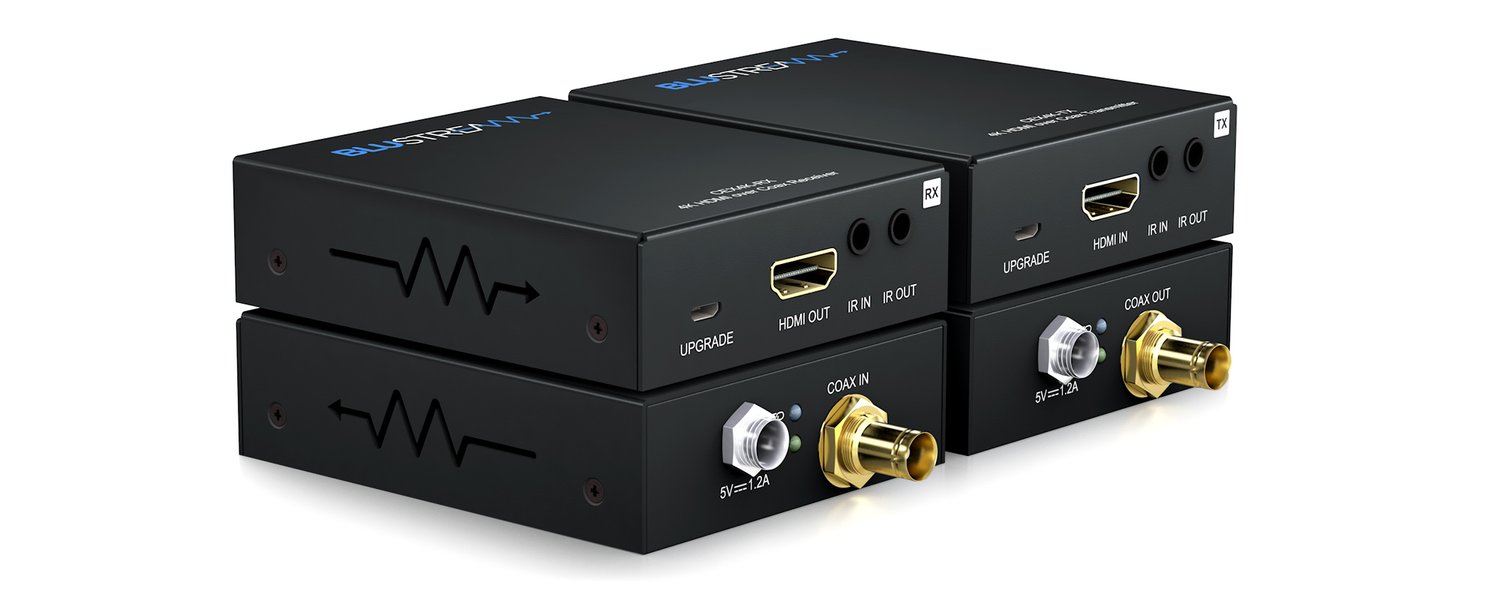

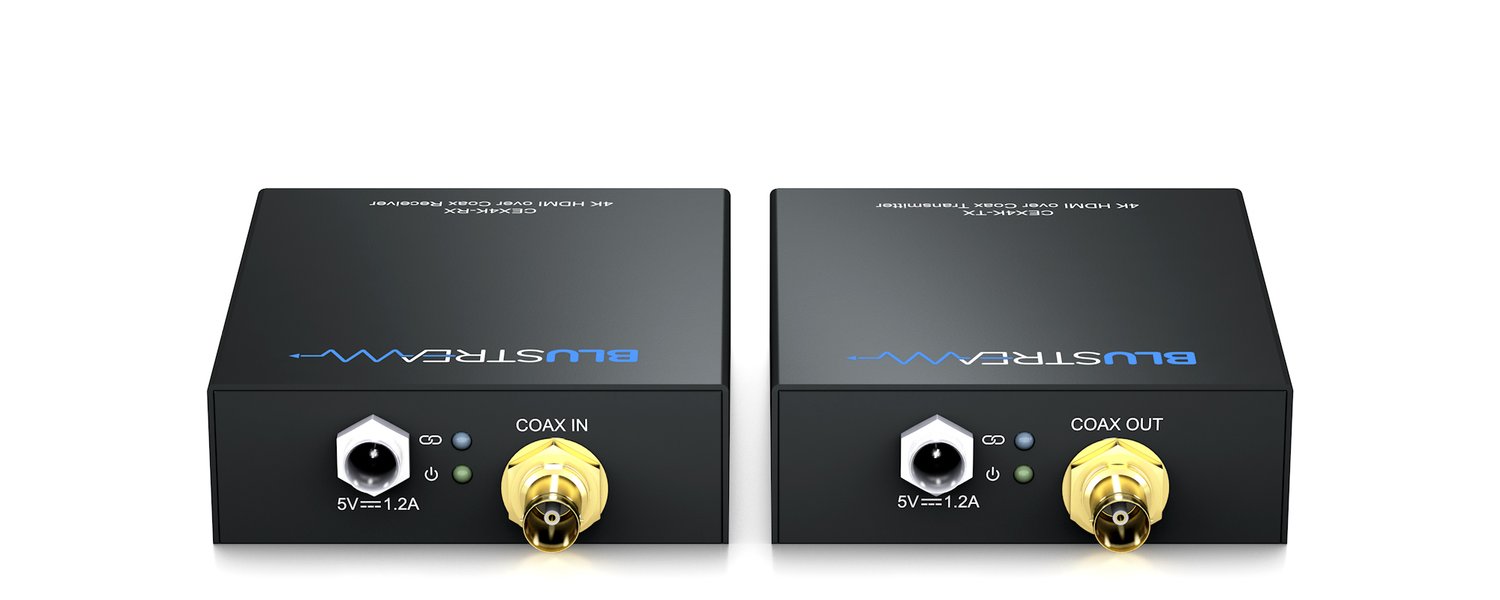

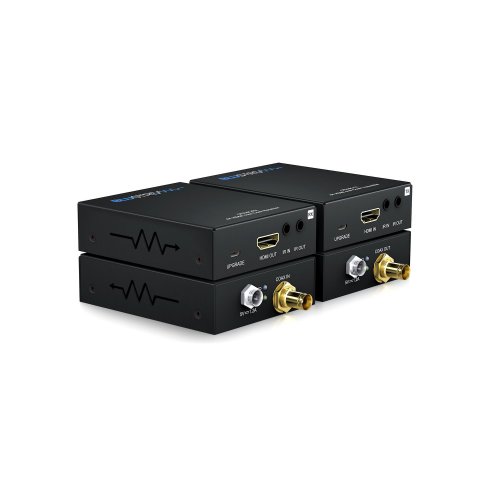

BLUSTREAM CEX4K-KIT HDMI Over Coax Extender Set
Model: CEX4K-KIT
About: BLUSTREAM CEX4K-KIT HDMI Over Coax Extender Set
Our CEX4K-KIT HDMI extender set offers HDMI distribution over a single Coaxial cable. The product delivers HDMI & Bi-directional IR up to lengths of 100m @ 4K 60Hz 4:4:4.
Features
- Extends 4K HDMI signals up to a distances of 100m over a single 75 ohm coaxial cable
- Supports up to 4K 60Hz 4:4:4 UHD video*
- Supports Bi-directional IR from input and output locations
- Supports PCM 2.0 channel audio
- Supplied with Blustream IR receiver and emitter
- Smart EDID management
- HDCP 2.2 compliant
- *Note: HDR 10/12 bit formats not supported. Requires local power at both Transmitter and Receiver devices
Specifications
- TX
- Video Input Connectors: 1 x HDMI Type A
- Video Output Connectors: 1 x BNC connector
- IR Input ports: 1 x 3.5mm stereo jack
- IR Output ports: 1 x 3.5mm mono jack
- Product upgrade: 1 x Micro USB, female
- Dimensions (Casing - WxDxH): 2.86 x 3.5 x 0.94 inch (72.7 x 88.8 x 24mm)
- Dimensions Including Connections (WxDxH): 2.86 x 4.2 x 0.94 inch (72.7 x 106.8 x 24mm)
- RX
- Video Input Connectors: 1 x BNC connector
- Video Output Connectors: 1 x HDMI Type A
- IR Input ports: 1 x 3.5mm stereo jack
- IR Output ports: 1 x 3.5mm mono jack
- Product upgrade: 1 x Micro USB, female
- Dimensions (Casing - WxDxH): 2.86 x 3.5 x 0.94 inch (72.7 x 88.8 x 24mm)
- Dimensions Including Connections (WxDxH): 2.86 x 4.2 x 0.94 inch (72.7 x 106.8 x 24mm)
- Please Note: 4K HDR Video formats are not supported. Supports PCM 2.0 channel audio
What's in the Box
- 1x CEX4K-TX
- 1x CEX4K-RX
- 2x 5V/1.2A DC power supply
- 1x IRE1 emitter
- 1x IRR receiver
- 2x Mounting brackets
- 2x F-type to BNC adaptor
- 1x Quick reference guide
UPC: 9340242004024
