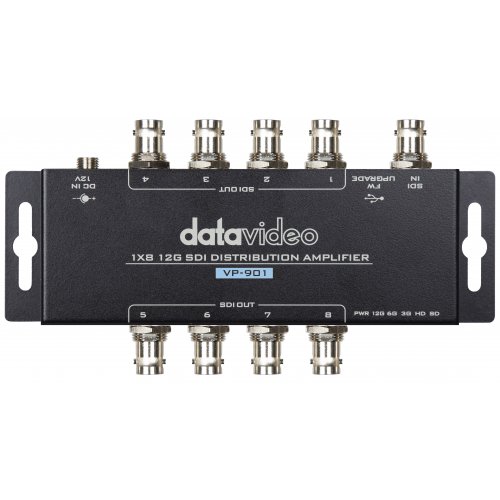

Datavideo VP-901 1x8 12G SDI Distribution Amplifier
Model: VP-901
About: Datavideo VP-901 1x8 12G SDI Distribution Amplifier
The VP-901 12G SDI Distribution Amplifier can distribute a single 12G, 4K, HD, or SD-SDI input into eight SDI outputs. It is a reliable video device, which splits an SDI, HD-SDI, 3G-SDI, 6G-SDI, or 12G-SDI video source to SDI compliant video displays simultaneously. It also supports re-clocking for a clean signal over long cable runs.
- Useful applications in digital signage, indoor, and outdoor studios - Supports 12G/6G/3G/HD/SD-SDI video with embedded Audio
- Equalization and re-clocking - To provide better performance on video and reduce the accumulated jitter problem.
- LED indication of signal lock and video rate - With easy-to-use controls, the VP-901 is ideal for a variety of broadcast, post-production, and professional AV applications.
- Plug and play - Automatic detection of incoming data rate

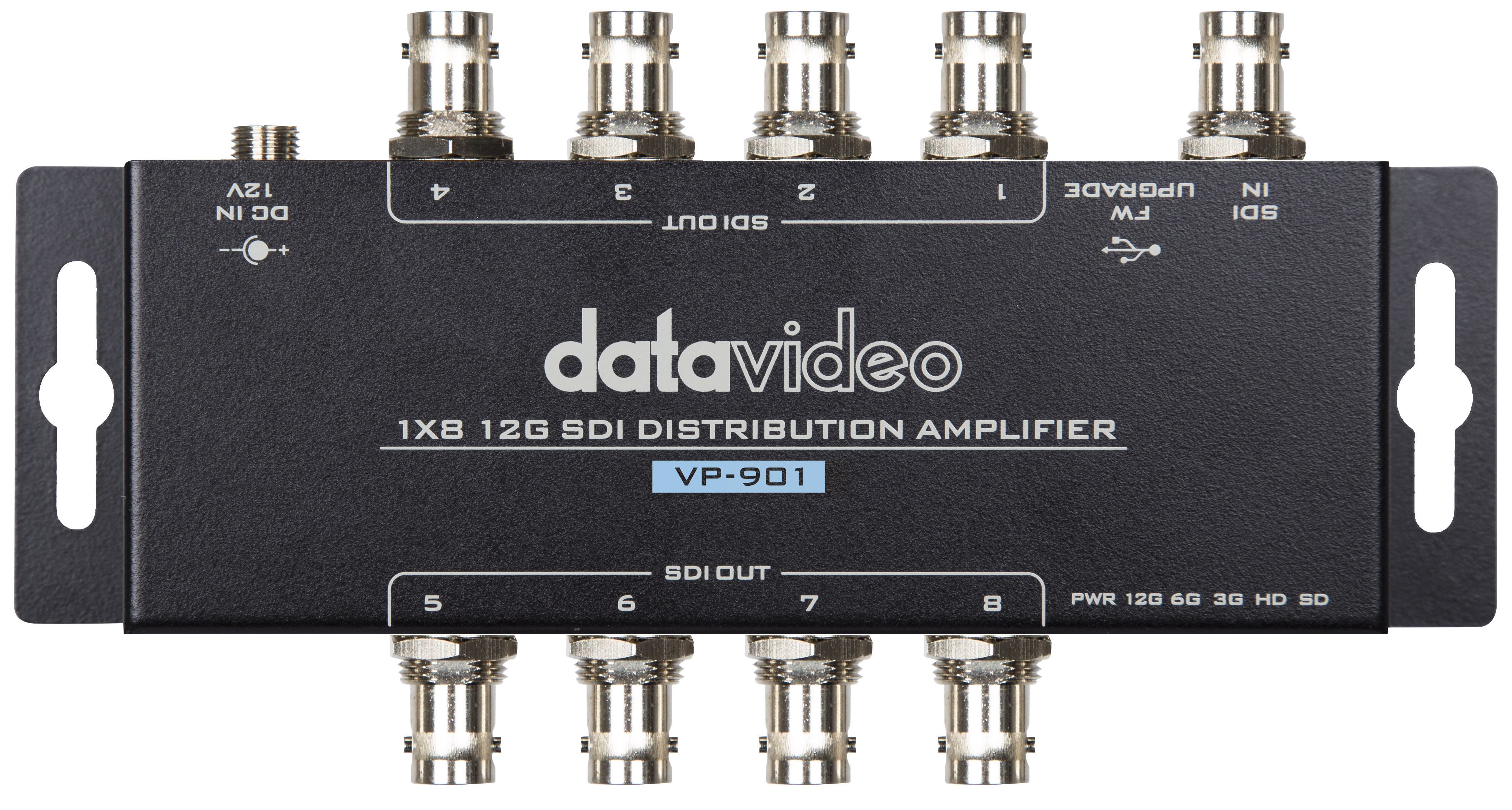

VP-901 1x8 12G SDI Distribution Amplifier
- Video Input/Output
- Input: 1 x BNC
- Output: 8 x BNC
- Video Format
- 3840x2160p: 60/59.94/50/30/29.97/25/24/23.98
- 1080p: 60/59.94/50/30/29.97/25/24/23.98
- 1080i: 60/59.94/50, 720p: 60/59.94/50
- 525i59.94 NTSC, 625i50 PAL
- Video Processing: SD/HD/3G/6G/12G-SDI
- Video bandwidth: 11.88Gpbs & 11.88/1.001Gbps
- Audio Format: Support SDI embedded audio
- Power: 12V DC Jack
- Dimension (LxWxH): 167 x 50 x 24 mm
- Weight: 0.31 kg
- Operating Temp. Range: 0~40 °C
- What's in the Box:
- 1 x VP-901 product
- 1 x AD Switch DC 12V
- 1 x Thank You Card
UPC: 672255008812
