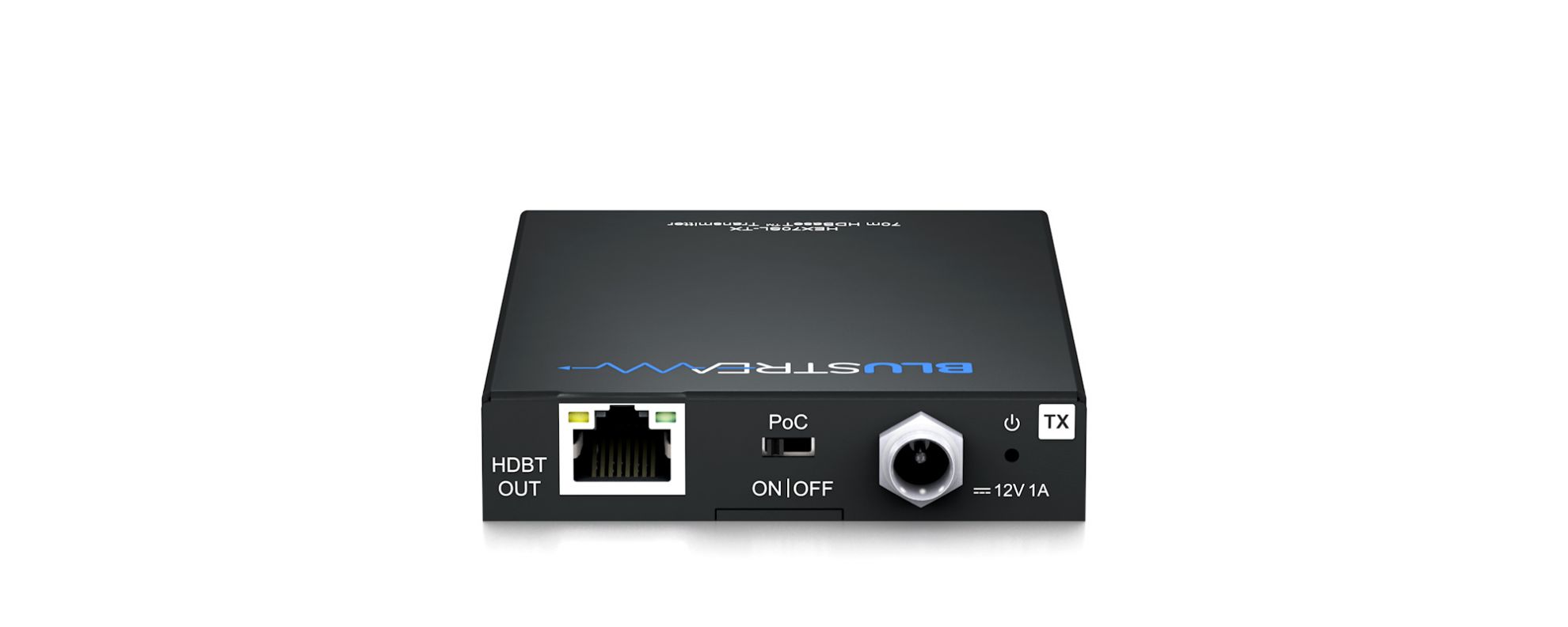

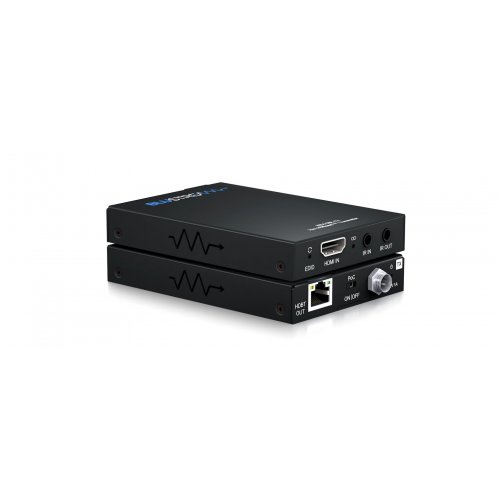

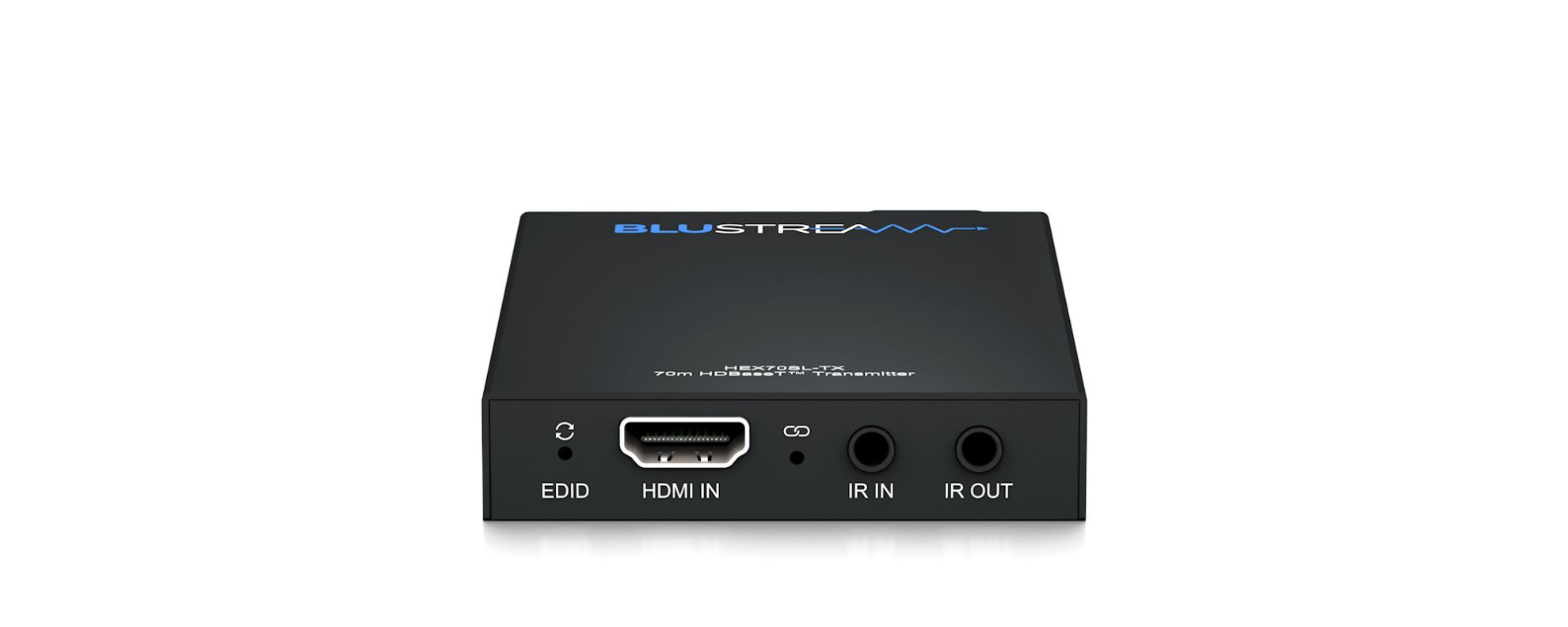

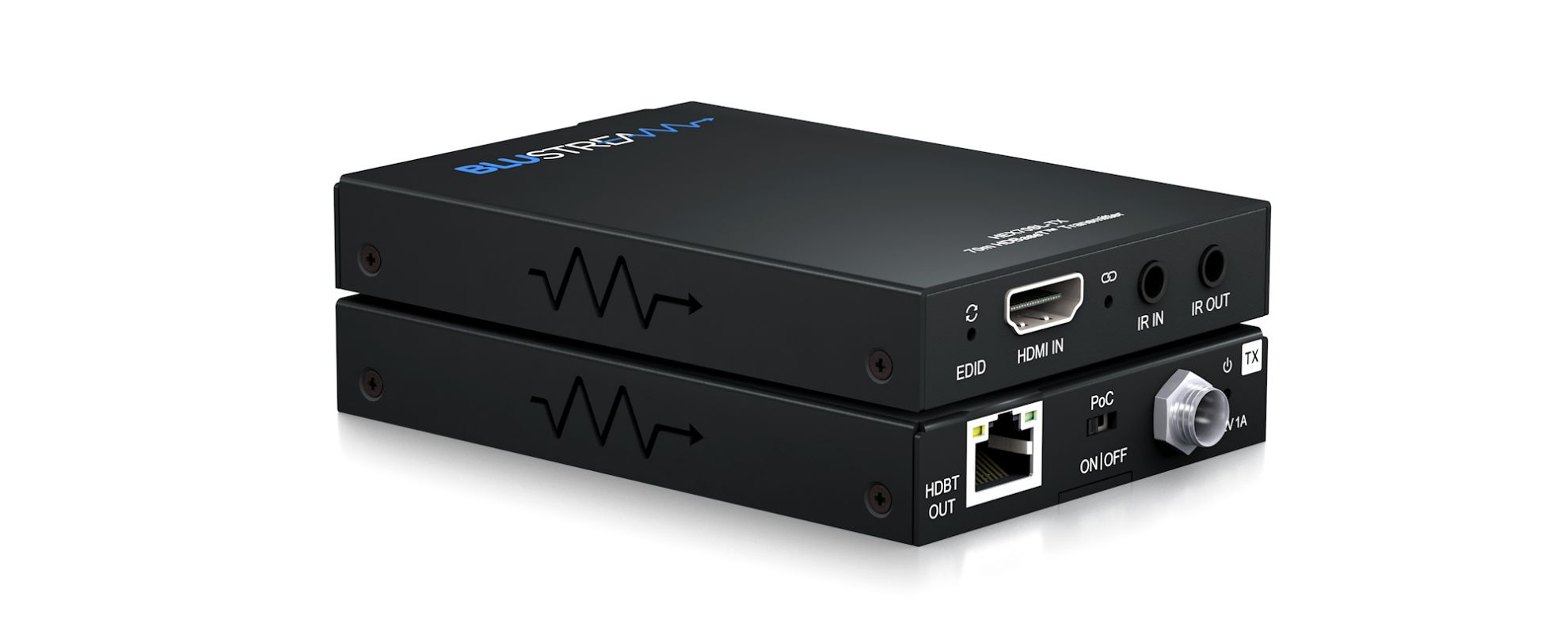

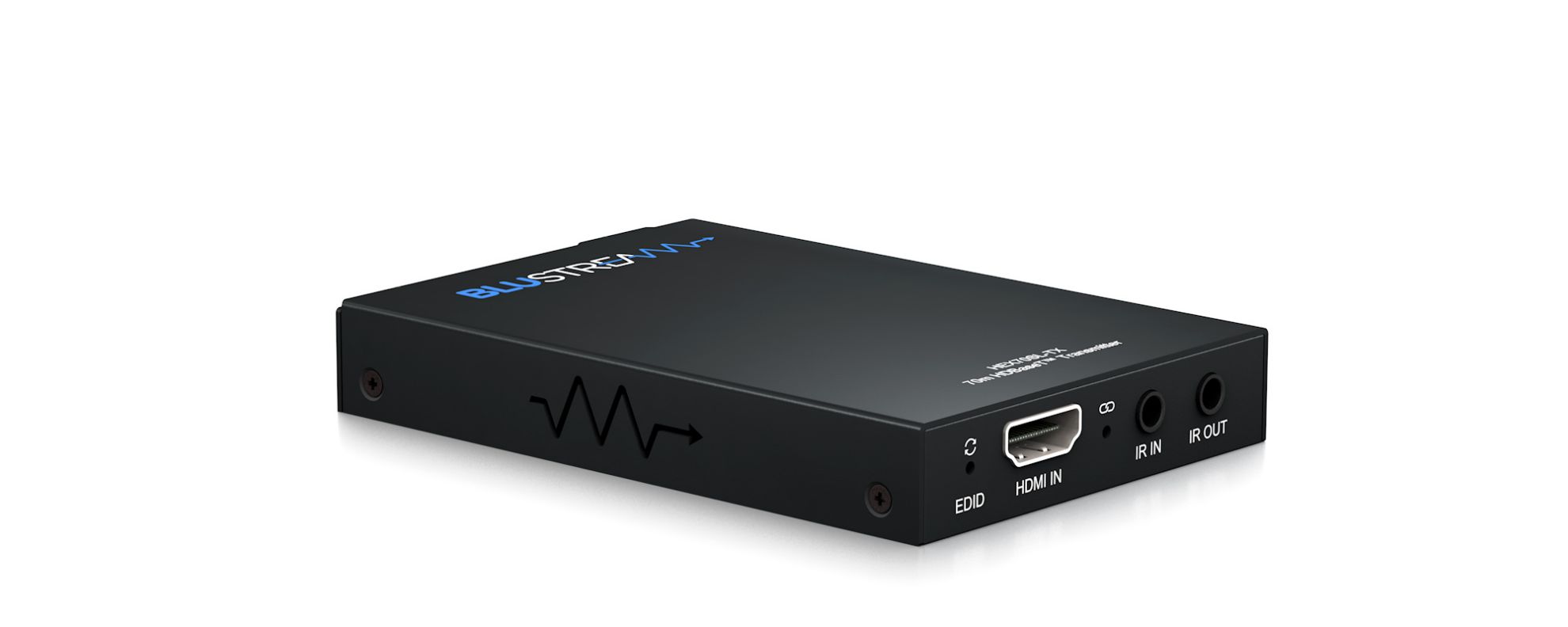

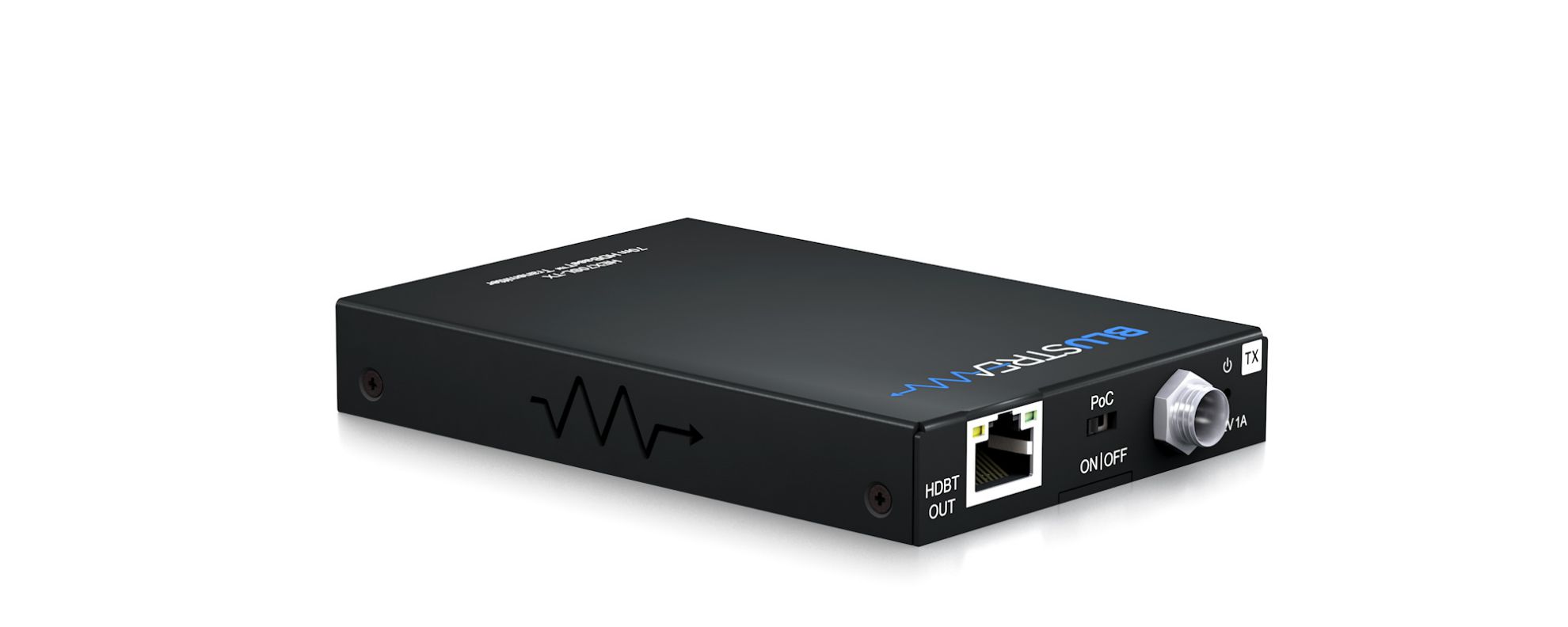

BLUSTREAM HEX70SL-TX Slimline HDBaseT Transmitter - 70m
Model: HEX70SL-TX
About: BLUSTREAM HEX70SL-TX Slimline HDBaseT Transmitter - 70m
The HEX70SL-TX 4K HDBaseT transmitter offers market leading features in a slimline chassis.
The product delivers HDMI, Bi-directional IR and Bi-directional PoC up to lengths of 70m.
- Advanced HDBaseT technology offering uncompressed video and audio with zero latency
- Enhanced slimline chassis
- Extends HDMI 1080p up to a distance of 70m over a single CAT cable
- Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Bi-directional IR pass-through
- Supports bi-directional PoC (Power over Cable) to power, or be powered from, a compatible receiver point (power supply not included)
- Smart EDID function automatically limits EDID to within HDBaseT specification to improve compatibility
- HDCP 2.2 compliant
Specifications
- Video Input Connectors: 1 x HDMI Type A, 19-pin, female
- Video Output Connectors: 1 x HDBaseT RJ45 connector
- IR Input Ports: 1 x 3.5mm stereo jack
- IR Output Ports: 1 x 3.5mm mono jack
- EDID: Pin hole button
- Power Supply: 12V/1A DC
- Dimensions: 106mm x 73mm x 16mm (LxWxH)
- Shipping Weight: 0.8kg
- Operating Temperature: 32°F to 104°F (-5°C to +55°C)
- Storage Temperature : -4°F to 140°F (-25°C to +70°C)
What's in the Box
- 1x HEX70SL-TX
- 1x Mounting Kit
- 1x Quick Reference Guide
** Power supply not included **
UPC: 9340242003331
