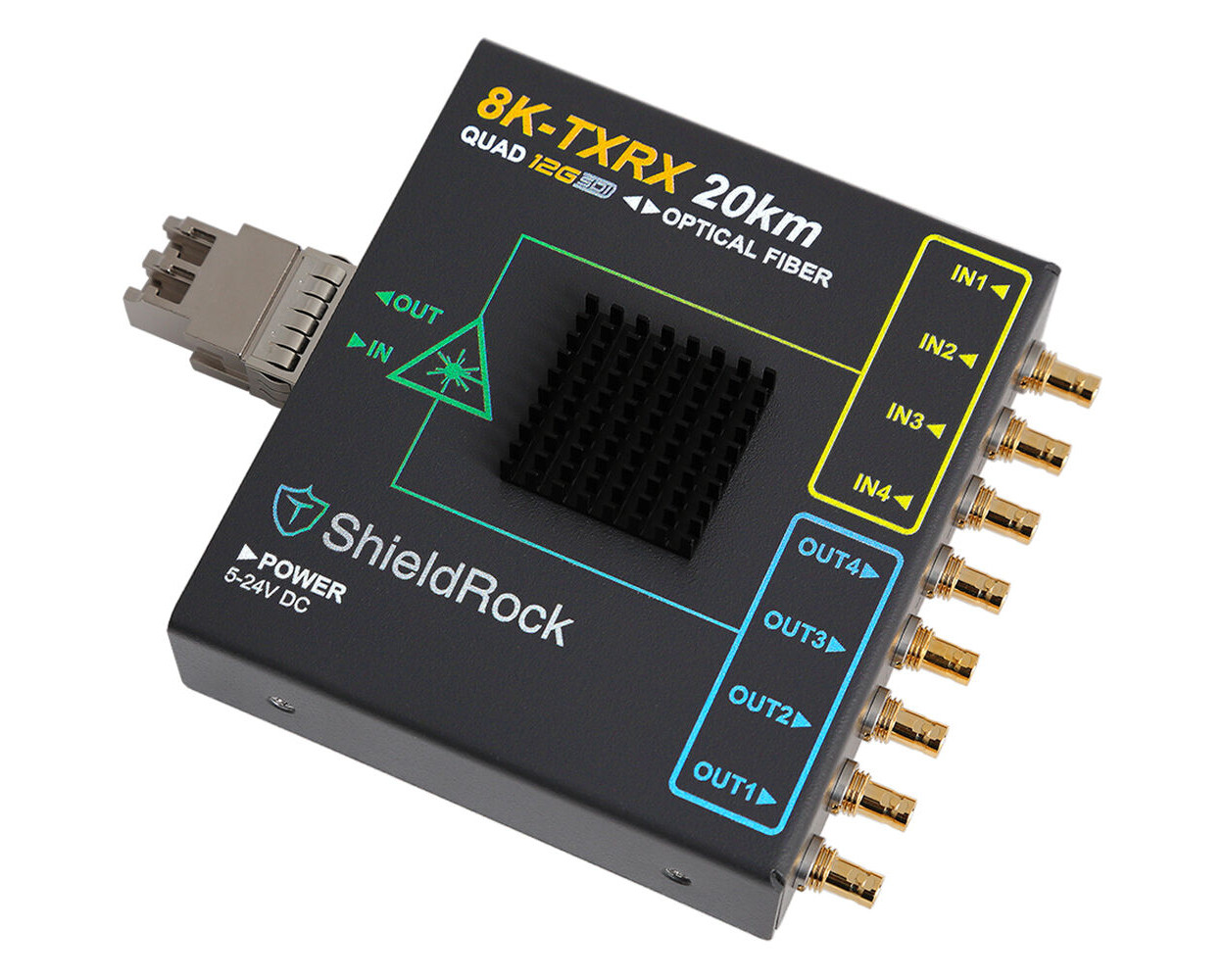

ShieldRock 8K TX/RX Optical Quad 12G-SDI Transceiver (20km)
Model: SRBMC-8KTXRX2
About: ShieldRock 8K TX/RX Optical Quad 12G-SDI Transceiver (20km)
Transmit and receive 8K/UHD2 formats up to 4320p60 over 20km of fiber optic cable. The converter includes both equalizing and reclocking functions. Power by USB-C, or make use of the locking barrel connector with the included power supply. This small and lightweight module features rugged powder coated aluminum construction.
Specifications
- Video Interface
- 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI (auto switching)
- SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, 2081, 2082
- Video Format
- 8K/UHD2 4320p - 23.98/24/25/29.97/30/48/50/59.94/60
- 4K/UHD 2160p - 23.98/24/25/29.97/30/48/50/59.94/60
- 2K/HD 1080p - 23.98/24/25/29.97/30/48/50/59.94/60
- 1080i - 50/59.94/60
- 1080PsF - 23.98/24/25/29.97/30
- 720p - 23.98/24/25/29.97/30/48/50/59.94/60
- Electrical
- Input - 5-24 VDC
- USB-C - 5 VDC
- Power - 6W max
- Mechanical
- Dimensions - 4.08 x 3.76 x 0.86 inch (103.7 x 95.5 x 21.9mm)
- Weight - 180g
- Includes
- 8KTXRX-20km
- Quad 12G/6G/3G/HD/SD SFP Transceiver, 1310nm, Singlemode, LC
- Universal power adapter
UPC: 685239811612
