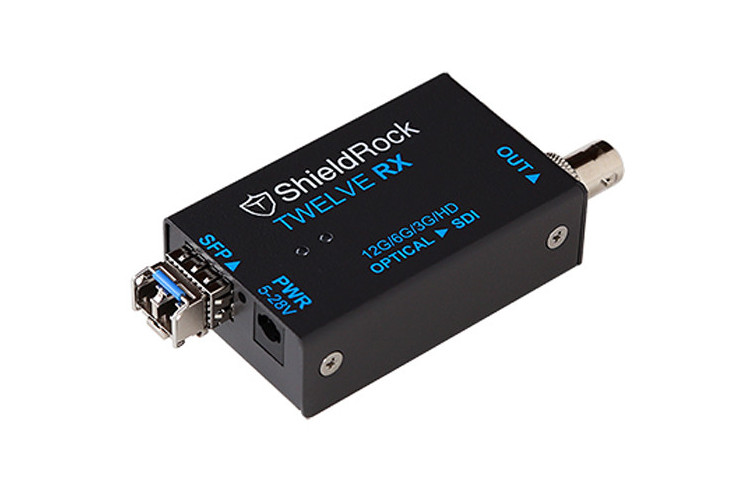

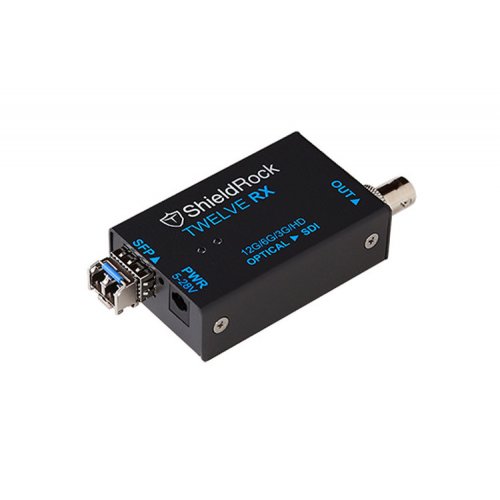

ShieldRock TWELVE RX 12G Optical Fiber to 12G-SDI Converter
Model: SRBMC-TWLVRX
About: ShieldRock TWELVE RX 12G Optical Fiber to 12G-SDI Converter
Receive SD, HD, and Ultra HD formats up to 2160p60 over optical fiber and convert to SDI over coaxial cable. The wide voltage input, and minimal power consumption allows for ease of integration and ability to lock the barrel connector in place. This small and lightweight module features rugged powder coated aluminum construction.
Specifications
- Video Interface
- 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI (auto switching)
- SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, 2081, 2082
- Supports AES10 multi-channel (MADI) audio
- Video Format
- 4K/UHD 2160p - 23.98/24/25/29.97/30/48/50/59.94/60
- 2K/HD 1080p - 23.98/24/25/29.97/30/48/50/59.94/60
- 1080i - 50/59.94/60
- 1080PsF - 23.98/24/25/29.97/30
- 720p - 23.98/24/25/29.97/30/48/50/59.94/60
- SD - 525i29.97 NTSC, 625i25 PAL
- Electrical
- Input - 5-28 VDC
- Power - 1W max
- Mechanical
- Dimensions 3.77 x 1.75 x 0.86in (95.9 x 44.4 x 21.9mm)
- Weight 75g
- Includes
- TWELVERX
- 12G/6G/3G/HD/SD SFP Receiver, 1310nm, Singlemode, LC
- Universal power adapter
UPC: 685239811834
