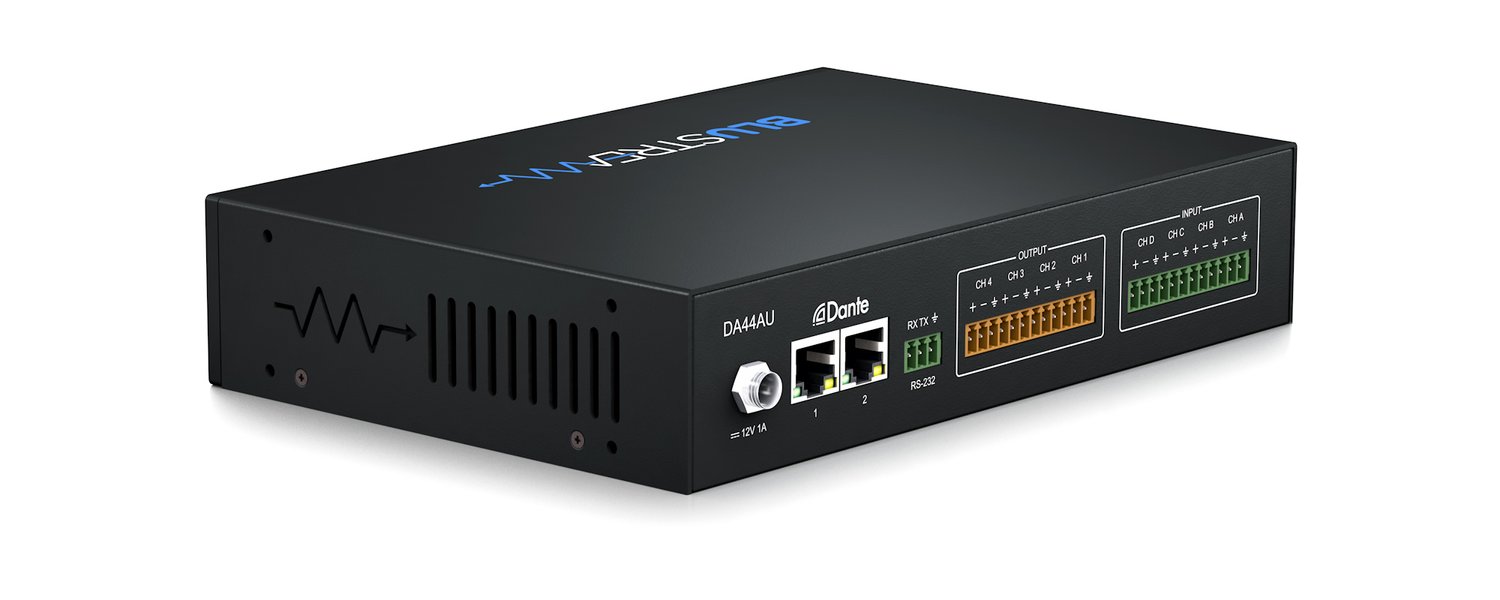

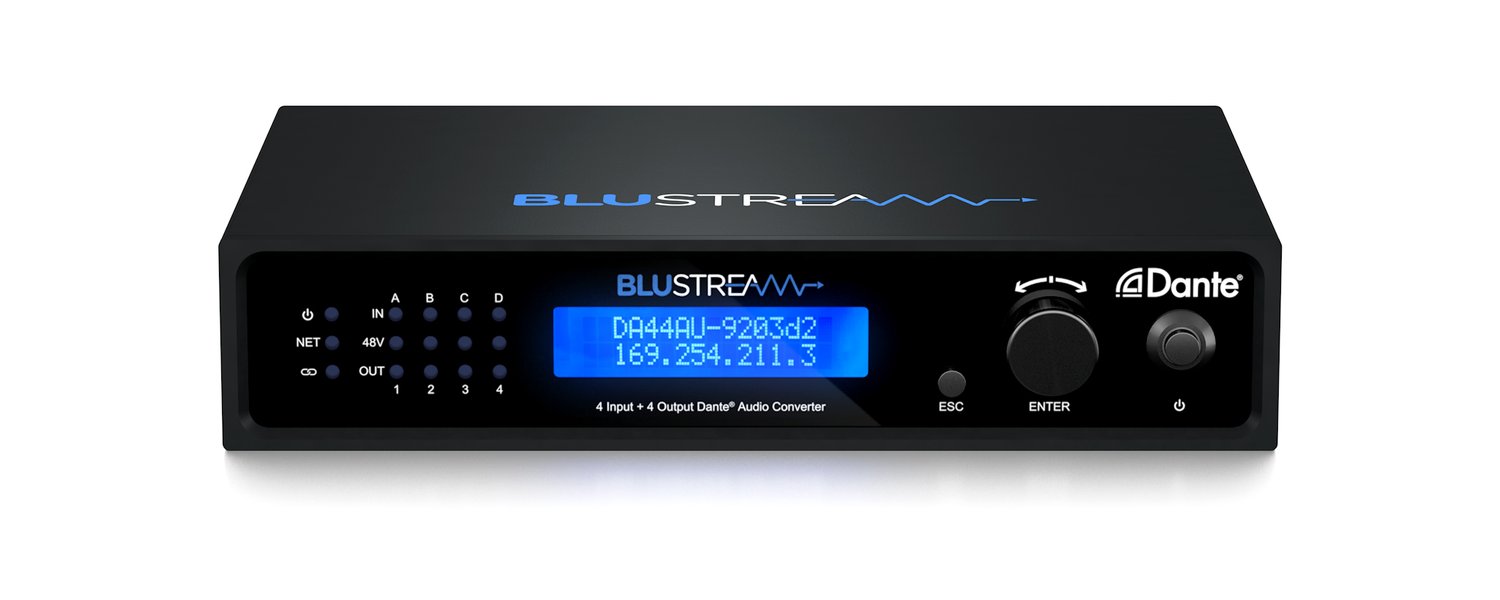

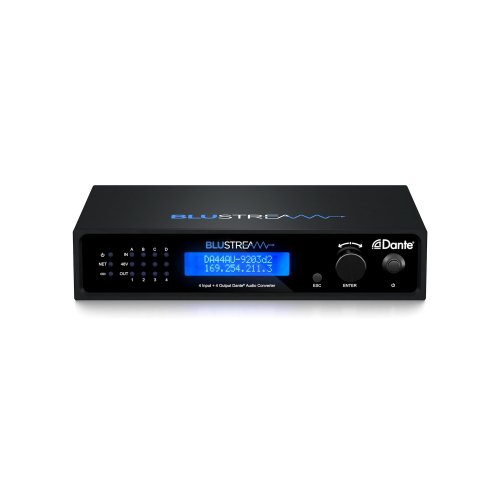

BLUSTREAM DA44AU 4x4 Dante Digital Audio Converter
Model: DA44AU
About: BLUSTREAM DA44AU 4x4 Dante Digital Audio Converter
Our DA44AU is a four input / four output Dante digital audio converter. The DA44AU allows any non-Dante audio source such as mixing consoles, amplifiers, computers and Blustream Matrix / distribution products to be connected as an audio source within a Dante network, as well as converting a Dante signal back to an analogue audio signal.
The DA44AU supports both balanced and unbalanced audio as well as microphone line level inputs inc. 48V phantom power. The DA44AU supports AES67 RTP audio transport.
Features
- Features 4 x analogue audio inputs that are converted to a Dante compatible signal
- Features conversion of 4 x Dante signals to analogue audio outputs
- Analogue audio inputs support both balanced and unbalanced audio + MIC line level signals
- MIC line level supports 48V phantom power
- Supports 44.1, 48 & 96kHz sample rates @ 24-bit
- Configurable Dante device latency (supports 1, 2 or 5ms configurable using Dante Controller)
- Independent input gain settings per channel
- Supports AES67 RTP audio transport
Specifications
- Audio Input Connectors: 12-pin Phoenix connector (4ch balanced / unbalanced analogue audio / MIC)
- Audio Output Connectors: 2 x RJ45, female (1Gb Dante network), 12-pin Phoenix connector (4ch balanced / unbalanced analogue audio / MIC)
- Operating Temperature: 32°F to 104°F (-5°C to +55°C)
- Storage Temperature: -4°F to 140°F (-25°C to +70°C)
- Power Supply: 12V/1A DC
- Casing Dimensions without feet (WxDxH): 8.46 x 5.71 x 1.73 inch (215 x 145 x 44mm)
What's in the Box
- 1x DA44AU
- 1x 12V/1A DC Power Supply
- 1x Mounting Kit
- 1x Quick Reference Guide
UPC: 9340242003188
