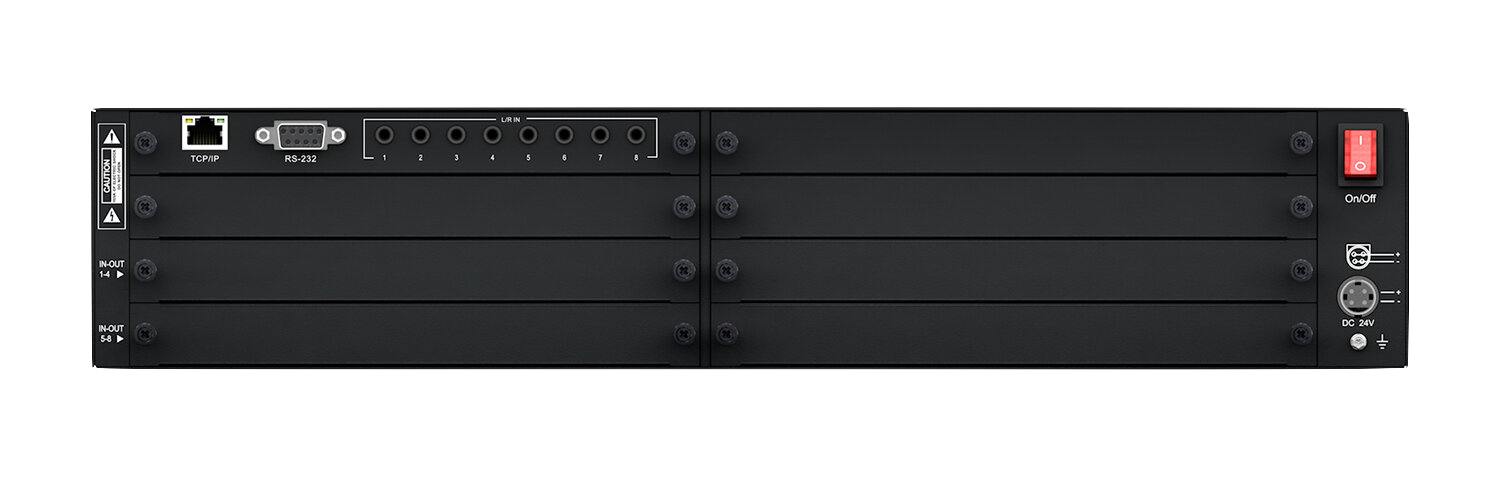

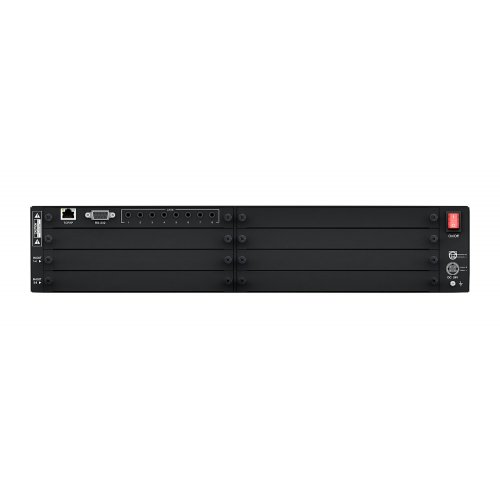

BLUSTREAM CUSTOMPRO-HUB Custom Pro Matrix Hub featuring 8x Modular Bays

About: BLUSTREAM CUSTOMPRO-HUB Custom Pro Matrix Hub featuring 8x Modular Bays

The Custom Pro Matrix achieves new levels of both performance and flexibility. AV installers can now easily specify their desired I/O structure and choose the additional control features required for a specific project. The Custom Pro Matrix has been specifically designed to operate in challenging AV environments. Its robust housing and interlocking board configuration make both installation and maintenance a seamless experience. Advanced optional features include audio breakout, simultaneous HDBaseT / HDMI outputs, 2-way routed IR and RS-232 pass through. A web browser interface module and App for control and configuration of the matrix is included as standard as well as analogue audio embedding per zone.

Features

• Custom Pro Matrix Hub with 8 x modular bays for population of control & input / output boards
• Up to 8 x video inputs and 8 x video outputs can be achieved using Custom Pro boards
• 8 x analogue L/R audio inputs which can be embedded onto corresponding HDMI / HDBaseT zone outputs
• Control of Matrix via front panel, IR, RS-232, TCP/IP and Web GUI / App
• Supports PoC (Power over Cable) when used with compatible HDBaseT input / output cards
• Web interface module for control and configuration of Matrix
• 3rd Party drivers available for major home control brands
• Advanced EDID management
• HDCP 2.2 Compliant

Specifications

• Audio Input Connectors: 8 x 3.5mm stereo jack (L/R)
• RS-232 Serial Ports: 1 x 9-pin RS-232 connector
• TCP/IP Control: 1 x RJ45, female
• Rack Mountable: 2U rack height, rack ears included
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 24V/8A DC
• Casing Dimensions without feet (WxHxD): 17.32 x 3.43 x 11.1 inch (440 x 87 x 282mm)
• Casing Dimensions with feet / connections (WxHxD): 17.32 x 3.7 x 11.34 inch (440 x 94 x 288mm)
• Shipping Weight: 11.0 lbs (5.0 kg)
