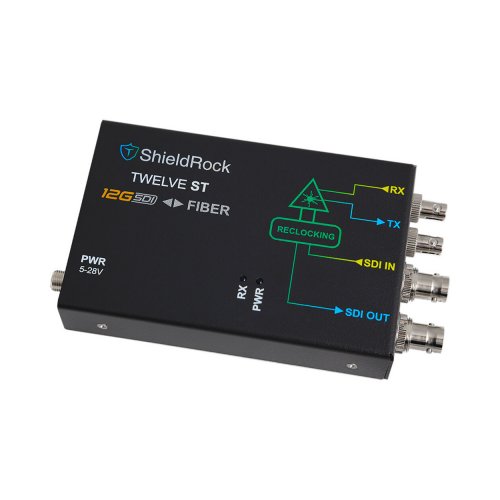

ShieldRock TWELVE-ST TX/RX Bidirectional 12G-SDI Optical Fiber Converter
Model: SRBMC-TWLVST
About: ShieldRock TWELVE-ST TX/RX Bidirectional 12G-SDI Optical Fiber Converter
Transmit and receive 4K/UHD formats up to 2160p60 over fiber optic cable. The converter includes both equalizing and re-clocking functions. The wide voltage input, and minimal power consumption allows for ease of integration and ability to lock the barrel connector in place. This small and lightweight module features rugged powder coated aluminum construction.
Though this unit uses a 1310nm singlemode-base optical engine, it can also work in multimode applications. Contact ShieldRock for list of optical options.
Specifications
- Video Interface
- 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI, DVB-ASI (auto switching)
- SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, 2081, 2082
- Supports AES10 multi-channel (MADI) audio
- Video Format
- 4K/UHD 2160p - 23.98/24/25/29.97/30/48/50/59.94/60
- 2K/HD 1080p - 23.98/24/25/29.97/30/48/50/59.94/60
- 1080i - 50/59.94/60
- 1080PsF - 23.98/24/25/29.97/30
- 720p - 23.98/24/25/29.97/30/48/50/59.94/60
- SD - 525i29.97 NTSC, 625i25 PAL
- Electrical
- Input - 5-28 VDC
- Power - 1.75W max
- Mechanical
- Dimensions - 5.65 x 3.10 x 0.93in (143.5 x 78.7 x 23.6mm)
- Weight - 180g
- Includes
- TWELVE-ST
- Universal power adapter
UPC: 685239811605
