BLUSTREAM ACM210 Advanced Control Module for Multicast IP System

Model: ACM210

BLUSTREAM ACM210 Advanced Control Module for Multicast IP System
BLUSTREAM ACM210 Advanced Control Module for Multicast IP System
BLUSTREAM ACM210 Advanced Control Module for Multicast IP System
BLUSTREAM ACM210 Advanced Control Module for Multicast IP System
BLUSTREAM ACM210 Advanced Control Module for Multicast IP System
Call for Price
  • Free Shipping!
  •  More Coming Soon! Contact us for Lead Time
  • Not yet reviewed
Call for details


About: BLUSTREAM ACM210 Advanced Control Module for Multicast IP System

Our UHD Multicast distribution platform allows distribution of HDMI video over a 1Gb managed network. The ACM210 Advanced Control Module allows for advanced third party control of our IP300UHD and IP350UHD Multicast systems using TCP/IP, RS-232 and IR.

The ACM210 includes a web interface module for control and configuration of the Multicast system and features 'drag and drop' source selection with video preview and independent routing of video, audio, IR, RS-232, USB / KVM and CEC.

Major third party drivers simplify Multicast product installation and negate the need for an understanding of complex network infrastructures.

Features

  • Web interface module for configuration and control of IP300UHD and IP350UHD Blustream Multicast systems
  • Intuitive 'drag & drop' source selection with video preview feature for active monitoring of system status
  • Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio and video
  • Auto system configuration
  • 2 x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:
    • Better system performance as network traffic is separated
    • No advanced network setup required
    • Independent IP address per LAN connection
    • Allows simplified TCP/IP control of Multicast system
  • RS-232 integration for control of Multicast system
  • IR integration for control of Multicast system
  • PoE (Power over Ethernet) to power Blustream product from PoE switch
  • Local 12V power supply (optional) should Ethernet switch not support PoE
  • Support for iOS and Android App control
  • 3rd Party drivers available for major control brands
    • Please note: Compatible with IP50HD, IP200UHD / IP250UHD, or IP300UHD / IP350UHD systems only. This product ships with firmware for the IP300UHD / IP350UHD system. IP50HD and IP2xxUHD will require a separate firmware at this time. Please contact support when using with these systems for assistance. For IP50HD, IP2xxUHD, IP3xxUHD, and IP500UHD systems are not interoperable.

Specifications

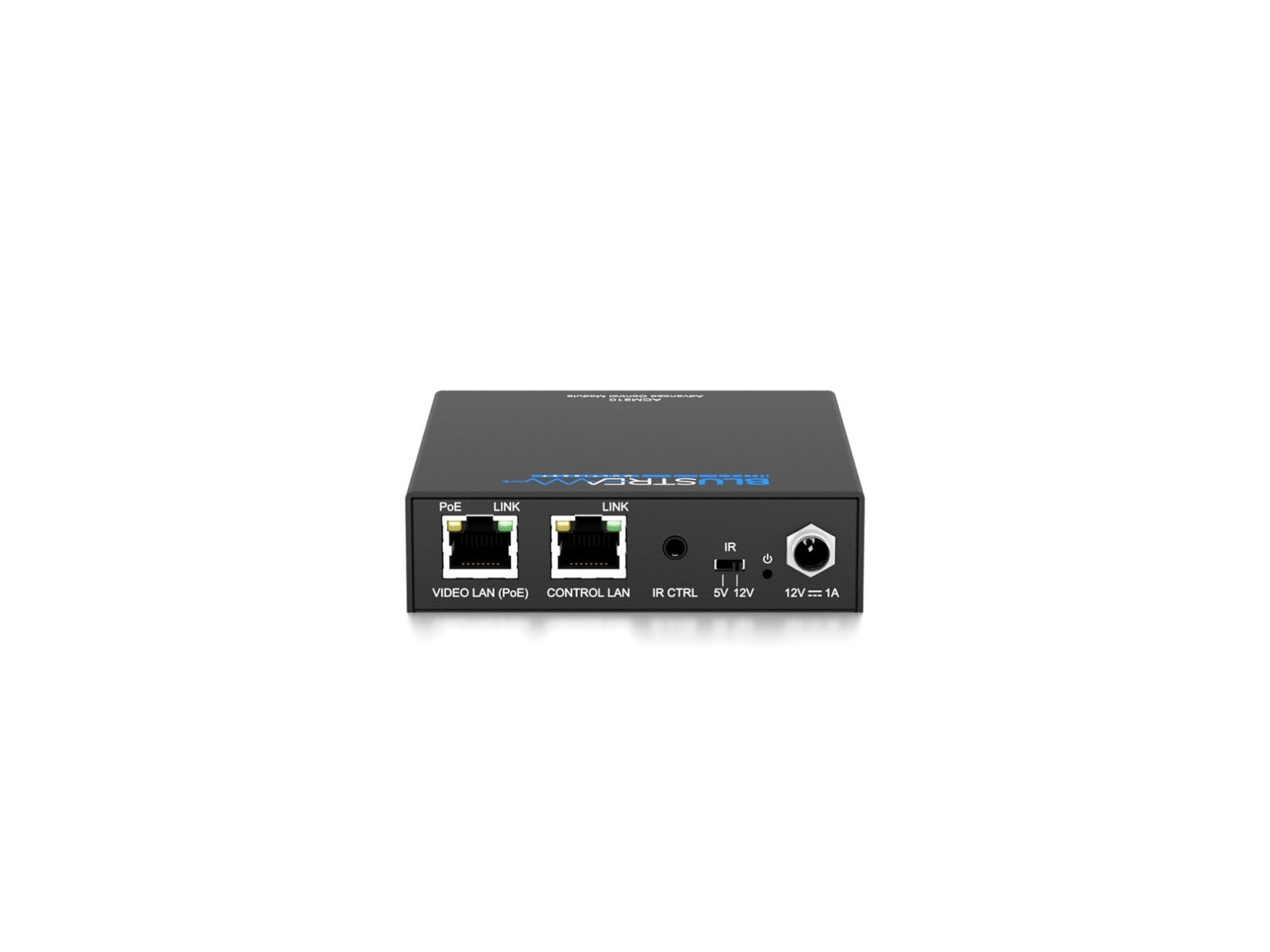

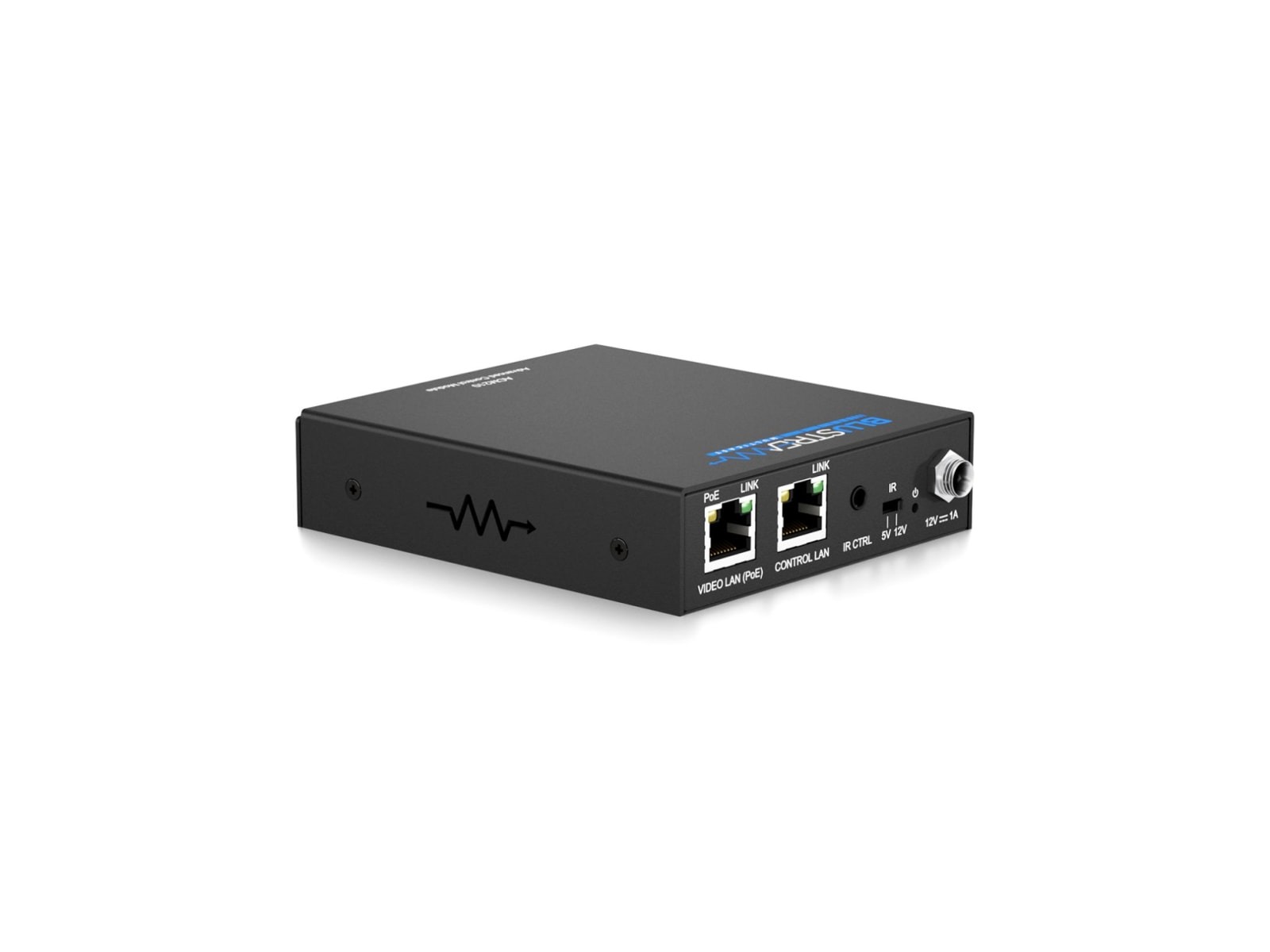

  • Ethernet Port: 2 x LAN RJ45 connector (1 x PoE support)

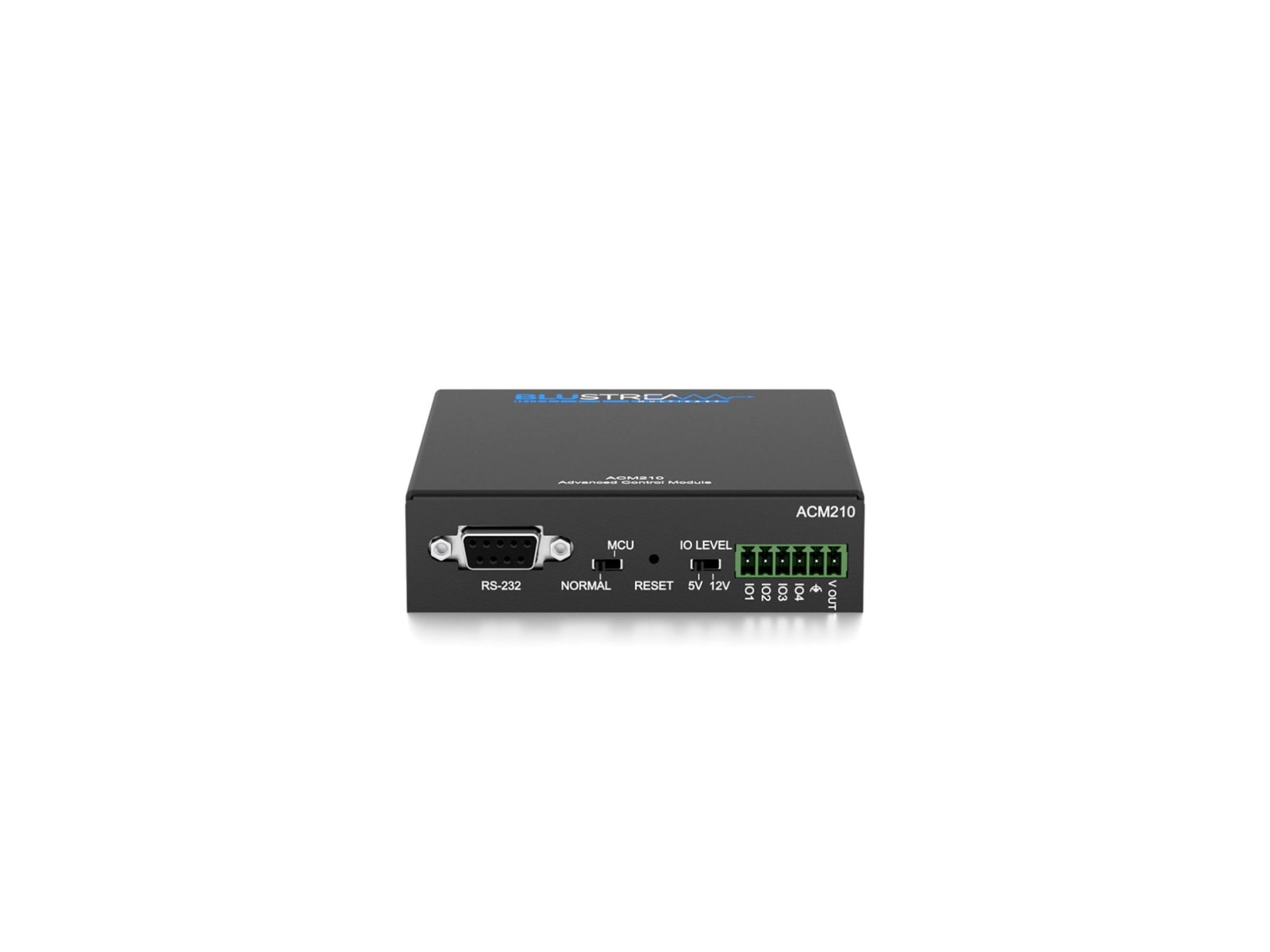

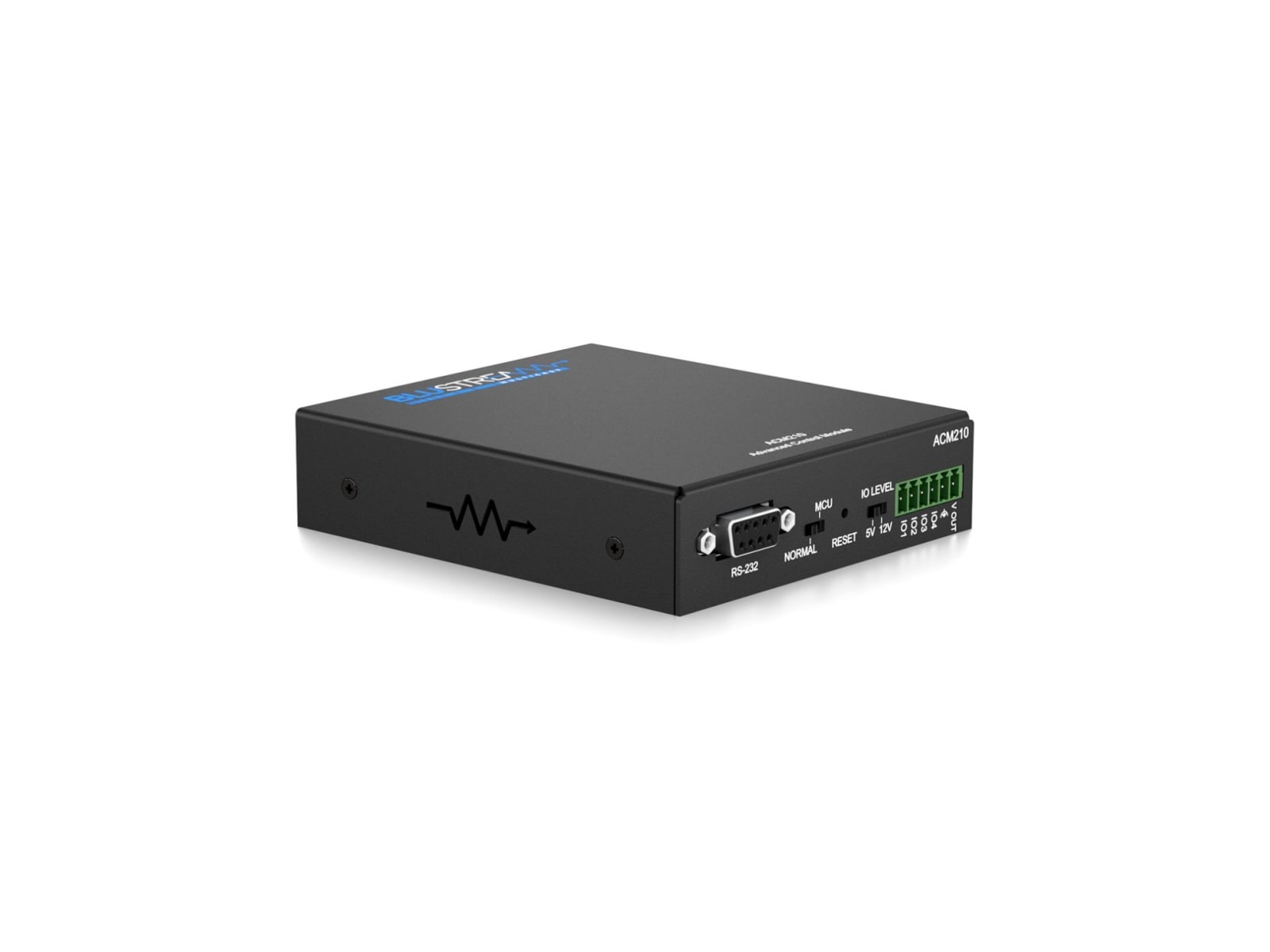

  • RS-232 Serial Port: 1 x DB-9 female
  • RS-232 & I/O Port: 1 x 6-Pin Phoenix connector
  • IR Input Ports: 1 x 3.5mm stereo jack
  • PoE draw: 4.0W (typical), 4.5W (max load)
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Dimensions (WxDxH): 3.78 x 4.33 x 1.02 inch (96 x 110 x 26mm)
  • Shipping Weight: 1.32 lb (0.6kg)

What's in the Box

  • 1x ACM210
  • 1x IR Control Cable – 3.5mm to 3.5mm Cable
  • 1x 6-pin Phoenix Connector
  • 1x Mounting Kit
