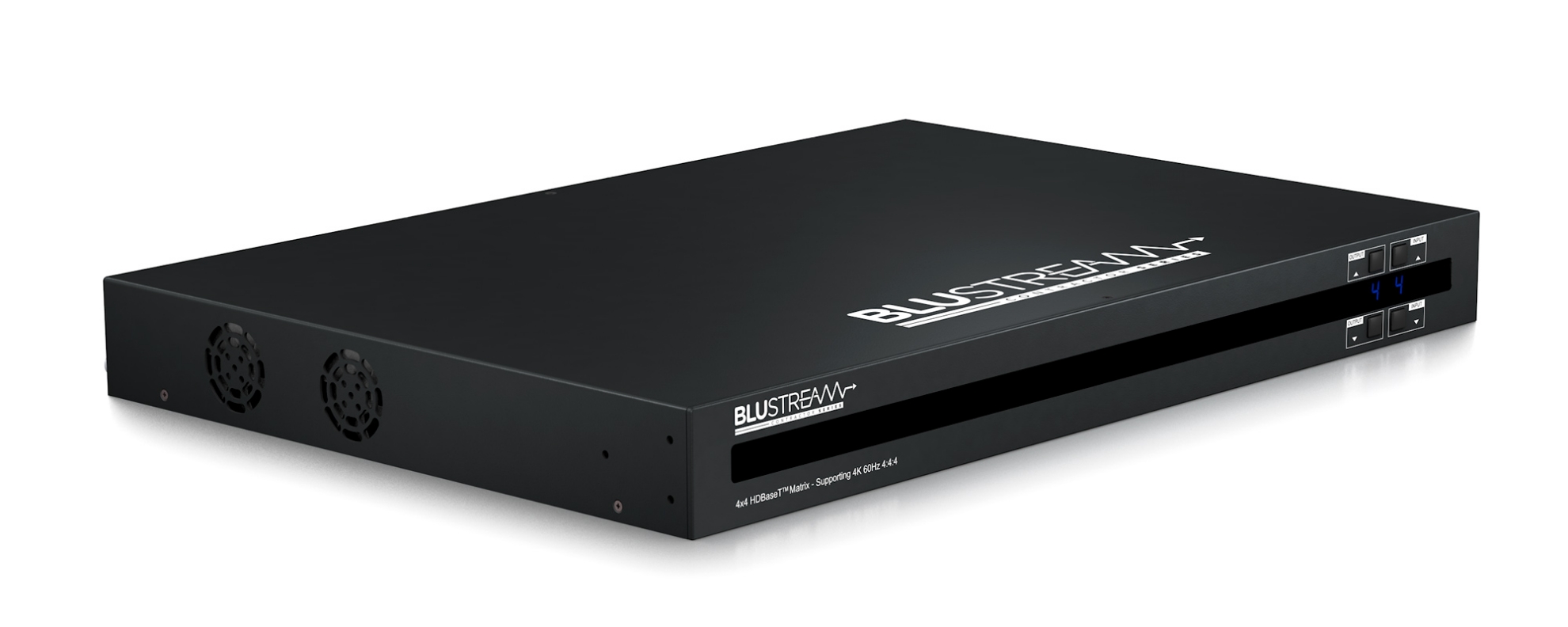

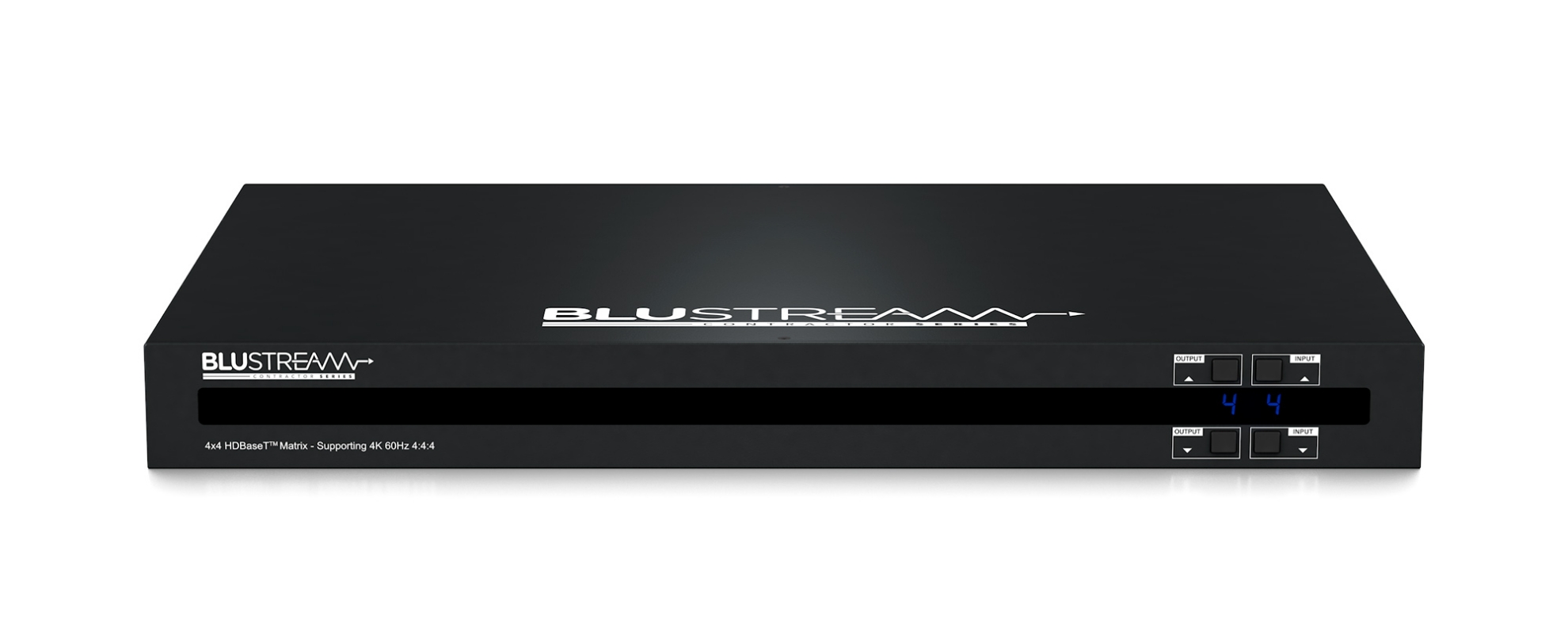

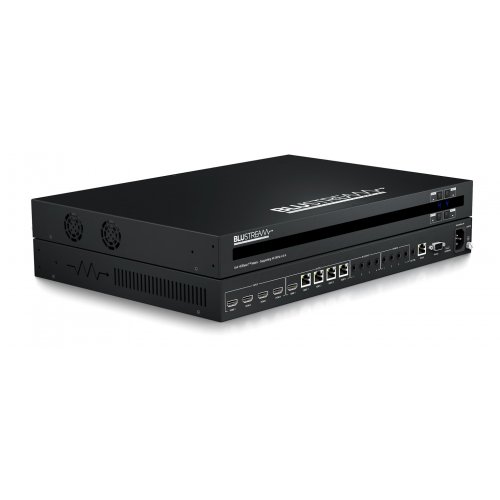

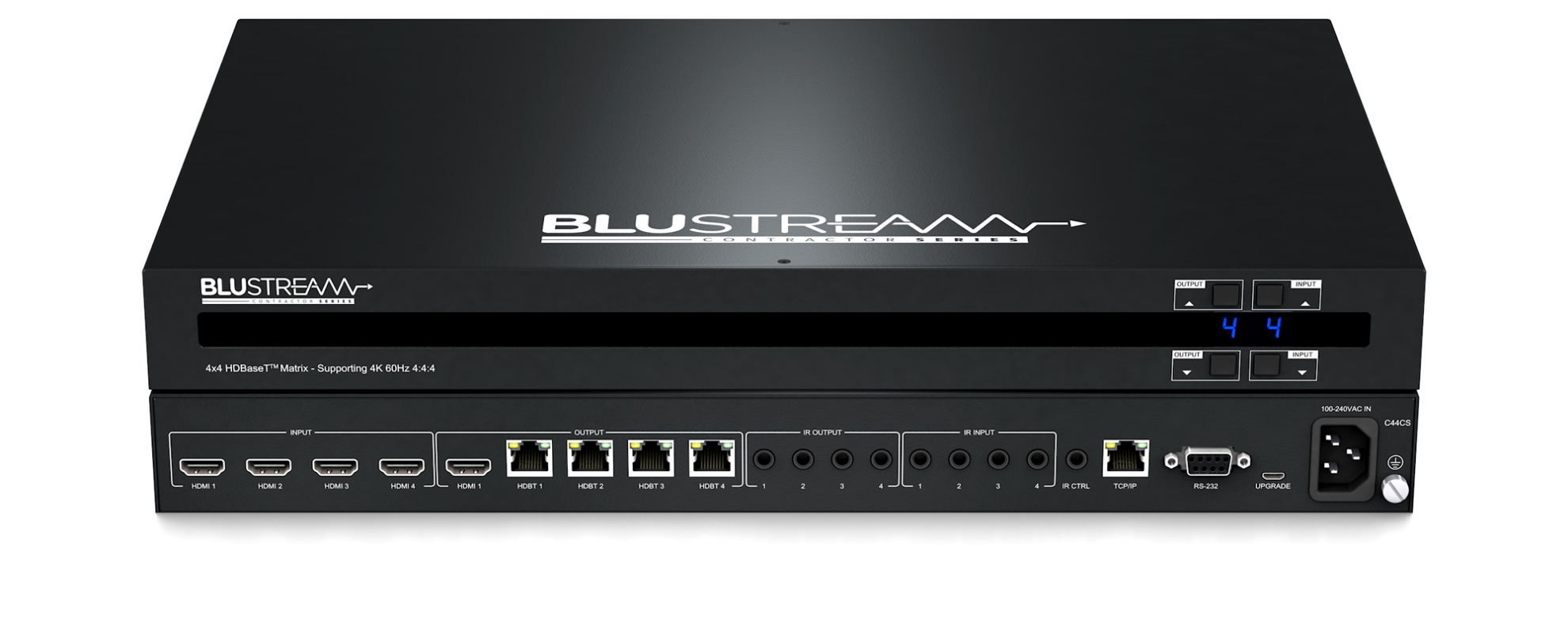

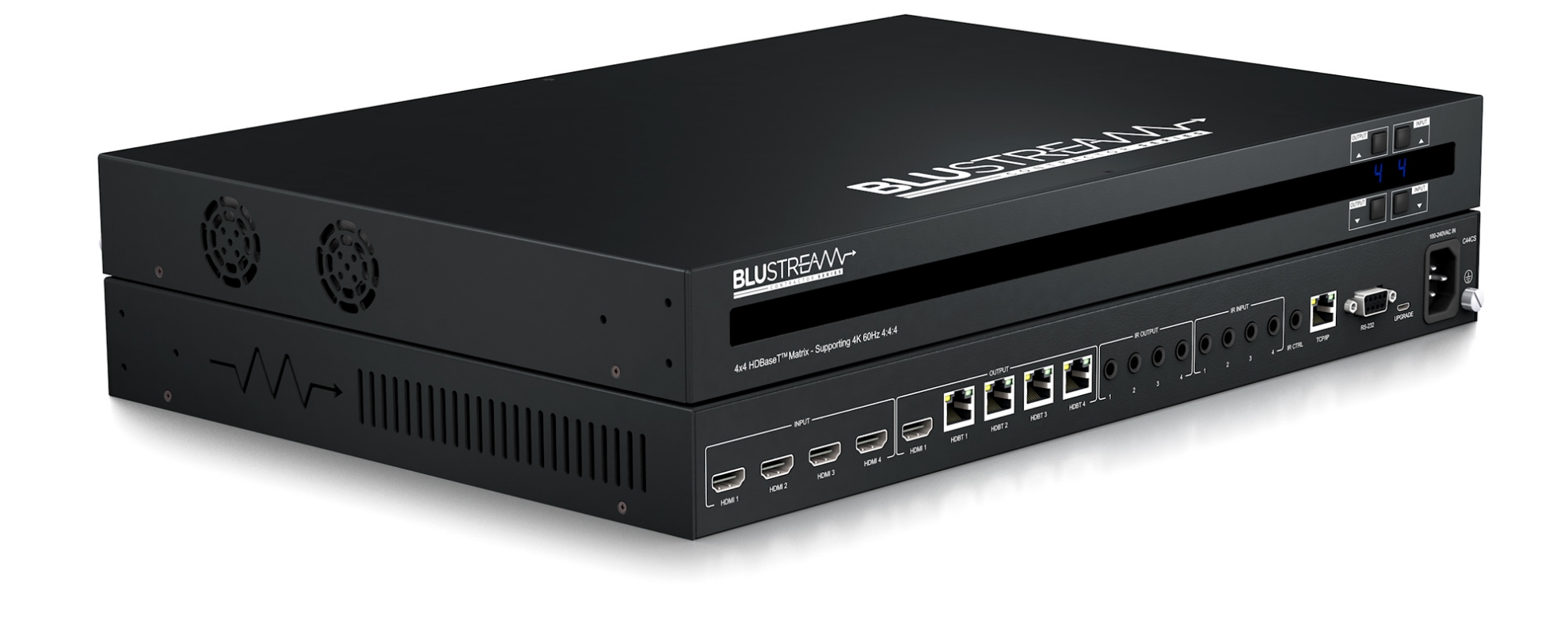

BLUSTREAM C44CS-KIT Contractor 4x4 HDBaseT CSC Matrix - 70m

Model: C44CS-KIT

BLUSTREAM C44CS-KIT Contractor 4x4 HDBaseT CSC Matrix - 70m
BLUSTREAM C44CS-KIT Contractor 4x4 HDBaseT CSC Matrix - 70m
BLUSTREAM C44CS-KIT Contractor 4x4 HDBaseT CSC Matrix - 70m
BLUSTREAM C44CS-KIT Contractor 4x4 HDBaseT CSC Matrix - 70m
BLUSTREAM C44CS-KIT Contractor 4x4 HDBaseT CSC Matrix - 70m
BLUSTREAM C44CS-KIT Contractor 4x4 HDBaseT CSC Matrix - 70m
Call for Price
  • Free Shipping!
  •  Special Order: Contact us for Lead Time
  • Not yet reviewed
Call for details


About: BLUSTREAM C44CS-KIT Contractor 4x4 HDBaseT CSC Matrix - 70m

Our Contractor 4x4 HDBaseT matrix offers unprecedented performance and value for the custom installation market. The C44CS-KIT is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology to deliver HDMI, bi-directional IR, and PoC up to lengths of 70m over a single CAT cable.

The matrix also provides advanced features including simultaneous HDBaseT / HDMI on output 1, video down conversion on HDBaseT outputs and a web browser interface module for control and configuration of the matrix.

The C44CS-KIT is supplied with 4 x RX70CSL receivers.

Features

  • Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
  • Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT outputs
  • Output 1 features simultaneous HDMI and HDBaseT output
  • Video down-conversion on HDBaseT outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m
  • Extends HDMI 1080p video up to 70m
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Web interface module for control and configuration of matrix
  • Supports bi-directional IR on all HDBaseT outputs
  • Control via front panel, iOS / Android App, IR, RS-232 or TCP/IP
  • Supports 12V PoC (Power over Cable) to power compatible HDBaseT receivers
  • Supplied with Blustream IR receivers and emitters
  • 3rd party drivers available for all major control brands
  • 1U design for 19” rack mount integration - mounting kit included
  • Advanced EDID management and HDCP 2.2 compliant
    • *CSC feature compatible with RX70CSL only

Specifications

  • RX70CSL Receiver:
    • Video Input Connectors: 1 x HDBaseT RJ45 connectors
    • Video Output Connectors: 1 x HDMI Type A
    • IR Input Ports: 1 x 3.5mm stereo jack
    • IR Output Ports: 1 x 3.5mm mono jack
    • Mounting Wings: Supplied
    • Casing Dimensions (WxHxD): 3.35 x 0.94 x 4.72 inch (85 x 24 x 120mm)
  • C44CS - Matrix:
    • Video Input Connectors: 4 x HDMI Type A, 19-pin, female
    • Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 4 x HDBaseT RJ45 connectors
    • TCP/IP Control: 1 x RJ45, female
    • RS-232 Serial Ports: 1 x DB-9, female
    • IR Input Ports: 5 x 3.5mm stereo jack
    • IR Output Ports: 4 x 3.5mm mono jack
    • Rack Mountable: 1U rack height, rack ears included
    • Casing Dimensions (without feet) (WxHxD): 17.2 x 1.73 x 11.81 inch (437 x 44 x 300mm)
  • C44CS-KIT:
    • ​Power Supply: Internal 100-240V AC
    • HDBT Power Output: 12V DC 0.8A per port
    • Operating Temperature: 23°F to 122°F (-5°C to +50°C)
    • Storage Temperature: -13°F to 158°F (-25°C to +70°C
    • Shipping Weight: 13.23 lbs (6.0kg)

What's in the Box

  • 1x C44CS Matrix
  • 4x RX70CSL Receivers
  • 1x Rack Mounting Kit
  • 4x Mounting Kits for RX70CSL
  • 4x Mounting Feet
  • 1x Remote Control
  • 4x IR Emitters
  • 5x IR Receivers
  • 1x Serial Cable - DB9 to DB9
  • 1x IR Control Cable - 3.5mm-3.5mm Cable
  • 1x Quick Reference Guide
  • IEC Power Cable(s)

UPC: 9340242004727
