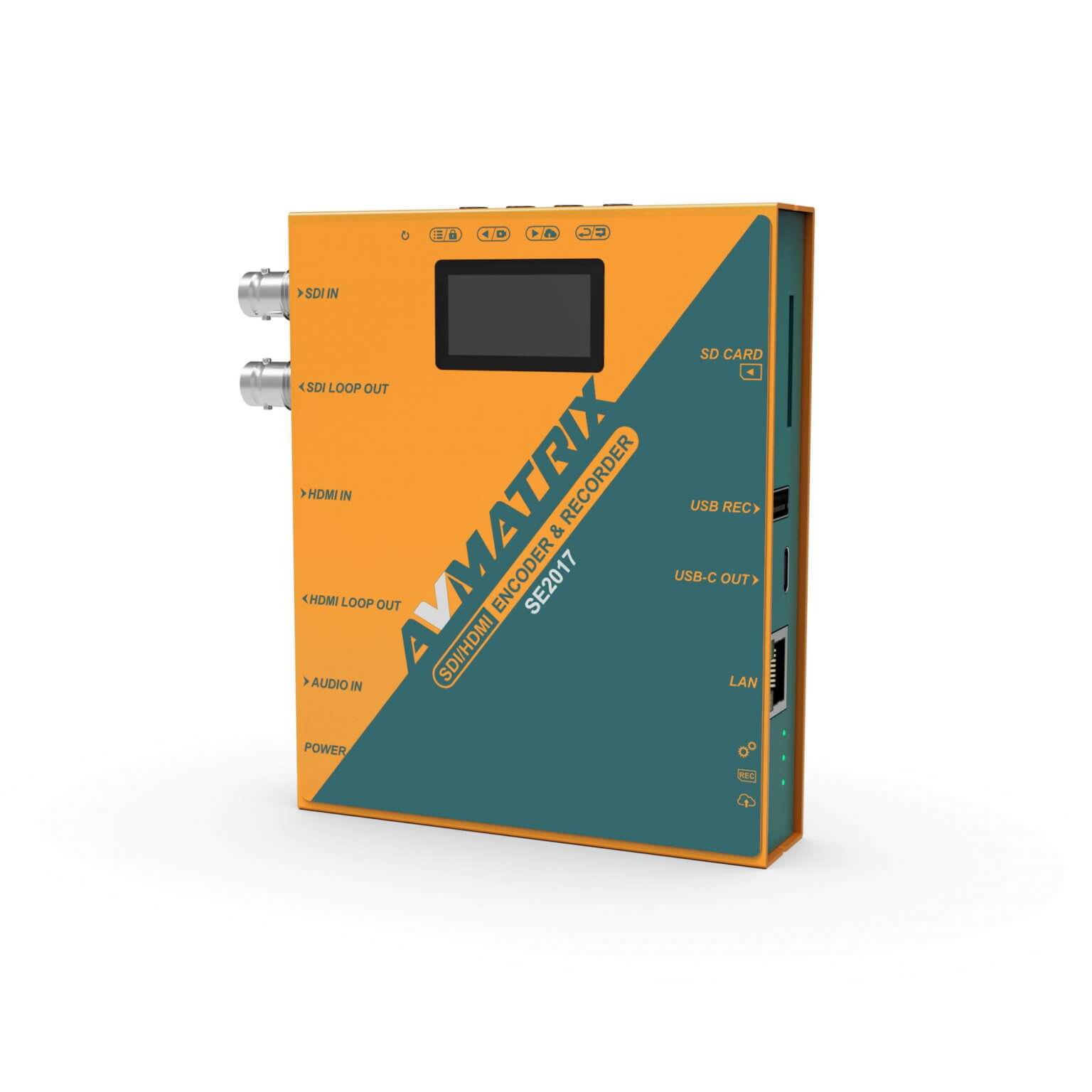

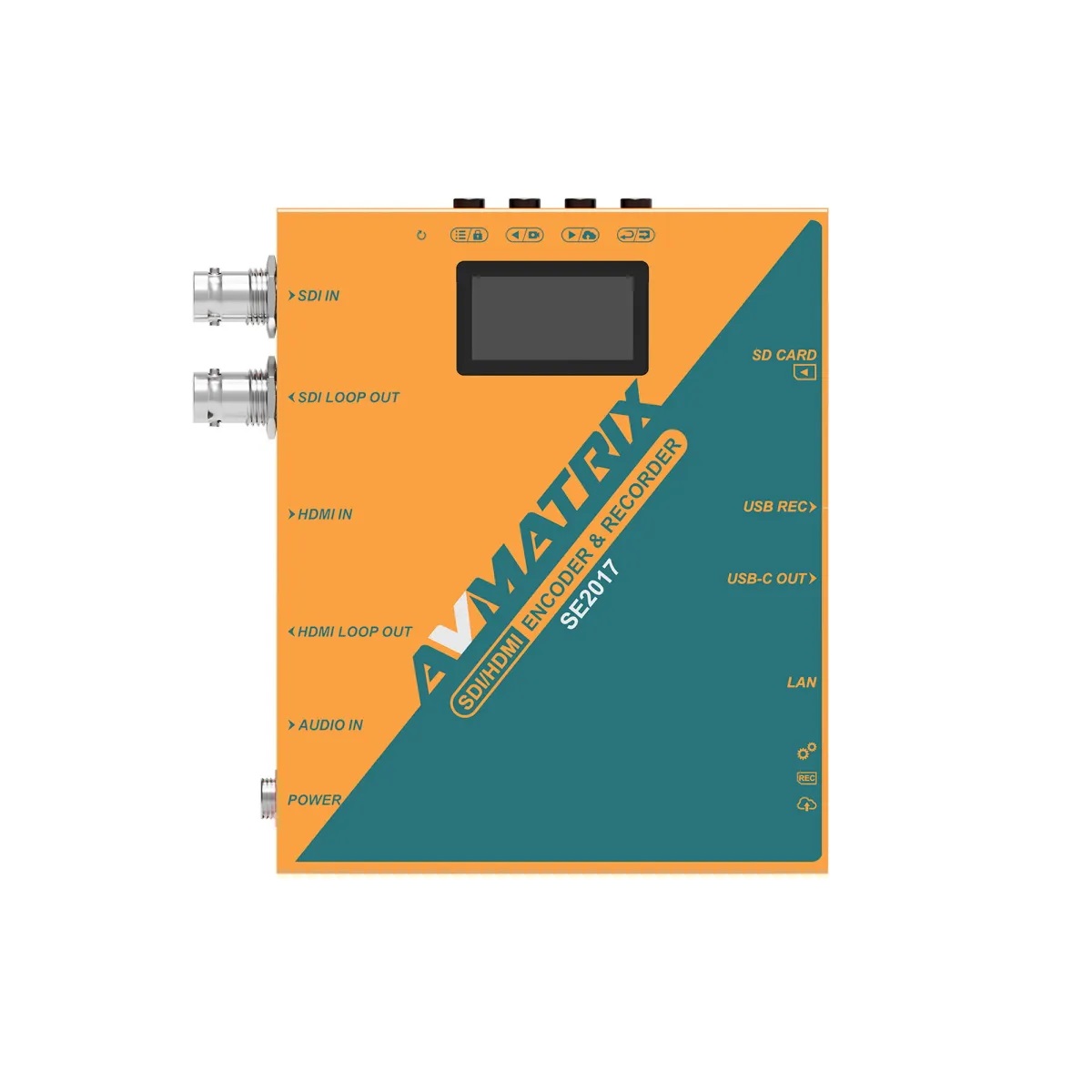

AVMatrix SE2017 SDI/HDMI Encoder & Recorder

About: AVMatrix SE2017 SDI/HDMI Encoder & Recorder

The all-new, all-powerful SE2017 HD audio and video encoder integrates USB and SD card recording network streaming, and USB capture functions

• Record, stream and capture multi-function three-in-one
• HDMI and SDI inputs and loopout
• Line audio input embedded
• Encoding bit rate up to 32Mbps
• USB/SD card recording, MP4 and TS file format, up to 1080P60
• Multiple streaming protocols: HTTP, RTSP, RTMP, RTP, UDP, Multicast, Unicast, SRT
• USB-C capture, support up to 1080P60
• Supports POE and DC power

Excellent Recording

Experience exceptional recording flexibility with this encoder's integrated recorder. Record professional-grade video (up to 1080p60Hz, 32Mbps) onto USB Disk or SD card, eliminating the need for an external setup.

Multi-platform Live Streaming

This encoder adapts to your needs with support for multiple streaming protocols: RTSP, RTMP(S), SRT, HTTP-FLV, unicast, and multicast. Reach your audience on popular platforms like YouTube, Skype, Facebook, and Twitch with ease and enjoy better quality with simpler settings. Share your content with up to 6 platforms simultaneously, using both main and sub-streams.

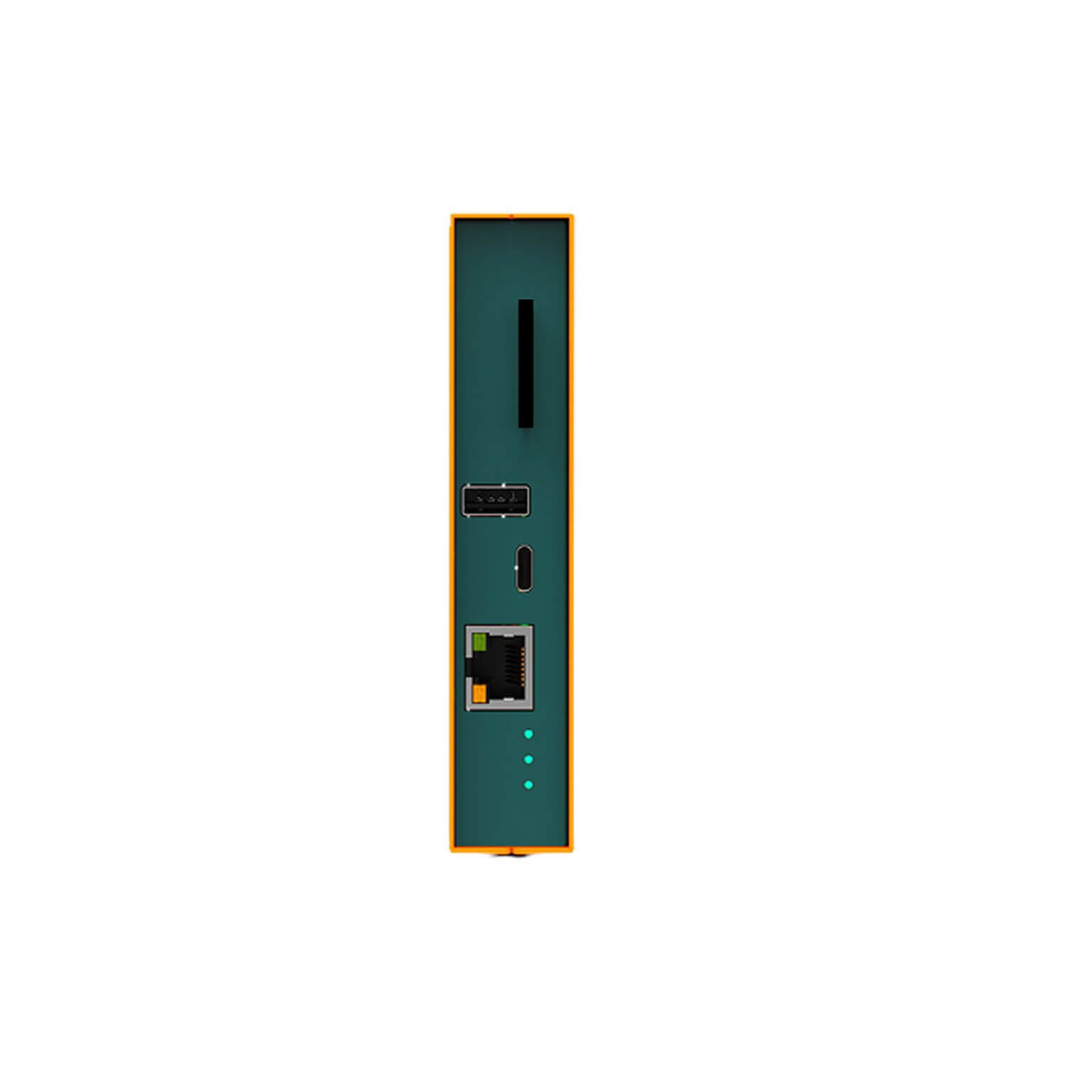

USB Type-C Video Capture

The encoder has a USB-C output which works as a webcam for capturing video and audio. No driver required, simply connect to a windows 7/8/10/11/Linux computer or a Macbook to release live stream to various platforms such as Twitch, YouTube, Facebook, Zoom, etc.

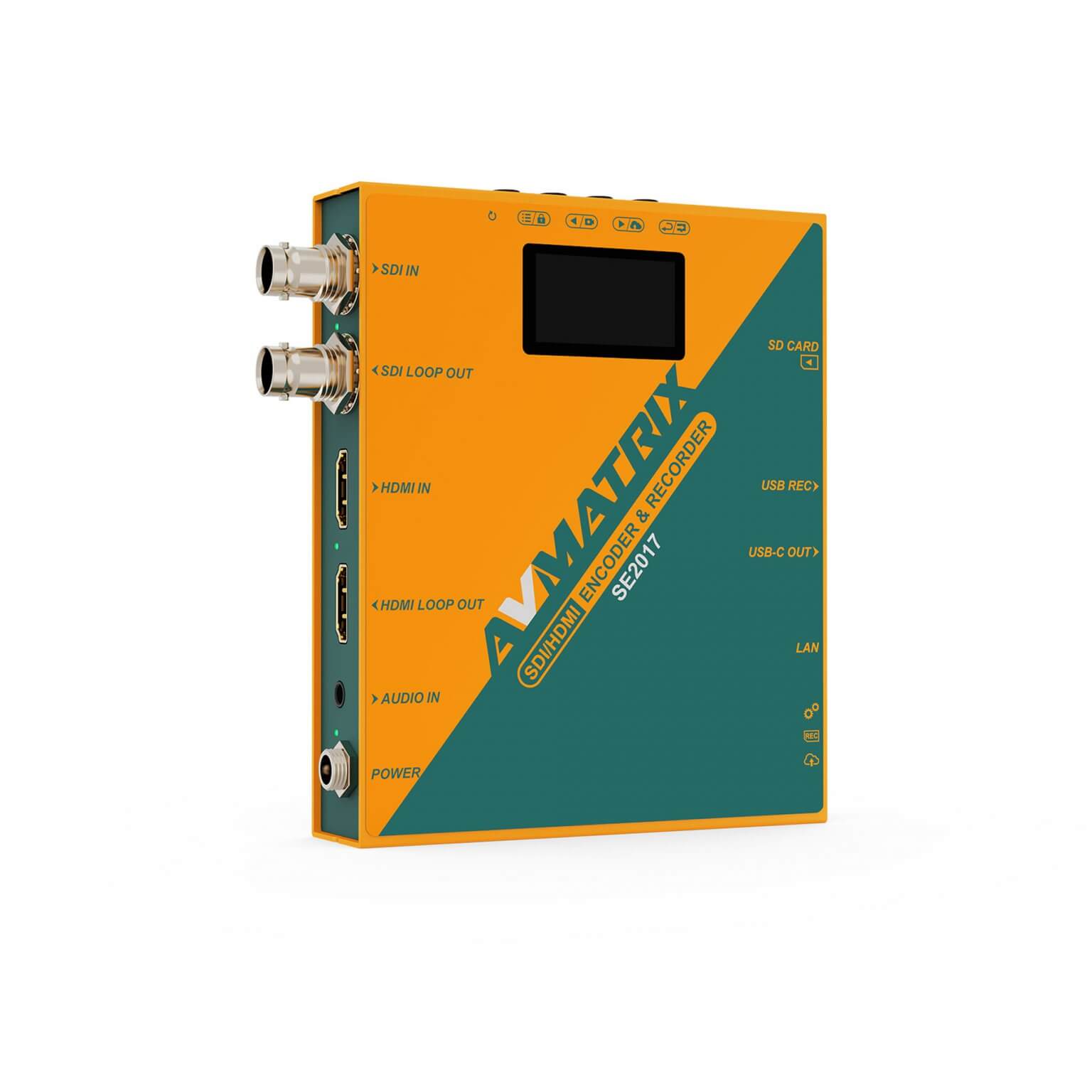

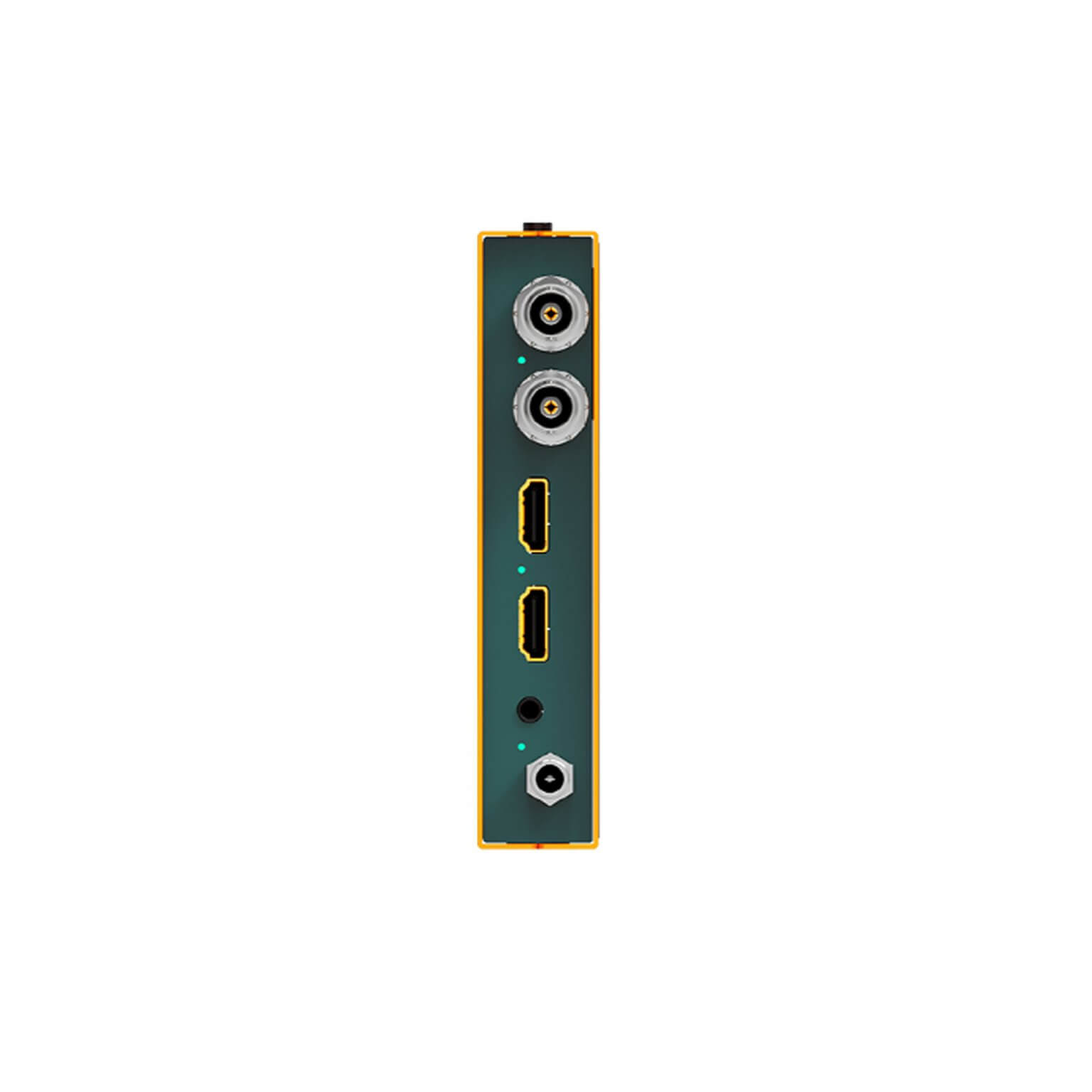

SDI/HDMI Input and Loopout

This versatile encoder seamlessly connects to a wide range of video sources with its 3G-SDI and HDMI dual-interface input/loop-out. Choose your preferred interface, monitor or share the source signal with ease, and mix in audio for live streaming with the 3.5mm input.

Power-over-Ethernet

The encoder boast versatile power options, supporting both Power over Ethernet (POE) and traditional DC power supply. This dual capability empowers users with flexibility and convenience, allowing them to choose the most suitable power source based on their specific requirements.

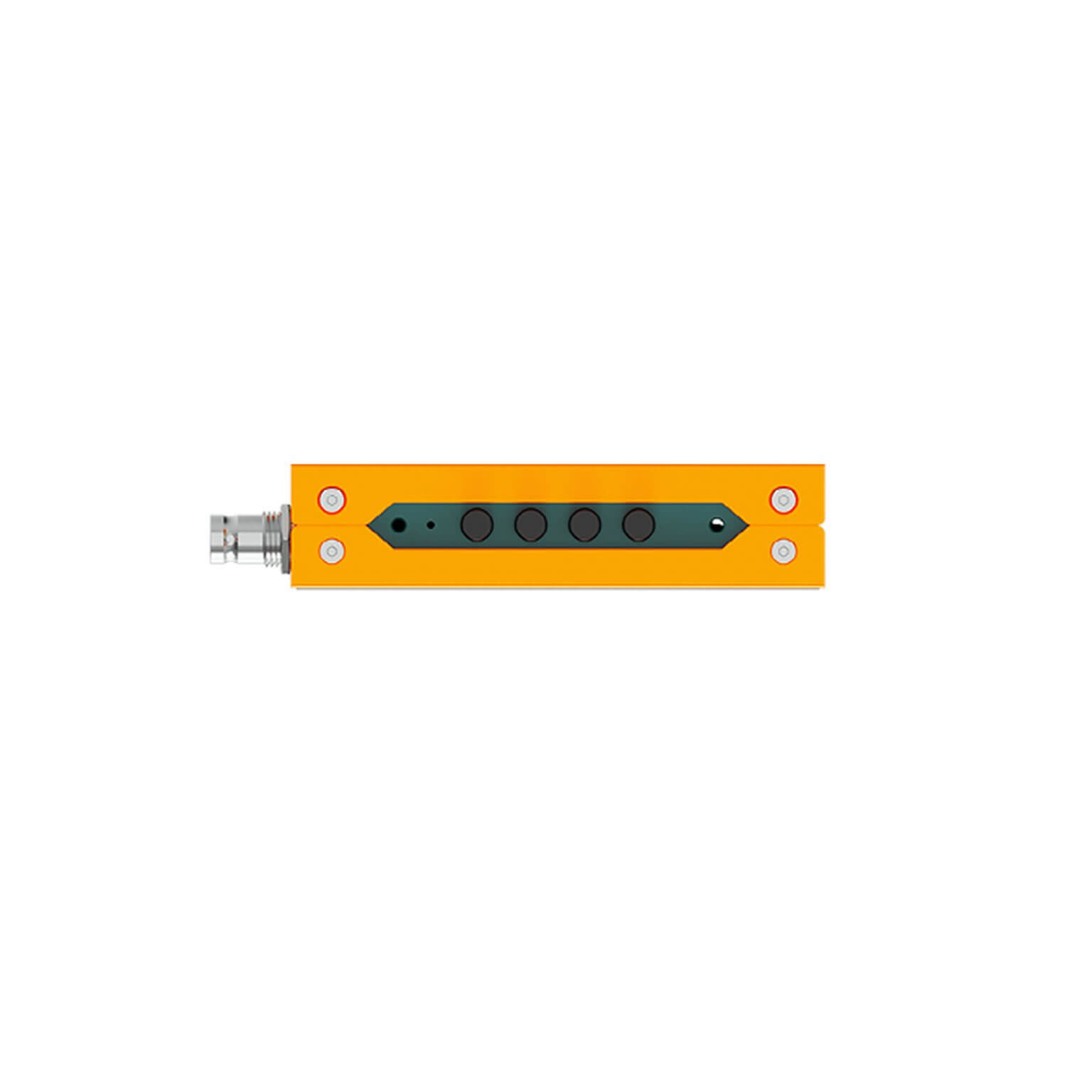

Effortless Operation, Swift Control

Feature a operation button that allows you to quickly and easily access the desired functions. The built-in OLED display provides real-time status information. And the clear web interface lets you customize a variety of function settings to meet your needs.

Widespread Application

The encoder can be widely used in various field events, such as live sports, virtual studio, education, internet, concert, and so on.

Specifications

• CONNECTIONS
  • Video Input - 1x HDMI Type A, 1x SDI
  • Video Loop Out - 1x HDMI Type A, 1x SDI
  • Analog Audio In - 1x 3.5mm (line in)
  • Network - 1x RJ-45 (100/1000Mbps self-adaptive Ethernet)
• RECORD
  • REC SD Card Format - FAT32/ exFAT/NTFS
  • REC USB Disk Format - FAT32/ exFAT/NTFS
  • REC File Segment - 1/5/10/20/30/60/90/120mins
  • Recording Storage - SD Card/USB Disk
• FORMAT
  • HDMI In Format Support
    • 1080p 60/59.94/50/30/29.97 /25/24/23.98
    • 1080i 50/59.94/60,
    • 720p 60/59.94/50 /30/29.97 /25/24/23.98
    • 576i 50, 576p 50, 480p 59.94/60, 480 59.94/60
  • SDI In Format Support
    • 1080p 60/59.94/50/30/29.97/25/24/23.98
    • 1080i 50/59.94/60
    • 720p 60/59.94/50/30/ 29.97/25/24/23.98
    • 525 59.94, 62550
  • USB Capture Out - Up to 1080p 60Hz
  • Video Encoding Bitrate - 2/4/8/12/16/24/32Mbps
  • Audio Coding - ACC
  • Audio Encoding Bitrate - 64/128/256/320Kbps
  • Encoding Resolution -
    • Main Stream: 1920x1080, 1280×720, 720×480
    • Sub Stream: 1280×720, 720×480
  • Encoding Frame Rate - 24/25/30/50/60fps
• ​PROTOCOL
  • Network Protocols - RTSP, RTMP, RTP, SRT, UDP, HTTP-FLV, Multicast, Unicast,
  • Configuration Management - Web configuration, Remote upgrade
• OTHERS
  • Power - DC 12V 0.38A, 4.5W
  • Temperature
    • Working: -20°C-60°C,
    • Storage: -30°C-70°C
  • Dimension (LxWxD) - 104x125.5×24.5mm
  • Weight - 550g
  • Accessories - 12V 2A power supply, (Optional: Bracket)
