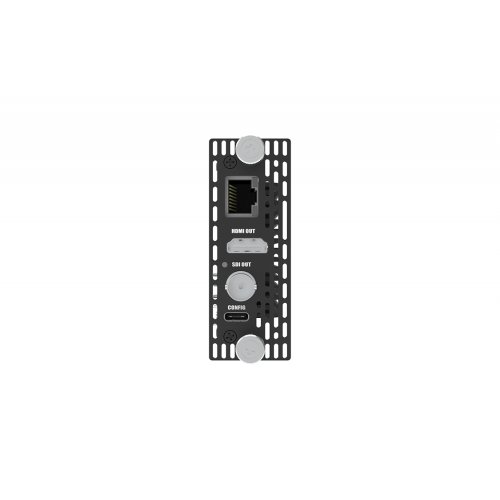

Magewell Pro Convert for NDI to AIO Module for Magewell Modator
Model: B42110000
About: Magewell Pro Convert for NDI to AIO Module for Magewell Modator

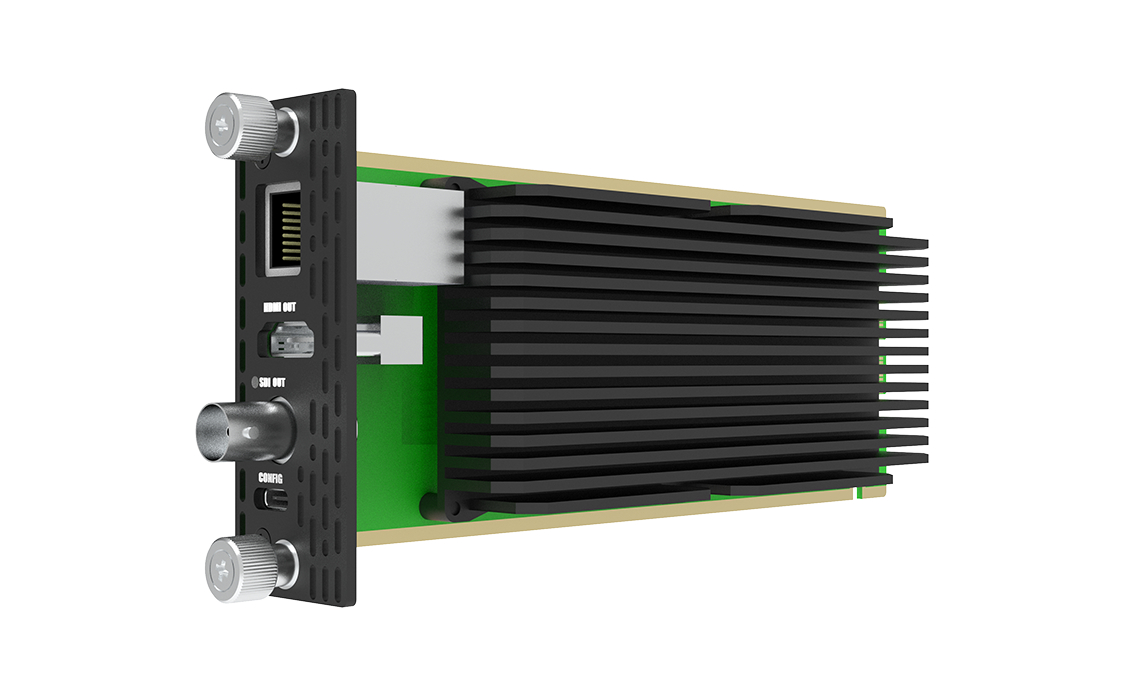

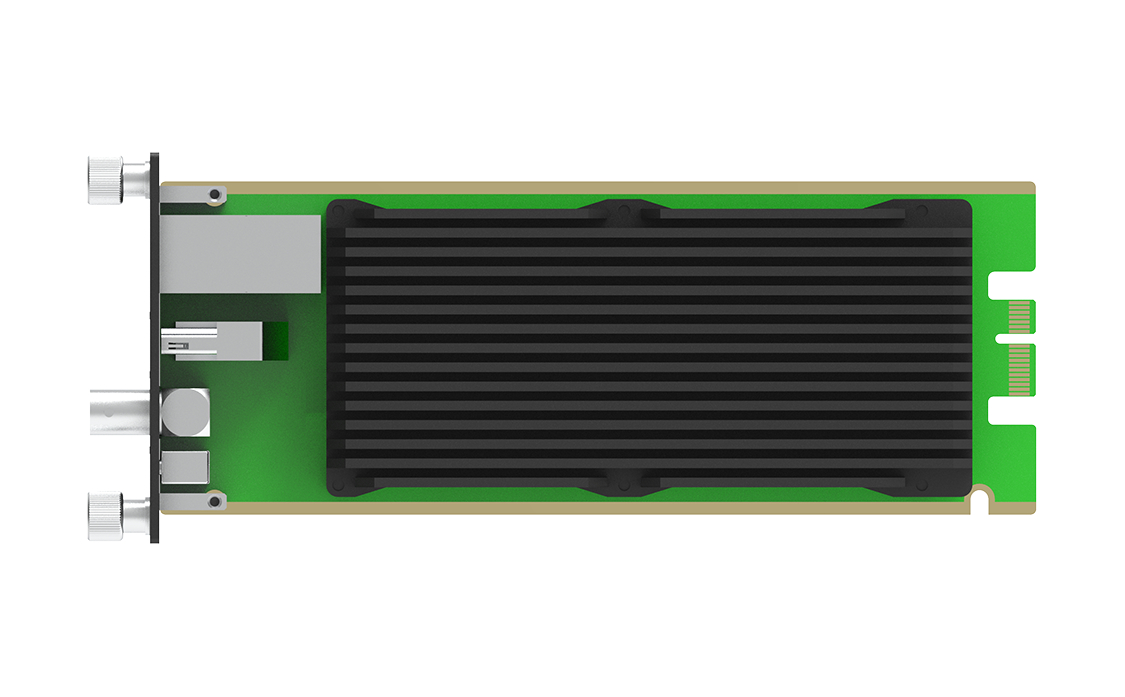

Pro Convert for NDI to AIO Module is a hot-swappable modular blade for Magewell Modator chassis. Decodes NDI High Bandwidth, NDI HX, NDI HX2, NDI HX3, SRT, RTSP, RTMP, UDP, RTP, HLS and HTTP streams to HDMI and 3G SDI, 1920x1080p60. Manageable through web user interface and Magewell Control Hub.
- A hot-swappable module to be installed in Magewell Modator chassis
- Decodes high-bandwidth NDI and NDI HX including earlier variants into HDMI and SDI
- Centrally manageable via the Modator chassis and Magewell Control Hub
HDMI Output Features
- Max. output: 1920x1080p60
- Supports YUV BT.601/709 signals
- Supports 48KHz 8-channel audio output
SDI Output Features
- Max. output: 1920x1080p60. Supported output formats are:
- 1920x1080p 23.98/24/25/29.97/30/50/59.94/60
- 1920x1080i 50/59.94/60
- 1280x720p 24/25/29.97/30/50/59.94/60
- 720x576p50
- 720x576i50
- 720x480i59.94
- Supports YUV BT.601/709 signals
- Supports 48KHz 8-channel audio output
- Supports SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425) standards
- Output 3G-SDI signal with a transmitted distance greater than 150m
Decoding Features
- Decode up to 2Kp60 streams of Full NDI, NDI|HX, NDI|HX2, NDI|HX3, RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP, TVU protocols
- Support for decoding high-bandwidth NDI and NDI HX
- Decode H.264/H.265 video
- Decode AAC/MP3 audio
- Simultaneously decode and output HDMI and SDI signals
- Discover NDI devices across network segments
- Supports NDI 5.x
Features & Advantages
- Very low latency
- Configure through the touch screen of Magewell Modator chassis, Web GUI or Control Hub
- HTTP-based APIs for custom integration
- Image flip for inverted projector installations and safe area controls
Specifications​

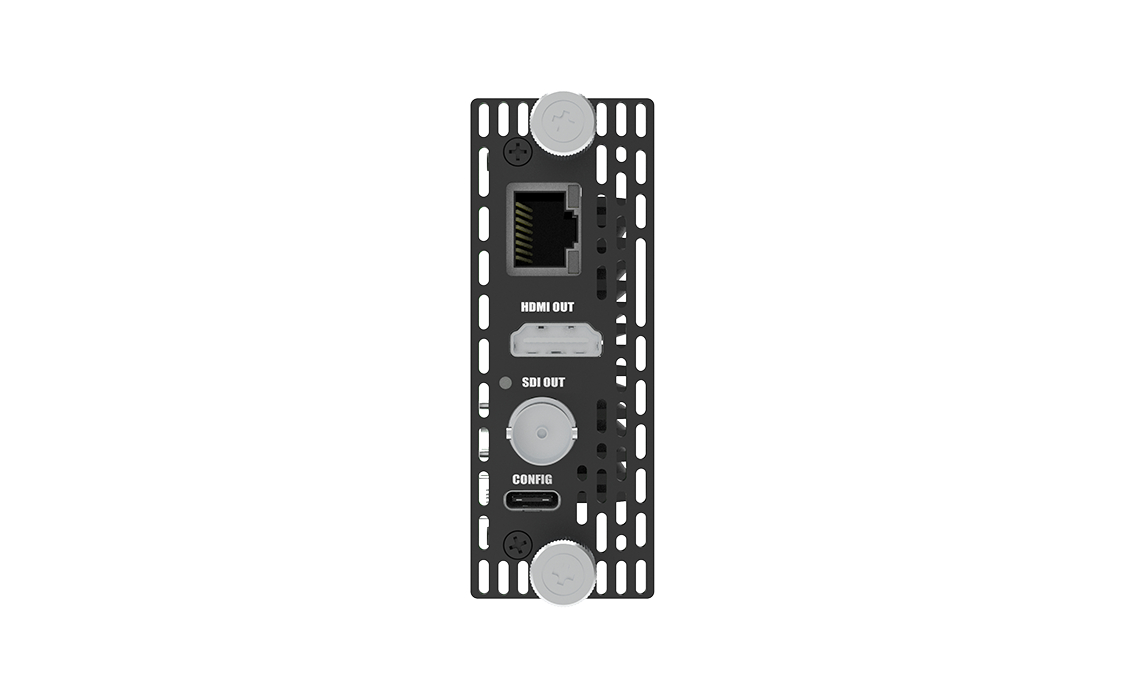

- Interfaces
- 1x RJ45 1000Mbps Ethernet port
- 1x USB Type-C port for configuration
- 1x SDI output port
- 1x HDMI 1.4 output port
- 1x Modator interface for connecting to Modator 2U (hot-swappable)
- Web UI
- Register with Magewell Control Hub for remote centralized management
- Supports configuring and managing via Web UI
- Provides comprehensive information regarding the device and decoded signals in real-time
- Allow to configure how a signal is decoded and output, including OSD settings, deinterlacing, resolutions, audio gain, sample rate, and channel mapping, as well as the network connection
- Supports updating firmware
- Supports USB RNDIS/ECM
- Supports IE/Edge/Firefox/Chrome/Safari/Opera web browsers
- Provides HTTP APIs
- LED Indicators
- Decode status indicator
- On: decoding
- Blinks: decoding error
- Off: source unselected
- Decode status indicator
- Physical Specifications
- Form factor: 184.4mm (L) x 30.0mm (W) x 81.5mm (H)
- Weight: ≈300g
- Power Consumption
- Max power consumption: 5.2W
- Working Environment
- Operating temperature: –10 to 45 deg C
- Storage temperature: –20 to 70 deg C
- Relative humidity: 5% to 90% non-condensing
