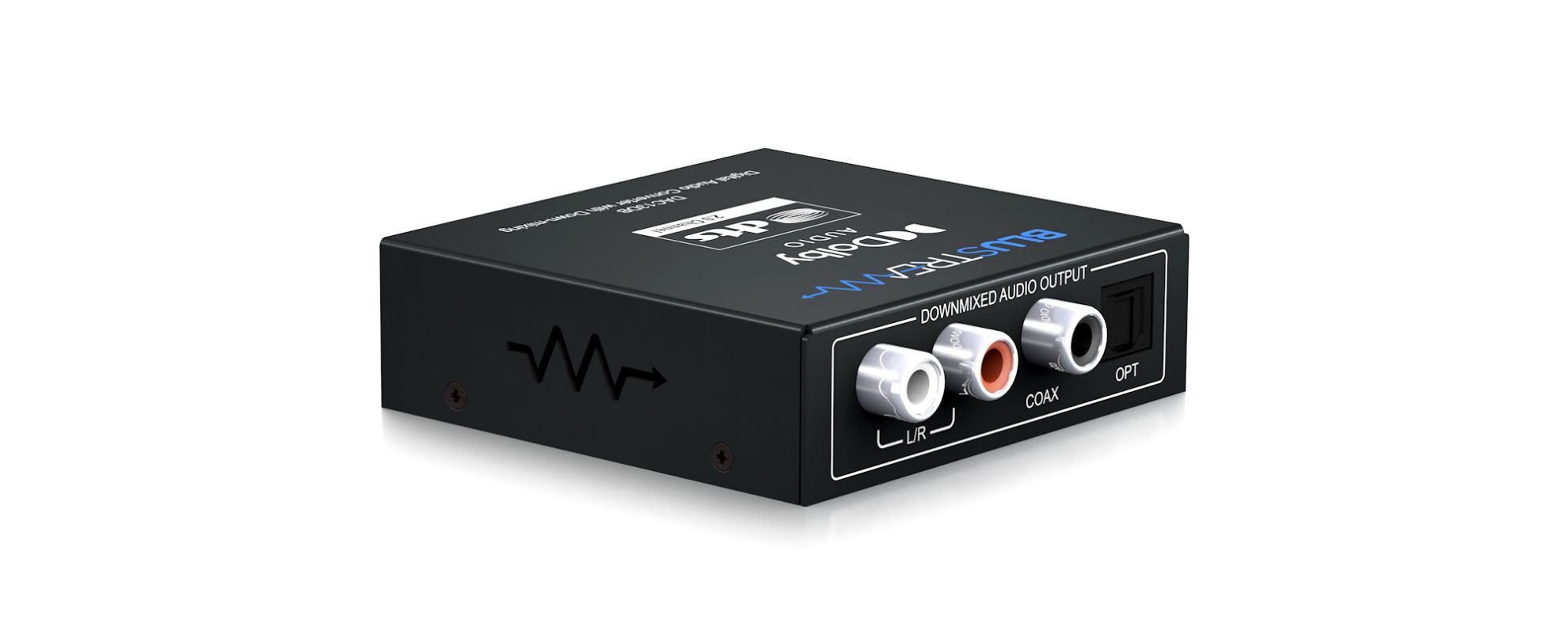

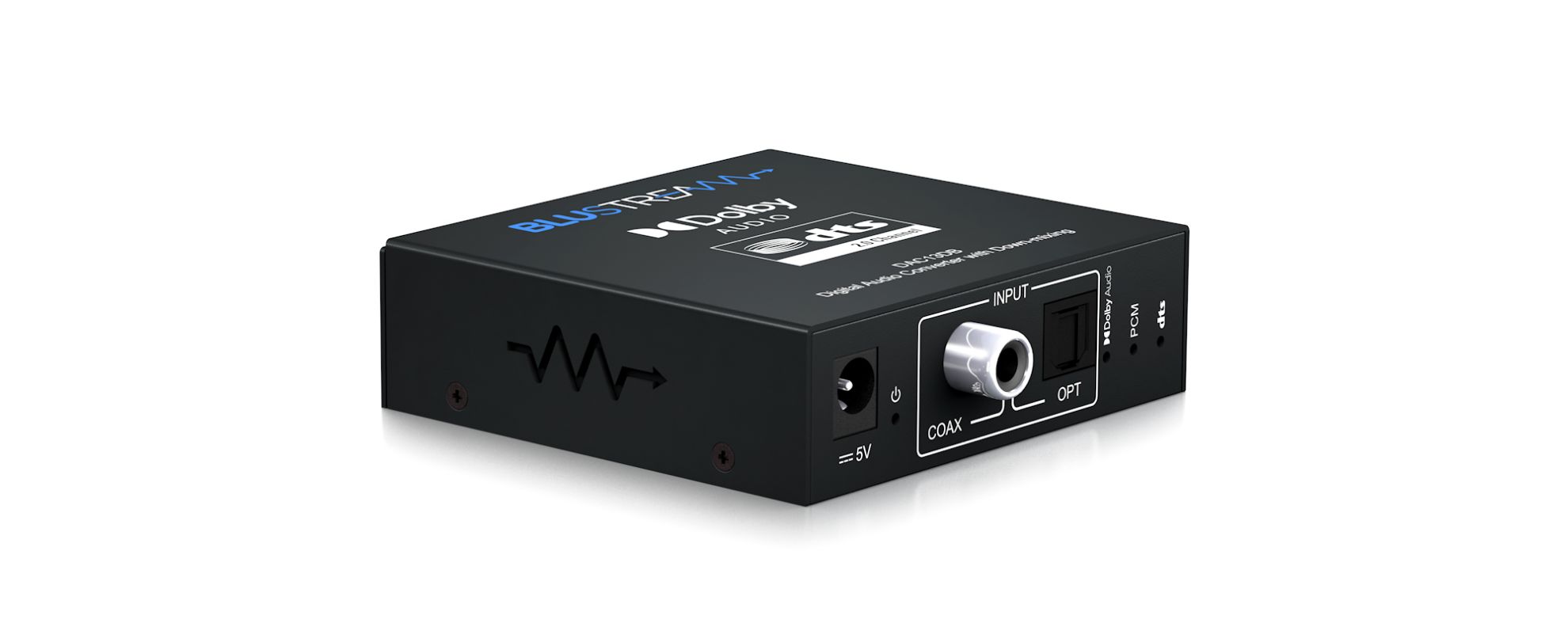

BLUSTREAM DAC13DB Digital Audio Converter w/ Dolby & DTS Audio Down-Mixing
Model: DAC13DB
About: BLUSTREAM DAC13DB Digital Audio Converter w/ Dolby & DTS Audio Down-Mixing
The Blustream DAC13DB has been designed to convert and downmix embedded 5.1ch Dolby Audio or DTS Audio within an optical or coaxial audio signal into a stereo 2ch signal available on optical, coaxial and analogue audio outputs.
Features
- Down-mixes 5.1ch Dolby Audio and DTS Audio from optical Toslink or coaxial digital audio input signals from a compatible source device to 2ch stereo audio
- Simultaneously outputs down-mixed 2ch audio via analogue, optical Toslink or coaxial digital audio outputs
- Dolby Audio and DTS Audio formats supported:
- PCM 2ch
- Dolby Digital 2ch
- Dolby Digital 5.1ch
- DTS 2ch
- DTS 5.1ch
- Supports audio signals up to 24-bit with sampling rates up to 96kHz
Specifications
- Audio Input Connectors: 1 x S/PDIF Coaxial RCA Digital, 1 x S/PDIF Optical Toslink Digital
- Audio Output Connectors: 1 x S/PDIF Coaxial RCA Digital, 1 x S/PDIF Optical Toslink Digital, 2 x RCA Stereo Analogue (L/R)
- Operating Temperature: 32°F to 104°F (-5°C to +55°C)
- Storage Temperature: -4°F to 140°F (-25°C to +70°C)
- Power Supply: 5V/1A DC
- Casing Dimensions (without connections) (WxDxH): 3.15 x 2.99 x 0.94 inch (80 x 76 x 24mm)
- Dimensions (WxDxH): 3.15 x 3.58 x 0.94 inch (80 x 91 x 24mm)
- Shipping Weight: 0.44 lbs (0.2kg)
What's in the Box
- 1 x DAC13DB
- 1 x Mounting Kit
- 1 x 5V/1A DC Power Supply
- 1 x Quick Reference Guide
UPC: 9340242003430
