Magewell Pro Convert HDMI Plus Module for Magewell Modator
Model: B40210000
About: Magewell Pro Convert HDMI Plus Module for Magewell Modator

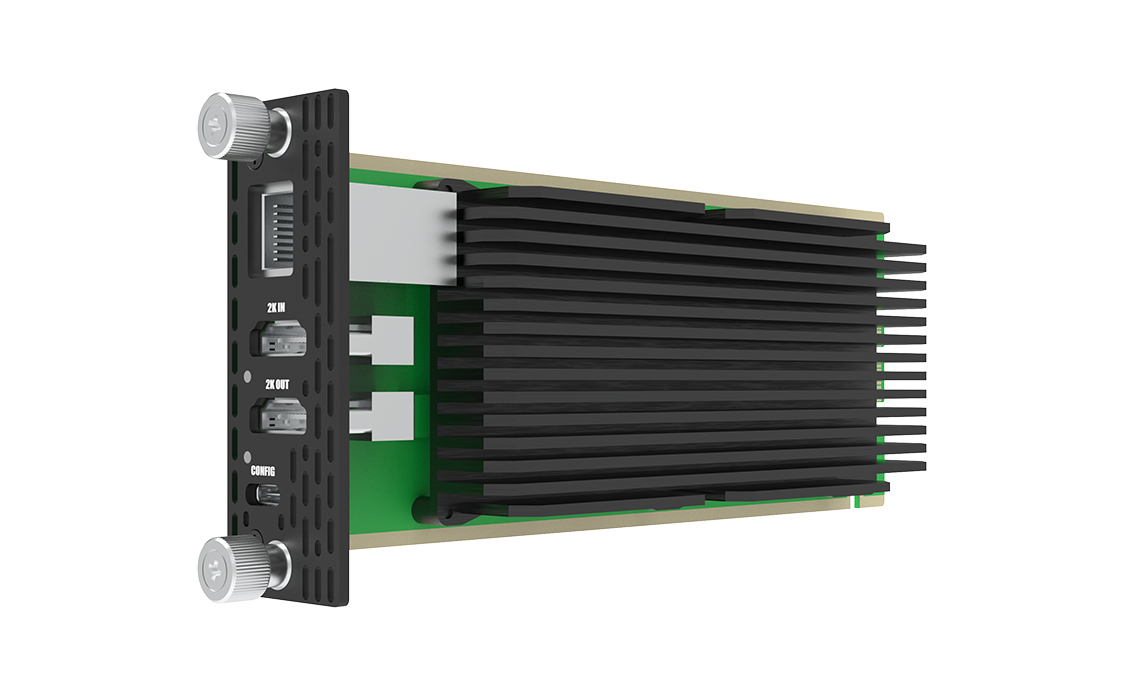

Pro Convert HDMI Plus Module is a hot-swappable modular blade for Magewell Modator chassis. Encodes HDMI to NDI High Bandwidth. Manageable through web user interface and Magewell Control Hub.
- A hot-swappable module to be installed in Magewell Modator chassis
- Supports up to 4096x2160 60fps (4:2:0) or 30fps (4:4:4), down-converting them to HD NDI
- Centrally manageable via the Modator chassis and Magewell Control Hub
Input & Loop-Through Features
- Max. input & loop through signal:
- 4096x2160 30fps 4:4:4/4:2:2
- 4096x2160 60fps 4:2:0
- Input videos at any format by customizing the EDID of input port
- Supports RGB and YUV BT.601/709 signals
- Supports 8-channel HDMI-embedded audio
NDI Encoding Features
- Encode and output real-time streams of Full NDI at up to 2048x2160 120fps 4:2:2 8-bit
- Output the same resolution as input or any custom resolution. Typical outputs include:
- 2048x1080p/1920x1080p 23.98/24/25/29.97/30/50/59.94/60
- 1280x720p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
- 1920x1080i 25/29.97/30/50/59.94/60
- 720x480p/720x480i 59.94/60/119.88/120
- 720x576p/720x576i 50/100
- Output frame rate same as the original, 1/2, 1/3 or 1/4 of input frame rate
- Encode 8-channel NDI-embedded audio
- Supports NDI 5.x
Features & Advantages
- Very low latency
- Configure through the touch screen of Magewell Modator chassis, Web GUI or Control Hub
- HTTP-based APIs for custom integration
Specifications
- Interfaces
- 1x RJ45 1000Mbps Ethernet port
- 1x USB Type-C port for configuration
- 1x HDMI 1.4 input port
- 1x HDMI 1.4 output port
- 1x Modator interface for connecting to Modator 2U (hot-swappable)
- LED Indicators
- Input signal:
- On: locked
- Off: unlocked
- Loop through signal:
- On: device connected and signal detected
- Off: undetected
- Input signal:
- Physical Specifications
- Form factor: 184.4mm (L) x 30.0mm (W) x 81.5mm (H)
- Weight: ≈295g
- Power Consumption
- Max power consumption: 6.2W
- Working Environment
- Operating temperature: –10 to 45 deg C
- Storage temperature: –20 to 70 deg C
- Relative humidity: 5% to 90% non-condensing
