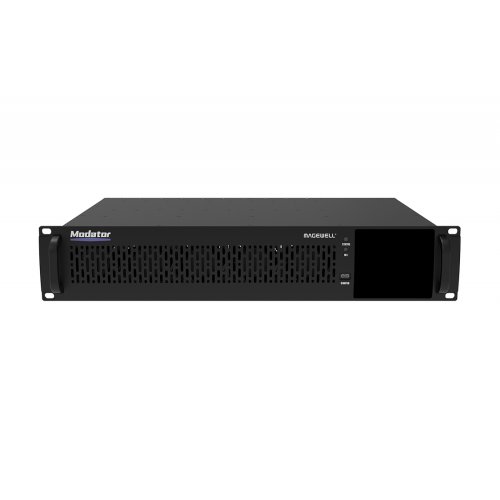

Modator 2U is a high-density, flexible, and expandable modular rack server designed for Magewell’s encoder and decoder modules. The 2U high rack server meets the requirements of standard rack deployments and supports up to 10 hot-swappable Modator modules. The LED screen indicates the operating status of each module and the chassis. Empowered with dual power supply and built-in centralized heat dissipation design for stable 24/7 operation, the server is suitable for various scenarios requiring high stability.

When installed in the server via Modator slots, each module can work independently to convert high-quality audio and video signals to and from NDI and other IP streams.

• Supports up to 10 Magewell modules, freely combinable and hot-swappable
• Meets standard rack deployment requirements
• Features LED touch screen for easy monitoring of chassis and module status, logs, alarms, network configuration, etc.
• Equipped with dual hot-swappable power supply modules for safety redundancy
• Utilizes centralized heat dissipation design for long-term stable operation
• Provides Web UI for convenient configuration and management of Modator and modules

Designed for 24/7 Operation

Featuring dual power supplies and optimized heat dissipation for 24/7 operation, Modator 2U is well-suited to use cases with high reliability requirements.

Independent Encoding & Decoding

Each installed module can work independently to convert high-quality video and audio signals to and from IP streams.

LED Touch Screen

Through the LED touch screen, users can turn the chassis on or off; view the status of the chassis and each installed module; and configure network settings.

Mix-and-match your choice of Modator modules

• Pro Convert HDMI Plus Module (NDI High Bandwidth encoder)
• Pro Convert HDMI 4K Plus Module (NDI High Bandwidth encoder)
• Pro Convert for NDI to HDMI Module (multi-format decoder)
• Pro Convert for NDI to AIO Module (multi-format decoder)

Specifications

• Interfaces
  • 10x Modator slots supporting hot swap of Magewell modules
  • 1x RJ45 1000Mbps Ethernet port for configuration
  • 1x USB Type-C port for configuration
• Power and Power Consumption
  • Hot-swappable dual power supply modules for safety and redundancy
  • AC: 100–240V, 7–3.5A, 60/50Hz
  • Maximum power consumption of the chassis: 200W
  • Maximum power consumption of each slot: 20W
  • Standby power consumption: 11W (Touchscreen off), 11.9W (Touchscreen on)
  • No-load power consumption: 17W (Touchscreen off), 17.9W (Touchscreen on)
• Status Indication
  • Status indicator:
    • Blue: Working
    • Off: Standby
  • Warning light:
    • Red: Error
    • Off: Normal
  • Power indicator:
    • Green: Output on and OK
    • Flashing Green: Standby or Cold Redundancy
    • Red: Error or fault
  • Buzzer:
    • Beeping: Error
    • Off: Normal
• Touchscreen
  • Dimension: 91mm x 81mm
• Supported Modules
  • Pro Convert for NDI to HDMI module
  • Pro Convert for NDI to AIO module
  • Pro Convert HDMI 4K Plus module
  • Pro Convert HDMI Plus module
• Physical Specifications
  • Form factor: 482mm (L) x 275mm (W) x 88 mm (H)
  • Weight: ≈5.6kg (with 10 blank panels)
• Working Environment
  • Operating temperature: –10 to 45 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative humidity: 5% to 90% non-condensing
