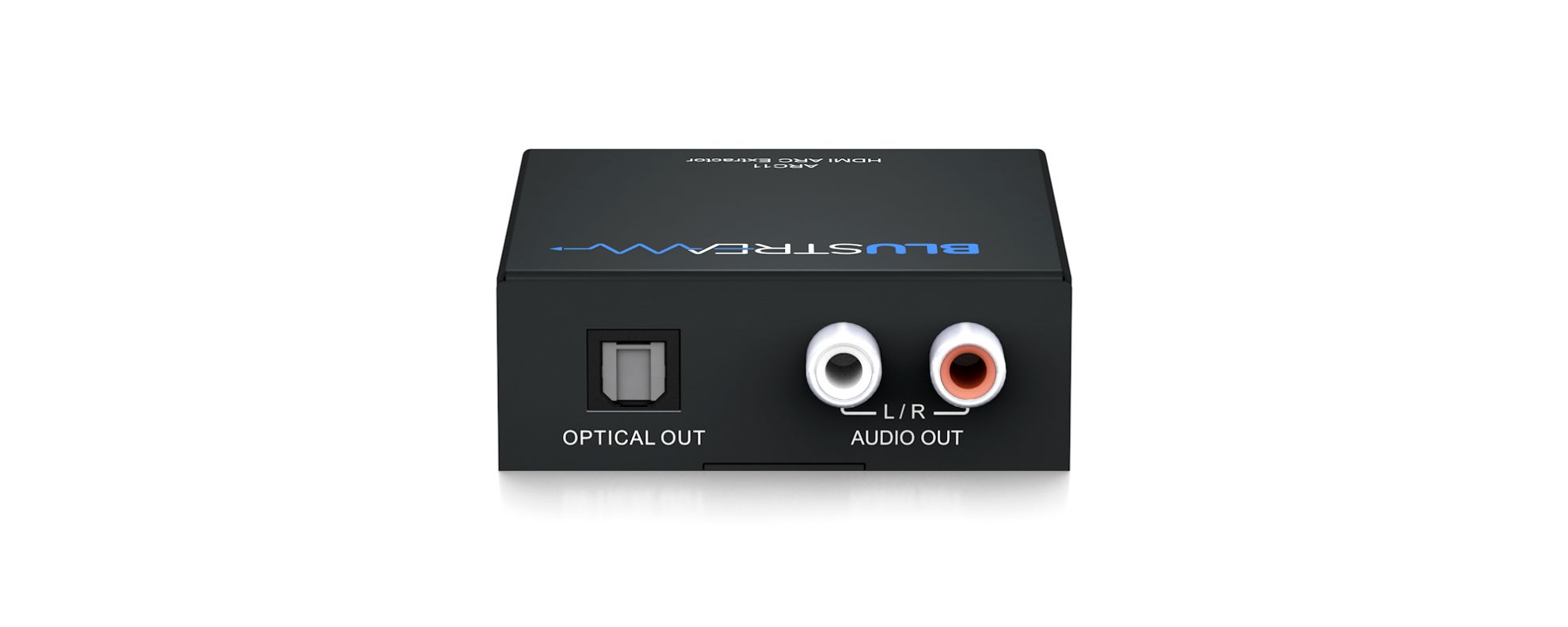

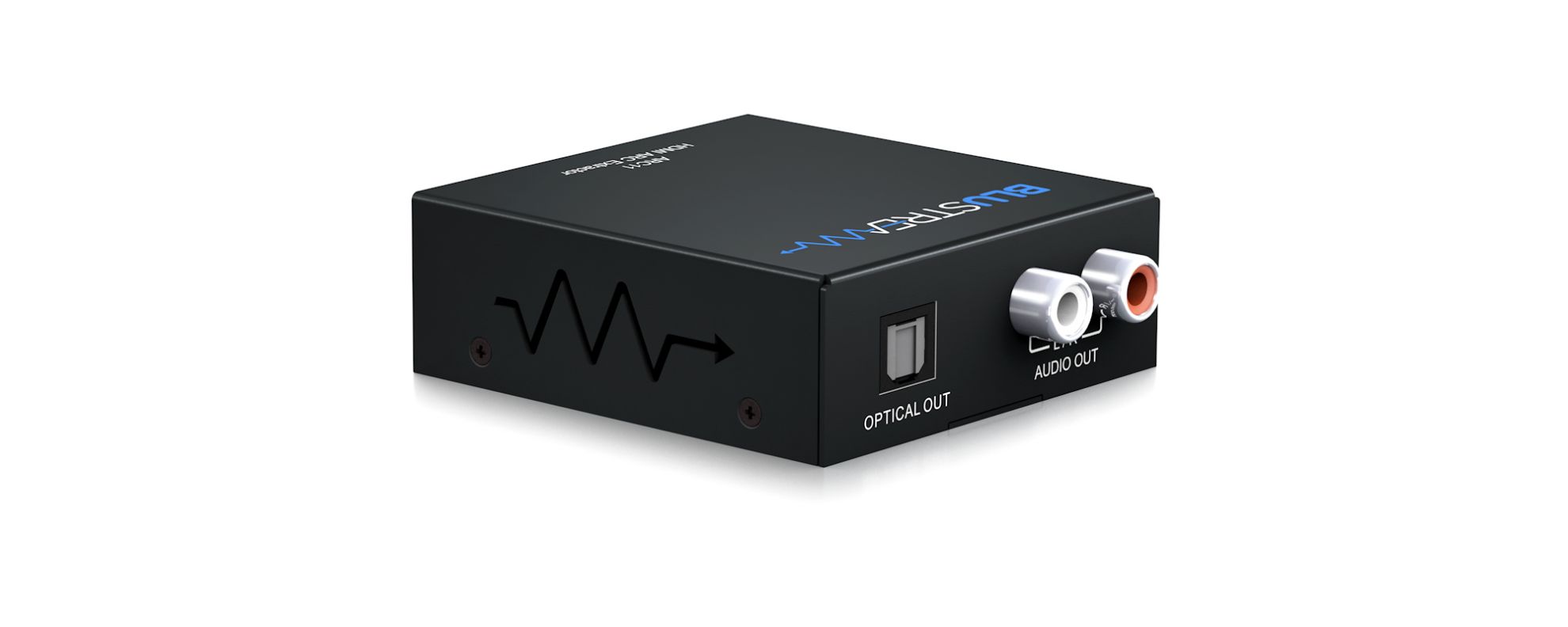

BLUSTREAM ARC11 Audio Breakout Box
Model: ARC11
About: BLUSTREAM ARC11 Audio Breakout Box
The ARC11 has been designed to extract audio from the HDMI ARC (Audio Return Channel) of a display.
Featuring both an analogue audio, and optical audio output, it can extract the embedded ARC audio information for use within a multi room audio distribution system.
Features
- Extracts audio from the Audio Return Channel of a HDMI signal*
- Features analogue audio breakout of 2ch PCM audio signals, where source audio is 2ch PCM
- Supports up to 192kHz sample rates at 24bit depth
- Features optical audio breakout of multi-channel and 2ch audio formats
- Supports the following embedded audio formats: Dolby Digital 5.1, Dolby Digital 2.0, DTS-ES 6.1, DTS 5.1, DTS 2.0, PCM 2.0
- *Please note: the output of the ARC11 is a fixed line, and cannot be controlled via CEC volume commands from the display
Specifications
- Audio Input Connectors: 1 x HDMI Type A, 19-pin, female
- Audio Output Connectors: 2 x RCA analogue left/right, 1 x Toslink optical output
- Operating Temperature: 32°F to 104°F (-5°C to +55°C)
- Storage Temperature: -4°F to 140°F (-25°C to +70°C)
- Power Supply: 5V/1A DC USB
- Dimensions (WxHxD): 2.76 x 0.98 x 2.87 inch (70 x 25 x 73mm)
- Shipping Weight: 0.88 lbs (0.4kg)
What's in the Box
- 1x ARC11
- 1x 5V/1A DC USB Power Supply
- 1x Mounting Kit
- 1x Quick Reference Guide
UPC: 9340242003263
