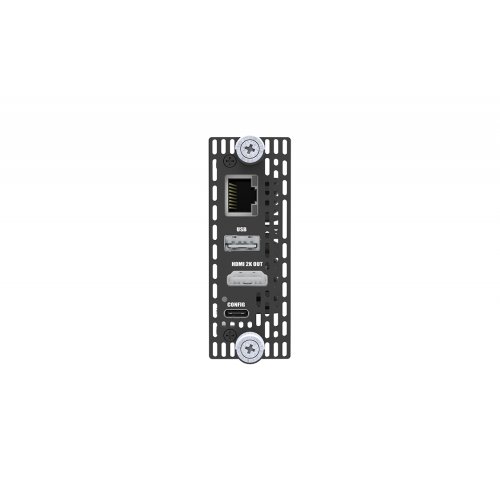

Magewell Pro Convert for NDI to HDMI Module for Magewell Modator
Model: B41010000
About: Magewell Pro Convert for NDI to HDMI Module for Magewell Modator

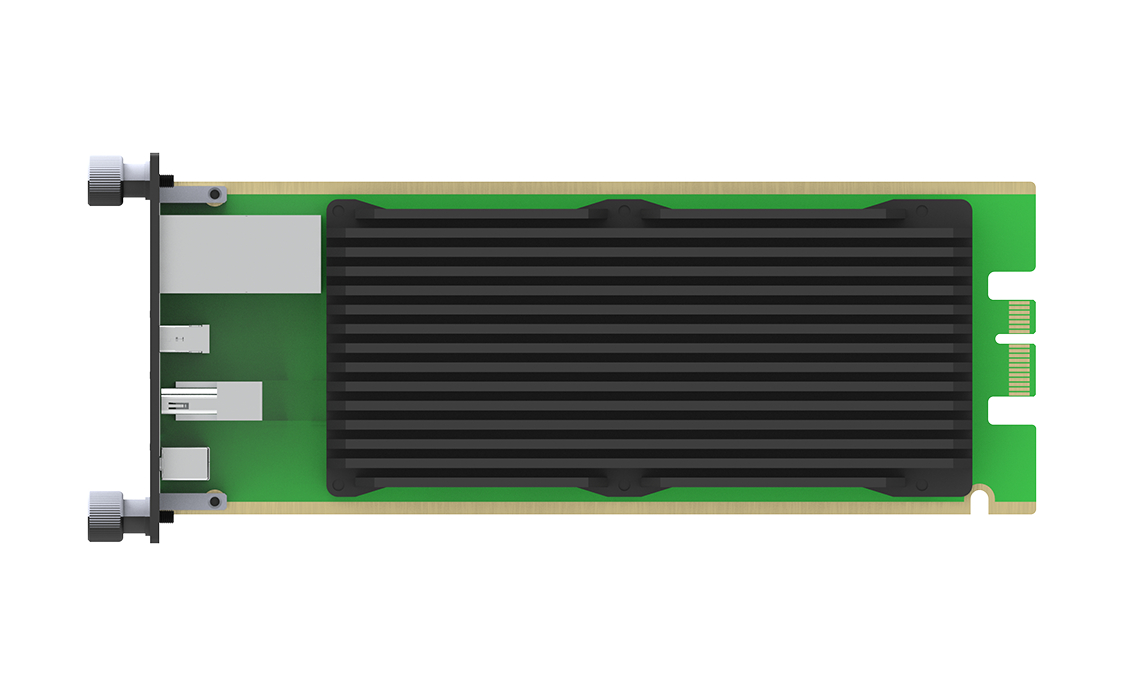

Pro Convert for NDI to HDMI Module is a hot-swappable modular blade for Magewell Modator chassis. Decodes NDI High Bandwidth, NDI HX, NDI HX2, NDI HX3, SRT, RTSP, RTMP, UDP, RTP, HLS and HTTP to HDMI. Detects up to 2Kp60 / decodes up to 4Kp60. Manageable through web user interface and Magewell Control Hub.
- A hot-swappable module to be installed in Magewell Modator chassis
- Decodes high-bandwidth NDI and NDI HX including earlier variants into HD HDMI
- Centrally manageable via the Modator chassis and Magewell Control Hub
Output Features
- Max. output: 4096x2160 60fps 4:4:4 8-bit
- Deliver video at the preferred video format according to the EDID of the connected monitor. Supported output formats include:
- 4096x2160p/3840x2160p 23.98/24/25/29.97/30/50/59.94/60
- 2560x1440p 60/100
- 2560x1080p 23.98/24/25/29.97/30/50/59.94/60
- 1920x1080p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
- 1920x1080i 50/59.94/60
- 1280x720p 23.98/24/25/29.97/30/50/59.94/60
- 720x576p50
- 720x576i50
- 720x480p59.94/60
- 720x480i59.94/60
- Supports RGB, YUV444, and YUV422 signals
- Supports 48KHz 8-channel audio output
Decoding Features
- Support for decoding up to 2Kp60 NDI streams
- Support for decoding high-bandwidth NDI and NDI HX
- Discover NDI devices across network segments
- Decode up to 2Kp60 streams of Full NDI , NDI |HX, NDI |HX2, NDI |HX3, RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP, TVU protocols
- Decode H.264/H.265 video
- Decode AAC/MP3 audio
- Supports NDI 5.x
Features & Advantages
- Very low latency
- Configure through the touch screen of Magewell Modator chassis, Web GUI or Control Hub
- HTTP-based APIs for custom integration
- Image flip for inverted projector installations and safe area controls
- Automatic output optimization for target display with integrated up/down conversion
Specifications

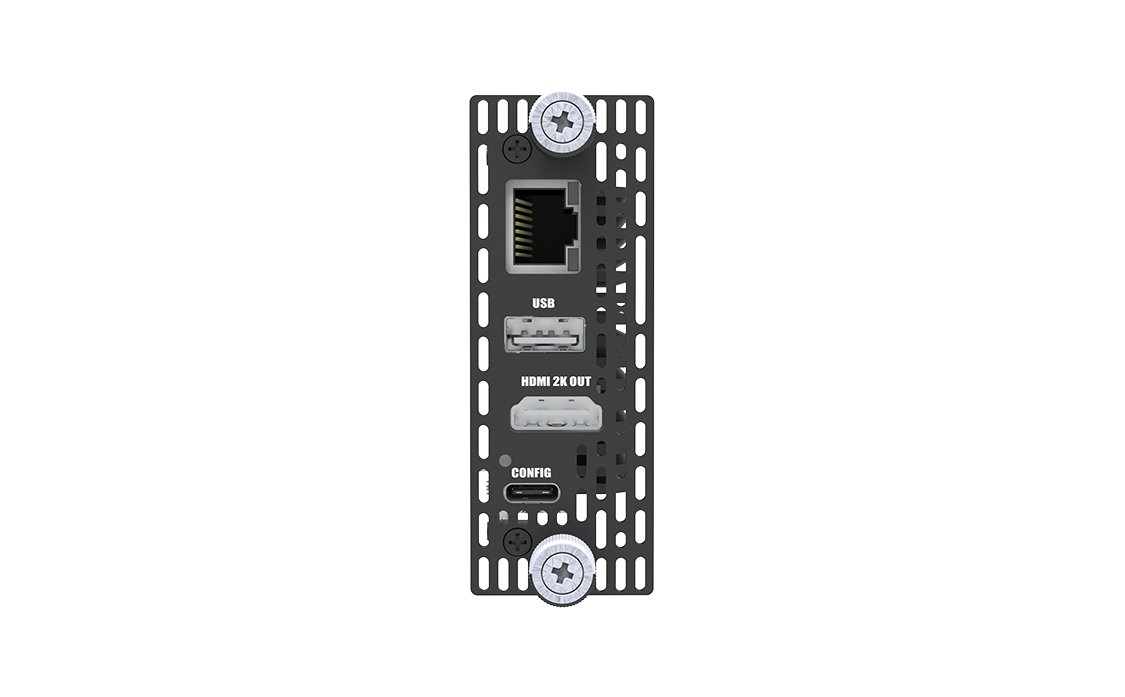

- Interfaces
- 1x RJ45 1000Mbps Ethernet port
- 1x USB Type-C port for configuration
- 1x USB Type-A 3.0 port for connecting peripherals
- 1x HDMI 2.0 output port
- 1x Modator interface for connecting to Modator 2U (hot-swappable)
- Web UI
- Register with Magewell Control Hub for remote centralized management
- Supports configuring and managing via Web UI
- Provides comprehensive information regarding the device and decoded signals in real-time
- Allow to configure how a signal is decoded and output, including OSD settings, deinterlacing, resolutions, audio gain, sample rate, and channel mapping, as well as the network connection
- Supports updating firmware
- Supports USB RNDIS/ECM
- Supports IE/Edge/Firefox/Chrome/Safari/Opera web browsers
- Provides HTTP APIs
- LED Indicators
- Decode status indicator
- On: decoding
- Blinks: decoding error
- Off: source unselected
- Decode status indicator
- Physical Specifications
- Form factor: 184.4mm (L) x 30.0mm (W) x 81.5mm (H)
- Weight: ≈290g
- Power Consumption
- Max power consumption: 4.3W
- Working Environment
- Operating temperature: –10 to 45 deg C
- Storage temperature: –20 to 70 deg C
- Relative humidity: 5% to 90% non-condensing
