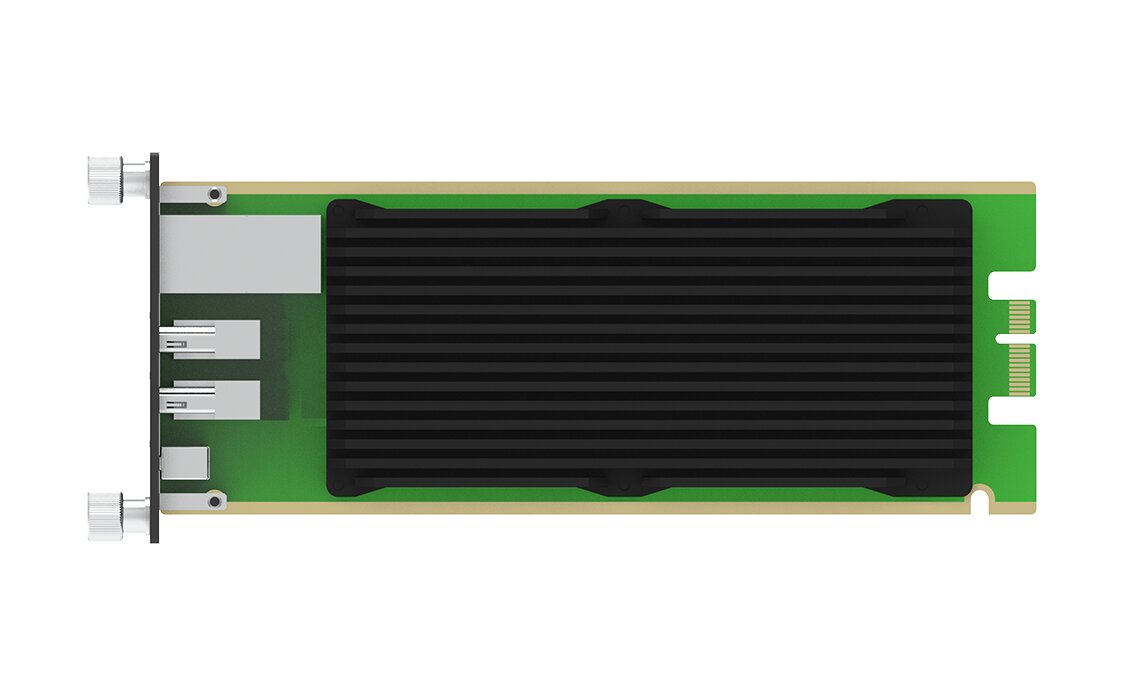

Pro Convert HDMI 4K Plus Module is a hot-swappable modular blade for Magewell Modator chassis. Encodes HDMI 4K60 to NDI High Bandwidth. Manageable through web user interface and Magewell Control Hub.

• A hot-swappable module to be installed in Magewell Modator chassis
• Supports up to 4096x2160 60fps (4:4:4) input signals including 1080p 144fps
• Centrally manageable via the Modator chassis and Magewell Control Hub

Input & Loop-Through Features

• Max. input & loop-through signal: 4096x2160 60fps 4:4:4 8-bit
• Input videos at any format by customizing the EDID of input port
• Supports RGB and YUV BT.601/709/2020 signals
• Supports 8-channel HDMI-embedded audio

NDI Encoding Features

• Encode and output real-time streams of Full NDI at up to:
  • 4096x2160 60fps 4:2:2 8-bit
  • 1920x1080 240fps 4:2:2 8-bit
• Output the same resolution as input or any custom resolution. Typical outputs include:
  • 4096x2160p/3840x2160p/2048x1080p 23.98/24/25/29.97/30/50/59.94/60
  • 1920x1080p/1280x720p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
  • 1920x1080i 25/29.97/30/50/59.94/60
  • 720x480p/720x480i 59.94/60/119.88/120
  • 720x576p/720x576i 50/100
• Output frame rate same as the original, 1/2, 1/3 or 1/4 of input frame rate
• Encode 8-channel NDI-embedded audio
• Supports NDI 5.x

Features & Advantages

• Very low latency
• Configure through the touch screen of Magewell Modator chassis, Web GUI or Control Hub
• HTTP-based APIs for custom integration

Specifications

• Interfaces
  • 1x RJ45 1000Mbps Ethernet port
  • 1x USB Type-C port for configuration
  • 1x HDMI 2.0 input port
  • 1x HDMI 2.0 output port
  • 1x Modator interface for connecting to Modator 2U (hot-swappable)
• Web UI
  • Register with Magewell Control Hub for remote centralized management
  • Supports configuring and managing via Web UI
  • Provides comprehensive information regarding the device and signals in real-time
  • Allow to configure how a signal is encoded and output, including deinterlacing, EDID settings, up/down scale, frame rate, aspect ratio, as well as the network connection
  • Supports updating firmware
  • Supports USB RNDIS/ECM
  • Supports IE/Edge/Firefox/Chrome/Safari/Opera web browsers
  • Provides HTTP APIs
• LED Indicators
  • Input signal:
    • On: locked
    • Off: unlocked
  • Loop through signal:
    • On: device connected and signal detected
    • Off: undetected
• Physical Specifications
  • Form factor: 184.4mm (L) x 30.0mm (W) x 81.5mm (H)
  • Weight: ≈295g
• Power Consumption
  • Max power consumption: 7W
• Working Environment
  • Operating temperature: –10 to 45 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative humidity: 5% to 90% non-condensing
