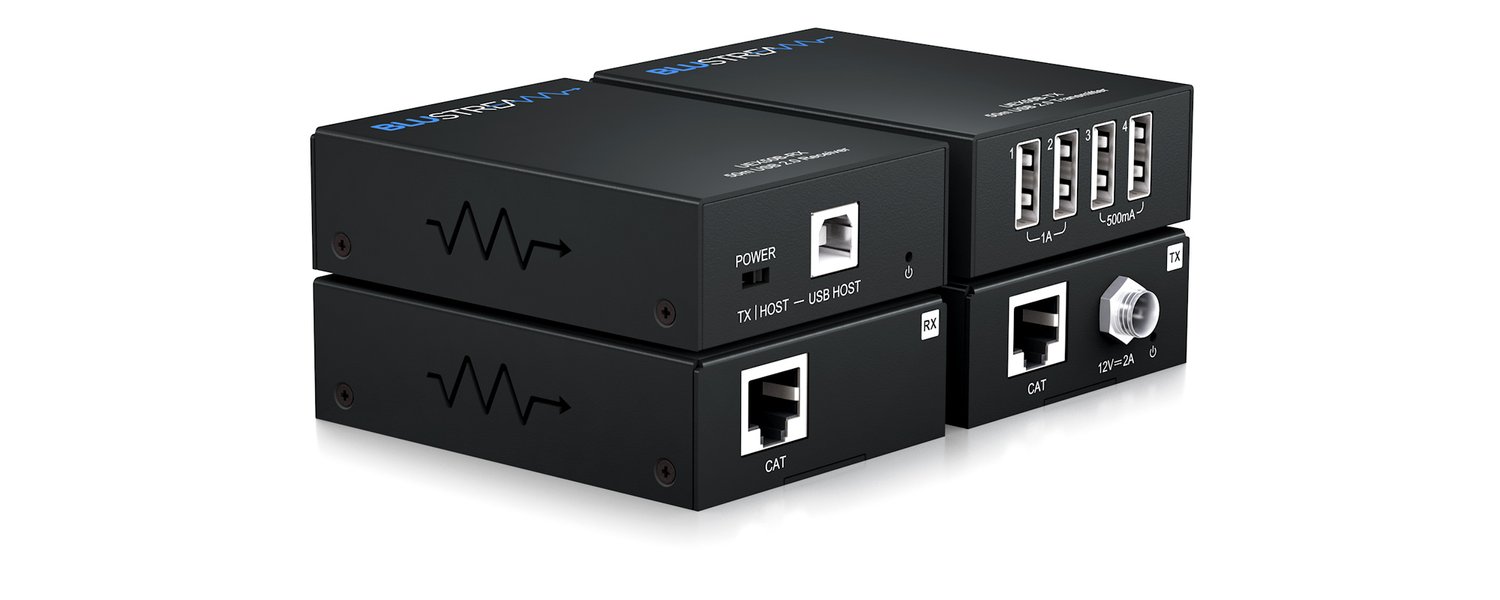

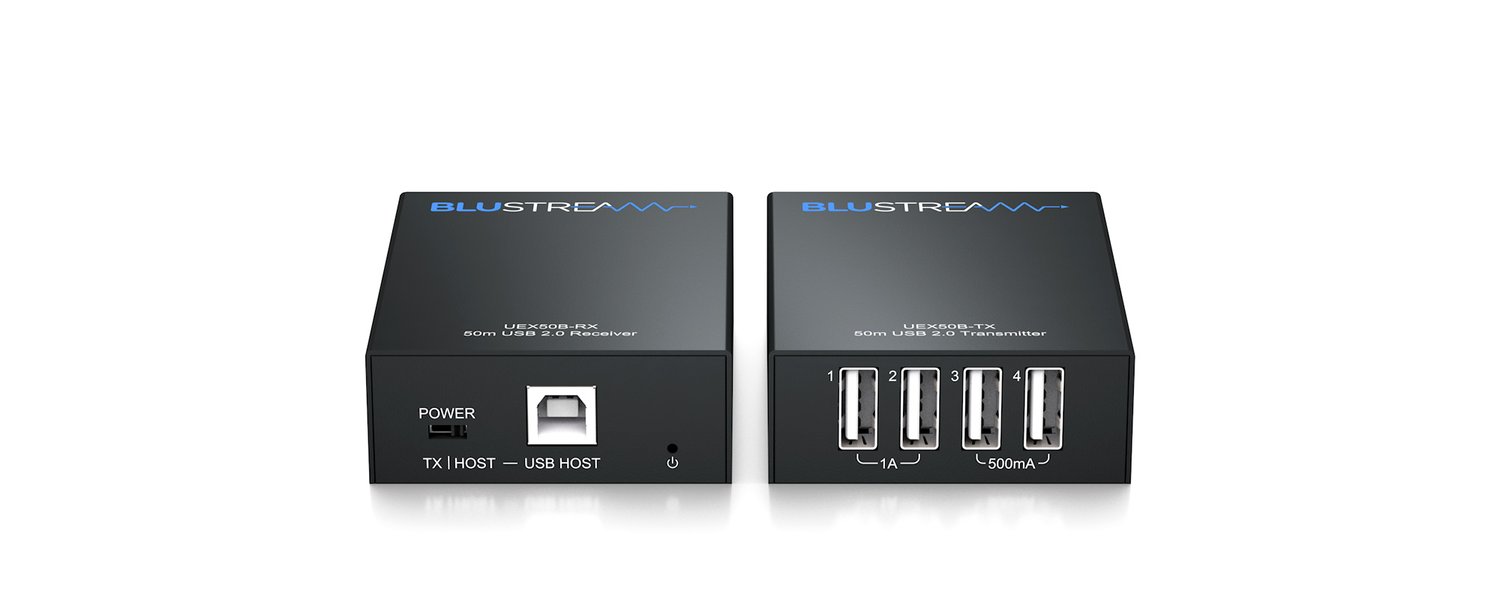

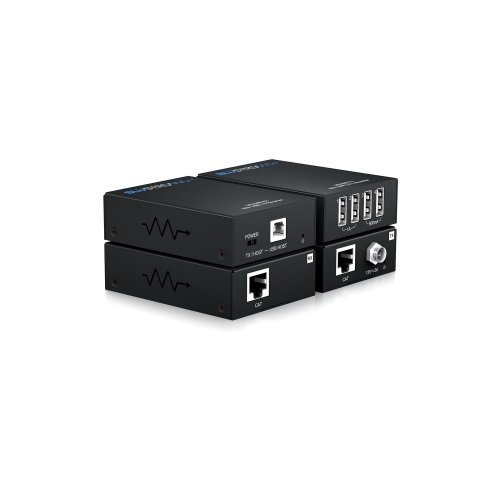

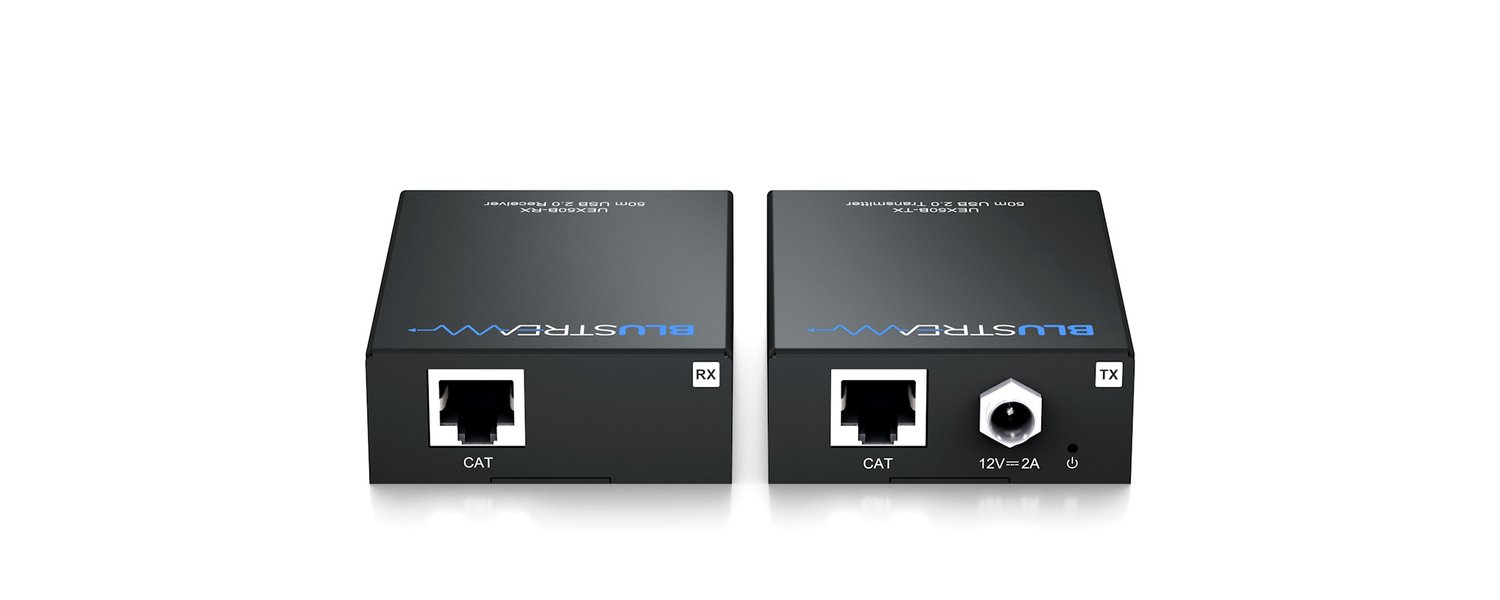

BLUSTREAM UEX50B-KIT USB 2.0 Extender Set - 50m
Model: UEX50B-KIT
About: BLUSTREAM UEX50B-KIT USB 2.0 Extender Set - 50m
Our UEX50B-KIT delivers USB 2.0 extension up to 50m over a single CAT cable, allowing up to 4 x USB peripheral devices to be connected to a single USB host with charging / power.
Supports a combined transmission data bandwidth of up to 480Mbps, and is backwards compatible with USB 1.1 devices.
Features
- Extends USB up to a distance of 50m over a single CAT cable
- Supports USB 2.0 signal extension
- Backwards compatible with USB 1.1 devices
- Combined transmitted data bandwidth up to 480Mbps
- 1 x USB Type-B on the Transmitter for connection to the Host device
- 4 x USB Type-A hub on the Receiver for connection to peripheral devices
- USB Type-A ports 1-2 support 5V 1A, with ports 3-4 supporting 5V 500mA
- Simple plug and play, no driver installation or setup required
- * Signal distribution length subject to length of device and host USB cables and CAT cable type
- ** For installations where additional USB hubs are required, please use the UEX100E-KIT
Specifications
- UEX50B-RX
- CAT Connectors: 1 x RJ45 connector
- USB Port: 1 x USB Type-B
- UEX50B-TX
- CAT Connectors: 1 x RJ45 connector
- USB Port: 4 x USB Type-A
- Operating Temperature: 32°F to 104°F (-5°C to +55°C)
- Storage Temperature: -4°F to 140°F (-25°C to +70°C)
- Power Supply: 12V/2A DC
- Casing Dimensions (TX/RX) (WxDxH): 3.31 x 2.36 x 0.93 inch (84 x 60 x 23.5mm)
- Shipping Weight (kit): 1.1 lbs (0.5kg)
What's in the Box
- 1x UEX50B-TX
- 1x UEX50B-RX
- 1x USB Type-A to USB Type-B cable
- 1x 12V/2A DC power supply
- 2x Mounting kit
- 1x Quick Reference Guide
UPC: 9340242003805
