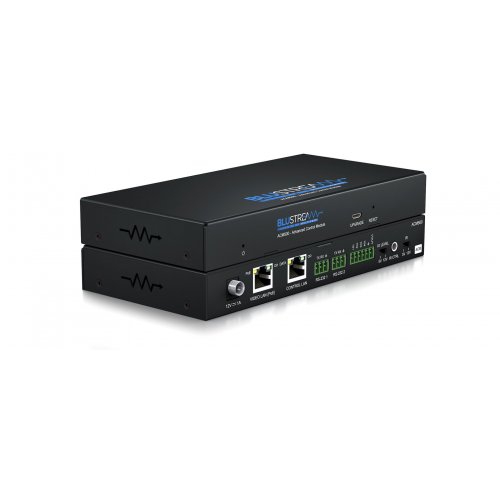

BLUSTREAM ACM500 Multicast Advanced Control Module for TCP/IP

About: BLUSTREAM ACM500 Multicast Advanced Control Module for TCP/IP

Our UHD SDVoE Multicast distribution platform allows distribution of the highest-quality, un-compromised 4K with zero latency Audio/Video over copper or optical fibre 10GbE networks.

The ACM500 Control Module features advanced third party control of the SDVoE 10GbE Multicast system using TCP/IP, RS-232 and IR. The ACM500 includes a web interface module for control and configuration of the Multicast system and features 'drag & drop' source selection with video preview and independent routing of IR, RS-232, USB / KVM, Audio and Video.

Pre-built Blustream product drivers simplify Multicast product installation and negate the need for an understanding of complex network infrastructures.

Features

• Web interface module for configuration and control of Blustream IP500UHD and IP510UHD SDVoE 10GbE Multicast systems
• Intuitive 'drag & drop' source selection with video preview feature for active monitoring of system status
• Advance signal management for independent routing of IR, RS-232, USB/KVM, audio and video
• Auto system configuration
• 2x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:
  • Better system performance as network traffic is separated
  • No advanced network setup required
  • Independent IP address per LAN connection
  • Allows simplified TCP/IP control of Multicast system
• Dual RS-232 ports for control of the Multicast system, or pass-through of control to remote third party devices
• 5V/12V IR integration for control of Multicast system
• PoE (Power over Ethernet) to power Blustream product from PoE switch
• Local 12V power supply (optional) should Ethernet switch not support PoE
• Support for iOS and Android App control
• 3rd Party drivers available for all major control brands
  • Please note: Compatible with IP500UHD and IP510UHD only. IP50HD, IP2xxUHD, IP3xxUHD, and IP5xxUHD systems are not interoperable.

Specifications

• Ethernet Port: 2 x 1Gb LAN RJ45 connector (1x PoE support)
• RS-232 Serial Port: 2 x 3-Pin Phoenix connector
• I/O Port: 1 x 6-Pin Phoenix connector
• IR Input Ports: 1 x 3.5mm stereo jack
• PoE draw: 7.9W (typical), 8.4W (max load)
• Product Upgrade: 1 x Micro USB, female
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: PoE or 12V/1A DC
• Dimensions (WxDxH): 7.5 x 3.66 x 0.98 inch (190.4 x 93 x 25mm)
• Shipping Weight: 1.32 lb (0.6kg)

What's in the Box

• 1x ACM500
• 1x IR Control Cable - 3.5mm to 3.5mm Cable
• 4x Rubber Feet
• 1x Mounting Kit
