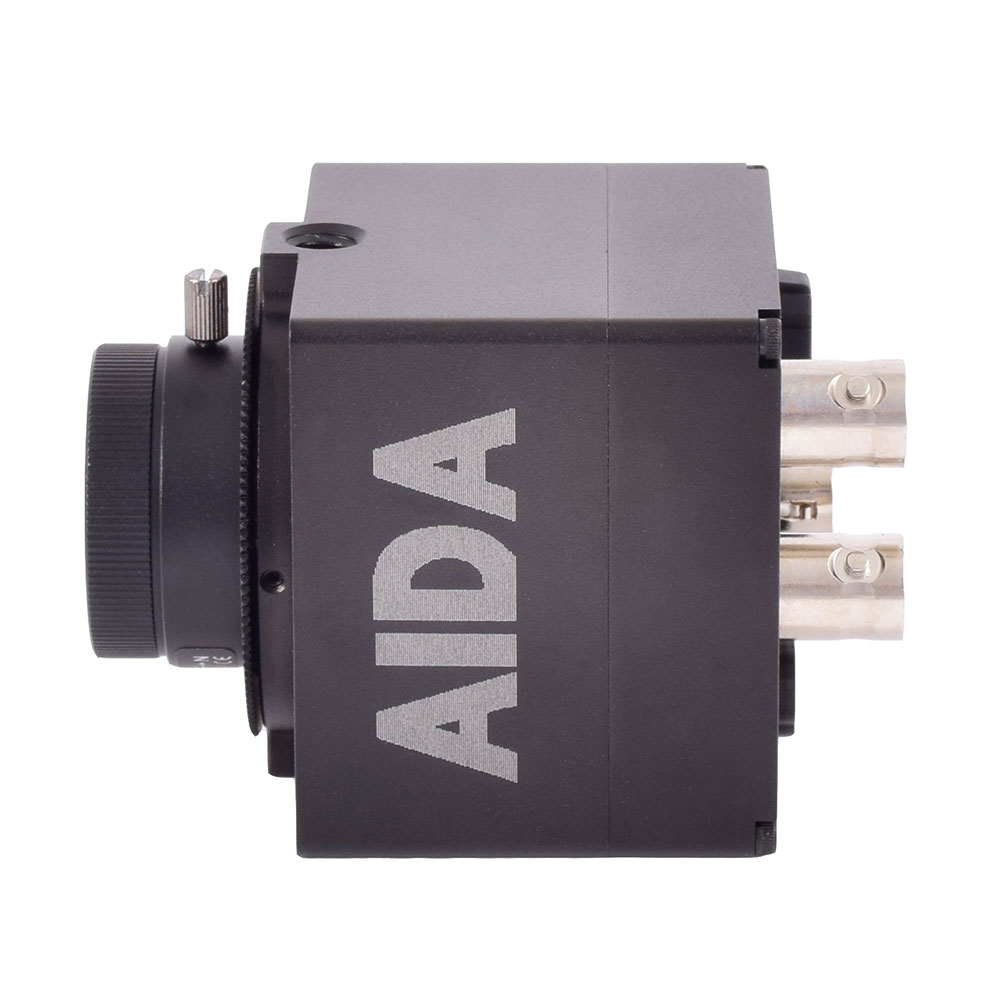

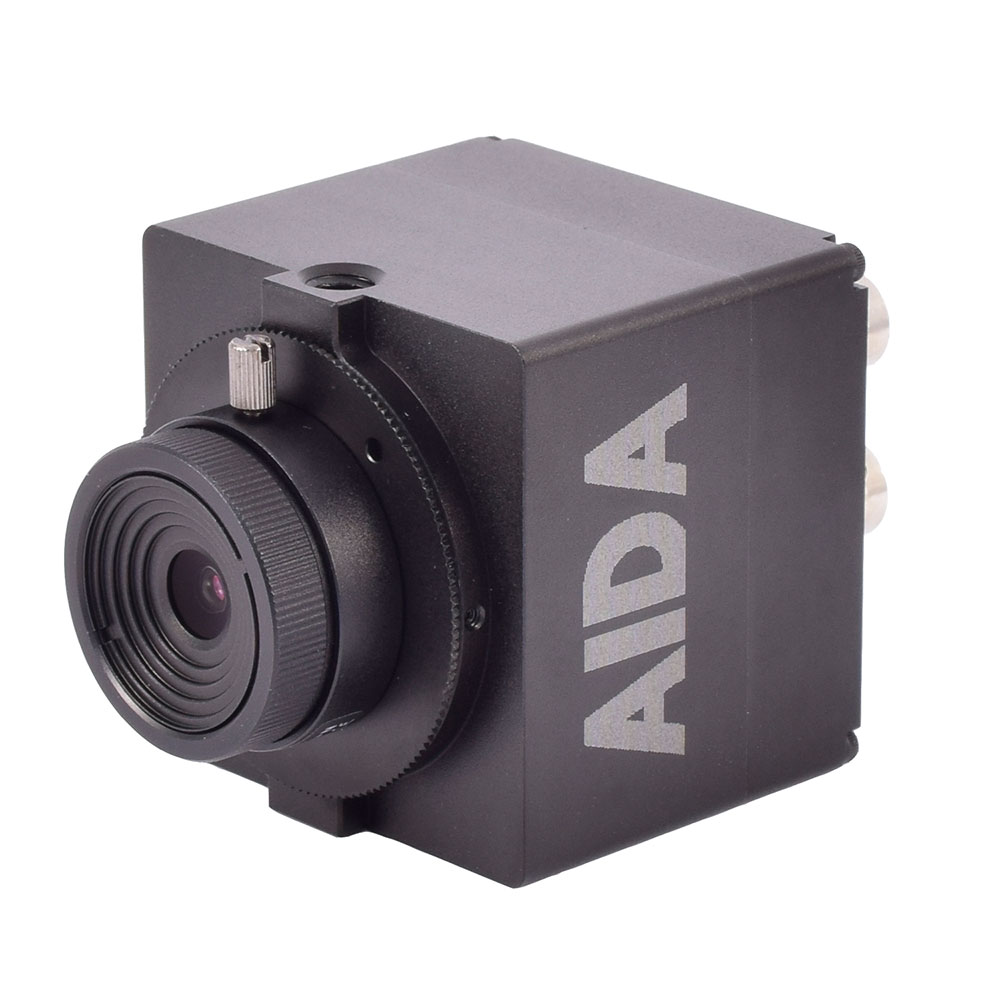

AIDA GEN3G-200 3G-SDI/HDMI Full HD Genlock Camera (Open Box)

About: AIDA GEN3G-200 3G-SDI/HDMI Full HD Genlock Camera (Open Box)

GEN3G-200 is a compact HD 3G-SDI Broadcast Camera produces clear and crisp HD video suitable for use in a broad range of HD video applications. AIDA GEN3G-200 provides HD video in a compact and rugged form factor. The camera features Self-Adaptive Genlock Tri-level Sync, built-in OSD for customizable image settings, inter- changeable lens design making it compatible with auto-iris CS and C mount lenses and audio input that can relay embedded audio via SDI & HDMI. AIDA GEN3G-200 is a go-to camera for a multitude of video production workflows.

FEATURES

• Full HD Progressive Scan sensor captures sharp and vivid color under different light conditions.
• Advanced digital imaging processor provides vivid and detailed images by utilizing WDR, White Balance, and Noise Reduction.
• Motion-Compensated temporal noise reduction filter leads to effective noise reduction for motion video without blur.
• Tri level sync Genlock synchronizes GEN3 cameras and other system components for seamless vertical interval switching between sources.
• 3G/HD-SDI & HDMI seamless video performance.
• Compatible with other industry leading products, conforming with SMPTE 424M /292M standard.
• Self-Adaptive Resolution Feature captures your reference feed instantly.
• Black Level Set-up provides the better color transition from digital to analog.
• Auto White balance and shutter speed provides the optimized performance in a variety of situations.
• Interchangeable lens design making it compatible with auto-iris CS and C mount lenses.
• Flawlessly relays embedded audio via SDI & HDMI.
• Built-in OSD controls for customizable image settings.
• Versatile, compact, and rugged design.

SPECIFICATIONS

Video

• Image Sensor 1/3 inch Progressive CMOS
• Sensor Size 5.346mm x 3.003mm (16:9)
• Effective Pixels Horizontal: 1920, Vertical: 1080
• Pixel Size 2.75 µm x 2.75 µm
• Resolution 1080p & 1080i: 1920 x 1080
• 720p & 720i: 1280 x 720
• Resolution/Rate 1080 60p/59.94p/50p/30p/29.97p/ 25p
• 1080 60i/59.94i/50i
• 720 60p/59.94p/50p/30p/25p
• Output HD-SDI/3G-SDI (1 BNC)
• HDMI 1.3a
• Color Space 4:2:2 (YCbCr) 10bit
• Min. Illunination 0.2Lux (Day), 0.1Lux (Night), 0.005Lux (Slow Shutter ON)
• White Balance Auto & Manual (19,000 K - 11,000 K)

Lens

• Lens C/CS Mount (Default 3.6mm HD Lens)

Audio

• Audio Input 3.5mm Analog Audio Input through I/O Cable
• Sample Rate 16 / 24 / 32 Bits

Standard

• SMPTE SMPTE 292M, SMPTE 424M

Synchronization

• Genlock External Tri-Level Input

Physical

• Camera Control RS-485, OSD Button
• Operation Temp 32° F - 104° F
• Dimension 49mm x 49m x 71mm / 1.92” x 1.92” x 2.79” (With default 3.6mm Lens)
• Weight 180g / 0.39Lbs (With default 3.6mm Lens)
• Power 6W at 12VDC (+9 - +15VDC)
