AIDA HD3G-IPC-IP67 FHD 3G-SDI w/ IP Control Weatherproof IP67 POV Camera
Model: HD3G-IPC-IP67
About: AIDA HD3G-IPC-IP67 FHD 3G-SDI w/ IP Control Weatherproof IP67 POV Camera
Immerse yourself in the realm of IP control with our groundbreaking camera series - introducing the SDI IPC Series. Combining our signature small form factor, unbeatable pricing, and unparalleled imaging quality, the SDI-IPC series cameras harness the power of full VISCA over IP control across any network, providing an easier alternative to the prior RS485 Serial Visca. Available in four distinct variations, the SDI-IPC series stands poised to revolutionize both new and established 3G-SDI setups, offering complete mastery over every aspect. Experience the future of control and elevate your streaming game with the SDI IPC Series.
- Full-HD 1/2.8” Sony Progressive Scan CMOS sensor capable of 1080 60p through 3G-SDI
- VISCA over IP compatible for hardware and software solutions using that protocol. (VISCA UDP, SONY VISCA over IP)
- Versatile designs with tripod mounts for easy and unique shot creation.
- PoE+ adaptable with adapter (comes with purchase of the camera)
- Variants for weatherproofed cameras, capable of IPV54 and above rating.
- CS-mount lens, M12 mount lens, and varifocal weatherproof options available.
- Small form-factor and rugged designed makes all video streaming applications possible
- Perfectly suited for indoor or outdoor shots for new or existing workflows.
Versatile Form Factors
Each SDI-IPC series cameras achieves different purposes and form factors – so choosing the right one is key to streaming excellence!
PoE+ Injectable
Each purchase of a SDI-IPC model comes with a PoE+ injector dongle, allowing you to inject power and control over through a PoE+ router.
The Gold Standard
Each SDI-IPC camera comes with a 3G-SDI output. With full and drop frames accessible, each camera fulfills the SMPTE 292M and SMPTE 424M requirements with ease.
Leading the New Generation
With an IP address, each camera is capable of speaking VISCA over IP. No need to run serial cables anymore! (unless you really want to…)
Almost Endless Optics Possibilities!

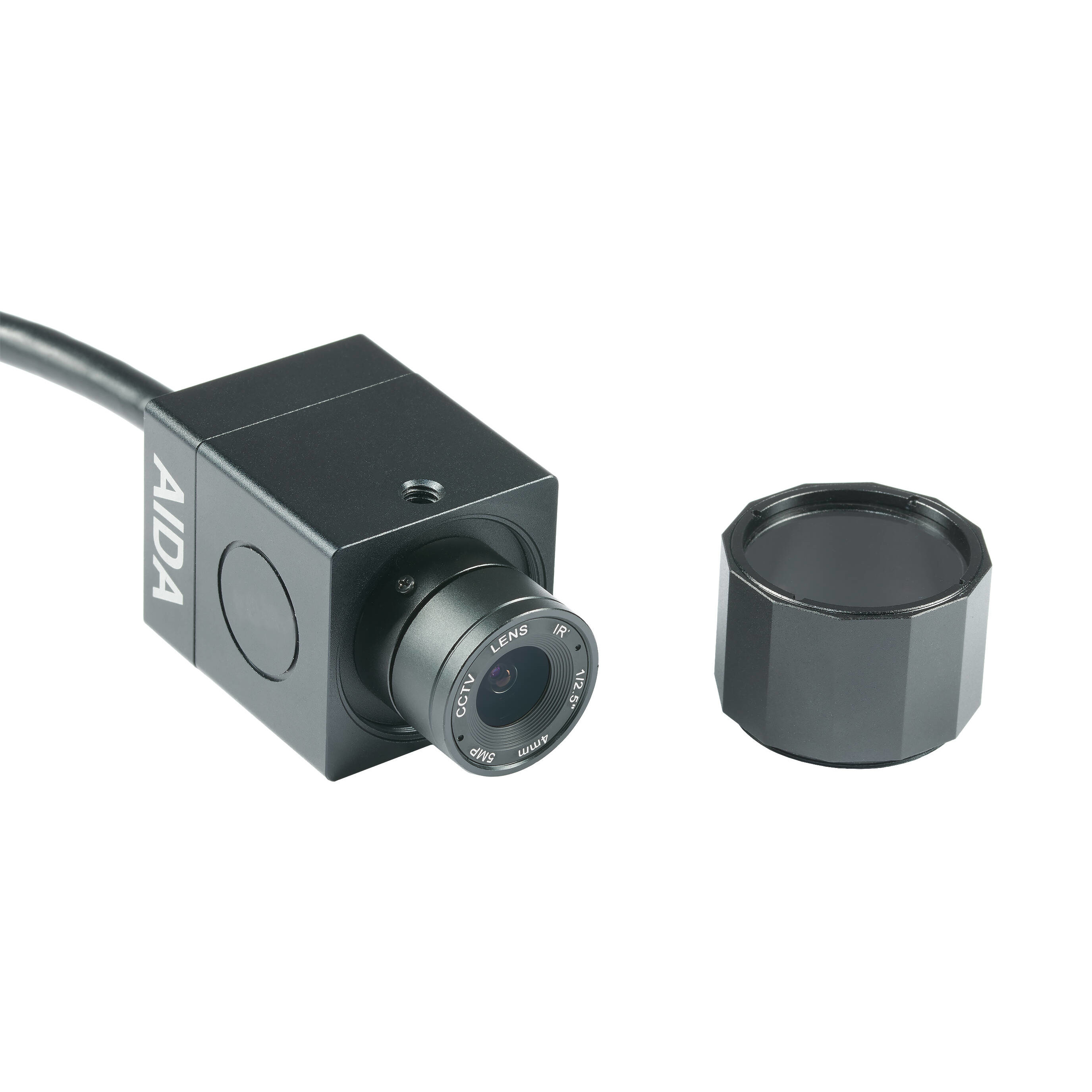

All cameras besides the HD3G-IPC-TF have interchangeable optics, whether it be CS or M12 mount! The HD3G-IPC-100A has unlimited freedom in terms of CS-mount lenses, while the MINI and IP67 model are limited by the WP Cap!
Flexible Mounting Options
The SDI-IPC series can easily be hangable by a top or bottom 1/4 20″ mounting hole – allowing for ease of placement wherever you need it.
SDI-IPC Series Lineup
- HD3G-IPC-100A
- Fits any C or CS Mount Interchangeable lens
- Standard discreet POV look
- 1/4 20” mounting on top and bottom
- Best all around camera in the series!
- HD3G-IPC-IP67
- IP67 rated for weatherproof streaming
- CS Mount Interchangeable lens (4mm=<x lenses only / size)

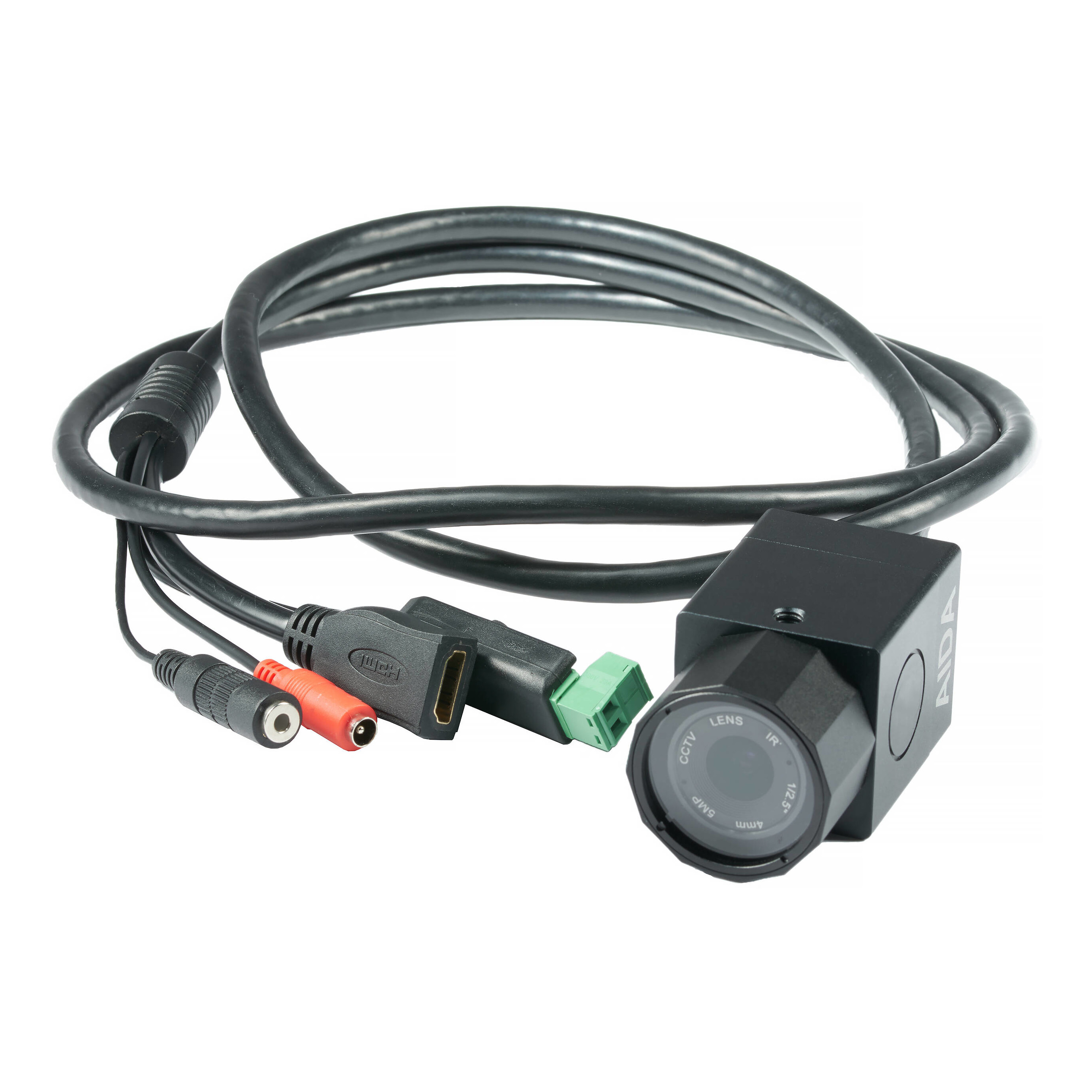

- 3ft cabling to protect inputs
- 1/4 20” mounting on top and bottom
- Best rugged weatherproof design in the series!
- HD3G-IPC-MINI
- IP67 rated for weatherproof streaming
- M12 Mount Interchangeable lens (3.6mm=<x lenses only / size)
- 3ft cabling to protect inputs
- 1/4 20” mounting on bottom only
- Smallest form factor in the series!
- HD3G-IPC-TF
- IP54 rated for weatherproof streaming (no submersion)
- Varifocal lens, adjustable with hex tool. Can lock into place.
- 3ft cabling to protect inputs
- 1/4 20” mounting on top and bottom
- Most versatile in the series!
Camera | HD3G-IPC-100A | HD3G-IPC-IP67 | HD3G-IPC-MINI | HD3G-IPC-TF |
---|---|---|---|---|
Sensor Size | 1/2.8" Sony Progressive CMOS Sensor | |||
Resolution Output | Up to 1080p 60fps via 3G-SDI | |||
Optics | 4mm CS-Mount Lens | 4mm CS-Mount Lens | 3.6mm M12-Mount Lens | Custom 5-50mm Telephoto Lens |
Horizontal FOV | 80° HFOV | 80° HFOV | 92° HFOV | 55~6° (W/T) HFOV |
Interchangeable Optics | ✔ |
✔ (as long as it fits inside cap) |
✔ (as long as it fits inside cap) |
❌ |
Audio Embedment | ✔ | |||
Weatherproof | ❌ | ✔ (IP67 rated) | ✔ (IP67 rated) | ✔ (IP54 rated) |
Specifications
- VIDEO
- Image Sensor: 1/2.8” Progressive CMOS
- Sensor Size: 5.640mm x 3.216mm (16.9)
- Effective Pixels: Horizontal: 1920, Vertical: 1080
- Pixel Size: 2.9 μm (H) x 2.9 μm (V)
- Resolution: 1080p, 1080i, 720p
- Resolution Rate
- 1080 60p/59.94/50p/30p/29.97p/25p/ 24p
- 1080 60i/59.94i/50i
- 720 60p/59.94p/50p
- Output: 3G-SDI
- Color Space: 4:2:2 (YCbCr) 10bit
- Min Illumination: 0.2Lux (day), 0.1Lux (Night)
- White Balance: Auto & Manual (9000 - 11,000 K)
- Audio Input: 3.5mm TRS Stereo Input, Embed over SDI
- LENS
- Lens
- HD3G-IPC-100A - CS mount 4mm Lens
- HFOV: 80°
- HD3G-IPC-IP67 - CS mount 4mm Lens
- HFOV: 80°
- HD3G-IPC-MINI - M12 mount 3.6mm Lens
- HFOV: 92°
- HD3G-IPC-TF - Custom Varifocal 5-50mm Lens
- HFOV: Wide: 51° Tele’d: 6.1°
- HD3G-IPC-100A - CS mount 4mm Lens
- Lens
- PHYSICAL
- Camera Control: RJ45 (VISCA over IP) RS485 (Serial VISCA)
- Operation Temp: -10°C~50°C
- Power: 12VDC (+9 - +15VDC) (PoE Adapter Included)
- Power Draw: 6W MAX
What's Included
- PoE Dongle Adapter
- DC 12v Power Supply & Sockets Adapter
