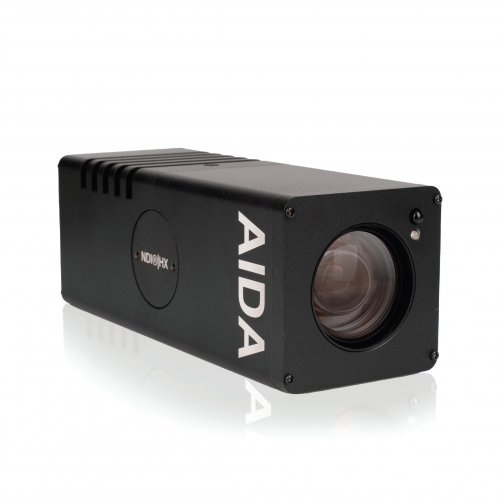

AIDA HD-NDI-X20 NDI|HX 20x POV Camera

About: AIDA HD-NDI-X20 NDI|HX 20x POV Camera

The ultimate POV NDI HX one man army

The HD-NDI-X20 gets the best of both worlds in our POV and PTZ world; form-factor, and zoom. The camera boasts a beautiful Full-HD 20x optical zoom module, which outputs crisp 1080 60p video over HDMI, NDI|HX, and IP.

With that said, dim the lights, pull up the feed and zoom in on the action!

No-Hassle Integration

The HD-NDI-X20 comes pre-loaded with its NDI|HX license key. That means less time figuring out whether the activation key has an I or l, and more time streaming.

1 Cable to rule them all

With PoE support, simplify your cable setup with just 1 ethernet cable. Power, Control, Video just like that! As we like to say; less mess, less stress.

HD-NDI-X20 Quick Specs:

• NDI|HX & HDMI - NDI 5 capable camera
• FHD Streaming - 1080p, 1080i, 720p
• 20x Zoom - FHD 20x Optical Zoom with autofocus
• Line in Audio - Synced NDI HX streaming

The beauty of range!

Having the versatility of 20x optical range gives you the power to capture subjects up to 100ft over NDI®|HX and other streaming protocols, clearly!

No Complex Web UI Here

With a simple control, preview, and image settings web UI, you can get to streaming immediately!

Tally light - ON!

Let your talent know what camera to look for with its integrated tally light! Automatically working when NDI®|HX is being pulled into your software.

1/4"-20 Mount Here, and There

This beast of a camera comes packed with two 1/4″ – 20 mounting holes, on the top and bottom of the center of the camera, making it safer, and easier to mount!

Features

• Full-HD 1/2.8” Progressive Scan CMOS sensor capable of 1080 60p NDI HX Video.
• Accessible Web UI to stream directly to social media platforms and control image parameters over IP.
• 20x optical zoom for FHD shots over distances of up to 140 ft.
• OSD Breakout cable provides power or control of zoom over serial RS485 communication.
• Flawlessly relays multi-channel embedded audio via NDI HX. • Perfectly suited for beginning and exisisting NDI setups.
• PoE Compatible to ease cable runs with 1 ethernet cable.

Specifications

• VIDEO
  • Image Sensor -  1/2.8” Progressive CMOS
  • Effective Pixels -  Horizontal: 1920, Vertical: 1080
  • Pixel Size -  2.9 μm (H) x 2.9 μm (V)
  • Resolution -  1080p, 1080i, 720p
  • Resolution Rate
    • 1080 60p/59.94/50p/30p/29.97p/25p 24p
    • 1080 60i/59.94i/50i
    • 720 60p/59.94p/50p
  • Output -  HDMI, IP (NDI|HX/SRT/RTMP/RTSP)
  • Color Space -  4:2:2 (YCbCr) 10bit
  • Min Illumination -  0.2Lux (day), 0.1Lux (Night)
• OPTICS
  • Lens -  20X HD Optical Zoom, F1.5 ~ F3.0
  • Field of View -  61° WIDE, 3.4° TELE’d
• STANDARD
  • IP Protocol -  UDP|IP, RTSP|RTMP, SRT, NDI|HX
• AUDIO
  • IP Protocol -  3.5 TRS Stereo Audio Port
  • Sample Rate -  16/24/32 Bits
• PHYSICAL
  • Camera Control
    • Protocol: VISCA Over IP
    • Control: OSD Button, Web UI or Controller
  • Operation Temp -  32°F - 104°F
  • Dimension -  171mm x 64mm x 64mm (6.73in x 2.52 in x 2.52 in)
  • Weight -  800g / 1.76lbs (with default WP cap)
  • Power -  12VDC (+9 - +15VDC) (PoE+ 24Watts)

What's Included

• IR Remote Control
• 12V DC Power Supply
• I/O Breakout Cable
