AIDA GEN3G-IPC-200 FHD Genlock 3G-SDI/HDMI w/IP Control POV Camera
Model: GEN3G-IPC-200
About: AIDA GEN3G-IPC-200 FHD Genlock 3G-SDI/HDMI w/IP Control POV Camera
The GEN3G-200 was our first staple into the broadcasting world, and we want to repay it with a refresh that will surely change the way its used! The GEN3G-IPC-200 brings everything you love from the GEN3G-200, with a refreshed Sony CMOS sensor, camera control via VISCA over IP, and your favorite way to sync to directly to any Tri-Level Sync Generator like our TGEN-6P. Continue the legacy by staying locked IN at all times with this new and improved camera!
- Full HD Progressive Scan sensor captures sharp and vivid color under different light conditions.
- Advanced digital image processor provides vivid and detailed images by utilizing WDR, White Balance, and Noise Reduction.
- Motion-compensated temporal noise reduction filter leads to effective noise reduction for motion video without blur.
- Tri level sync Gen-lock synchronizes GEN3G cameras and other system components for seamless vertical interval switching between sources.
- 3G/HD-SDI & HDMI seamless video performance.
- Compatible with other industry leading products, conforming with SMPTE 424M/292M standard.
- Self-Adaptive Resolution Feature captures your reference feed instantly.
- Black Level Set-up provides the better color transition from digital to analog.
- VISCA over IP enabled to allow for easier communication over ethernet wire, as well as traditional RS485 communication.
- Interchangeable lens design makes it compatible with auto-iris CS and C mount lenses.
- Flawlessly relays embedded audio via SDI & HDMI.
- Controllable camera parameters through our free AIDA IPC Program.
- Versatile, compact, and rugged design.
Stay LOCKED in, always!
With our genlock technology, the camera’s HDMI or 3G-SDI feed will match any tri-level sync source automatically – saving you the time of changing the resolutions from 1080p 60fps and below!
Why Genlock?
With Genlock, seamless switching, perfectly timed video, and multi-camera array workflows become the norm! No more camera drift, only synced success!
Size Reduction
The older GEN3G-200 was a bit bulky for our liking.. so we slimmed it down to match our current SDI-IPC lineup!
Telepathic Communication... (through RJ45)

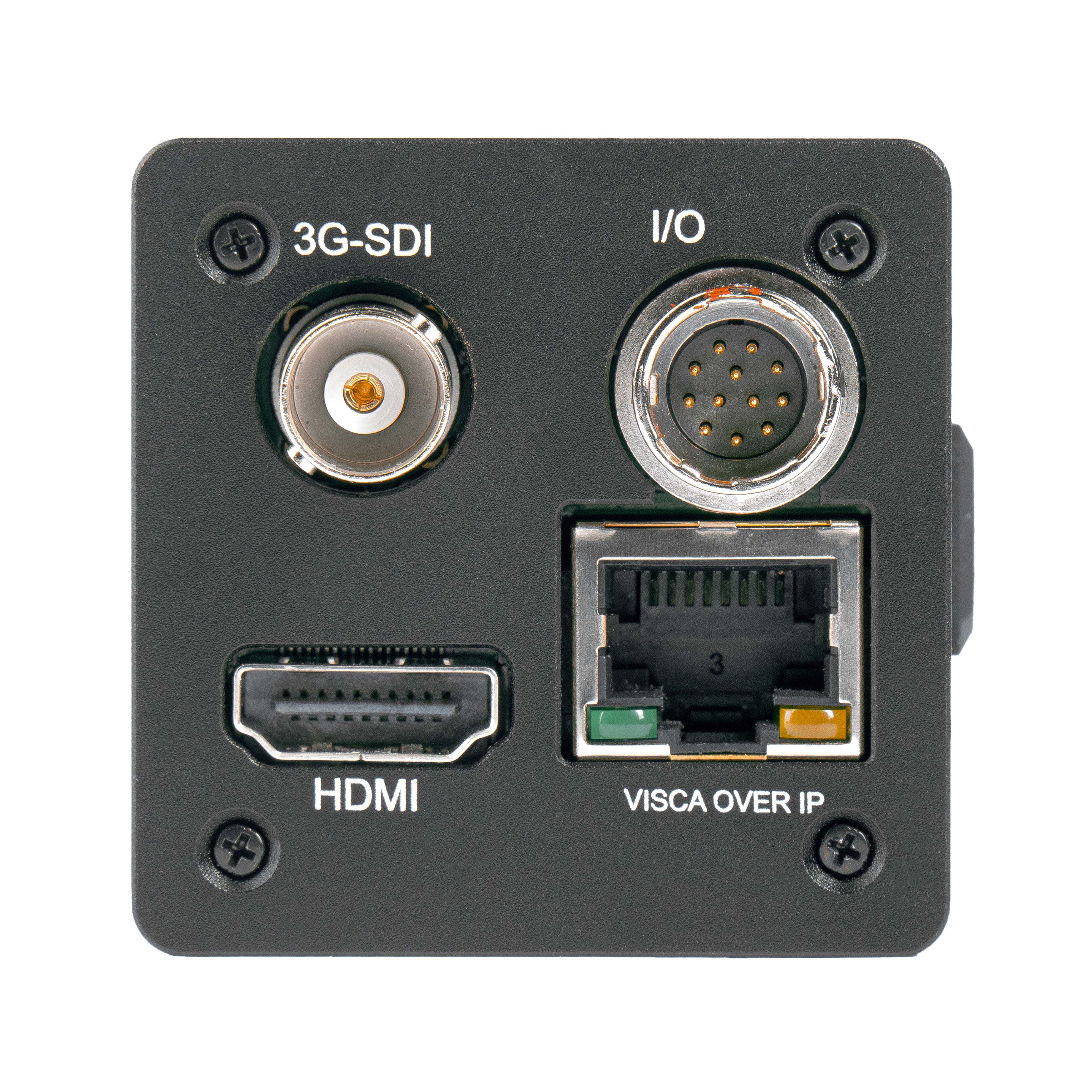

It may not be able to read minds, but it sure can express itself through VISCA over IP. Just like the SDI-IPC series, control the camera through RJ45 or RS485!
Shading at your fingertips
Just like any AIDA camera, adjusting the white-balance, exposure and image settings is what really makes the GEN3G-IPC-200 shine.
PoE+ adaptable with adapter
VISCA over IP gives you the opportunity to use PoE+ with the given adapter in the packaging. Enjoy control and camera power through 1 cable!
It's not a POV camera without our house blend

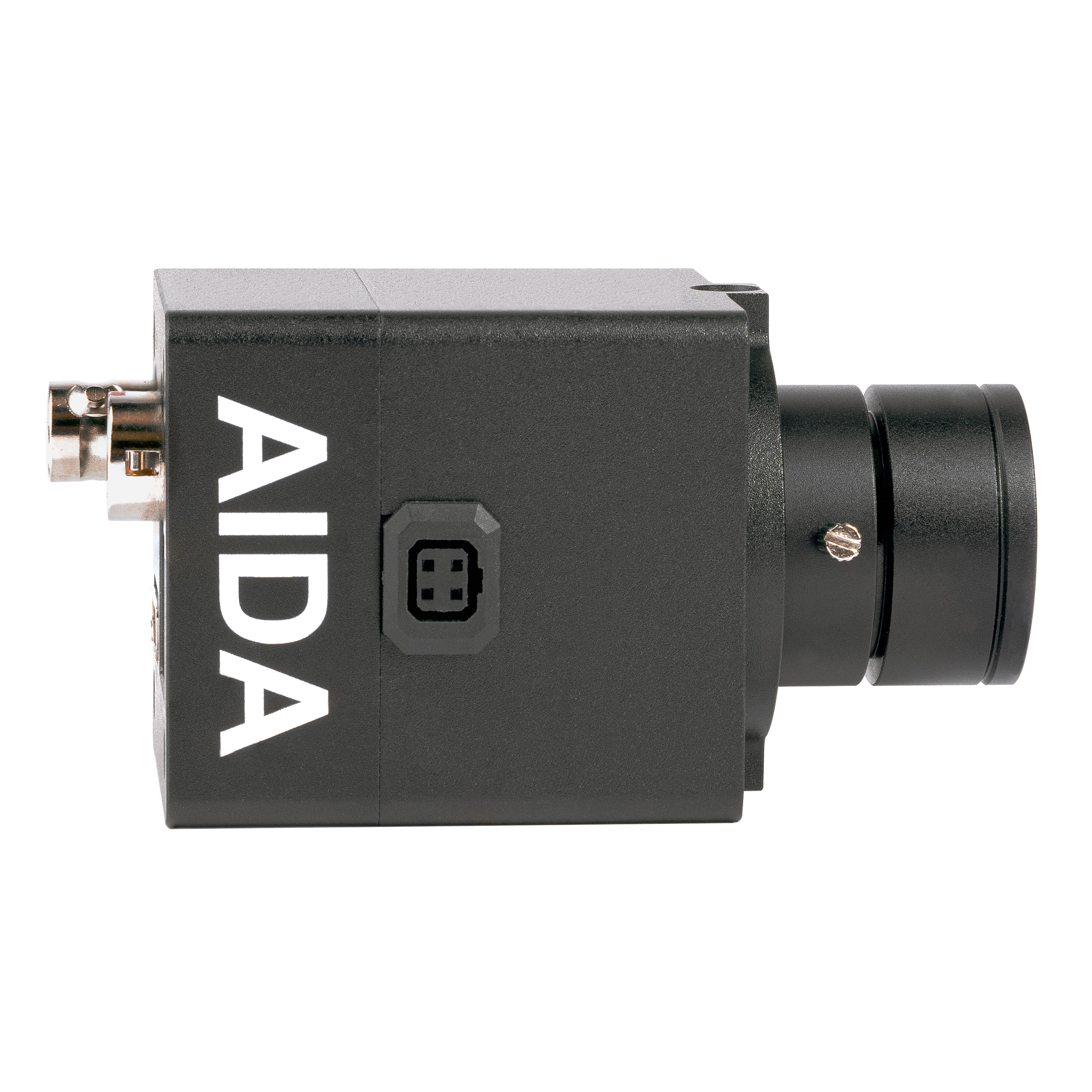

The GEN3G-IPC-200 is no stranger to our Aircraft grade hardened aluminum blend, milled to perfection with its sharp, sleek look.
Swappable Lens for unlimited possibilities
Sometimes the default 4mm CS mount lens just doesn’t cut it. Enjoy the ability to swap it for any other CS or C mount lens in the market, getting that perfect shot you need!
Specifications
- VIDEO
- Image Sensor: 1/2.8 inch Progressive CMOS
- Sensor Size: 5.641mm x 3.216mm (16:9)
- Effective Pixels: Horizontal: 1920, Vertical: 1080
- Pixel Size: 2.9 μm (H) x 2.9 μm (V)
- Resolution
- 1080p & 1080i: 1920 x 1080
- 720p & 720i: 1280 x 720
- Resolution Rate
- 1080p 60/59.94/50/30/29.97/25/24/23 fps
- 1080p 60/59.94/50 fps
- 720p 60/59.94/50 fps
- Output: HD-SDI/3G-SDI (1BNC), HDMI 1.3a
- Color Space: 4:2:2 (YCbCr) 10bit
- Min. Illumination:
- 0.2Lux (Day), 0.1Lux (Night),
- 0.005Lux (Slow Shutter ON)
- White Balance: Auto & Manual (9,000 K - 11,000 K)
- LENS
- Lens: C/CS Mount (Default 4mm HD Lens)
- AUDIO
- Input: 3.5mm Line Input through I/O cable
- Sample Rate: 16/24/32 Bits
- STANDARD
- SMPTE: SMPTE 292M, SMPTE 424M
- SYNCHRONIZATION
- Gen-lock: External Tri-Level Input (IN / OUT)
- PHYSICAL
- Camera Control: RS-485, OSD Button
- Operation Temp: 32° F - 104° F
- Dimension: 88.90mm x 44.45mm x 44.45mm / 3.50” x 1.75” x 1.75” (With default 4mm Lens)
- Weight: 170g / 0.37lbs (With default 4mm Lens)
- Power: 12VDC (+9 - +15VDC) (PoE+ injector possible)
What's Included
- I/O Breakout Cable
- 4mm Megapixels Lens (Pre-Installed)
- DC 12v Power Supply & Sockets Adapter
- C-Mount Cap Adapter
- Sensor Cap
- PoE Dongle Adapter
