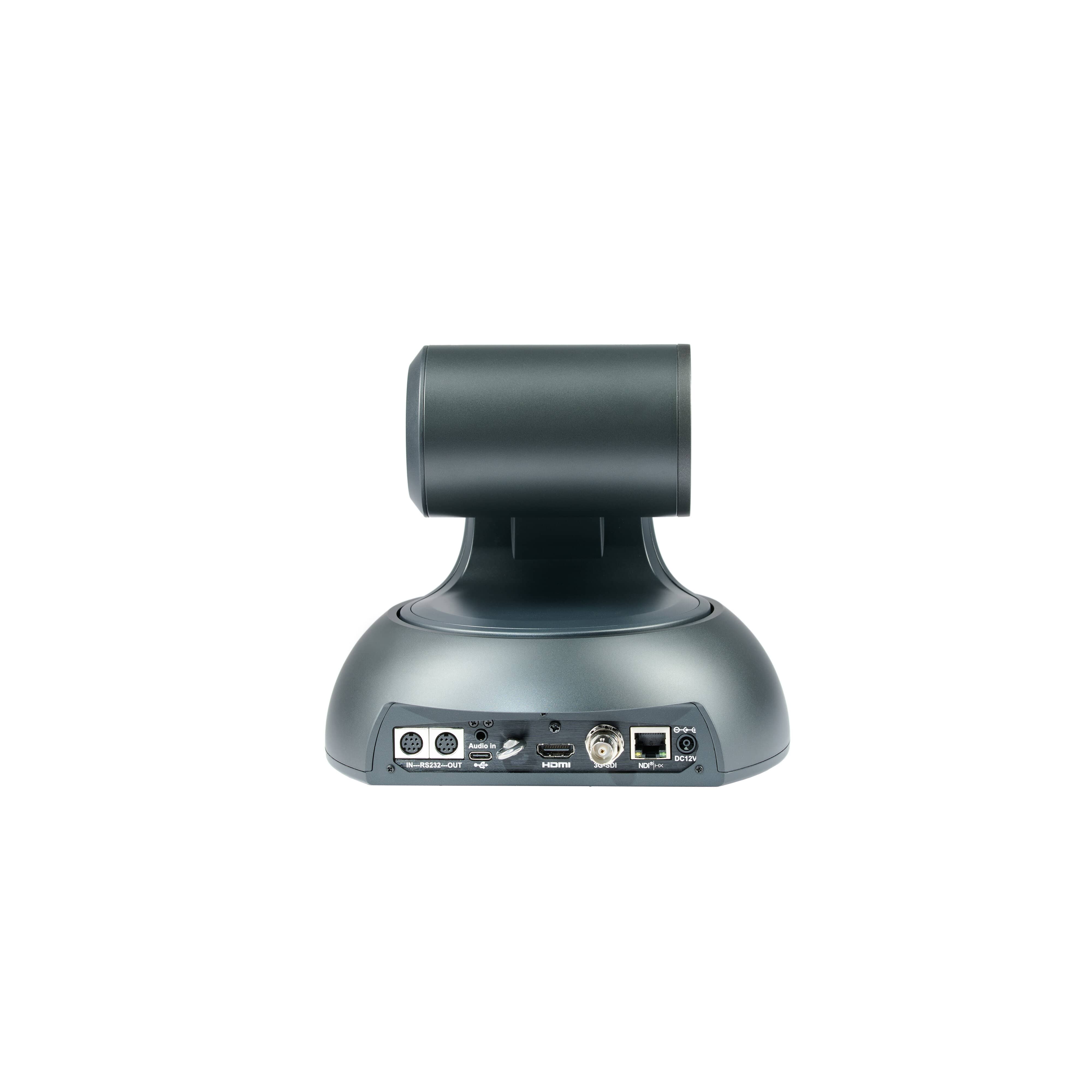

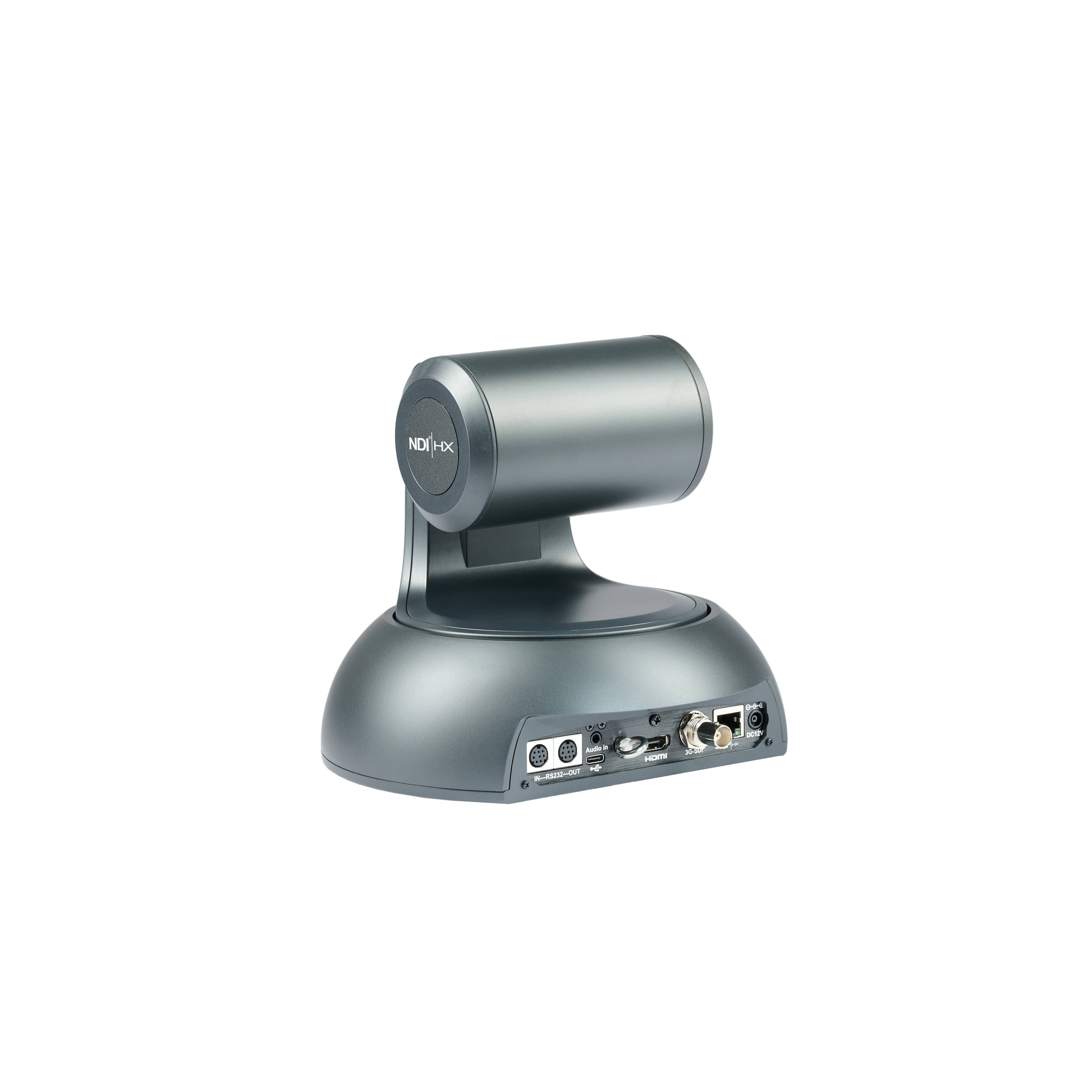

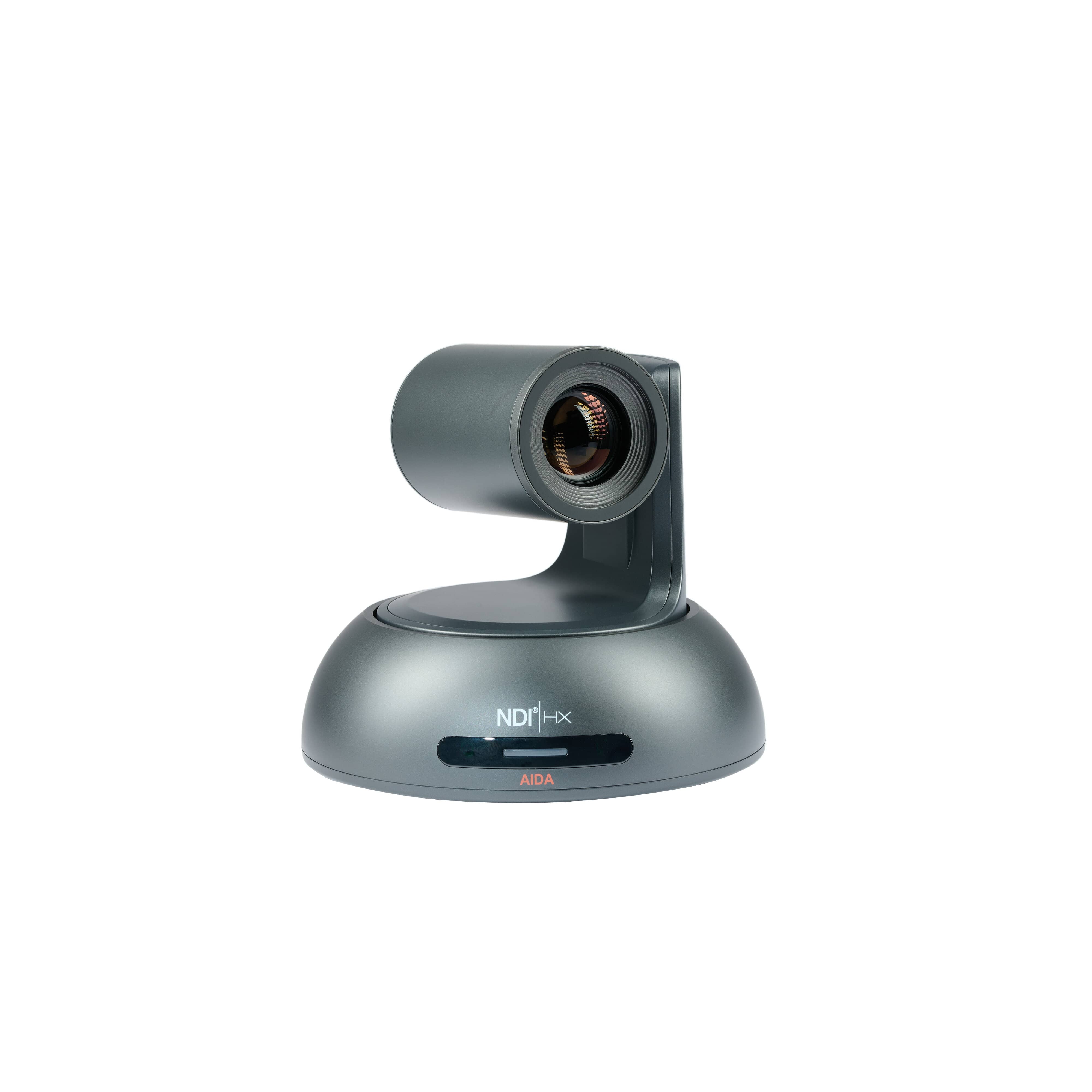

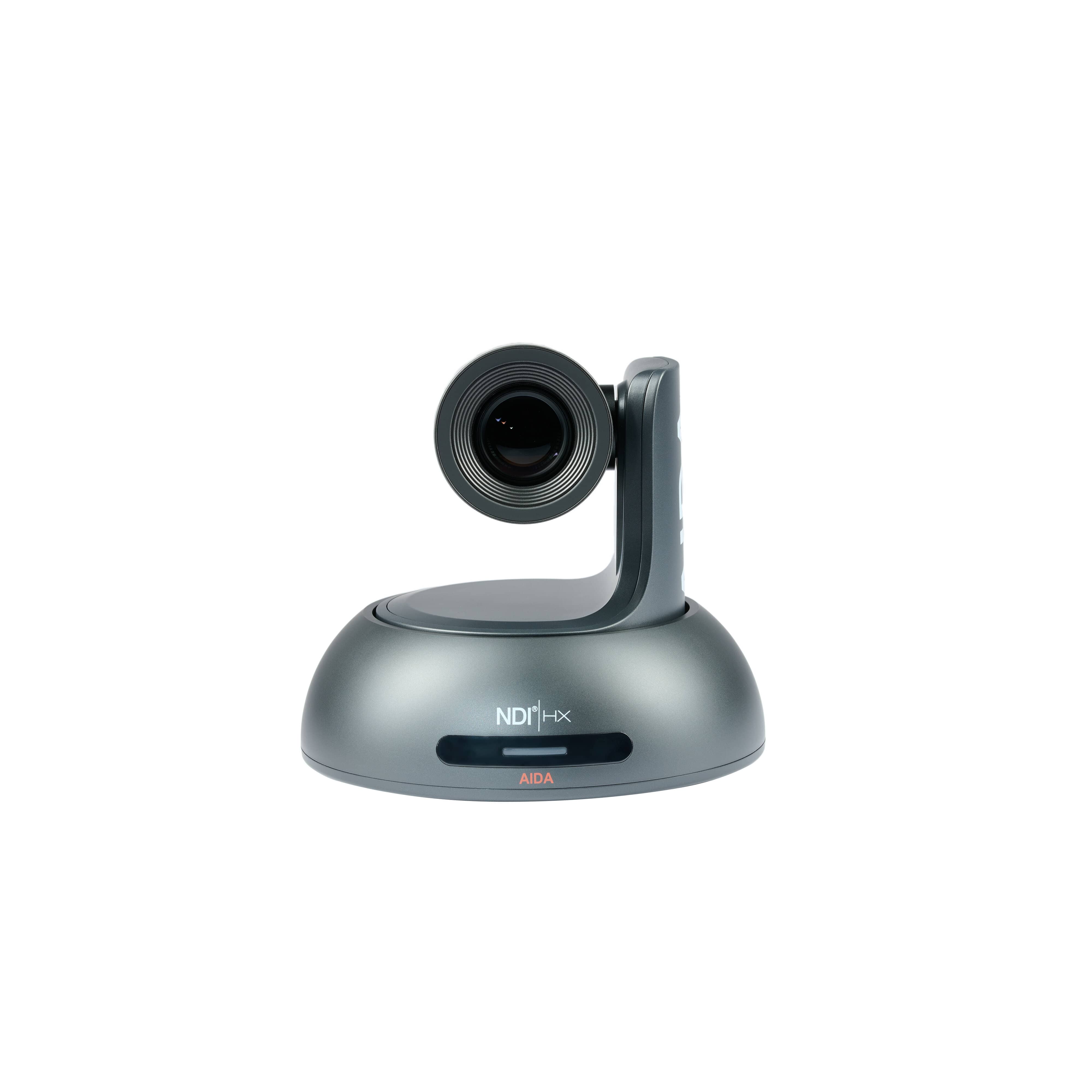

AIDA NDI|HX3 IP/SRT/HDMI PTZ Camera 20X Zoom - Black

About: AIDA NDI|HX3 IP/SRT/HDMI PTZ Camera 20X Zoom - Black

NDI/HX is one of the most prominent, rising technologies seen in broadcast workflows all over the world. Through the recent months, advancement on the HX protocol has lead to Newtek’s beloved protocol getting a serious upgrade - NDI/HX3. HX3 introduces a faster, visually lossless alternative that rivals even Full-Bandwidth NDI without the hardware. That means less latency, better quality, and more savings on any workflow!

Taking our popular X20 solution, we tweaked our formula to deliver the best NDI/HX3 experience one can have. With the power to display Full-HD video at 120 frames, trust us, this camera will change the NDI/HX game for good.

Features

• NDI/HX3 streaming capable for even lower latency video streaming and PTZ control over NDI/HX3 Protocol.
• Full HD Progressive Scan sensor captures sharp and vivid color under different light conditions.
• Advanced digital image processor provides vivid and detailed images with full access feature sets.
• Full-HD up to 120 frames (NDI/HX, IP, HDMI only) and 60 frames (NDI/HX3, 3G-SDI) simultaneously.
• Built for multiple use-case scenarios, including fast action sports and racing for slow-motion playbacks.
• Power Optical Zoom capability up to 18X.
• 3.5mm Line-in for no audio/video delay over IP/NDI protocols.
• Built-in OSD controls for customizable image settings.
• Comes in either a White or Black shell for further customization

HX3 FOREVER!

The PTZ-NDI3-X20 is pushed to its limits with HX3 by allowing the NDI stream to run at up to 60mb/s(4x the bitrate of NDI/HX.) This of course leads to better visual quality, and lowered latency all around!

No-Hassle Integration

As always, the PTZ-NDI3-X20 comes pre-loaded with its NDI/HX3 license key. Less time typing IlIllI, and more time streaming your dreams!

NDI/HX's first 120fps capable camera

Looking to enhance your slow-motion replays? With the PTZ-NDI3-X20, take in live 120FPS video via NDI/HX or HDMI and slow it down with your favorite replay software to get those incredible slow motion shots!

• Currently, NDI/HX3 standard for 100p & 120p hasn’t been set, so it is recommended to run 100p & 120p in NDI/HX.

PoE+ Capable

As always, PoE+ is the standard when using any AIDA IP camera. Just plug in a cat-5 cable connected to a PoE+ capable switch, and you got power, video and control over 1 cable!

Quick Specs

• NDI/HX3, SDI, HDMI -  Up to 120fps NDI/HX
• FHD Streaming -  1080p, 1080i and 720p
• 20x Optical Zoom -  Focal Length: 5.2~98mm, FOV: 57° (wide) ~ 3.3° (tele)
• Line in Audio -  Synced NDI/HX Streaming

Tally Light Integration

The PTZ-NDI3-X20 comes with the same Tally found on our other PTZ’s, making it discreet and easy for talents to follow!

(Un)limited Ways to Control

The PTZ comes standard with a physical remote, web UI control, as well as SONY VISCA, VISCA OVER IP, and NDI control. You will never run out of ways to move this camera!

Get Up Close and Personal

The PTZ comes loaded with a 20x Optical zoom, which allows for a wide FOV of 60°, to a zoomed in 4°. No quality lost here!

The PTZ That Keeps Giving

This PTZ is capable of running NDI/HX3, SDI, IP and HDMI streams simultaneously, making this the ultimate streaming machine.

Curvy in all the right places

Its sleep curvy design makes it a classy placeable camera, fit for any application!

Twice the fun!

The PTZ-NDI3-X20 comes in either black or white, matching any aesthetic seamlessly!

Specifications

• VIDEO
  • Image Sensor -  1/3” Progressive CMOS
  • Effective Pixels -  Horizontal: 1920, Vertical: 1080
  • Pixel Size -  2.13 μm (H) x 2.13 μm (V)
  • Resolution -  1080p & 1080i: 1920 x 1080
  • Resolution Rate
    • 1080 120p/ 100p (HDMI, IP, NDI/HX only) 60p/59.94p/50p/30p/29.97p/25p 24p/23.98p
    • 1080 60i/59.94i/50i
    • 720 60p/59.94p/50p/30p/29.97p/25p
  • Output
    • HDMI, 3G-SDI
    • NDI/HX3 / RTSP / RTMP / SRT
  • Color Space -  4:2:2 (YCbCr) 10bit
• FUNCTION
  • White Balance -  Auto, Manual, Auto Tracking, One Push, Indoor, Outdoor
  • Focus -  Auto, Manual
  • Shutter Speed -  1 to 1/10,000 Sec.
• LENS
  • Lens -  20X HD Optical Zoom
  • Focal Length -  4.9~98mm
  • F-Stop -  F1.5 ~ F3.0
  • Viewing Angle -  60° (wide) ~ 4° (tele)
• PTZ
  • Pan/Tilt Range -  Pan: 340°, Tilt: +90 to -30°
  • Pan/Tilt Speed -  Pan: 0° to +120°/s, Tilt: 0° to +80°/s
  • Presets -  128 Positions (via web), 10 Positions (via remote)
• STANDARD
  • IP Protocol -  UDP/IP, RTSP/RTMP, SRT, NDI/HX, NDI/HX3
• AUDIO
  • Input -  3.5mm TRS Stereo Audio Port
  • Sample Rate -  16/24/32 Bits
• PHYSICAL
  • Camera Control -
    • Protocol: VISCA, VISCA over IP, NDI
    • Interface: RS-232C IN & OUT, RJ-45
    • Remote Controller
  • Operation Temp -  32°F - 104°F
  • Dimension -  196.85mm x 190m x 176.5mm / 7.75” x 7.48” x 6.95”
  • Weight -  1.4kg / 3.1lbs
  • Power
    • 12VDC (+9 - +15VDC)
    • PoE+ (IEEE802.3at Standard Required) 24watts min

What's Included

• Remote Controller
• Camera Mounting Bracket
• Power Adapter & Cable
