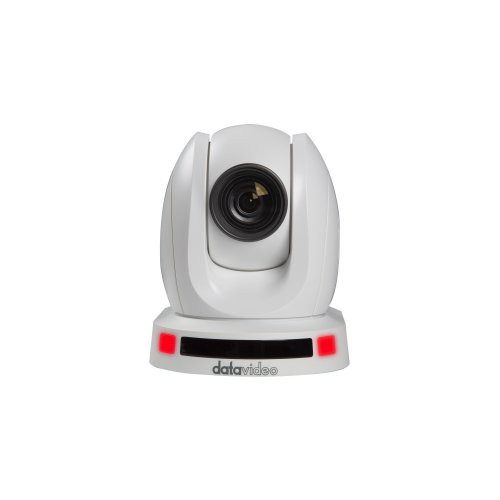

Datavideo PTC-145 HDBaseT Tracking PTZ Camera - White

About: Datavideo PTC-145 HDBaseT Tracking PTZ Camera - White

Discover the PTC-145T, a PTZ camera blending stunning Full HD resolution with advanced HDBaseT technology for long-distance, high-quality video transmission. Equipped with a 1/2.8” CMOS sensor, it offers superb image quality, 20x optical zoom, and 8x digital zoom.

This camera supports HDMI, 3G-SDI, and streaming outputs, alongside HDBaseT for versatile connectivity. It features line-in and 3.5mm microphone inputs for superior audio, and one-click AI Tracking for smooth operation without a dedicated operator.

Available in black or white, the PTC-145T is a stylish addition to any setting, perfect for those seeking both visual and technological excellence.

One Cable Solution

HDBaseT allows you to transmit power, HD video, control, and tally over a single Ethernet cable.

• Note: Seperate CAT 6 cable needs to be connected to the DVIP/LAN connection for access to web UI.

20x Optical Zoom, 8x Digital Zoom

The PTC-145T's 20x optical zoom and 8x digital zoom allows you to mount it near or far and still get great, sharp shots.

Advanced 3D Noise Reduction Function

The PTC-145T supports advanced digital noise reduction technology, which enables it to capture clear and smooth images even in less-than-perfect lighting conditions. This remarkable feature ensures that your footage remains crisp and vibrant, regardless of the lighting challenges you may encounter.

Quick Access to Camera’s Auto Tracking

You will be granted direct access to Auto Tracking via various external controllers such as the supplied RMC-1AT PTZ remote controller and RMC-300A DVIP controller, PTC View Assist App, and the TPC-700, etc. You can choose a suitable controller according to your needs.

In addition to camera controllers, you can also easily enable Auto Tracking on smart switchers, including iCAST mini, SHOWCAST 100, etc.

Custom Auto Object Tracking

If you are filming multiple people, you can designate a person for auto tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, etc.

Smart PTZ Speed Adaptation

The integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera's corresponding pan, tilt and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.

Talent Position: Center / Left Side / Right Side

The positioning of talent depends on the videographer's creativity and intent rather than strict rules. Different positions can convey various emotions, messages, or visual effects. A centered composition provides a sense of stability and balance, suitable for scenes that require highlighting the main subject. Videographers may also place the talent on the left third or right third of the frame, leaving adequate space in the foreground to showcase the talent's sight direction or potential future possibilities.

Quick Selection of Full Body / Half Body / Close-up

All of the PTC-145T camera series include RMC-1AT controller. User can quickly select full-body, half-body and close up framing, making it easy to change the shooting scene and framing requirements.

S-Shaped Speed Curve

The S-Shaped Speed Curve, inspired by the smooth acceleration and deceleration of a lift, is a pivotal feature that enhances the camera lens movement. Much like the elevator ride that starts and stops seamlessly, the PTZ camera ensures your video captures maintain uninterrupted fluidity.

This innovative technology eliminates any jerky movements that might be discernible to the naked eye, resulting in professional-quality, visually pleasing content. The S-Shaped Speed Curve is your assurance that the camera's pan, tilt, and zoom functions will operate with precision and grace, delivering an unparalleled visual experience for your audience. Experience the future of camera movement with the Datavideo PTZ camera.

Simply Enable Auto Tracking with Your IR Remote Control

RMC-1AT PTZ Controller: All you need is a remote control to set and control all four cameras and save the four presets.

RMC-1AT PTZ Controller

• Power - Press to activate the camera or enter standby mode.
• Menu - Press the Menu button to open the camera's OSD menu which will show you all functions of the PTC- 305.
• Focus - Ergonomic design to ease manual focus adjustment.
• Return - This returns the camera lens position to the Home position. When the OSD menu is opened, this button returns to the previous menu hierarchy level.
• AF Auto Focus - Press the AF button to turn on/off auto focus function.
• AT Tracking Enable - The AT button activates the auto tracking function of the PTC-305 series with one key. User can quickly select full-body, half-body and close up framing, making it easy to change the shooting scene and framing requirements.
• Camera Selection / Setting - Select to set or control up to four cameras.
• Camera Presets - Each camera is allowed up to four presets which store the camera's current pan, tilt and zoom position, as well as settings such as iris, focus and movement speed. Presets allow quick access to settings required for specific camera shooting.
• Zoom - Sets zoom speed and zooms in and out.
• Micro Joystick - The joystick controls the pan and tilt directions or selects options or values while the OSD menu is opened.
• IP Address Reset - Press and hold to restore the default IP address.
• Store - Saves the current pan, tilt and zoom settings of the camera as well as settings such as iris, focus and movement speed to presets.

Wide 60° Field of View

The PTC-145T offers an expansive 60° Field of View, effortlessly capturing all scenes within its frame. This generous field of view ensures that it can encompass and record all the pertinent moments in the given area, delivering comprehensive visual coverage.

H.264/H.265 Video Compression for Streaming

With built-in streaming encoder, can encode up to 2 simultaneous streams to any cloud service.

Simple Multi-Camera Control at Your Fingertips

With its ergonomic joystick and tactile button layout, the RMC-180 MARK II makes it easy to set up and control up to 4 Datavideo PTC-145T cameras for any live video production.

RMC-300A can Control Up to 24 PTC-145T Cameras

Designed to control up to 24 PTC-145T cameras, with preset memory for easy camera control. Able to control up to 24 Datavideo PTC-145T cameras simultaneously, 14 presets for each camera to operate with RGB backlit buttons.

Multiple Network Protocol

Support RTSP, RTMPS protocols, easy to stream directly to your desired CDN streaming platform.

Compliant with the ONVIF Profile S Standard

The PTC-145T series cameras are compliant with the ONVIF Profile S standard, ensuring seamless integration and interoperability in network video systems.

One Ethernet Cable with NDI | HX Technology

There is no need for multiple cables and complicated setup. Single-wire concept helps you to transfer video, audio, power, tally, and control over only one Ethernet cable.

Power Over Ethernet (PoE) functionality allows you transmit all the information and power over only one cable.

NDI Virtual Input

PTC-145NDI as an video input source can be applied to various platforms: Skype, GoToMeeting, WebEx, Zoom, and more.

Power over Ethernet

The PTC-145T supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT6 cable to power your PTC-145T.

Dark or Light Body

The PTC-145T is available in black or white to remain inconspicuous in permanent setups.

Remote Control and Preview by Web User Interface

The web user interface provides preview, pan-tilt-zoom control and configurations setting in IP mode.

FREE PTZ View Assist APP

Control up to four cameras with your Wireless Touch Screen. It can monitor the live streaming video from PTC-145T series. The app can control up to 4 cameras simultaneously via DVIP, you can intuitively set up and recall the presets, and adjust white balance, focus, and IRIS.

Build a reliable SRT live streaming workflow with all Datavideo products

Datavideo's wide range of encoders, cameras, and hand-carry switchers are fully supported by SRT and dvCloud. Datavideo encoders and dvCloud provide reliable streams over unreliable networks. By using a Datavideo encoder and dvCloud together, you can utilize SRT (instead of RTMP) on the initial problematic connection or "First Mile." After your video stream reaches dvCloud, you can depend on dvCloud's reliable, high-bandwidth network to deliver the stream to your favorite destinations, like Facebook and YouTube.

Remote control from anywhere in the world

Control the PTZ camera at the venue from anywhere in the world using the BB-1 KIT and dvCloud streaming service.

Specifications

• Video format/Resolution
  • 1080p 60/59.94/50/30/29.97/25
  • 1080i 60/59.94/50
  • 720p 60/59.94/50
• Image Sensor - 1/2.8 inch high quality HD CMOS sensor
• Effective Pixels (approx.) - 2.07 Mega pixels
• S/N Ratio - ≥50dB
• Min. Illumination - 0.5 Lux @ (F1.8, AGC ON)
• Electronic Shutter - 1/30s ~ 1/10000s
• Zoom Ratio - 20x Optical Zoom, 8x Digital Zoom
• Gamma Control - N/A
• Iris Control - Auto / Manual
• Digital Noise Reductions - 3D
• On-Screen Display (OSD) - English/Simplified Chinese/Traditional Chinese
• White Balance - Auto, Indoor, Outdoor, Manual, One Push
• AGC / Gain Control - Yes
• HDR/WDR - N/A
• Mirror / Flip Image - Yes
• Focus Mode - Auto / Manual
• Panning / Tilting Range
  • Pan: 340°
  • Tilt: +90° to -30°
• Panning / Tilting Speed
  • Pan: 0.1~60°/sec
  • Tilt: 0.1~30°/sec
• Preset - 255 Positions
• Focal Length
  • f = 5.05mm (wide) to 91.49 mm (tele)
  • F1.8(Wide) ～ F2.9(Tele)
• Field of View (Horizontal, Wide) - 60°
• Image Compensation - Backlight Compensation
• Video Output

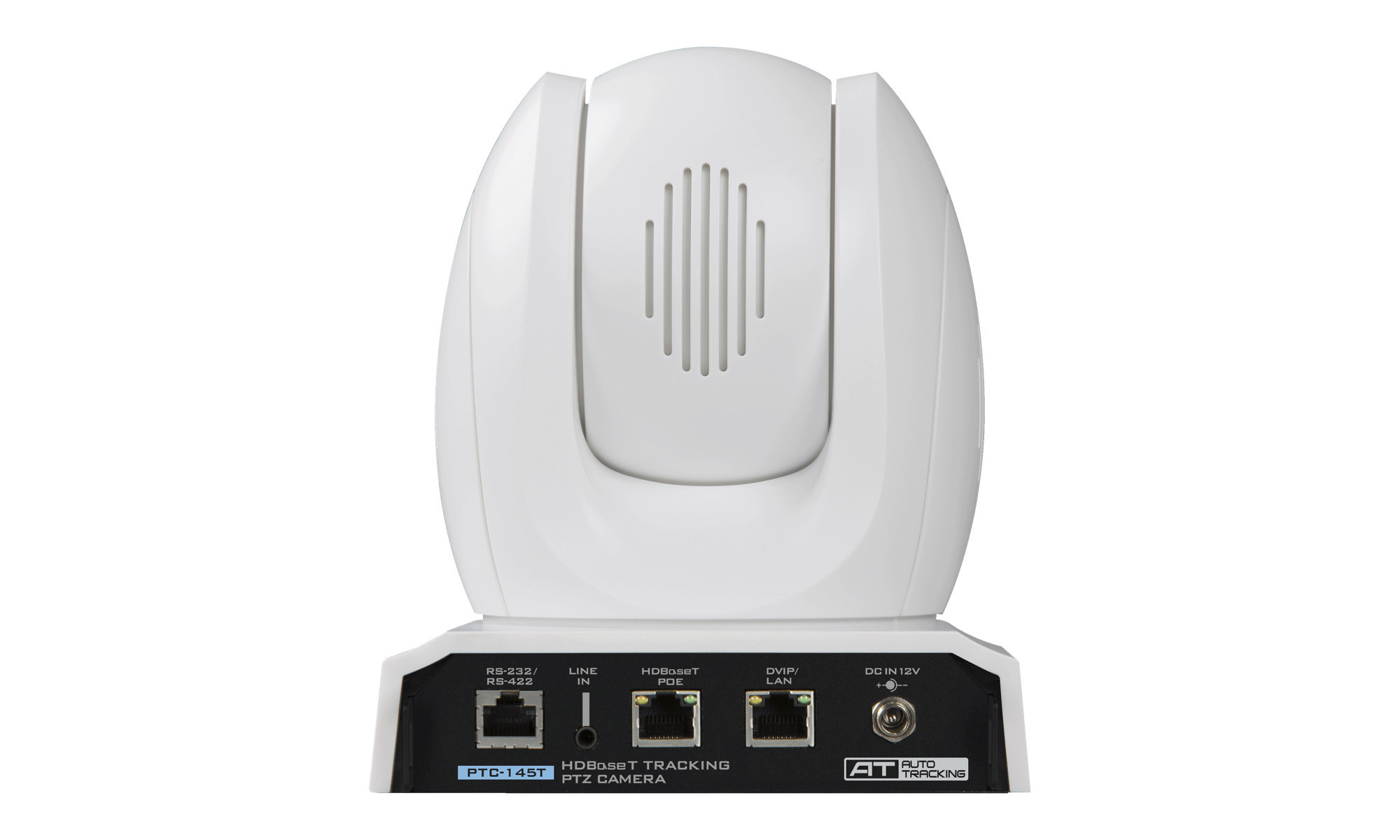

  • HDBaseT (PoE) x1
  • RJ-45 x1
• Audio Input - 3.5mm Line in
• Tally LED - Dual color (Red, Green)
• Lens Filter - M52.0 x 0.75 Thread with UV Protection
• Control Protocol
  • Pelco-D, Pelco-P,
  • VISCA, VISCA over IP,
  • DVIP, ONVIF
• Remote Control Interface
  • IR
  • Web GUI
  • RS-422 /RS-232 (RJ45)
  • HDBaseT(RJ-45)/Serial control on Receiver Box: Transmit up to 100m
• Video Compression Format - H.264/H.265/MJPEG
• Audio Compression Format - AAC, G711
• Audio Bitrate - 96Kbps, 128Kbps, 256Kbps
• HD IP Interface - 10/100/1000M (RJ45)
• Streaming Protocols - RTSP, RTMP(S), ONVIF, SRT(caller & listener), Multicast
• First Stream Supported Resolution
  • 1920x1080
  • 1280x720
  • 1024x576
  • 960x540
  • 640x480
  • 640x360
• Second Stream Supported Resolution
  • 720x480
  • 640x480
  • 640x360
  • 320x240
• Video Bitrate - 32Kbps ~ 50Mbps (Single Stream)
• Video Bitrate Mode - VBR, CBR
• Encoding Frame rate
  • 50Hz: 1-50fps
  • 60Hz: 1-60fps
• POE - IEEE 802.3af
• F/W Update - Via Web UI
• IR Control - Yes
• Camera Control Unit - HS-1650T/HS-1600T Mark II/RMC-2P/RMC-180 series/RMC-300 series/PTZ View Assist APP
• Tripod Mount - 1/4-20 UNC
• Optional Accessories - WM-1/ WM-10/ WM-11
• Color - Black
• Dimension (LxWxH) - 156 x 184 x 186 mm
• Weight - 1.6 kg
• Operating Temp. Range - 0~40 °C
• Power - DC 12V 14W

What's in the Box

• 1x PTC-145T Unit
• 1x IR remote controller
• 1x Ceiling mount bracket-A
• 1x Ceiling mount bracket-B
• 6x Ceiling mount bracket screw M3*4mm
• 1x DC 12V Power Adaptor
• 1x Power Cord
• 1x Safety cable
