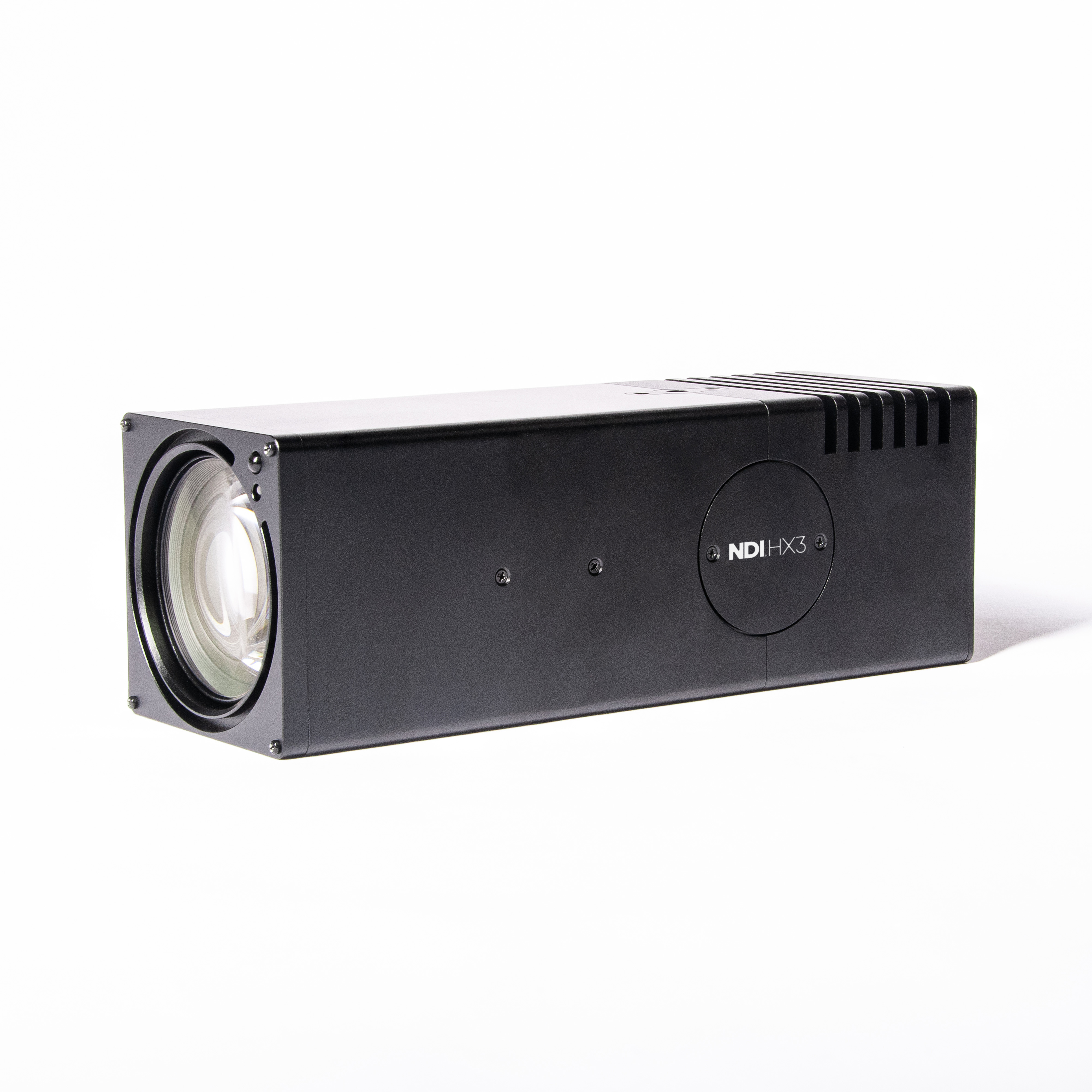

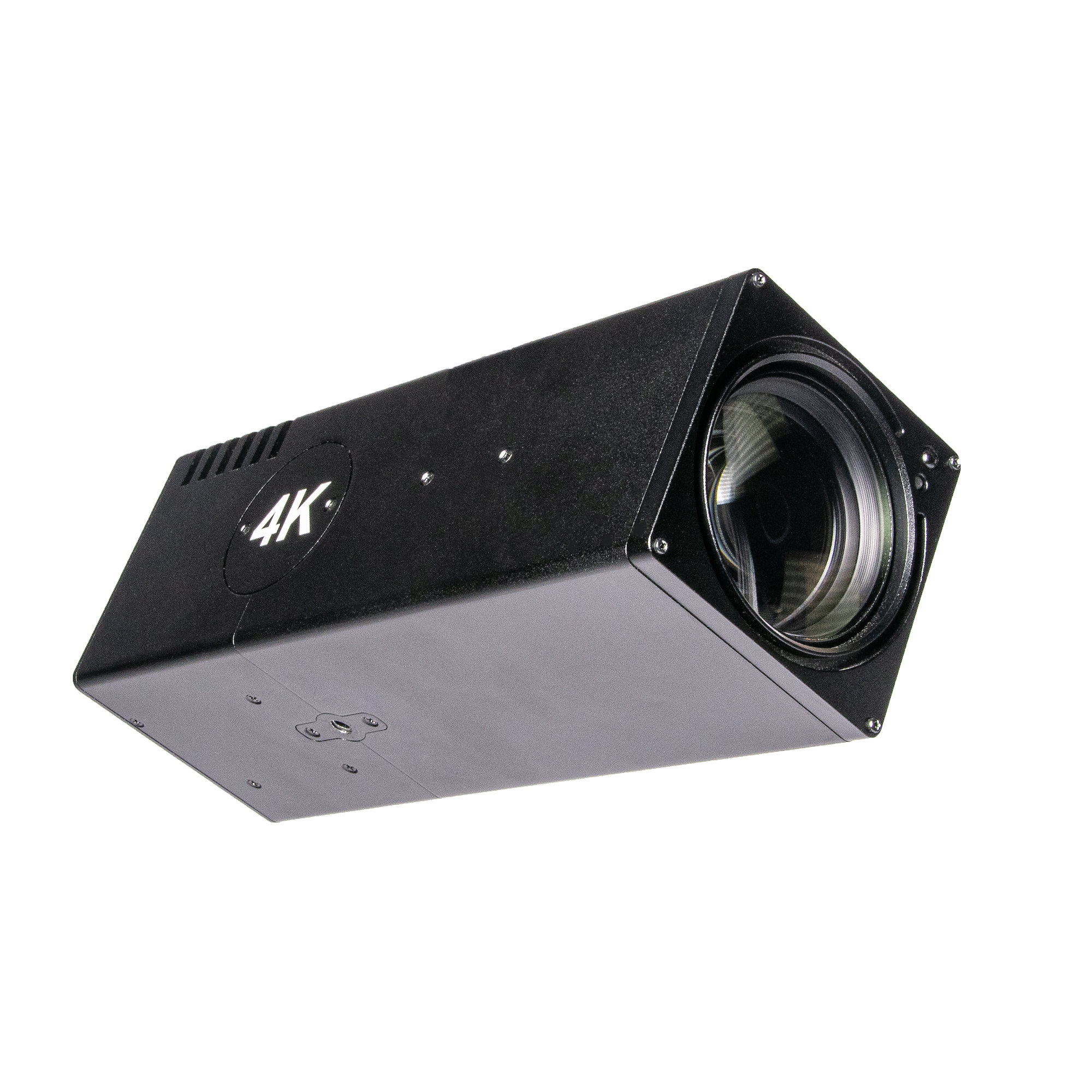

AIDA UHD-NDI3-X30 UHD 4K/60 NDI HX3/IP/SRT/HDMI PoE 30X Zoom POV Camera

About: AIDA UHD-NDI3-X30 UHD 4K/60 NDI HX3/IP/SRT/HDMI PoE 30X Zoom POV Camera

1080p 60fps HX 3 just got 30X more clearer!

Sitting at the top of the throne of next-gen AIDA NDI HX3 cameras is the pinnacle of our innovation, the UHD-NDI3-X30. Assisting the camera is a 4K 30X optical zoom module, capable of capturing video clearly up to 50M, or 150ft. From Crystal-Clear HX 3 1080p to Majestic HX 2160p, capture every detail and steal the show using the cameras autofocusing ability!

The UHD-NDI3-X30 is the ultimate one-man-army for limitless creation!

Features

• 4K 1/2.8” Progressive Scan CMOS sensor capable of capturing 2160p 60fps over NDI HX and HDMI
• HX 3 Capable camera outputting up to 1080p 60fps at 60mb, 4 times the amount of HX! Looks even better with a 4K CMOS sensor than HD!
• Accessible Web UI to stream directly to social media platforms and control image parameters over IP.
• Versatile design with top & bottom tripod mounts for uniques shot creation.
• Camera is PoE+ Capable. Just plug in one wire for power, control and video!
• Small form-factor and rugged designed makes all video streaming applications possible
• Small tally light on front of camera to ensure talent of when camera is live or about to be.
• Out of this world 4K 30X optical zoom module capable of capturing video up to 150ft, without missing detail.

HX3 - The Golden Ratio is HX

The UHD-NDI3-X30 brings crispy Full-HD video to life by allowing the NDI stream to run at up to 60mb/s (4x the bitrate of NDI/HX.) This of course leads to better visual quality, and lowered latency all around, better than HX or a HD sensor can handle!

Prepacked, and ready to go!

The UHD-NDI3-X30 is ready out the box, just like any one-man-army would be!

AIDA's Next Generation 4K Cameras!

The UHD-NDI3-X30 brings the next gen POV 2160p resolutions to NDI HX, as well as the newer 1080p HX3.

• Currently, NDI HX3 standard for 4K hasn’t been set, so it is recommended to run 4K in NDI HX.

UHD-NDI3-X30 Quick Specs:

• NDI HX3, HDMI - NDI HX3 Camera
• UHD Streaming - 2160p, 1080p, 1080i & 720p
• 30X Optical Zoom
  • FL: 7mm~214mm
  • HFOV: 59° ~ 2°
• Line in Audio - Synced NDI/HX & HDMI Streaming

Best thing since sliced bread

With a 4K 30X lens module, you are able to output crystal clear video via 2160p HX or HDMI, or 1080p HX 3. It really can’t get any better than that!

Never miss a detail

30X optical zoom is capable of capturing video up to 150ft, or 50m. That’s enough to capture perfect video from REALLY far away!

Simply Outputs

With a simple backend, get simultaneous HDMI and NDI HX or HX 3, all while powering the camera!

Big Toy - Big Mount

The mounting solution is still a standard 1/4″ 20 mount, however its put in the center of the big guy to ensure equal weight distribution on any mount!

Bet you didnt see PoE+ comin

Since the camera is natively PoE+ capable, couple this with a PoE+ switch for maximum efficiency in cabling, getting power, video and control via 1 cable!

Hardened Aluminum Goodness

The UHD-NDI3-X30 has that same formulaic armor AIDA is known for, acting as a great protector against dings, scratches, and heat!

Specifications

• VIDEO
  • Image Sensor -  1/2.8” Progressive CMOS
  • Effective Pixels -  Horizontal: 3840, Vertical: 2160
  • Pixel Size -  2.0 μm (H) x 2.0 μm (V)
  • Resolution -  2160p, 1080p, 1080i, 720p
  • Resolution Rate
    • NDI HX ONLY: 2160p 60p/59.94/50p/30p/ 29.97p/25p/24p
    • HX 3 and Others:
      • 1080 60p/59.94/50p/30p/29.97p/25p/24p
      • 1080 60i/59.94i/50i
      • 720 60p/59.94p/50p
  • Output -  HDMI/IP (NDI HX3/SRT/RTMP/RTSP)
  • Color Space -  4:2:2 (YCbCr) 10bit
  • Min Illumination -  0.2Lux (day), 0.1Lux (Night)
  • White Balance -  Auto & Manual (9000 - 11,000 K)
• OPTICAL ZOOM MODULE
  • Lens -  30x Optical Zoom Module
  • Focal length -  6.91~214.64mm
  • Viewing Angle -  59°(Wide) ~ 1.98°(tele)
• AUDIO
  • Audio Embed -  Embed over HDMI and IP streaming
  • Input -  3.5mm Line Input
• STANDARD
  • IP Protocol -  UDP IP, RTSP RTMP, SRT, NDI HX
• PHYSICAL
  • Camera Control -  Protocol: VISCA Over IP
  • Operation Temp -  32°F - 104°F
  • Dimension -  8.66 x 2.83 x 2.83 Inch (220 x 72 x 72mm)
  • Weight -  3.09 lb (1.4kg)
  • Power -  12VDC (+9 - +15VDC), PoE+ (standard IEEE802.3at)

What's in the Box

• NDI HX3 POV Camera
• USB Cable
• Remote Controller
• DC 12v Power Supply & Sockets Adapter
