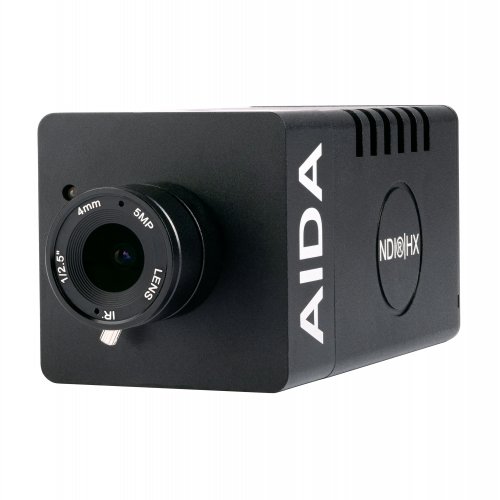

AIDA HD3G-NDI-200 FHD NDI HX/IP/SRT/3G-SDI PoE & IP Control POV Camera

About: AIDA HD3G-NDI-200 FHD NDI HX/IP/SRT/3G-SDI PoE & IP Control POV Camera

Leveraging the power of both SDI and NDI HX comes the all new HD3G-NDI-200. With simultaneous outputs, spice up your established SDI workflow by bringing in AIDA’s tried and trusted IP Streaming and NDI HX for program, preview, or control!

• Full-HD 1/2.8” Progressive Scan CMOS sensor capable of 1080 60p NDI HX and 3G-SDI video.
• Accessible Web UI to stream directly to social media platforms and control image parameters over IP.
• Versatile and discreet design perfect for sleek, multi-leveled image capturing in most scenarios.
• OSD breakout cable provides power or control over serial RS485 communication.
• Flawlessly relays multi-channel embedded audio via NDI HX2
• Perfectly suited for upgrading existing 3G-SDI workflows to IP / NDI HX capabilities.

Ready to Rock n' Roll!

Always prepared is the HD3G-NDI-200, having its NDI HX activated for easy setup out of the box!

PoE+ Always!

With PoE+, you can simplify your cable setup by running 1 cat5e+ cable to get power, control and video at once.

Cost-Effective Hybrid Solution

The HD3G-NDI-200 is no stranger to cost-effectiveness, boasting one of the smallest form factor dual SDI/IP broadcast-grade cameras in the market!

Multiple Ways to Control

Take charge, paint ,and preview the camera at all times via the AIDA web UI! Everything is laid out to easily change any values, and boost productivity.

Adjustable CS/C Mount Lens

One of the best features of the HD3G-NDI-200 is its adaptability to situations. The 4mm CS mount lens that comes with it may not be the best angle for your fit, but that can easily be changed since its interchangeable!

Does your Cam Hang Low?

The HD3G-NDI-200 comes with both a top and bottom 1/4 20″ mounting solution.

Specifications

• VIDEO
  • Image Sensor: 1/2.8” Progressive CMOS
  • Effective Pixels
  • Horizontal: 1920
  • Vertical: 1080
  • Pixel Size: 2.9 μm (H) x 2.9 μm (V)
  • Resolution: 1080p, 1080i, 720p
  • Resolution Rate
    • 1080 60p/59.94/50p/30p/29.97p/25p
    • 24p/23.98p
    • 1080 60i/59.94i/50i
    • 720 60p/59.94p/50p/30p/29.97p/25p
  • Output: 3G-SDI, RJ45, NDI HX2
  • IP Rate
    • 1920 x 1080 @ 3~60
    • 1280 x 720 @ 3~60
    • 1024 x 576 @ 3~60
    • 620 x 360 @ 3~60
  • Color Space: 4:2:2 (YCbCr) 10bit
• LENS
  • Lens: C/CS Mount (Default 4mm HD Lens)
• AUDIO
  • Input: 3.5mm TRS Stereo Audio Port
  • Sample Rate: 16/24/32 Bits
• PHYSICAL
  • Camera Control
    • Protocol: VISCA RS485, VISCA Over IP
    • Control: OSD Button or Web UI
  • Operation Temp: 32°F - 104°F
  • Dimension: 54mm x 54mm x 127mm /  2.125” x 2.125” x 5”  (With default 4mm Lens)
  • Power: 12VDC (+9 - +15VDC)/ POE

What's Included

• I/O Breakout Cable
• 4mm Megapixels Lens (Pre-Installed)
• DC 12v Power Supply & Sockets Adapter
• USB Cable
• C-Mount Cap Adapter
• Sensor Cap
