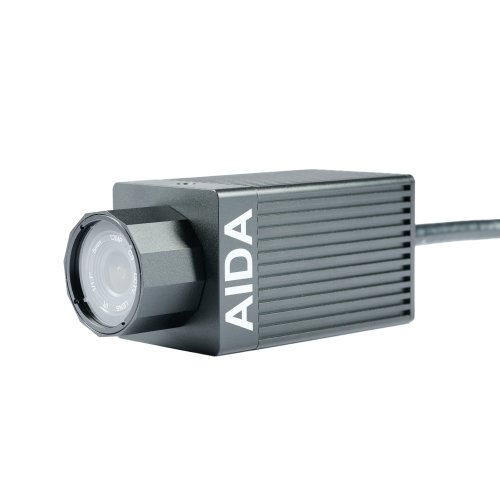

AIDA UHD-NDI3-IP67 UHD 4K/60 NDI HX3/IP/SRT PoE Weatherproof POV Camera

About: AIDA UHD-NDI3-IP67 UHD 4K/60 NDI HX3/IP/SRT PoE Weatherproof POV Camera

Exhibit the Beauty Outdoors has to offer with AIDA's next GEN HX3 Cams

NDI HX3 has already been established as the golden ratio for HX, paving a way for new generational workflows involving NDI. In many cases however having 4K quality cameras in the wild has always proven to be an issue.. Until the UHD-NDI3-IP67 came along. Packed with a 4K Sony CMOS sensor, you can say goodbye to limitations, and hello to creative visions. With the ability to capture stunningly clear HX3 with a 4K sensor, to relaying gorgeous 2160P over HX, this camera has the ins and outs of HX covered!

So go out and elevate your streams to the next level using the UHD-NDI3-IP67, the world’s first 4K IP67 NDI HX3 camera!

Features

• 4K 1/2.8” Progressive Scan CMOS sensor capable of capturing 2160p 60fps over NDI HX
• HX 3 Capable camera outputting up to 1080p 60fps at 60mb, 4 times the amount of HX! Looks even better with a 4K CMOS sensor than HD!
• Accessible Web UI to stream directly to social media platforms and control image parameters over IP.
• Versatile design with top & bottom tripod mounts for uniques shot creation.
• Camera is PoE+ Capable. Just plug in one wire for power, control and video!
• Small form-factor and rugged designed makes all video streaming applications possible
• Small tally light on front of camera to ensure talent of when camera is live or about to be.
• Weatherproofing IP67 rating for protection against the outdoors, as well as a short submersion time under water!

NDI HX3 - Anywhere?

The UHD-NDI3-IP67 is pushed to its limits with HX3 by allowing the NDI stream to run at up to 60mb/s (4x the bitrate of NDI/HX.) To further enhance the HX3 experience, the camera’s ability to utilize its 4K Sony CMOS sensor to downscale to 1080p makes any stream better than a camera with a HD CMOS sensor.

No-Hassle Integration

The UHD-NDI3-IP67 has ventured the wilderness and found its inner-self already – no extra keys required.

AIDA's Next Generation 4K Cameras!

The UHD-NDI3-IP67 brings an unparalleled weatherproof experience, resulting in crisp 2160p 60fps streaming, or beautiful 1080p 60fps HX3.

• Currently, NDI HX3 standard for 4K hasn’t been set, so its recommended to run 4K in NDIHX

UHD-NDI3-IP67 Quick Specs:

• NDI HX3 - NDI HX3 Camera
• UHD Streaming - 2160p, 1080p, 1080i and 720p
• 5mm CS Mount Lens - HFOV: 72°
• Line in Audio - Synced NDI/HX and HDMI Streaming
• IP67 Rated - Weatherproof IP67 Rated!

Weatherproof Eyeglasses

Protecting the lens is a rubber sealed WP cap, protecting the lens from any adversity it faces. It also gives you the freedom to change lenses for that perfect shot.*

• Operable lenses are dependent on size and focal length. Not all lenses will work.*

AIDA Cabling 2.1

It should be no surprise our UHD-NDI3-IP67’s 10 ft weatherproof cable protects its outputs from adversity, but just make sure those endings are wrapped or hidden from the enviornment!

Outputs, meet outdoors

The UHD-NDI3-IP67’s HX3 or HX, SRT, RTSP, and RTMP can all be used at the same time! Enjoy a HX3 stream directly to your favorite NDI streaming software like Vmix, or enjoy direct streaming to sites like Youtube and Vimeo via RTMP.

Camera are you OK? Are you OK?

Check up and control the camera anytime with its VISCA over IP protocol, or state-of-the-art web UI.

Aint no Mounting high enough!

The 1/4″ 20 mounting holes located on the top and bottom of the camera allow for placement on any standard tripod, whether it be way up high, or down low!

PoE+ Capable

Weatherproof shrink wrap that puppy and enjoy the outdoors with 1 cable for power, control and video! I couldn’t have said it any better!

Specifications

• VIDEO
  • Image Sensor -  1/2.8” Progressive CMOS
  • Effective Pixels -  Horizontal: 1920, Vertical: 1080
  • Pixel Size -  2.0 μm (H) x 2.0 μm (V)
  • Resolution -  2160p, 1080p, 1080i, 720p
  • Resolution Rate
    • NDI HX ONLY: 2160p 60p/59.94/50p/30p/ 29.97p/25p/24p
    • HX 3 and Others:
      • 1080 60p/59.94/50p/30p/29.97p/25p/24p
      • 1080 60i/59.94i/50i
      • 720 60p/59.94p/50p
  • Output -  IP (NDI HX3/SRT/RTMP/RTSP)
  • Color Space -  4:2:2 (YCbCr) 10bit
  • Min Illumination -  0.2Lux (day), 0.1Lux (Night)
  • White Balance -  Auto & Manual (9000 - 11,000 K)
• LENS
  • 12MP 5mm CS Mount HD Lens
  • FOV: 78°
• AUDIO
  • Audio Embed -  Embed over HDMI and IP streaming
  • Input -  3.5mm Line Input
• WEATHERPROOFING
  • IP Rating -  IP67 - Good against moisture, dust
• PHYSICAL
  • Camera Control -  Protocol: VISCA Over IP
  • Operation Temp -  32°F - 104°F
  • Dimension -  4.72 x 2.09 x 2.09 Inch (120 x 53 x 53mm)
  • Weight -  1.76 lb (800g)
  • Power -  12VDC (+9 - +15VDC), PoE+ (standard IEEE802.3at)

What's in the Box

• NDI HX3 POV Camera
• 5mm 12MP Lens (Pre-Installed)
• DC 12v Power Supply & Sockets Adapter
