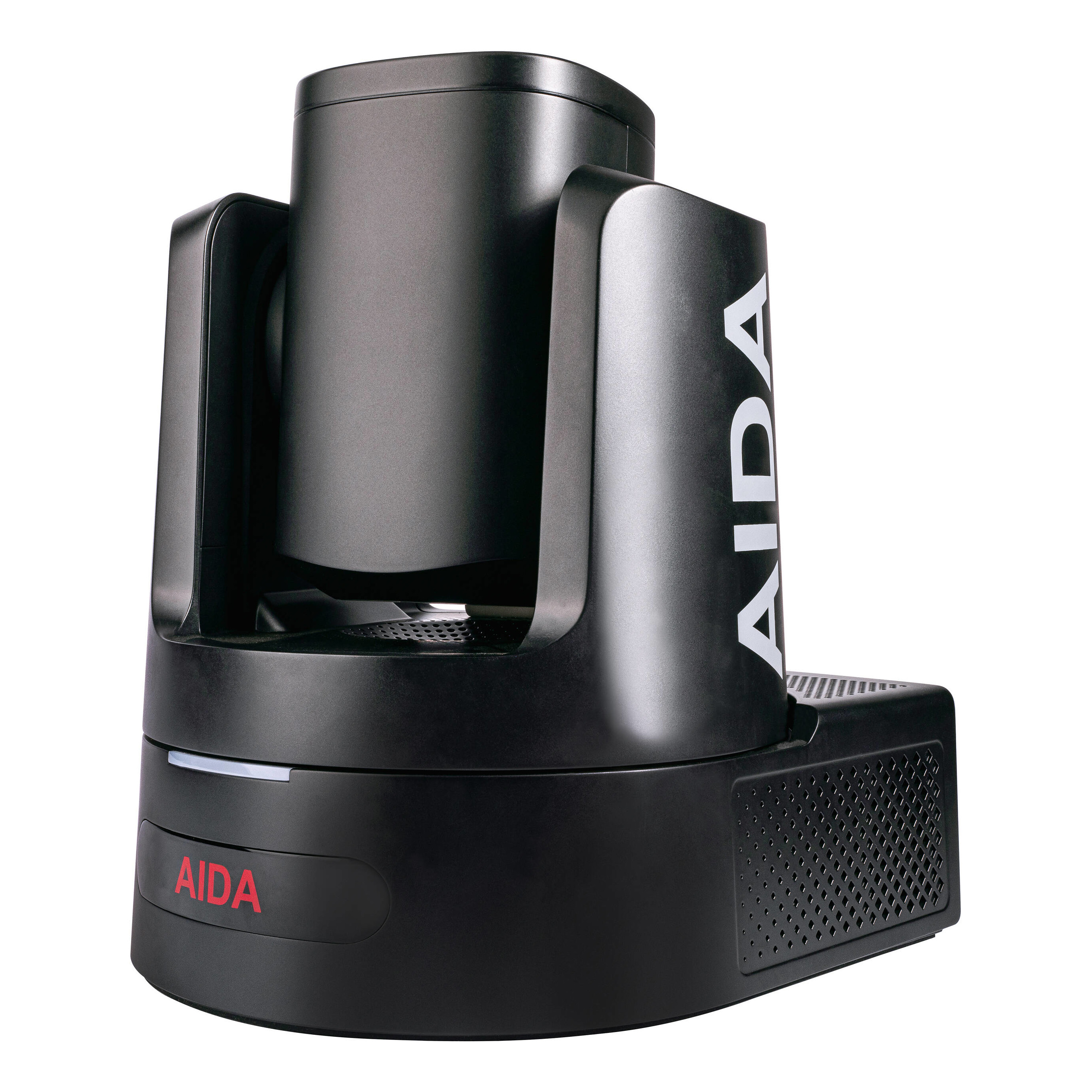

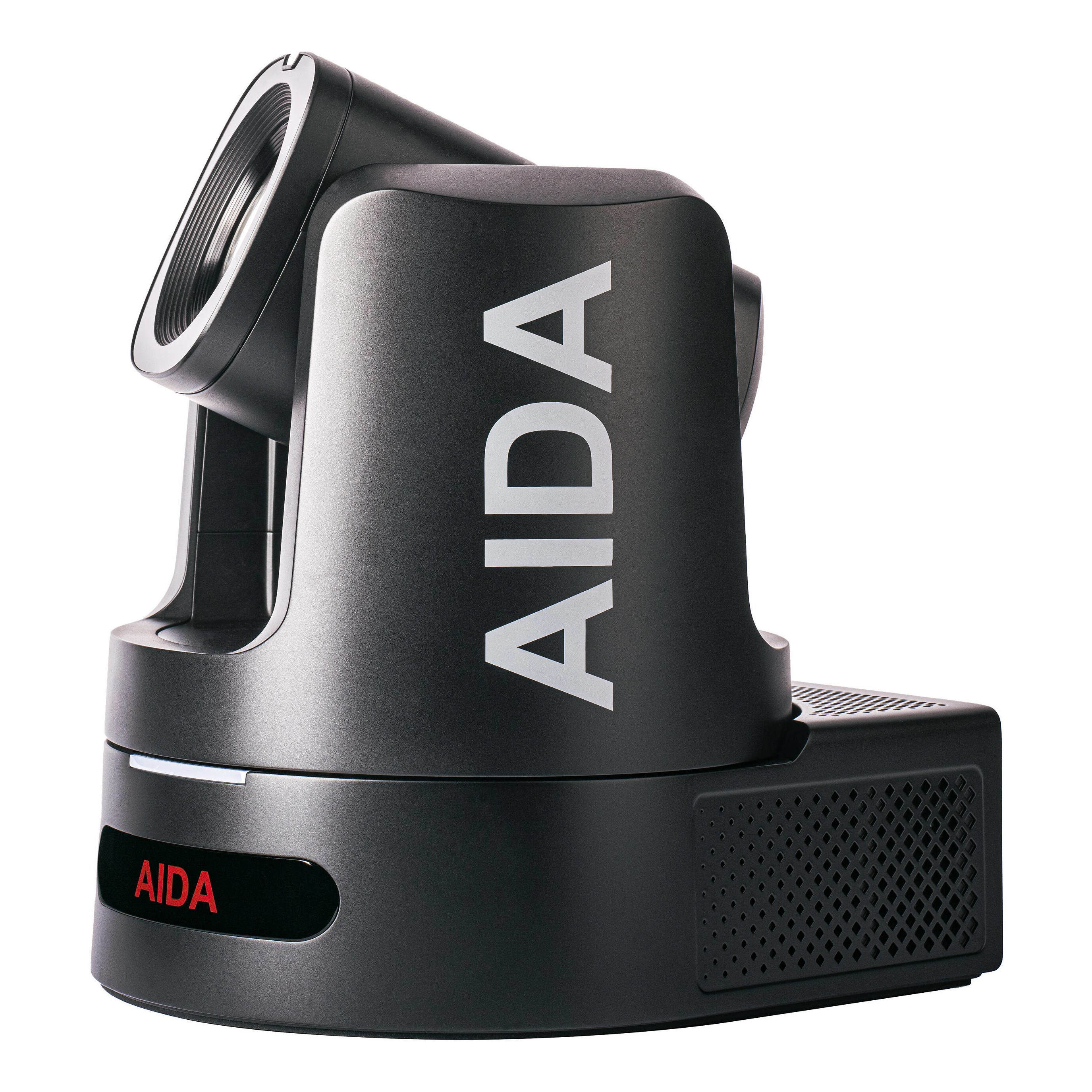

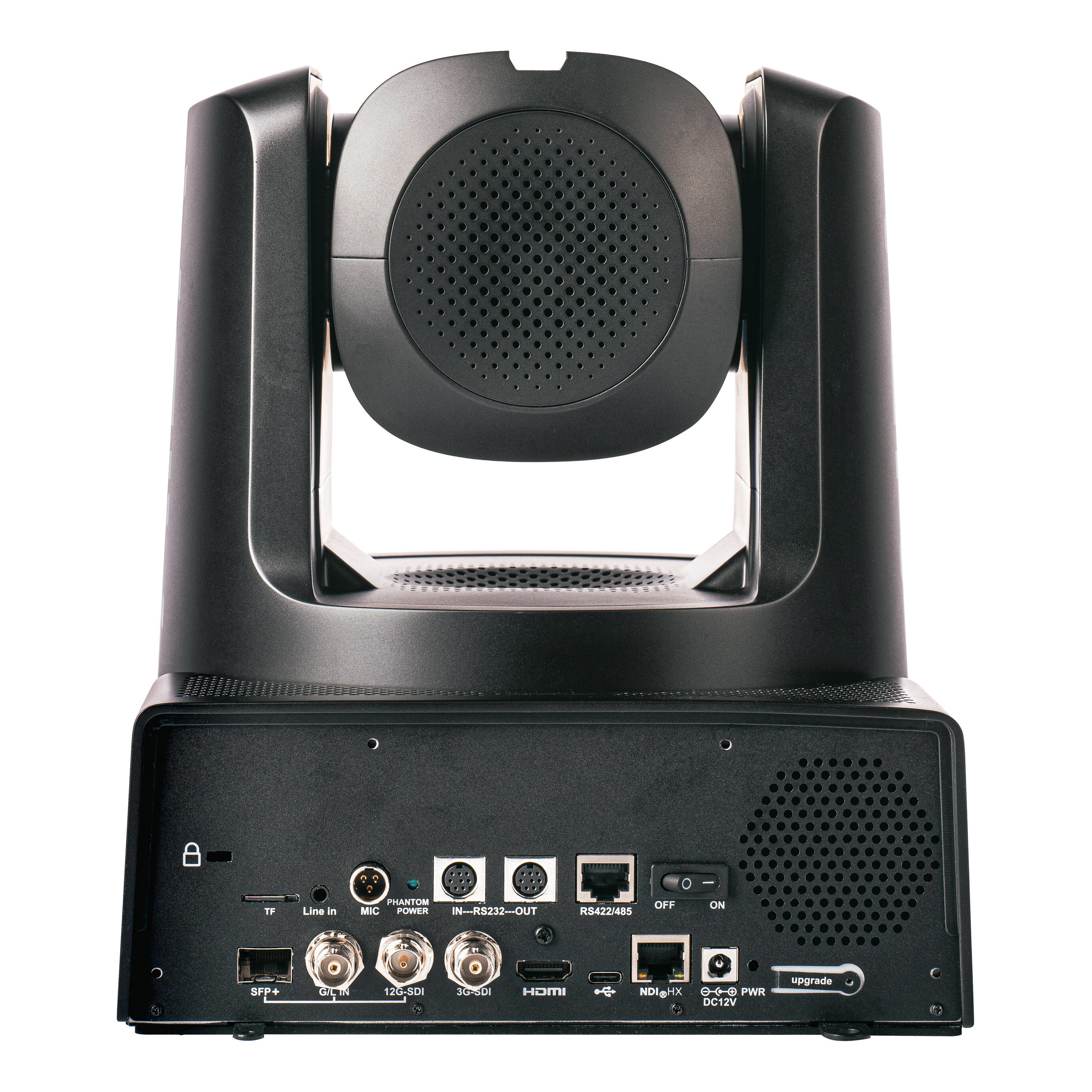

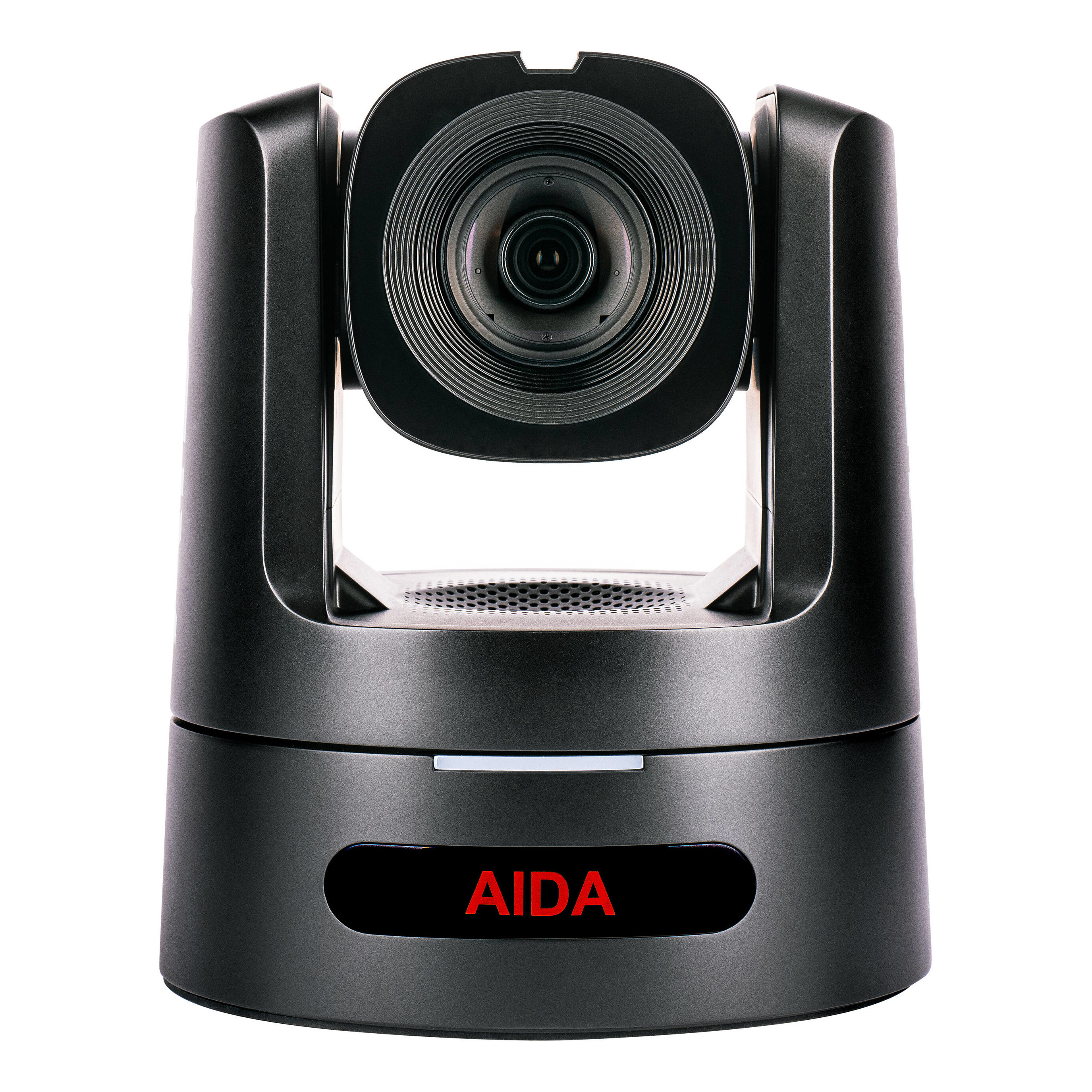

AIDA PTZ4K12G-FNDI-X30 4K NDI/HX3 12G-SDI PTZ Camera w/ 30x Zoom - Black

About: AIDA PTZ4K12G-FNDI-X30 4K NDI/HX3 12G-SDI PTZ Camera w/ 30x Zoom - Black

The PTZ4K12G-FNDI-X30 – our finest PTZ crafted with unwavering dedication and a singular focus on excellence. This marvel transcends the ordinary, emerging as the undisputed champion on the battlefield of visual creation. With boundless potential and a plethora of features, it stands as a testament to our relentless pursuit of visual inspiration.

Why create such a camera, you might wonder? The answer lies in our commitment to revolutionize the landscape of professional live streaming. The PTZ4K12G-FNDI-X30 isn’t just a tool; it’s a gateway to unparalleled creativity and unparalleled performance. Prepare to shatter the confines of conventional streaming and unlock a new era of excellence, all at an unmatched value.

And for those of you who are really curious – 4K 60fps HDMI, 12G-SDI, SFP+, Full Bandwidth NDI, NDI HX, NDI HX3, USB-C, IP Streams, SRT, 3.5mm Line Level Input, MINI XLR input with Phantom Power, FreeD protocol, SD Recording, Genlock, Autotracking, and that familiar AIDA webUI that pieces it all together.

• The camera utilizes a 4K 9MP UHD Sony CMOS sensor, for enhanced digital imaging beyond, color capture, and realism.
• Its workhorse reliability allows you to simultaneously stream out all sources at once.
• Control via IR remote, Web UI, or HTTP access for full control over the PTZ.
• Beefy design for heating, aesthetics, and durability.
• Full Tally Mohawk for talent recognition, and easier broadcast queuing. Automatically controlled via NDI.
• Genlock capable PTZ for no-lag ultrasynced productions where timing is crucial.
• SFP+ Fiber port for even more added value to match production needs.
• Take in audio over the 3.5mm line in input, or Mini XLR for versatile audio/video embedment needs.
• Capture realism through the virtual world using our FreeD protocol, over all outputs*
  • *only supported via 12G-SDI.
• Automatically track targets with ease using our AI-based Autotrack feature.

Full Bandwidth NDI, 12G-SDI & SFP+!

Adding to your arsenal is our newly introduced Full Bandwidth NDI, 12G-SDI, and SFP+ camera. Getting 4K video with immense quality has never been easier!

Visually Stunning

Built to last, the PTZ4K12G-FNDI-X30’s hardened aluminum build and size are meant to outlast any competition.

Auto-Tracking Enabled!

Seen in our PTZ4K / PTZ-NDI3 cameras, Auto-Tracking feature can be enabled via the web UI!

• *Actual Autotracking Footage (Compressed to H.264 / 1mb)

It's got Talent!

To further ease production workflows, a giant colored tally above the lens makes your talent’s know when its time to shine.

Finally, we got ears.

After lots of feedback, we realize line level input wasn’t enough, so feel free to use the new mini XLR input in the back to embed over your favorite way to stream.

Eye like a Hawk.

Near or Far, the 4K 30X optical zoom module will find you wherever you are!

Let your imagination be FreeD!

Let it all out with Intel’s Free Dimensional Protocol, utilizing PTZ coordinates to create an “unreal” level of immersion to 3D and virtual workflows.

Never out of Sync.

Utilize the genlock port on our PTZ to keep all cameras and hardware in sync at all times!

Tell me you got that, right??

Direct SD recording at timed intervals, or on the fly is the best thing since sliced bread!

Easier to control than a TV remote

With UDP, TCP, ONVIF, PELCO, VISCA, VISCAoverIP, NDI and HTTP, getting this camera to do your dirty work is simple and effective!

There's never just 1...

The PTZ4K12G-FNDI-X30 comes in both Black and White, aesthetically matching that dream workflow you’ve been cooking up.

Specifications

• VIDEO
  • Image Sensor: 1/1.8” Progressive Sony CMOS
  • S/N Ratio: ≥50dB
  • Resolution: 2160p, 1080p, 1080i, 720p
  • Resolution: Rate Please see following page for full rate per output
  • Outputs: 12G-SDI, 3G-SDI, HDMI, USB, SFP+ slot,  RJ45 (NDI, IP, SRT)
  • Min Illumination: 0.5Lux (50 IRE Max AGC,1/30, F1.8)
  • White Balance
    • Auto/Manual/AT/Push/Indoor/Outdoor/ Color Temp
    • Auto/Manual/Shutter Priority/Iris Priority
    • Brightness Priority
  • Pan Rotation Angle: -170° ~+ 170°
  • Tilt Rotation Angle: -90° ~+ 90°
  • Pan Rotation Speed: 0.1° ~+ 80°
  • Tilt Rotation Angle: 0.1° ~+ 60°
• CAMERA STREAMING MODES (all outputs still simultaneous)
  • ROI Priority: Prioritizes 12G-SDI/HDMI/USB outputs
  • NDI High Bandwidth Mode: Prioritizes HB NDI / NDI HX(3) to run simultaneously
• LENS MODULE
  • Module: 30X UHD Optical Zoom
  • Lens: f=6.91mm ~ 214.64mm
  • F-stop: F1.35 ~ F4.6
  • H-FOV: 60°(wide) ~ 2° (tele)
  • Min. Focus: Dist. 5ft (tele/wide)
• STANDARD
  • IP Protocols
    • UDP/TCP/IP/ONVIF/PELCO/VISCA/VISCAOVERIP/SRT
    • RTSP/RTMP/NDI/HTTP
  • Audio Input
    • 3.5 mm line level input
    • Mini-XLR with 48V phantom Power)
• PHYSICAL
  • Camera Control: Protocol: VISCA Over IP, VISCA, ONVIF, NDI
  • Operation Temp: 32°F - 104°F
  • Dimension: 266.7mm x 228mm x 305mm / 10.5” x 9” x 12” (when module is straight up)
  • Weight 4.59 kg / 10.12lb
  • Power
    • 12VDC (+9 - +15VDC)
    • PoE++ Standard (802.3bt)

What's Included

• Remote Controller
• USB-C Cable
• Power Adapter & Cable
• Mini XLR to XLR
• RS232 Cable
