AIDA HD-NDI3-120 PoE POV Camera

About: AIDA HD-NDI3-120 PoE POV Camera

The best livestreaming POV high-frame capture camera to date!

The HD-NDI3-120 transcends the boundaries of what was possible into a new realm of infinite possibilities. This camera stands as one of the pioneers that boasts capturing up to 120fps at a stunning 1080p resolution through both NDI HX and HDMI. With this impressive frame rate, you have the freedom to slow down live footage, capturing each moment frame by frame, resulting in awe-inspiring slow-motion sequences that will elevate your live-stream. Furthermore, this camera introduces a new style as our first NDI HX3 POV camera in the market, delivering our trusted AIDA form factor and an unparalleled user experience that truly sets the HD-NDI3-120 apart.

So unleash the limitless potential of livestreaming with the HD-NDI3-120, either through the power of high-frame capture, or HX3.

Features

• Full-HD 1/3” Progressive Scan CMOS sensor capable of capturing 1080p 120fps over NDI®|HX and HDMI
• HX 3 Capable camera outputting up to 1080p 60fps at 60mb, 4 times the amount of HX!
• Accessible Web UI to stream directly to social media platforms  and control image parameters over IP.
• Versatile design with top & bottom tripod mounts for uniques shot creation.
• Camera is PoE+ Capable. Just plug in one wire for power, control and video!
• Small form-factor and rugged designed makes all video streaming applications possible
• Small tally light on front of camera to ensure talent of when camera is live or about to be.

NDI HX3 - FOREVER!!

The HD-NDI3-120 is pushed to its limits with HX3 by allowing the NDI® stream to run at up to 60mb/s (4x the bitrate of NDI®|HX.) This of course leads to better visual quality, and lowered latency all around!

No-Hassle Integration

As always, the HD-NDI3-120 comes pre-loaded with its NDI|HX3 license key. Less time typing IlIllI, and more time streaming your dreams!

NDI® HX's first 120fps capable camera series!

Just like the PTZ-NDI3-X20, our HD-NDI3-120 also is capable of 120 fps capture at 1080p via HDMI, or NDI HX!

• Currently, NDI HX3 standard for 100p & 120p hasn’t been set, so it is recommended to run 100p & 120p in NDI HX.

HD-NDI3-120 Quick Specs:

• NDI/HX3, IP - NDI/HX3 Camera
• FHD Streaming - 1080p, 1080i and 720p
• 4mm CS Mount Lens - HFOV: 80°
• Line in Audio - Synced NDI/HX Streaming

Tally Light Integration

Located on the front of the HD-NDI3-120 is a small tally light to let your talent know when the camera is hot!

Talk VISCA to me

The HD-NDI3-120 uses VISCA over IP to communicate its commands, making it easily accessible whenever, wherever!

AIDA Cabling 2.0

With a small revision, the new HD-NDI3-120 series will come with the connector pigtail firmly attached! No more bent pins!

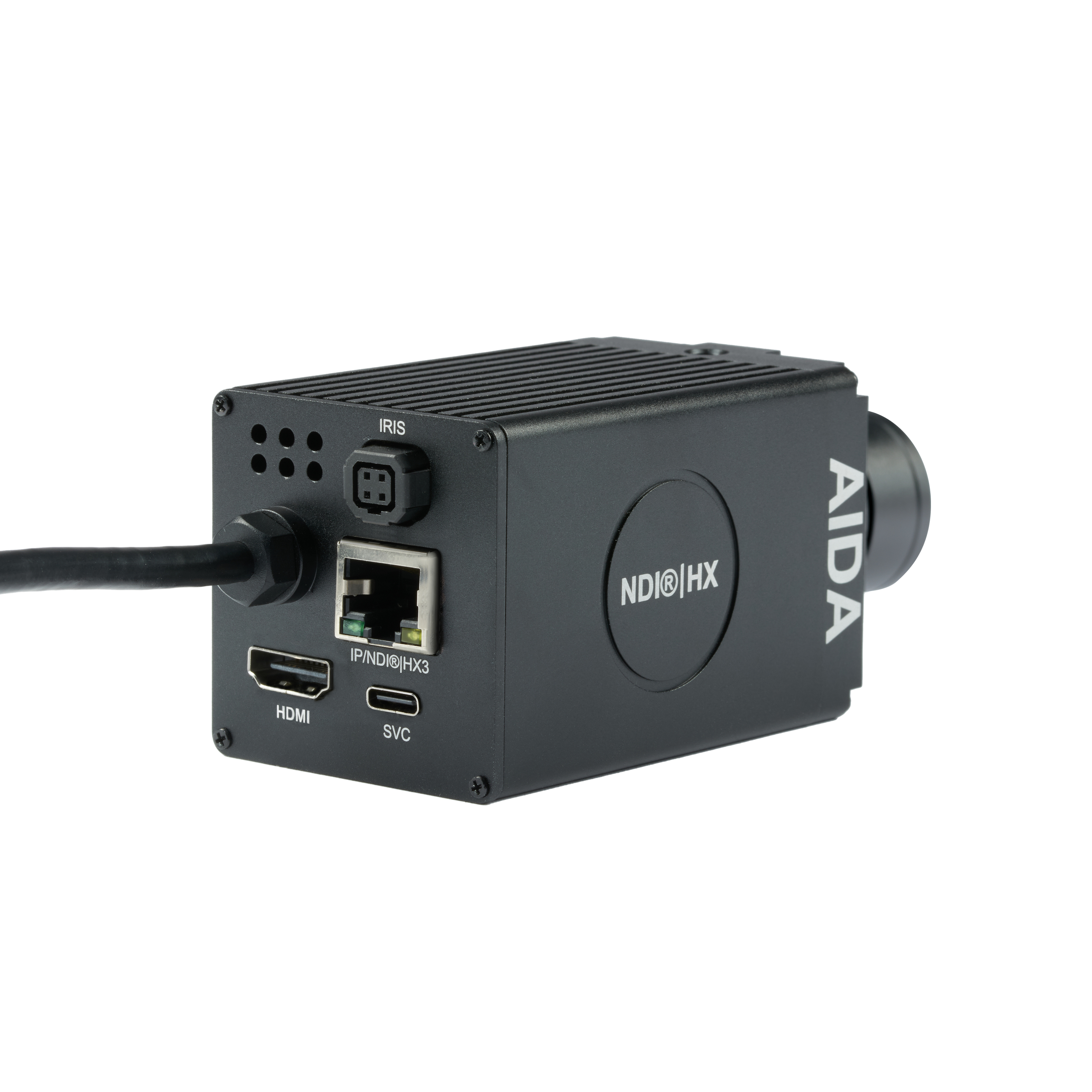

All the outputs!

The HD-NDI3-120 is capable of running HX3(or HX), RTSP, RTMP, SRT, and HDMI all simultaneously, per usual!

1 Cable to Rule them all

With the ability to run power, control and video over one ethernet cable, you will never have to use a wall plug again.

Double Trouble!

With a 1/4″ 20 mounting hole on the top and bottom, the possibilities are endless on mounting the camera!

Specifications

• VIDEO
  • Image Sensor -  1/3” Progressive CMOS
  • Effective Pixels -  Horizontal: 1920, Vertical: 1080
  • Pixel Size -  2.13 μm (H) x 2.13 μm (V)
  • Resolution -  1080p, 1080i, 720p
  • Resolution Rate
    • NDI HX/HDMI ONLY: 1080 120p, 100p
    • HX 3 and Others: 1080 60p/59.94/50p/30p/29.97p/25p/24p
    • 1080 60i/59.94i/50i
    • 720 60p/59.94p/50p
  • Output -  HDMI / IP (NDI HX3/SRT/RTMP/RTSP)
  • Color Space -  4:2:2 (YCbCr) 10bit
  • Min Illumination -  0.2Lux (day), 0.1Lux (Night)
  • White Balance -  Auto & Manual (9000 - 11,000 K)
• LENS
  • Lens
    • 5MP 4mm CS Mount HD Lens
    • FOV: 86°
• AUDIO
  • Audio Embed -  Embed over HDMI and IP streaming
  • Input -  3.5mm Line Input
• STANDARD
  • IP Protocol -  UDP|IP, RTSP|RTMP, SRT, NDI|HX
• PHYSICAL
  • Camera Control -  Protocol: VISCA Over IP
  • Operation Temp -  32°F - 104°F
  • Power -  12VDC (+9 - +15VDC), PoE+ (standard IEEE802.3at)
  • Dimension -  3.35” x 1.93” x 1.93” / 85mm x 49mm x 49mm
  • Weight -  350g / 0.77 lb

What's in the Box

•  NDI HX3 POV Camera
• 4mm 5MP Lens (Pre-Installed)
• DC 12v Power Supply & Sockets Adapter
• USB Cable
• Sensor Cap
• C-Mount Cap Adapter
