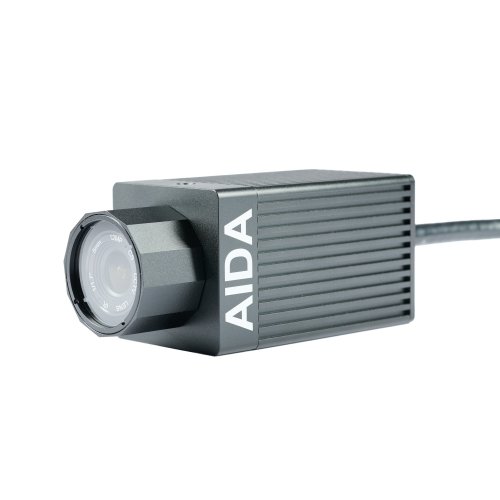

AIDA HD-NDI3-IP67 PoE Weatherproof POV Camera

About: AIDA HD-NDI3-IP67 PoE Weatherproof POV Camera

Livestreaming High Frame Rate Video Everywhere, Anytime!

Introducing the HD-NDI3-IP67, a game-changing camera that propels the boundaries of in-studio streaming, capable of displaying mesmerizing 120fps at 1080p resolution through NDI HX. With high frame rate capturing, you gain the power to slow down live footage frame by frame, resulting in captivating slow-motion sequences that will elevate any live-stream, anytime. You can also opt into something more defined, such as NDI HX3, giving you that better, better, faster video capture needed to fulfill even the most demanding of streaming requirements. Featuring a weatherproof casing, the HD-NDI3-IP67 realizes your creative vision in any environment, ensuring unparalleled reliability and performance even amidst the harshest elements.

So unleash your creativity, defy limits, and capture breathtaking moments with the HD-NDI3-IP67. So again, lets make NDI adventurous!

Features

• Full-HD 1/3” Progressive Scan CMOS sensor capable of capturing 1080p 120fps over NDI HX
• HX 3 Capable camera outputting up to 1080p 60fps at 60mb, 4 times the amount of HX!
• Accessible Web UI to stream directly to social media platforms and control image parameters over IP.
• Versatile design with top & bottom tripod mounts for uniques shot creation.
• Camera is PoE+ Capable. Just plug in one wire for power, control and video!
• Small form-factor and rugged designed makes all video streaming applications possible
• Small tally light on front of camera to ensure talent of when camera is live or about to be.
• Weatherproofing IP67 rating for protection against the outdoors, as well as a short submersion time under water!

NDI HX3 - Outside?

The HD-NDI3-IP67 is pushed to its limits with HX3 by allowing the NDI stream to run at up to 60mb/s (4x the bitrate of NDI/HX.) This of course leads to better visual quality, and lowered latency all around, regardless of your environment!

No-Hassle Integration

As always, the HD-NDI3-IP67 comes pre-loaded with its NDI/HX3 license key. AIDA style.

NDI HX's first 120fps capable camera series!

Just like the its sibling, the HD-NDI3-120, our HD-NDI3-IP67 also is capable of 120 fps capture at 1080p via NDI HX or IP streaming!

• Currently, NDI HX3 standard for 100p & 120p hasn’t been set, so it is recommended to run 100p & 120p in NDI HX.

HD-NDI3-IP67 Quick Specs:

• NDI/HX3 - NDI/HX3 Camera
• FHD Streaming - 1080p, 1080i and 720p
• 4mm CS Mount Lens - HFOV: 80°
• Line in Audio - Synced NDI/HX and HDMI Streaming
• IP67 Rated - Weatherproof IP67 Rated!

CS-Mount Goggles!

Protecting the lens is a rubber sealed WP cap, protecting the lens from any adversity it faces. It also gives you the freedom to change lenses for that perfect shot.

• Operable lenses are dependent on size and focal length. Not all lenses will work.

Outputs, meet outdoors

The HD-NDI-IP67 is capable of outputting NDI HX, RTSP, RTMP and SRT all at once! Enjoy HX over Vmix, RTMP over Youtube and SRT for perfect video coverage.

AIDA Cabling 2.1

Just like all our IP67 rated cameras, the HD-NDI3-IP67 features a 10ft weatherproof breakout cable. Don’t forget the end connectors aren’t!

VISCA, are you ok?

Leave the camera to face danger, while fully controlling it from a distance using VISCA over IP, or the web UI!

Same Holes, Different Day

Per usual the 1/4″ 20 mounting holes located on the top and bottom of the camera allow for that super easy placement, wherever you need it!

PoE+ Capable

Weatherproof shrink wrap that puppy and enjoy the outdoors with 1 cable for power, control and video!

Specifications

• VIDEO
  • Image Sensor -  1/3” Progressive CMOS
  • Effective Pixels -  Horizontal: 1920, Vertical: 1080
  • Pixel Size -  2.13 μm (H) x 2.13 μm (V)
  • Resolution -  1080p, 1080i, 720p
  • Resolution Rate
    • NDI HX ONLY: 1080 120p, 100p
    • HX 3 and Others:
      • 1080 60p/59.94/50p/30p/29.97p/25p/24p
      • 1080 60i/59.94i/50i
      • 720 60p/59.94p/50p
  • Output -  IP (NDI HX3/SRT/RTMP/RTSP)
  • Color Space -  4:2:2 (YCbCr) 10bit
  • Min Illumination -  0.2Lux (day), 0.1Lux (Night)
  • White Balance -  Auto & Manual (9000 - 11,000 K)
• LENS
  • 5MP 4mm CS Mount HD Lens
  • FOV: 86°
• AUDIO
  • Audio Embed -  Embed over HDMI and IP streaming
  • Input -  3.5mm Line Input
• WEATHERPROOFING
  • IP Rating -  IP67 - Good against moisture, dust
• PHYSICAL
  • Camera Control -  Protocol: VISCA Over IP
  • Operation Temp -  32°F - 104°F
  • Dimension -  4.72 x 2.09 x 2.09 Inch (120 x 53 x 53mm)
  • Weight -  1.76 lb (800g)
  • Power -  12VDC (+9 - +15VDC), PoE+ (standard IEEE802.3at)

What's in the Box

• NDI HX3 POV Camera
• 4mm 5MP Lens (Pre-Installed)
• DC 12v Power Supply & Sockets Adapter
