Lilliput RM1731S-12G 17.3 Inch 4×12G-SDI 1RU Pull-Out Rackmount Monitor
Model: RM1731S-12G
About: Lilliput RM1731S-12G 17.3 Inch 4×12G-SDI 1RU Pull-Out Rackmount Monitor

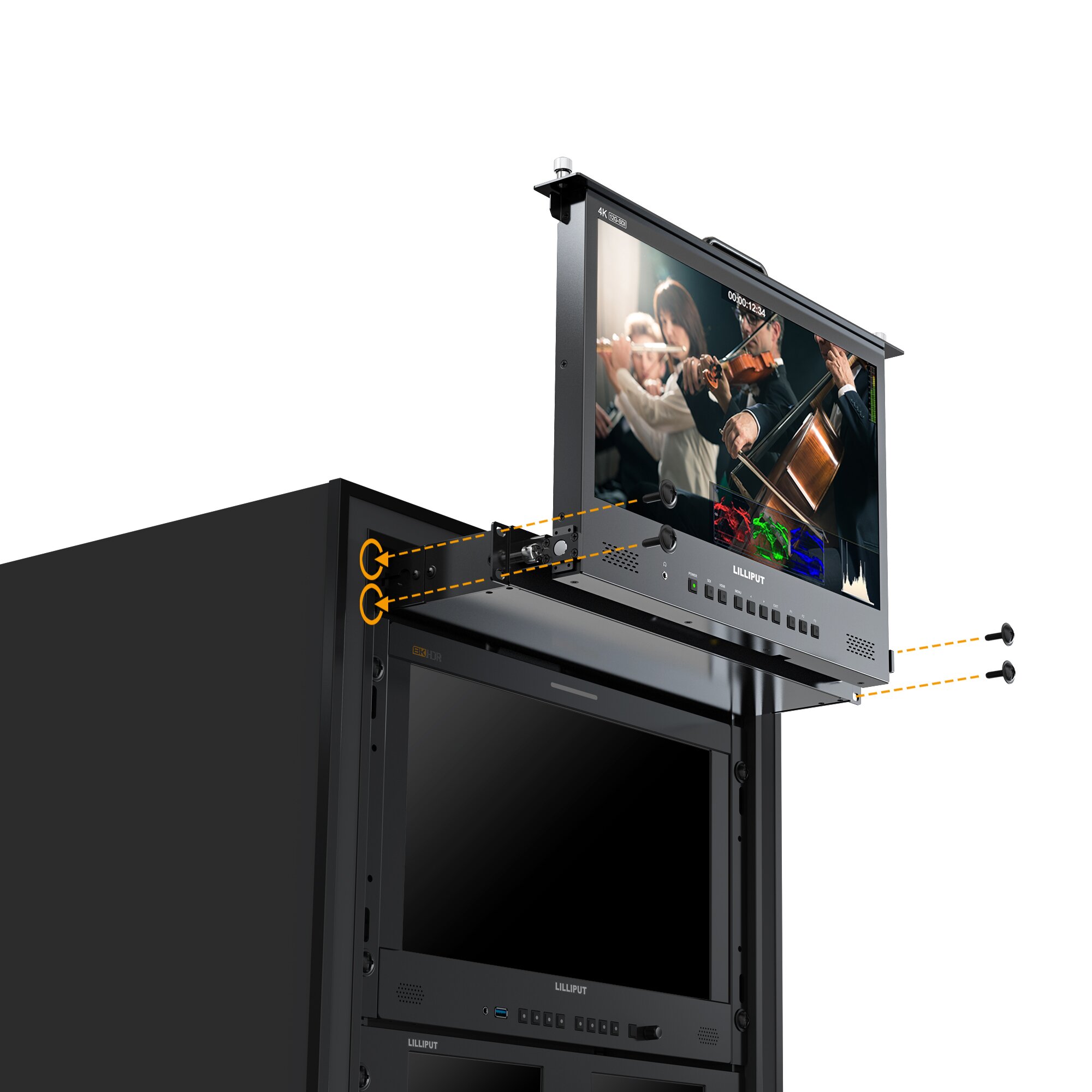

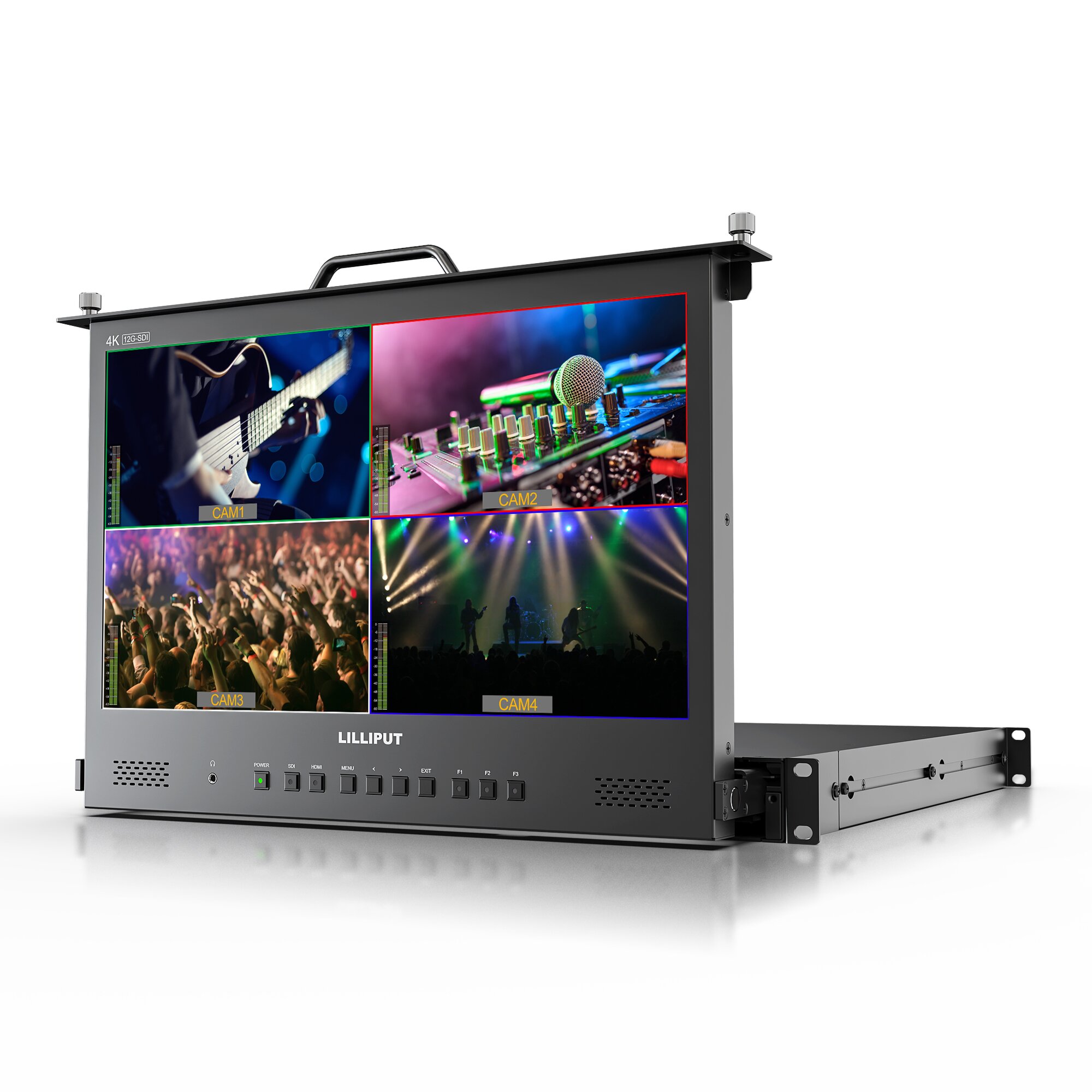

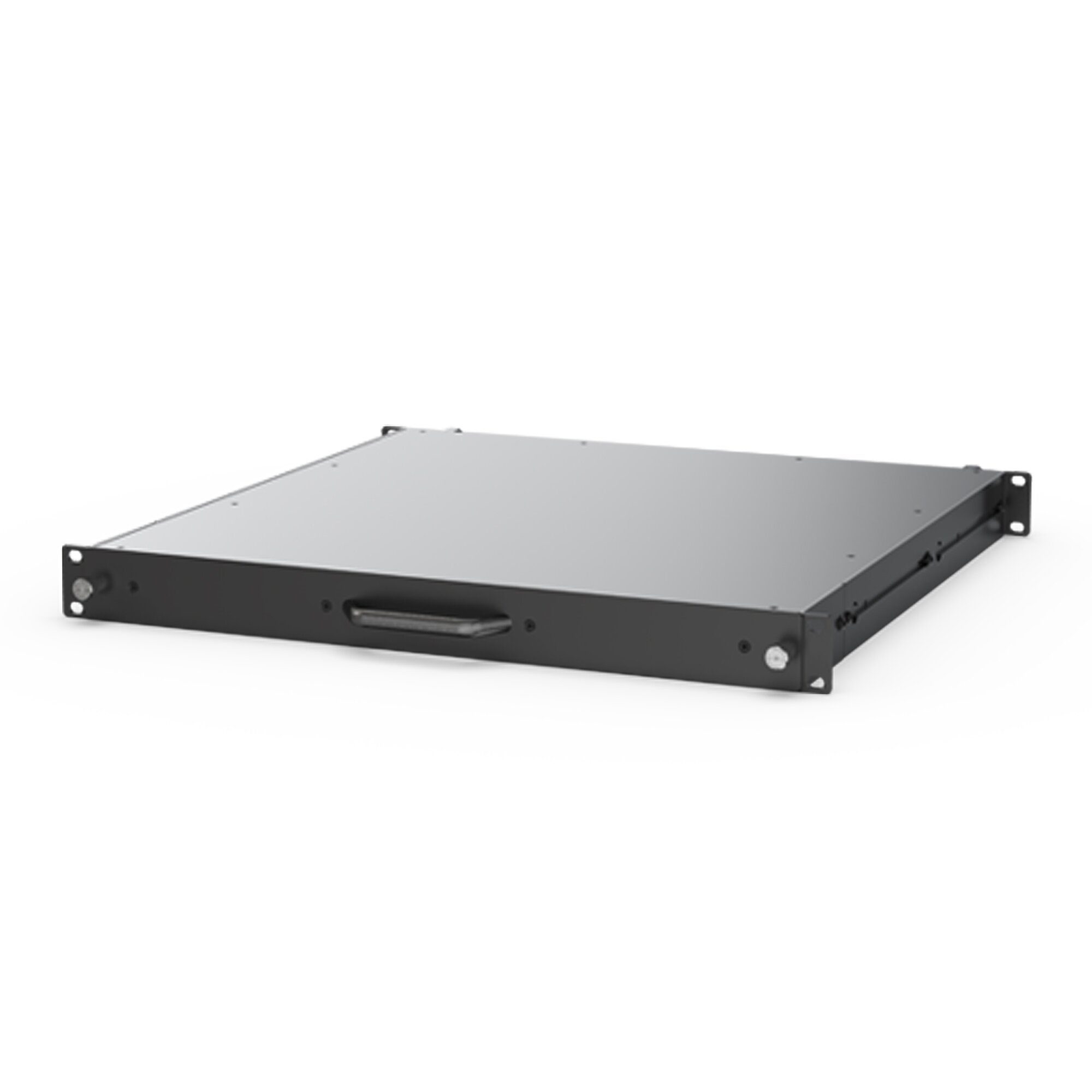

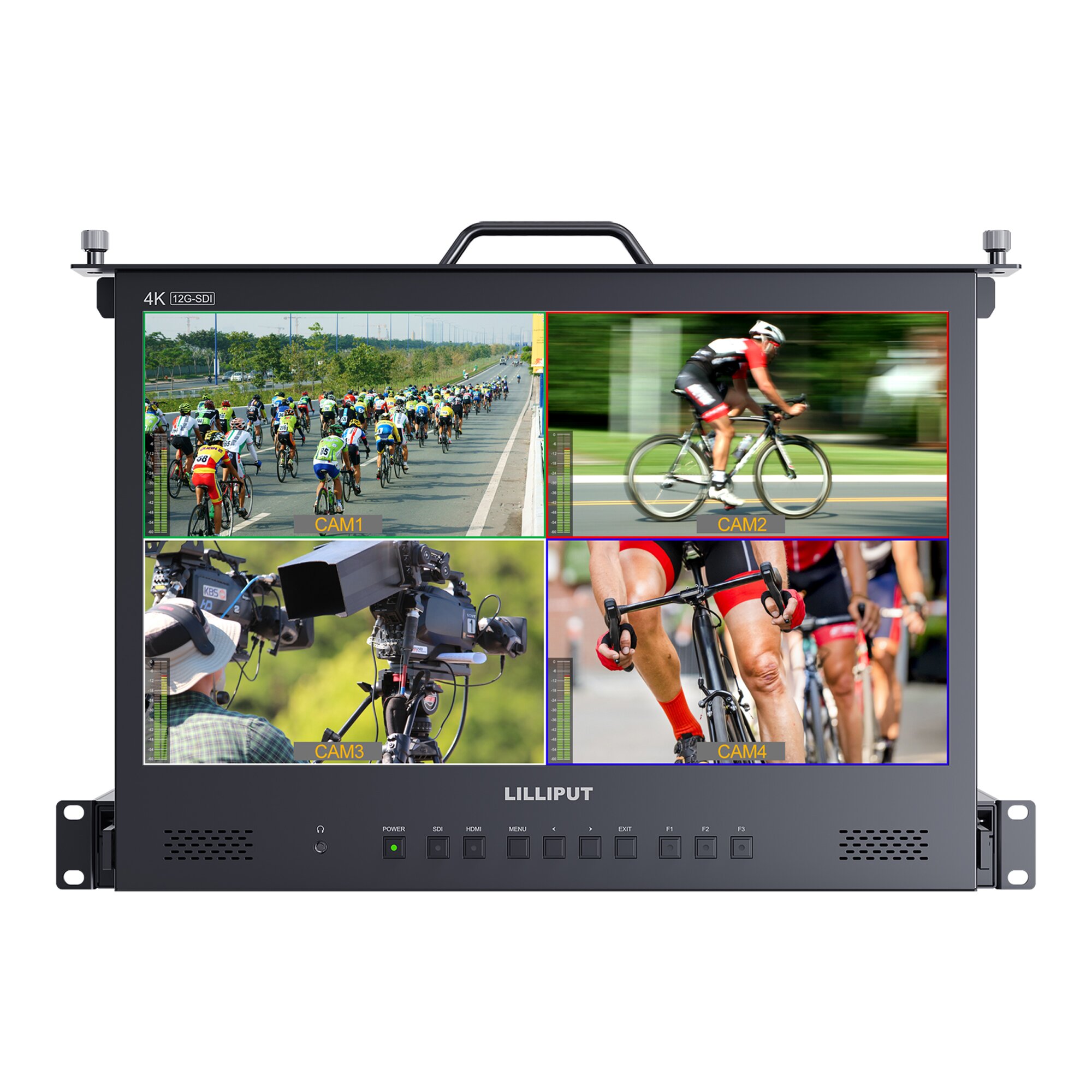

The Lilliput RM1731S-12G is a 1RU pull-out rackmount monitor. It features a 17.3″ 1920×1080 Full HD IPS screen, with high spec picture quality and good color reproduction.

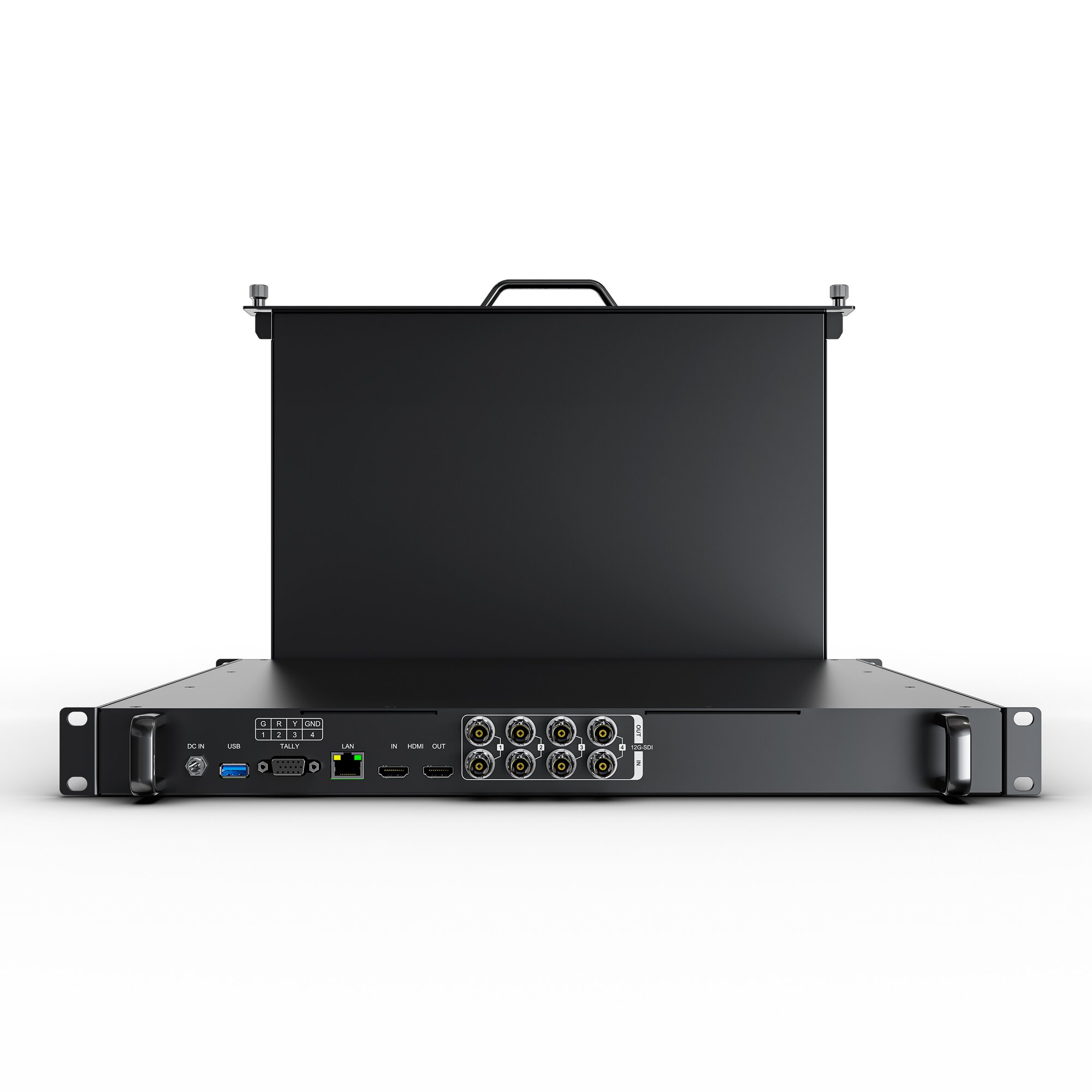

Its physical interfaces support up to 12G-SDI / HDMI 2.0 signal inputs, and will loop the input signal to it's built in set of outputs. For the advanced camera user, auxiliary functions such as waveforms, audio vector scopes and a whole host of others are included to assist in accurate reproduction of the filmed source.
The Lilliput RM1731S-12G has been calibrated with professional equipment - all parameters are accurate, and the system complies with or compares functionality with industry standards.
- Display
- Size - 17.3” 8bits
- Resolution - 1920×1080
- Brightness - 300cd/m²
- Aspect ratio - 16:9
- Contrast - 1200:1
- Viewing Angle - 170°/170°(H/V)
- Video Input
- HDMI - 1×HDMI 2.0
- 12G-SDI - 4
- Video Loop Output
- HDMI - 1×HDMI 2.0
- 12G-SDI - 4
- Supported In / Out Formats
- HDMI - 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60,2160P 24/25/30/50/60
- 12G-SDI - 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60,2160P 24/25/30/50/60
- Audio In/Out
- HDMI - 8ch 24-bit
- SDI - 16ch 48kHz 24-bit
- Ear Jack - 3.5mm – 2ch 48kHz 24-bit
- Built-in Speakers - 2
- Power
- Operating power - ≤19W(12V)
- DC In - DC 12-24V
- Environment
- Operating Temperature - 0℃~50℃
- Storage Temperature - -20℃~60℃
- Dimension(LxWxD) - 18.98 x 1.73 x 19.98 inch (482.5 × 44 × 507.5mm)
- Weight - 22.27 lbs (10.1 kg)
