Marshall Electronics ML-702 V2 7in Rackmountable Monitor

About: Marshall Electronics ML-702 V2 7in Rackmountable Monitor

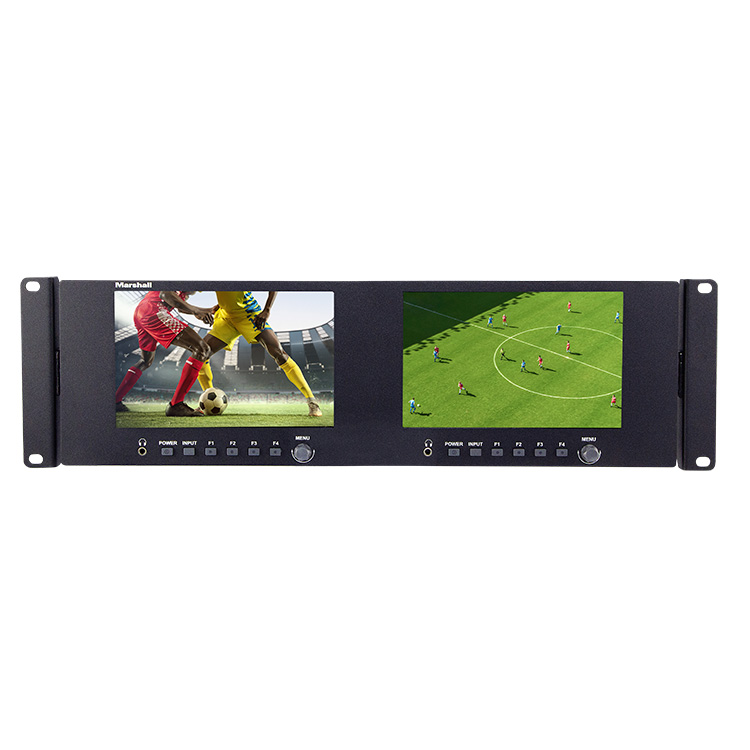

The ML-702-V2 is a Dual 7" 3RU LCD professional broadcast monitor with a feature-packed, economical solution perfect for fly-packs, control rooms, routing rooms, and countless other video system applications. Looping video inputs set this product apart from similar-looking products. Standard power and tally connections and a logical menu structure make this display an easy choice for flexible system designs.

Features

• Dual 7" with 1920 x 1200 resolution, typical brightness 420 cd/m² and contrast 1200:1
• Each screen supports SDI, HDMI, CVBS (with analog audio) Inputs, all with looping outputs
• SDI supports up to 3G-Level A, HDMI supports up to 3840 x 2160p30 and 4096 x 2160p30
• Two bar audio overlay
• Main features include:
  • Compact size
  • Tilting rack mount
  • Dual power inputs
  • Front panel control plus Ethernet control
  • Bright displays with very good viewing angle
  • Four User-defined function buttons
  • Front panel headphone jacks
  • On-screen Tally borders
  • Histogram, marker, focus peaking and more

Specifications

• Number of Panels -  2
• Panel Size -  Dual 7-inch Diagonal, 3RU high
• Resolution (Pixels) -  1920 x 1200
• Aspect Ratio -  16:10
• Viewing Angle -  160° / 160° (H/V)
• Brightness (in cd/m2) -  420
• Contrast Ratio -  1200:1
• Digital Video Inputs -  3G-SDI with loop out (conforms to SMPTE-292M, 259M, 424M), HDMI 2.0 with loop out
• Analog Video Inputs -  CVBS (Composite) with loop out (RCA-type), Analog Stereo Audio (RCA-type)
• Compatible Input Formats
  • SDI / HDSI / 3G SDI:
    • 525i 59.94 / 625i 50
    • 720p 24, 25, 29.97, 30, 50, 59.94, 60
    • 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • 1080i 50, 59.94, 60
  • HDMI:
    • 480i, 480p 59.94 / 576i, 576p 50
    • 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • 1080i 50, 59.94, 60
    • 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • 3840/4096 23.98, 24, 25, 29.97, 30p
  • CVBS:
    • 480i 59.94 / 576i 50

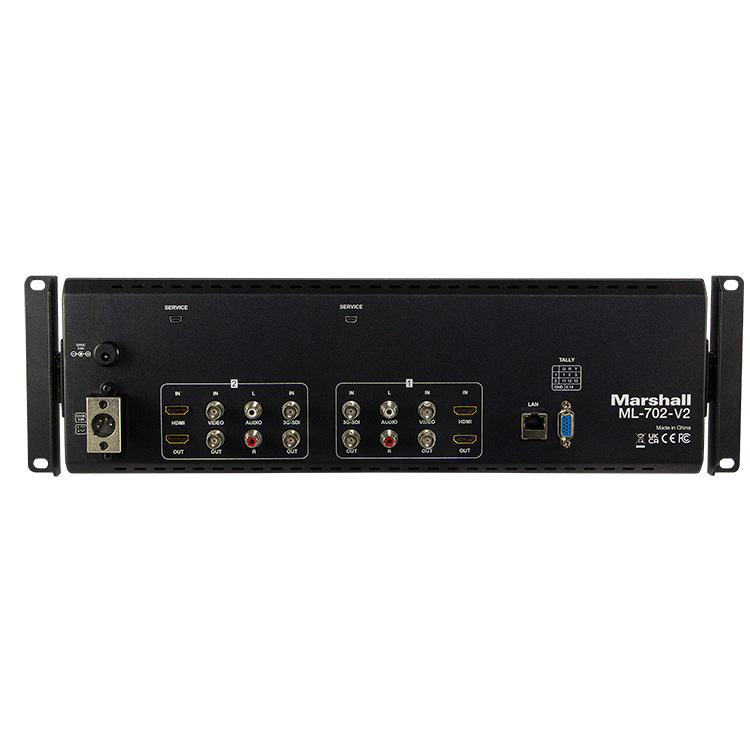

• Control Inputs -  RJ-45 for Ethernet Control, 9-pin D-Sub for GPI Tally Control, Mini USB Service Port
• Power -  12 Volts DC @ 1.6 Amps (12 - 24V range) via XLR 4-pin or 5.5mm x 2.1mm push-in coaxial jack
• Dimensions -  19" W x 5.26" H x 2.1" D (481.9 mm x 133.5 mm x 53.4 mm)
• Weight -  5 lbs (2.27 Kg)
