SmallHD Ultra 10 Reference Ultra Bright Monitor

About: SmallHD Ultra 10 Reference Ultra Bright Monitor

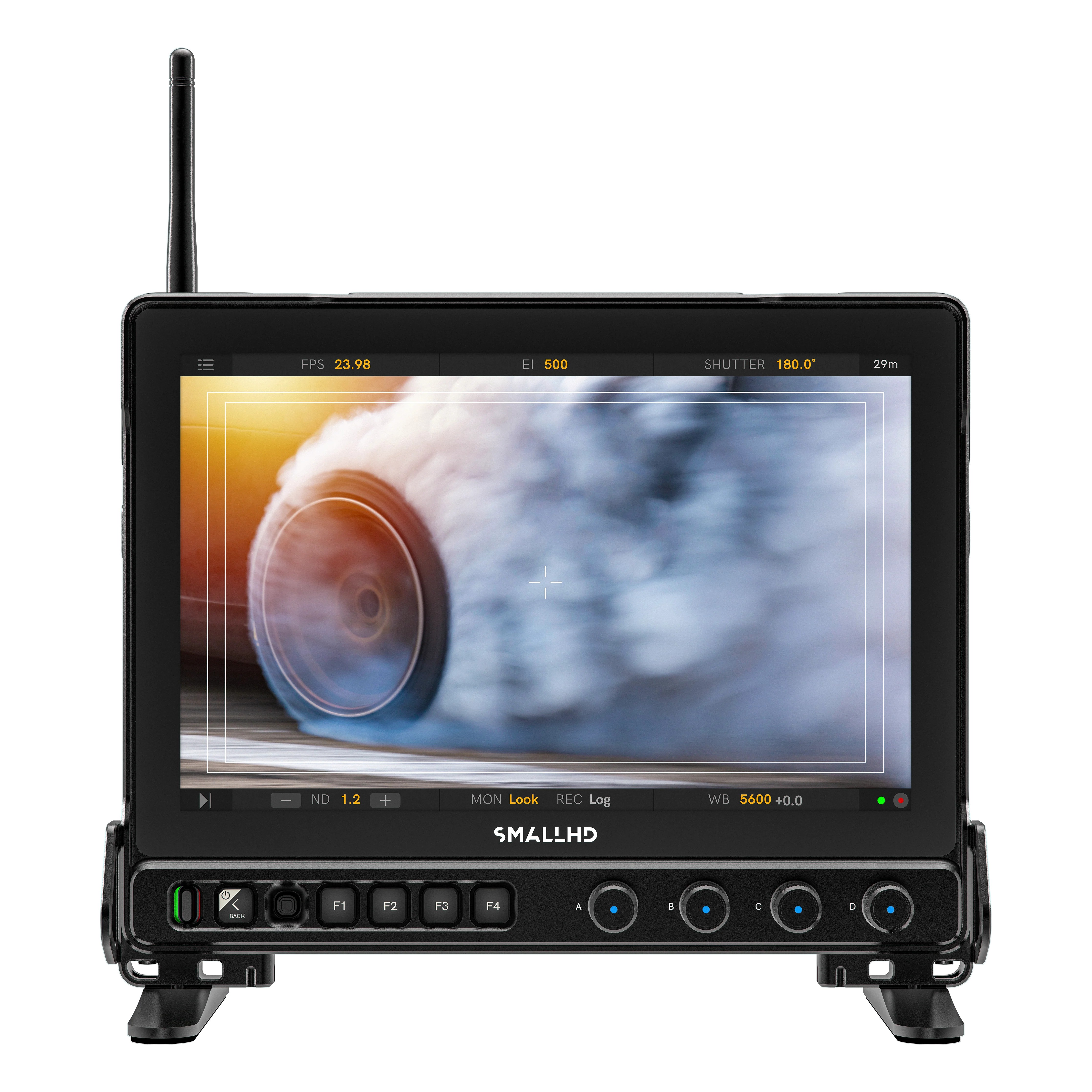

Ultra 10 hits the sweet spot in power, performance and size between production monitors and our Ultra Bright Series with the largest touchscreen monitor we've ever made. Portable, powerful, and rugged, Ultra 10 packs 2000nits of brightness, 12G-SDI architecture, intuitive multi-function rotary encoder knobs, and the full power of PageOS into a 10-inch display. Perfect for focus pullers, pursuit vehicles, Directors, DITs, multi-camera studios, and anyone who desires maximum flexibility from their monitor.

With a rating of IP54, the Ultra 10 is protected from dust and water spray from any direction. This monitor includes raised edges around the display glass and shock-absorbing, user-replaceable silicone bumpers.

Four customizable encoder knobs let you change PageOS tools and settings on the fly with capacitive-touch, long-push, short-push, and rotary functionality.

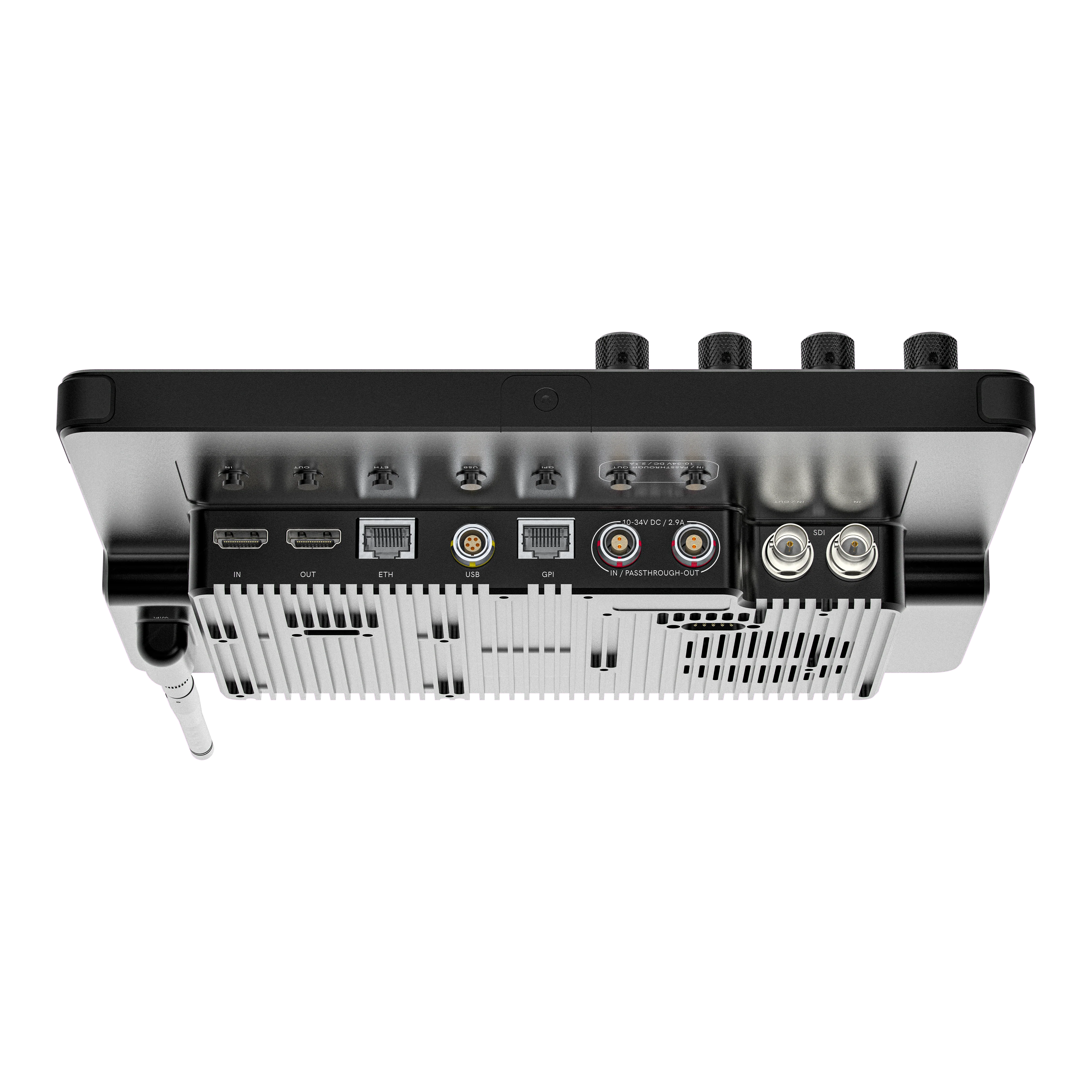

Ultra 10 includes ports for Ethernet, GPI, 2-pin power input and 5-pin USB port as well as ¼”-20 mounting points along the top and sides of the monitor for mounting accessories.

Environmental

• IP Rating: IP54
• Item Weight (oz): 52.8
• Height (in): 1.73
• Width (in): 9.92
• Length/Depth (in): 10.89

Display

• Panel Type: IPS LCD
• Diagonal Size: 10.1"
• Resolution: 1920x1200
• Contrast: 1000:1
• Color Depth: 10-bit Processing (8-bit panel)
• Backlight Type: LED Edgelit
• Refresh Rate: Synchronizes with input from 48Hz to 60Hz

Input Signal

• 3G-SDI Input Types
  • YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102
• 6G-SDI Input Types
  • YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
• 12G-SDI Input Types
  • YCC 4:2:2 @ 10 bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB, @ 12 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98
• HD-SDI Input Types
  • YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100
• SD-SDI Input Types
  • YCC 4:2:2 @ 10-bits: 480i59.94, 576i52
• HDMI Input Types
  • YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840x2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i52

Output Signal

• 3G-SDI Output Types
  • YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102
• HD-SDI Output Types
  • YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100
• SD-SDI Output Types
  • YCC 4:2:2 @ 10-bits: 480i59.94, 576i52
• HDMI Output Types
  • YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i51
• Audio Output Types
  • HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

Data I/O

• SDI: 1x BNC 12G input and 1x BNC 12G selectable input/output
• HDMI: 1 input and 1 output: HDMI Type-A Receptacles (full size)
• Audio: 1x 3.5mm 3-pin Stereo Headphone Jack
• Ethernet: RJ45 and GPI

Power

• Connector: 2-Pin Locking Connector
• Voltage: DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max
• Power Supply: Recommend DC 12~15V at ~2.5 amp or greater
• Battery Types: V Mount, Gold Mount Micro Battery Plates
• Overload Protection: DC input: Reverse polarity
• Battery Chemistry: Li-ion

Software

• Pixel Zoom: 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
• Frame Guides: Preset Aspect Ratios & Customizable
• DSLR Scale: Canon 5DMkii & Canon 7D
• Custom Scale: Yes (Underscan Only)
• Anamorphic De-Squeeze: 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
• Image Rotate: Automatic or Manual Control
• Image Flip: Automatic or Manual Control
• Cross Conversion: Yes: HDMI → SDI & SDI → HDMI
• Focus Assist: User Adjustable Color Style and Intensity
• Peaking: User Adjustable Intensity
• False Color: Rainbow, Arri Style, Custom with up to 10 nodes
• Zebra: Dual - User Configurable
• Waveform: Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
• Vectorscope: Yes
• RGB Parade: Fully User Customizable
• Histogram: Luma & RGB Style
• Image Capture: Yes
• LUTS: 33pt User LUT instead of 17pt - 33pt Cal LUT instead of 17pt - LUT tool continues to work after removable media containing the LUT has been removed
• Custom LUTS: Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu - LUT Downstream: Available on SDI or HDMI Out. Applied on Output Preview Page. - LUT Import: via SD Card or USB Storage Device
• Color Pipe: Unique Calibrations may be saved to each Color Pipe - Accurate color processing
• Overlay: With Opacity Slider and Blink Setting
• Audio Meters: HDMI & SDI up to 8 channel
• Multi-View: 2 camera feeds simultaneously (Coming Soon)
