Lilliput RM-7029S Dual 7 inch 3RU Rackmount Monitor w/ 3G-SDI & HDMI 2.0
Model: RM-7029S
About: Lilliput RM-7029S Dual 7 inch 3RU Rackmount Monitor w/ 3G-SDI & HDMI 2.0

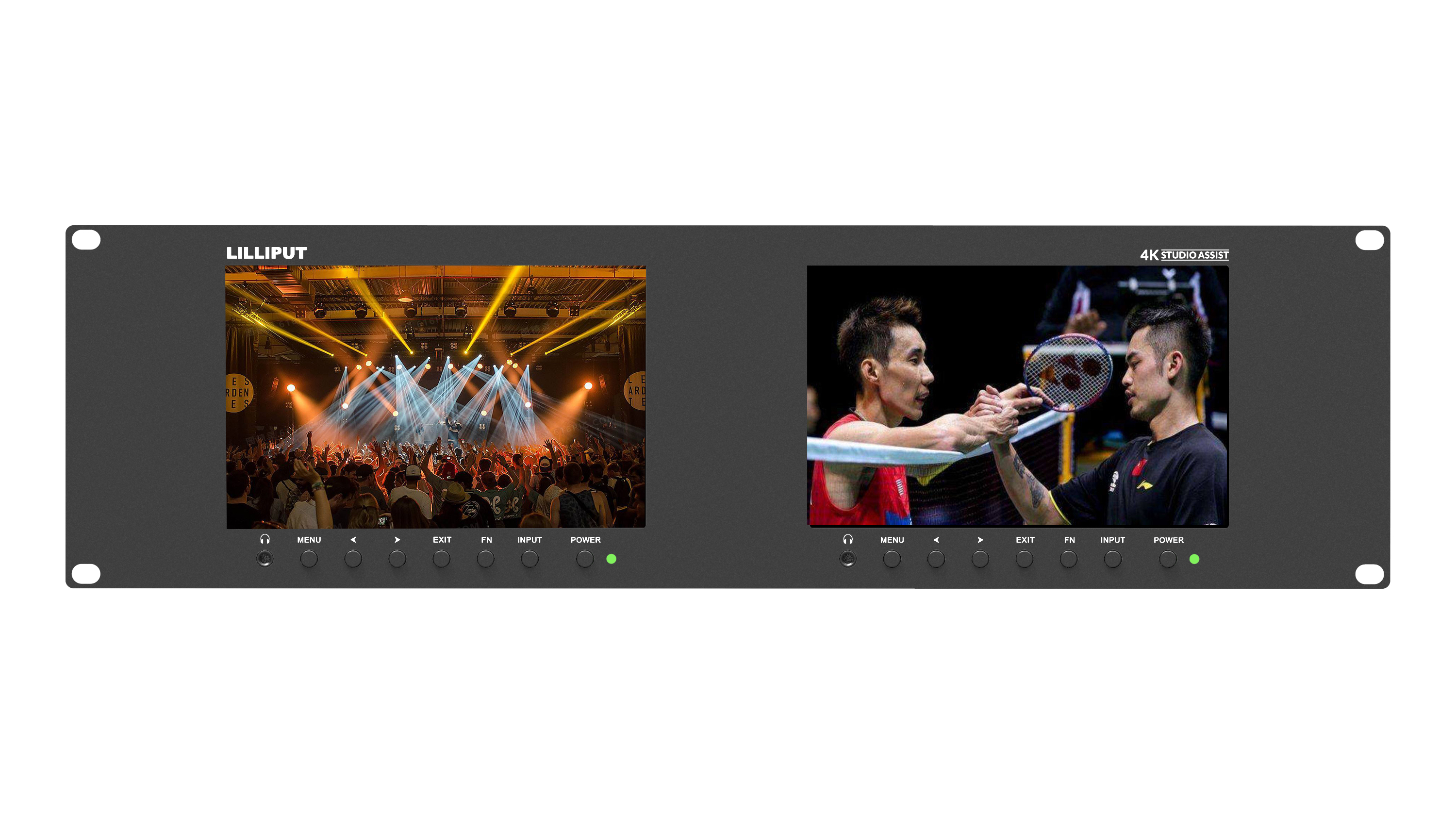

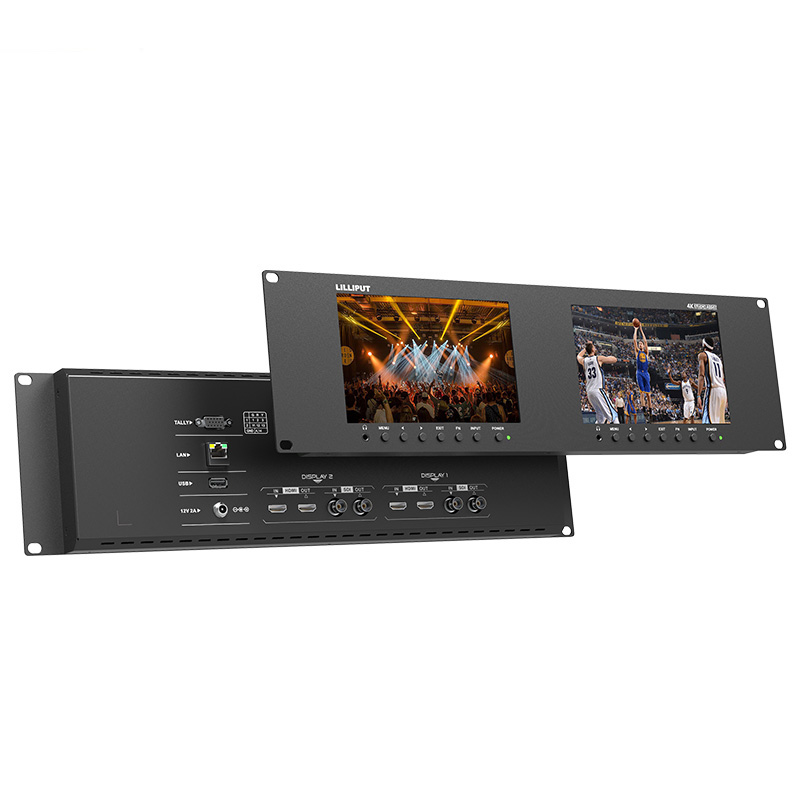

The Lilliput RM7029S is a solid, versatile dual panel 7" HDMI / SDI input monitoring unit. It features 2x1920 x 1200 panels, each of which can display up to a 4K 2160p signal on each. Controlling these panels can be done using a PC to make a connection through a LAN port and - with specific bespoke software - it can be brought into the larger remote workflow environment.
Specifications
- Display
- Size - Dual 7″ LED backlit
- Resolution - 1920×1200
- Brightness - 400cd/m²
- Aspect ratio - 16:10
- Contrast - 2000:1
- Viewing Angle - 160°/160°(H/V)
- Supported Log Formats - Slog2 / Slog3, Arrilog, Clog, Jlog, Vlog, Nlog or User…
- LUT Support - 3D-LUT (.cube format)

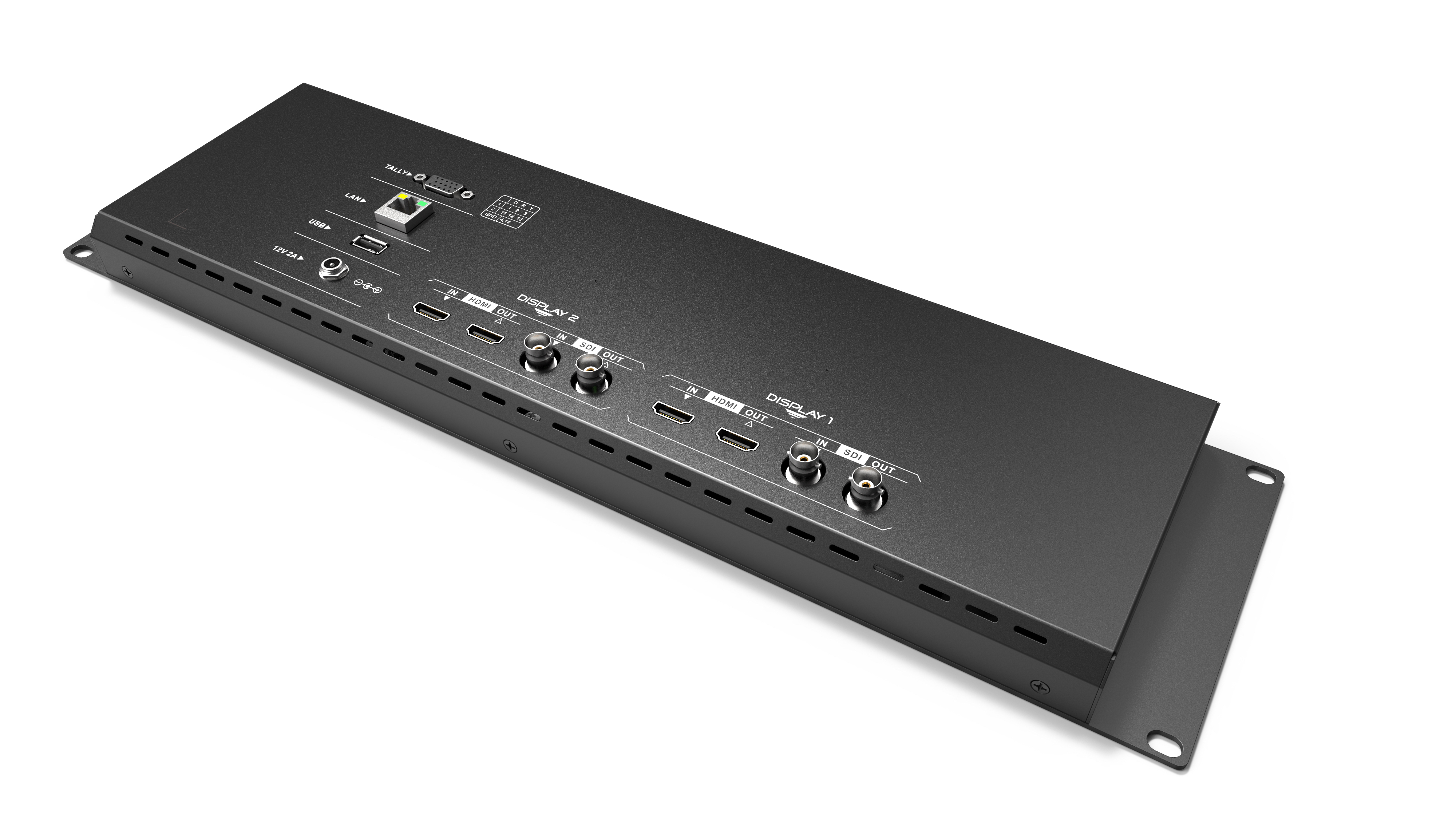

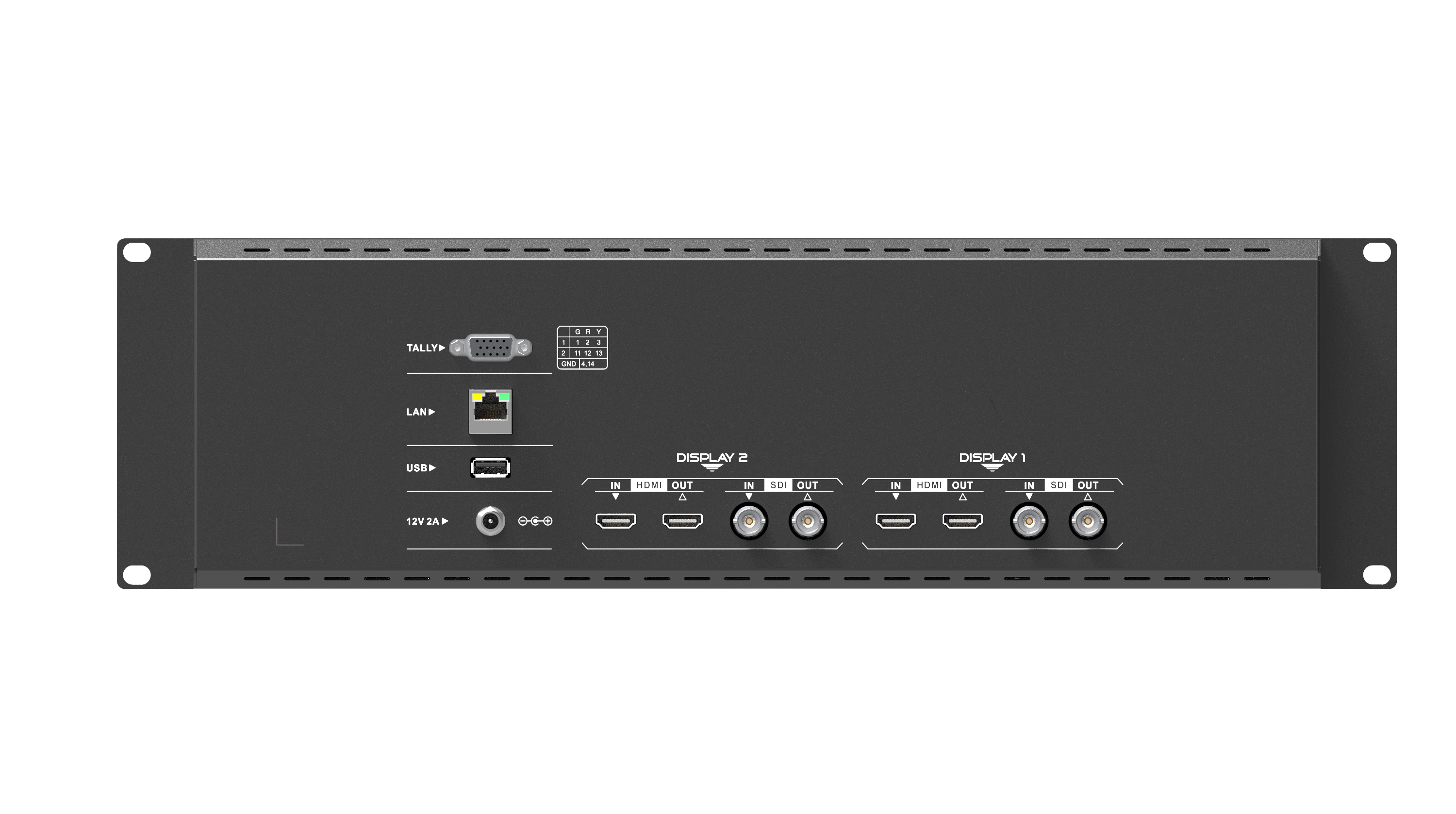

- Video Input
- SDI - 2×3G
- HDMI - 2×HDMI(supports up to 4K 60Hz)
- LAN - 1
- Video Loop Output
- SDI - 2×3G-SDI
- HDMI - 2×HDMI 2.0 (supports up to 4K 60Hz)
- Supported In / Out Formats
- SDI - 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50…
- HDMI - 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50…
- Audio In/Out
- Speaker - -
- Ear Phone Slot - 2
- Power
- Current - 1.5A
- DC In - DC 10-24V
- Power Consumption - ≤16W
- Environment
- Operating Temperature - 0℃~50℃
- Storage Temperature - -20℃~70℃
- Dimension (LxWxD) - 18.9 x 5.18 x 1.15 inch (480 × 131.6 × 29.3mm)
- Weight - 4.85 lbs (2.2 kg)
UPC: 6950821602072
Reviews: Lilliput RM-7029S Dual 7 inch 3RU Rackmount Monitor w/ 3G-SDI & HDMI 2.0
Warranty: Lilliput RM-7029S Dual 7 inch 3RU Rackmount Monitor w/ 3G-SDI & HDMI 2.0
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
1 Year Limited Warranty
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
