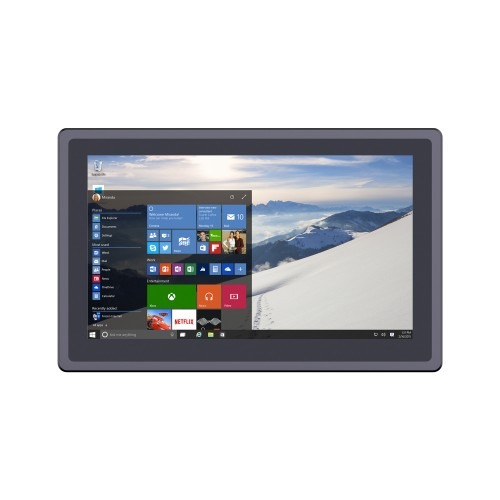

Lilliput TK1560/C 15.6" HDMI Customizable Non-Touch Monitor

About: Lilliput TK1560/C 15.6" HDMI Customizable Non-Touch Monitor

The TK1560/C monitor is a 15.6" HDMI monitor - a bigger brother to the Lilliput TK1330 - sports a very high brightness panel - rated at 1000cdm². With a solid metal frame, it's a rugged monitor that can be used confidently outdoors or in industrial settings - particularly with it's IP64 rating.

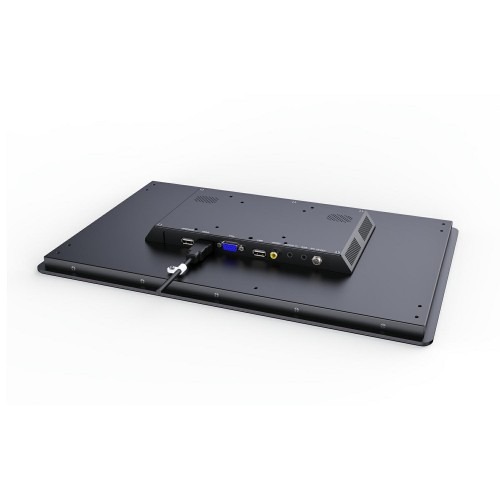

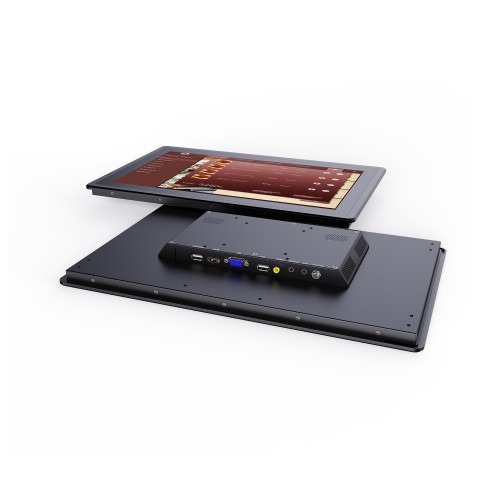

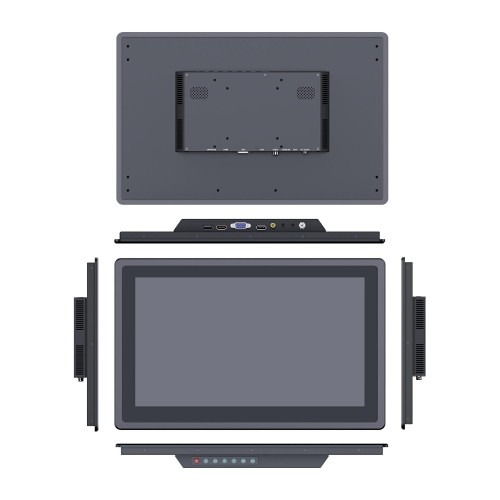

With a neat, compact design, the TK1560 monitor has an all-metal two-box design. The electronics for the monitor are in the smaller box section at the back of the monitor (which also hosts the controls for the system), with the main panel being housed in the larger front area. The front also hosts a sensor that allows for automated dimming in accordance with brightness of the surrounding environment.

In addition to the standard video inputs, our engineers have reserved a number of expansion ports on the main board that can be customized to a customer's individual connection requirements.  Further, a customisable metal covering means that the exterior of the monitor can be modified to suit.

A built in cable clamp will secure any cables you plug into the monitor on to the housing. This means that in high vibration environments or with usage scenarios where "cable-jerk" may become an issue, the TK1330 has a secure option available.

Specifications

• Display
  • Brightness 1000 cdm²
  • Contrast Ratio 1000:1
  • Resolution 1920 x 1080
  • Viewing Angle 160° / 160°
  • Screen Size 15.6" LCD
• HDMI Video Input
  • Formats 2160p 24 / 25 / 30, 1080p 24/25/30/50/60, 1080i50/60, 720p 50/60
• Connections
  • HDMI Video Input 1x HDMI 1.4b
  • VGA Video Input 1x VGA
  • A/V Input 1x A/V Input
• Monitor Specification
  • Audio Outputs HDMI - 2 Channel, Speakers - 2, Ear Jack - 3.5mm - 2ch 48KHz 24-Bit

Includes

• Lilliput TK1560/C 15.6" Full HD Specialty Monitor
• 12V 3A Power Adapter
• HDMI Cable
• VGA Cable
• Audio & Video Input Cables
• 4 x Screws
• 4 x Gaskets
• 4 x Cable Clamps
