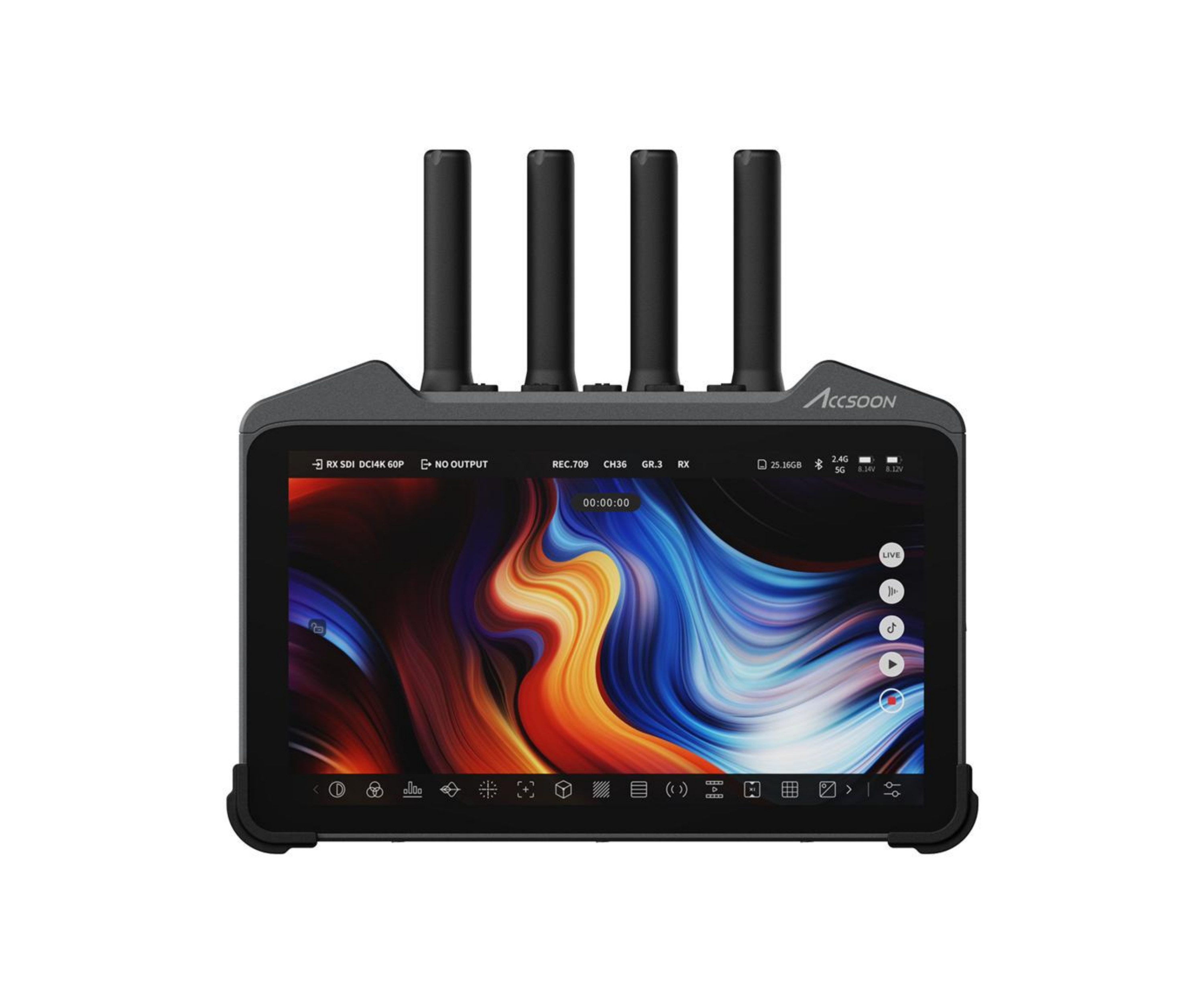

Accsoon CineView M7 Pro 4K60 7in Smart Touchscreen Wireless Transmission Monitor

About: Accsoon CineView M7 Pro 4K60 7in Smart Touchscreen Wireless Transmission Monitor

The Accsoon CineView M7 Pro takes the versatility of the CineView M7 and elevates it into a full-fledged wireless field monitor and receiver with video input capability, making it the ideal tool for solo filmmakers, directors, and remote production teams. With its 7-inch ultra-bright Full HD touchscreen, dual wireless bands, and both SDI and HDMI input/output, the M7 Pro can function as either a receiver or a stand-alone monitor, allowing unparalleled flexibility on set.

Designed to fit seamlessly into professional workflows, the CineView M7 Pro is a powerful multi-purpose solution—receiving wireless video when paired with any Accsoon CineView transmitter or operating as an on-camera monitor with built-in assist tools. Whether you’re monitoring wirelessly or directly from camera, the M7 Pro offers the clarity, reliability, and control professionals demand.

Features

• 7-Inch Full HD Touchscreen (1920 x 1200): Vivid IPS display with wide color gamut and touchscreen control, ideal for critical monitoring and focus pulling.
• High-Brightness Display (1,000 nits): Daylight-viewable with crisp visibility even in bright outdoor shooting conditions.
• SDI & HDMI Input/Output: Adds professional-grade flexibility with both SDI and HDMI connectivity for input and loop-out, ideal for broadcast or cinema cameras.
• Dual-Band Wireless Receiver (2.4GHz + 5GHz): Supports stable, low-latency 1080p60 video reception when used with Accsoon transmitters (SE, HE, CineView Quad).
• Hybrid Mode: Wired or Wireless: Functions as a standalone field monitor or wireless receiver—instantly switch between SDI/HDMI input or wireless feed.
• Comprehensive Monitoring Tools: Includes waveform, vectorscope, histogram, peaking, zebras, false color, frame guides, and more for precise image evaluation.
• 3D LUT Support via USB-C: Import and apply custom LUTs for accurate real-time color preview of log or flat profiles.
• Robust, Lightweight Design: Slim aluminum chassis designed for durability without adding bulk—perfect for handheld rigs, cages, or director’s monitors.
• Flexible Power Options: Supports Sony NP-F batteries, DC input, and pass-through power—keeping you powered throughout long production days.
• Seamless Ecosystem Integration: Compatible with all Accsoon CineView transmitters and other receivers for multi-view setups and crew monitoring.

The Accsoon CineView M7 Pro is the ultimate all-in-one monitor for professional filmmakers—combining rugged build, powerful monitoring features, and industry-standard I/O for total creative control, whether you're on set or in the field.

Specifications

• Display screen: 7” LCD
• Resolution: 1920 x 1080 pixels
• PPI: 323
• Aspect ratio: 16:9
• Brightness: 1000 nits
• Contrast ratio: 1000:1
• Viewing angle: 176°/176°
• Backlight type: Edge-Lit Ultra-transparent LED Backlight
• Screen color calibration: Supported
• LUT: 1D and 3D Cube LUTs Supported
  • 1D: up to 4096 points
  • 3D: up to 127 points
• Video input port: HDMI 2.0/3G-SDI
• Video output port: HDMI 2.0/3G-SDI
• HDMI video input format
  • 4K DCI (4096x2160): 23.98/24/25/29.97/30/50/59.94/60
  • 4K UHD(3840x2160): 23.98/24/25/29.97/30/50/59.94/60
  • 1080p: 23.98/24/25/29.97/30/50/59.94/60
  • 1080i: 50/59.94/60
  • 720p: 50/59.94/60
• SDI video input format
  • 1080p: 23.98/24/25/29.97/30/50/59.94/60 Level A/B
  • 1080i: 50/59.94/60
• HDMI video output format
  • 4K DCI (4096x2160): 23.98/24/25/29.97/30/50/59.94/60
  • 4K UHD (3840x2160): 23.98/24/25/29.97/30/50/59.94/60
  • 1080p: 23.98/24/25/29.97/30/50/59.94/60
  • 1080i: 50/59.94/60
  • 720p: 50/59.94/60
• SDI video output format
  • 1080p: 23.98/24/25/29.97/30/50/59.94/60 Level A
  • 1080i: 50/59.94/60
• DC port: 6.0~16.8V 5.5mm x 2.1mm Center Positive
• Compatible battery: Compatible with NP-F550, NP-F750, NP-F970 Batteries
• USB-C power input port: PD3.0 9V/3A, 12V/3A, 15V/3A
• USB-C power output port: Maximum: 5V/2A
• Microphone jack: 3.5mm TRS
• Headphone jack: 3.5mm CTIA
• Microphone input audio sampling: 16bit, 48KHz
• Power consumption: 12W~28W（Varies according to actual usage）
• Housing: Aircraft-grade Aluminum Alloy
• Heat dissipation: Active + Passive Cooling
• Wireless transmission latency: 60ms
• Wireless transmission distance: Dual-Band Connection: 350 meters
• Work environment temperature: -10- 40℃
• Weight: 494.3g
• Dimensions: 182.2 x 120.7 x 31.5mm
