Lilliput WS500 Wireless Video Transmission

About: Lilliput WS500 Wireless Video Transmission

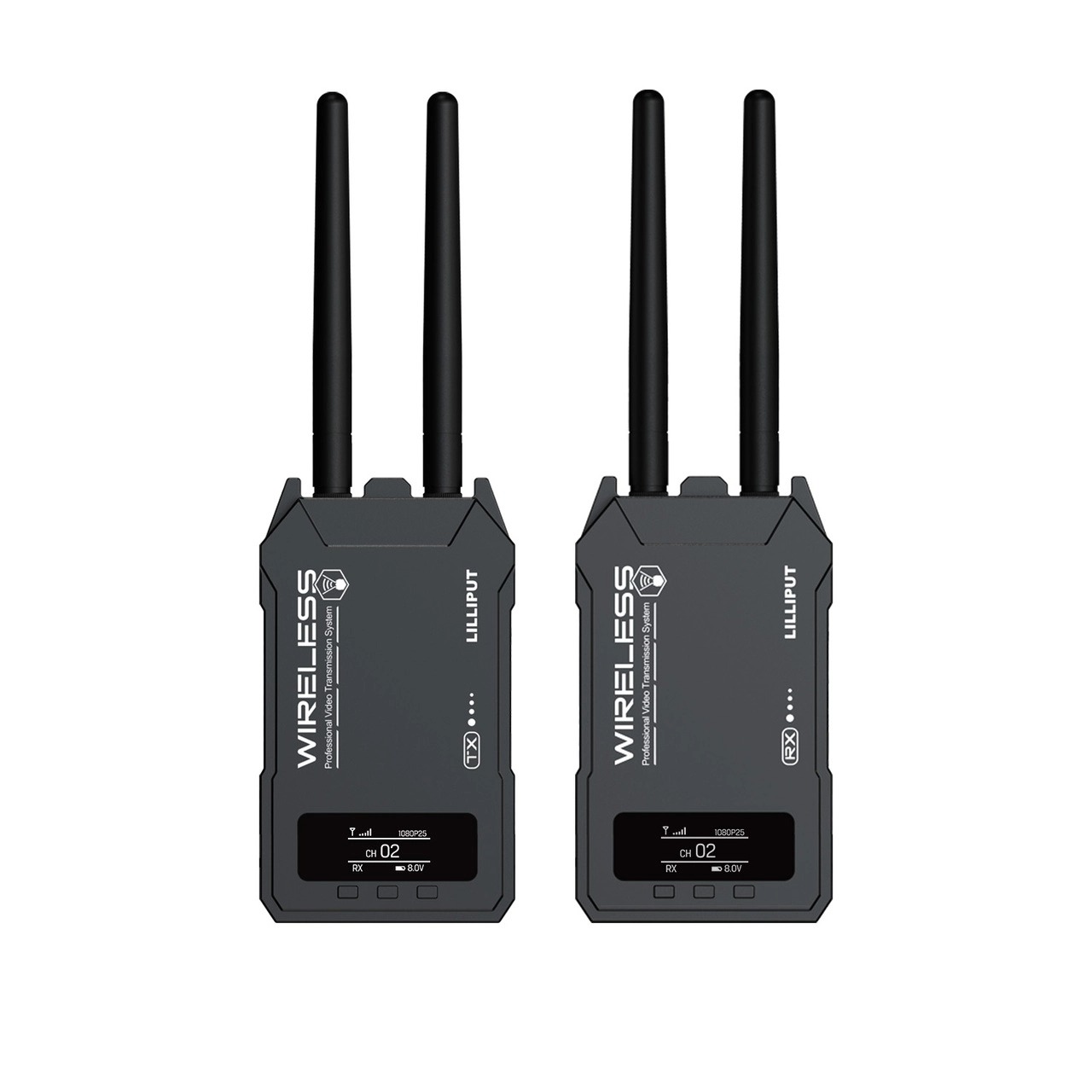

The Lilliput WS500 is a Pro Wireless Video Transmission system with Low 80ms Latency up to 500ft Range.

• HDMI/SDI Wireless Transmission
• Low Latency 80ms
• Transmission Range 500ft
• Auto Search For Quality Channels
• Professional App For Video Monitoring
• Compact Led Screen
• Dual Power Supply

HDMI/SDI Wireless Transmission
Making your connections flexible and simple! Whether the camera is providing an HDMI or SDI signal, you will be able to switch between HDMI and SDI by using wireless transmitter.

Live Streaming by APP
With APP connection to mobile device, video signals can be uploaded in real time to the live streaming platform, ready to shoot and live synchronously.

Auto Search for Quality Channels
Automatic search for quality channels among 13 signal channels. Enabling quality channels prevents signal from interruptions and reduces latency.

Professional APP for Video Monitoring
The easy-to-use, functional APP provides rich auxiliary functions that professional broadcast monitors have, so as to get a satisfying shot at your fingertips.

APP Scan on QR Code
Generate a QR code on the LED screen with one button and scan the code through APP to link your mobile device to wireless transmitter. Up to three mobile devices are supported simultaneously.

Fanless Design
The combination of ultra-low power consumption and fanless design gives it a small and compact appearance.

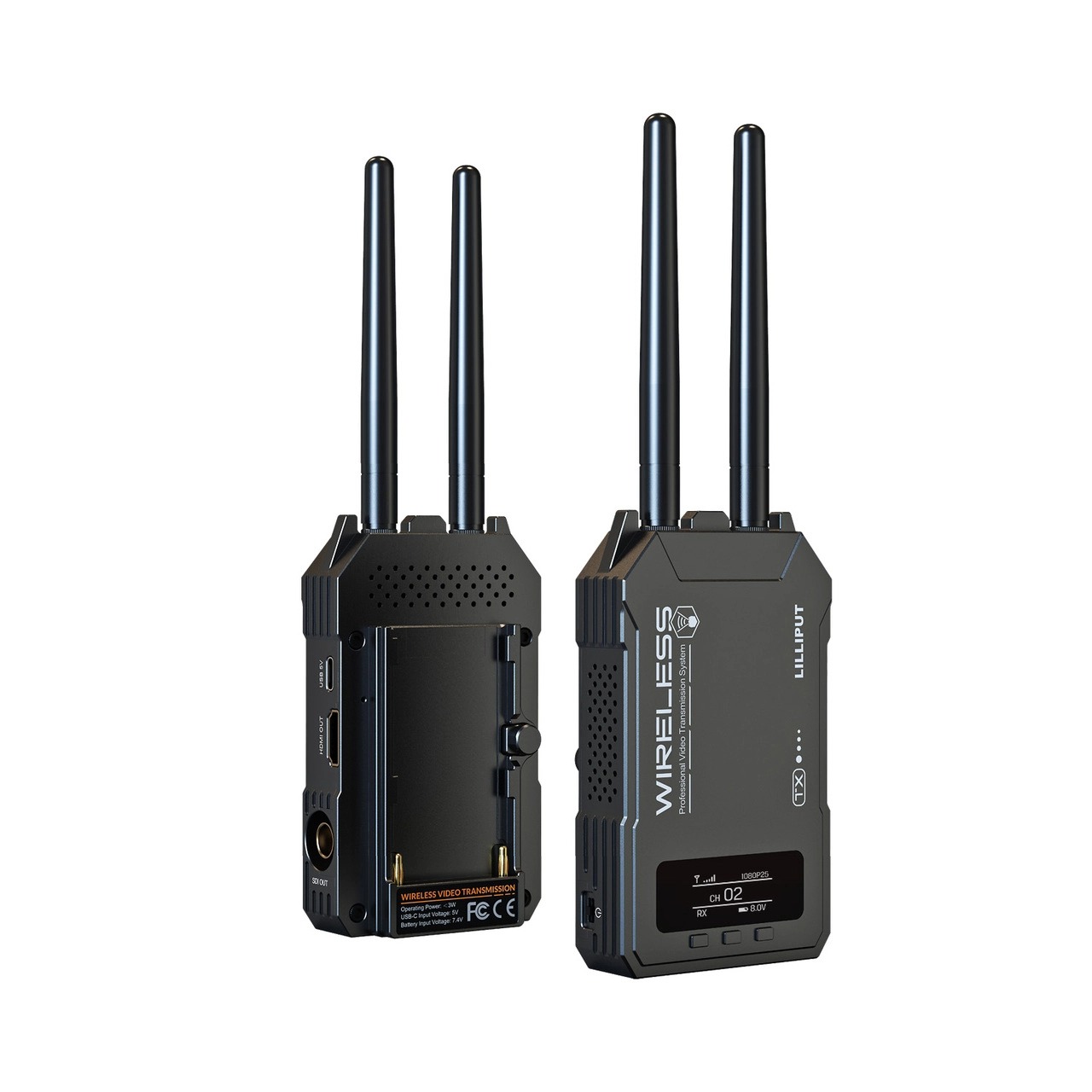

Dual Power Supply
Powered by the Sony NP-F series batteries, or by USB-C with a power bank.

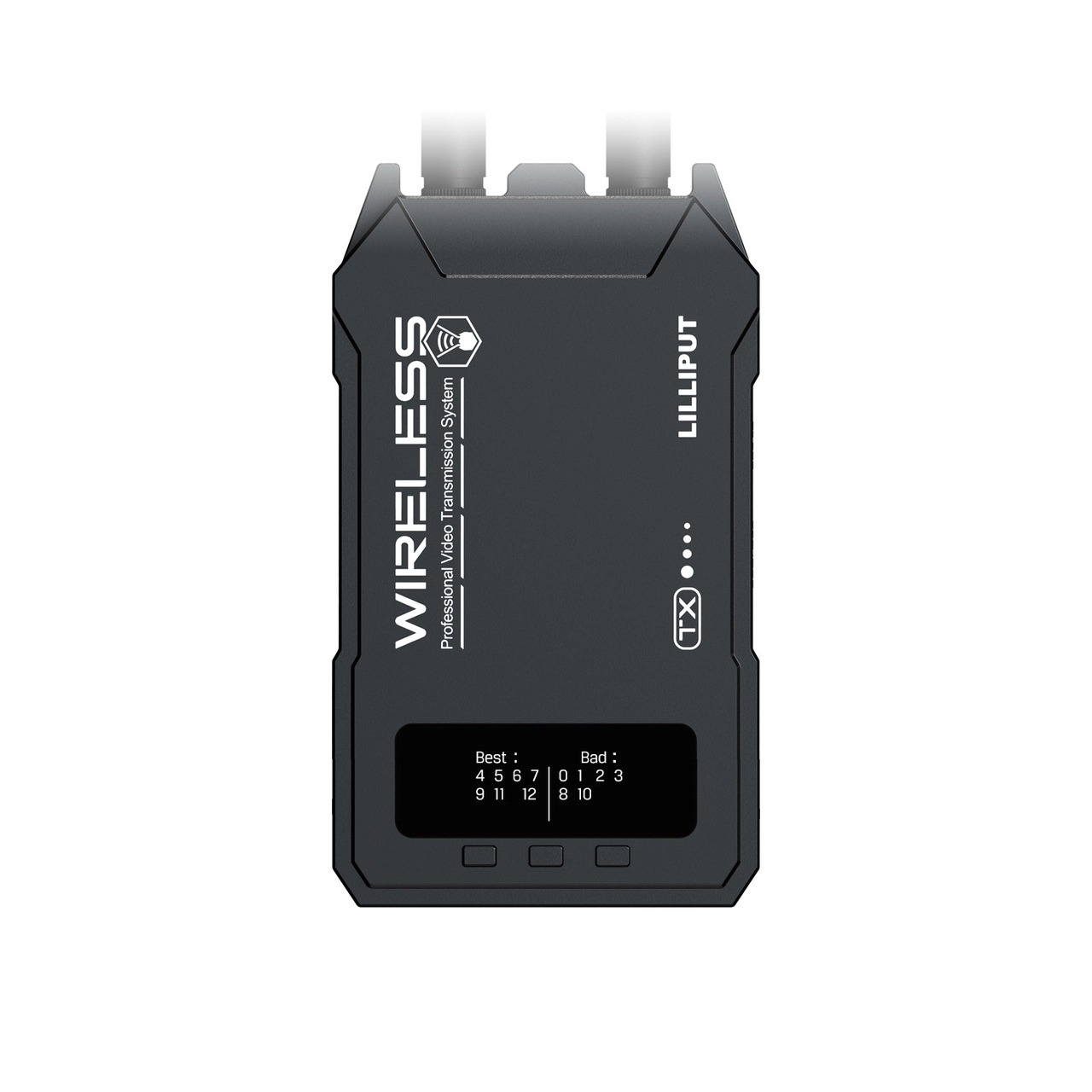

Compact LED Screen
1.3 Inch LED Screen showing the current status of the wireless transmitter.

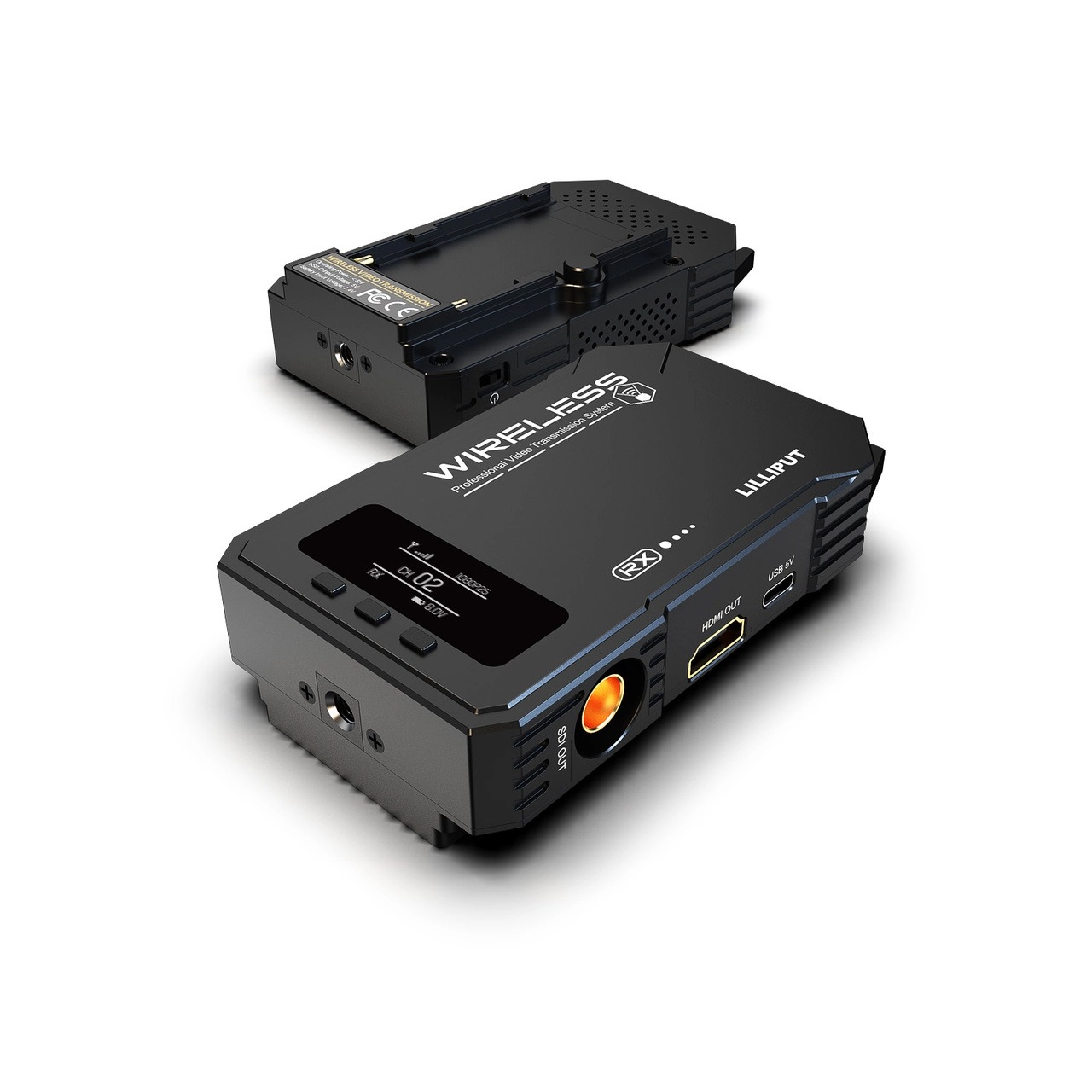

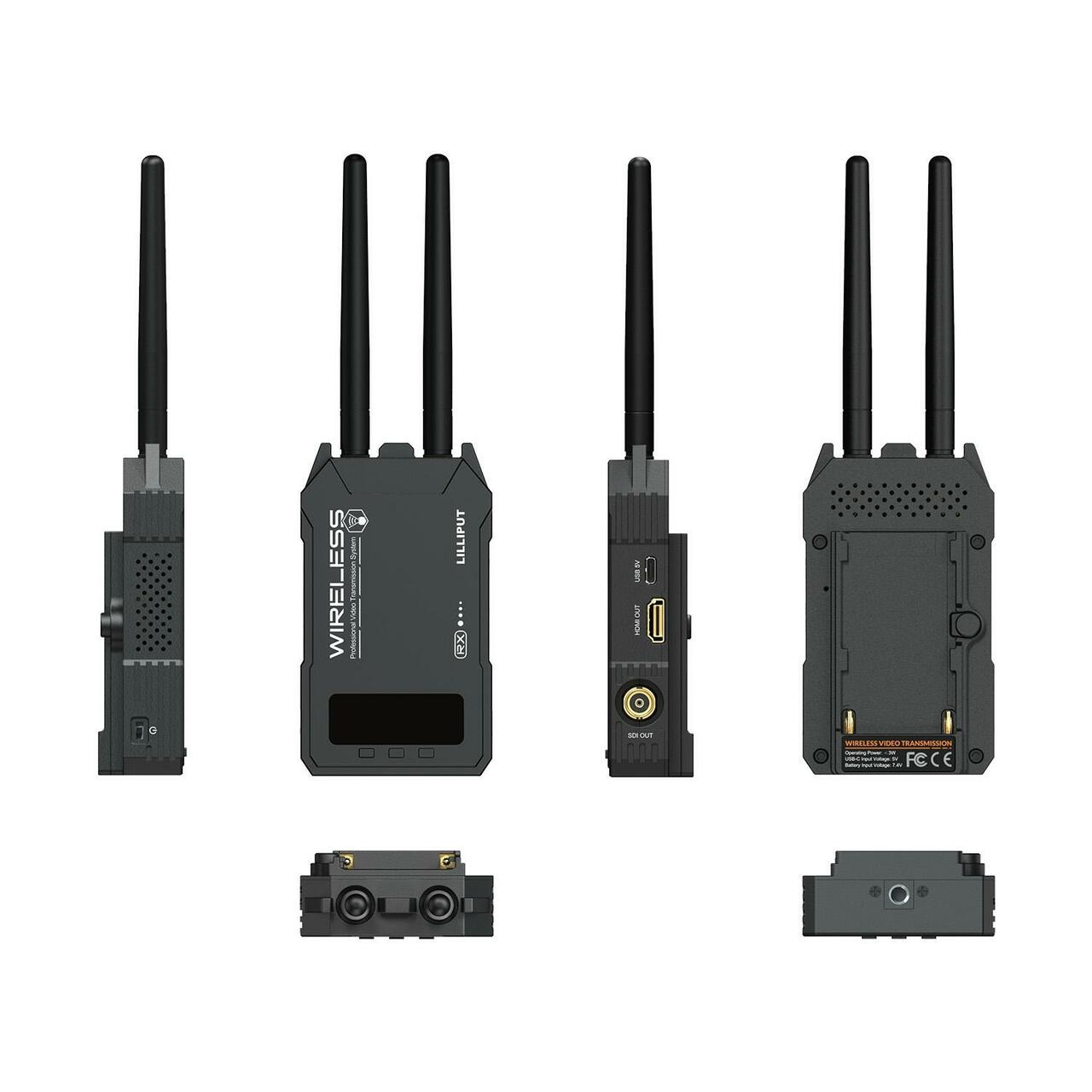

HDMI&SDI Output
HDMI In/Out and SDI In/Out interfaces can be connected for different devices.

Specifications

• Video Signals:
  • HDMI In: 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/60, 720p 50/60
  • 3G-SDI In: 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/60, 720p 50/60
  • HDMI Out: 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/60, 720p 50/60
  • 3G-SDI Out: 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/60, 720p 50/60
• Audio Signals:
  • Audio: 48kHz 24-Bit
• Transmission:
  • Latency: 80ms (From transmitter to receiver, no interference)
  • Frequency: 5GHz
  • Transmission Power: 17dBm
  • Transmission Distance: 500 ft (no interference)
• Power:
  • Input Voltage: DC 5V
  • Power Consumption: ≤ 3W

Includes

• 1x WS500RX Receiver
• 1x WS500TX Transmitter
• 1x Wireless Antenna
• 1x USB-C Cable
• 1x Electronic User Manual
