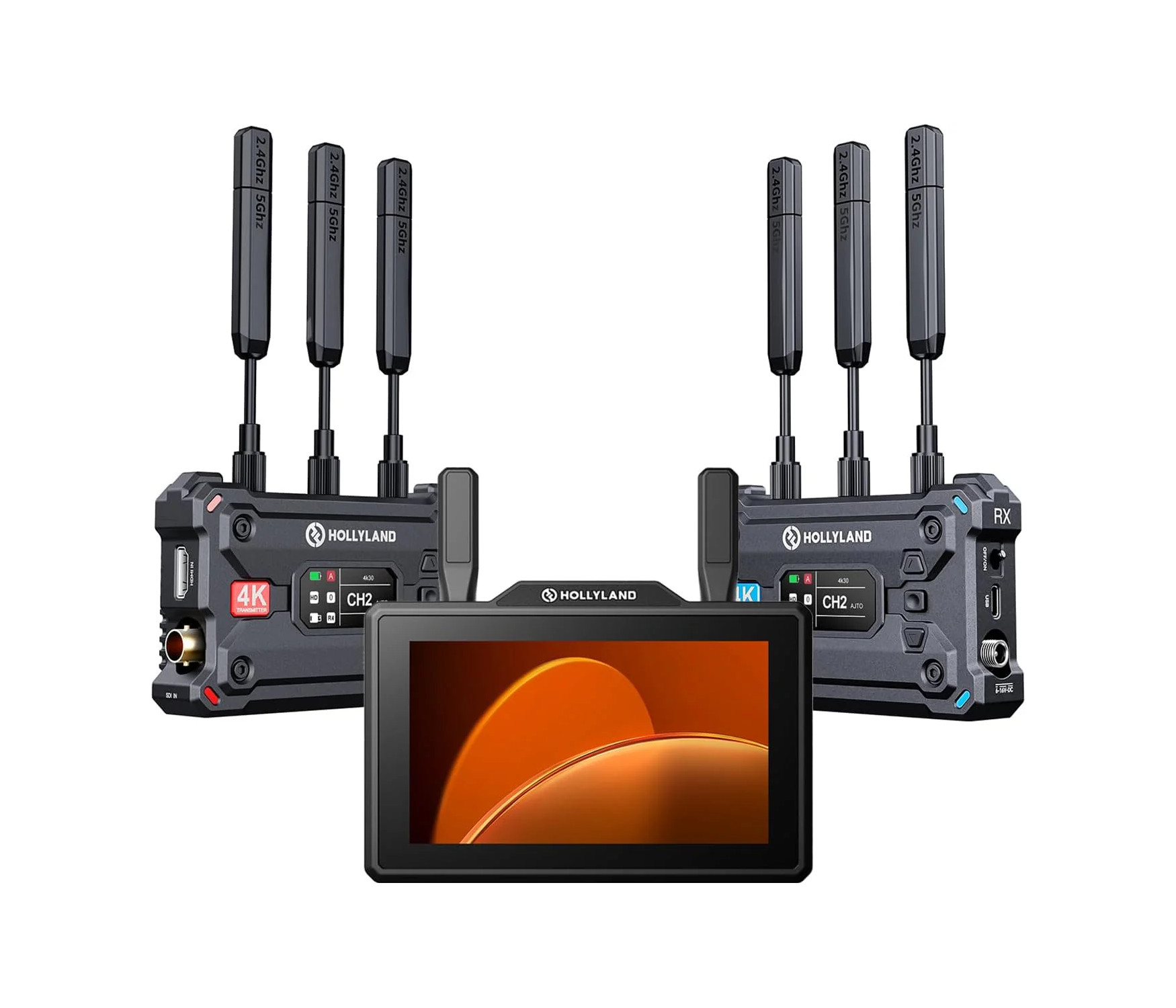

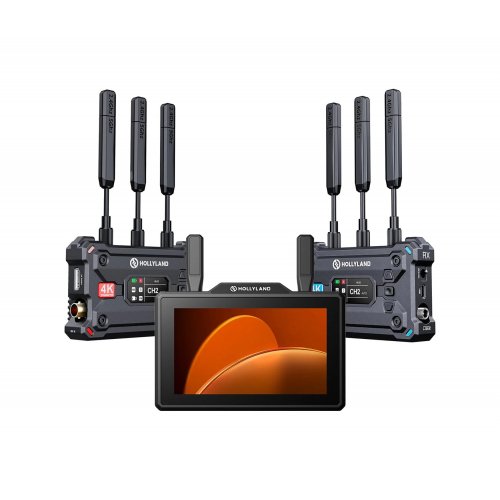

Hollyland Pyro 5 + Pyro S Video Transmission & Monitoring Kit

About: Hollyland Pyro 5 + Pyro S Video Transmission & Monitoring Kit

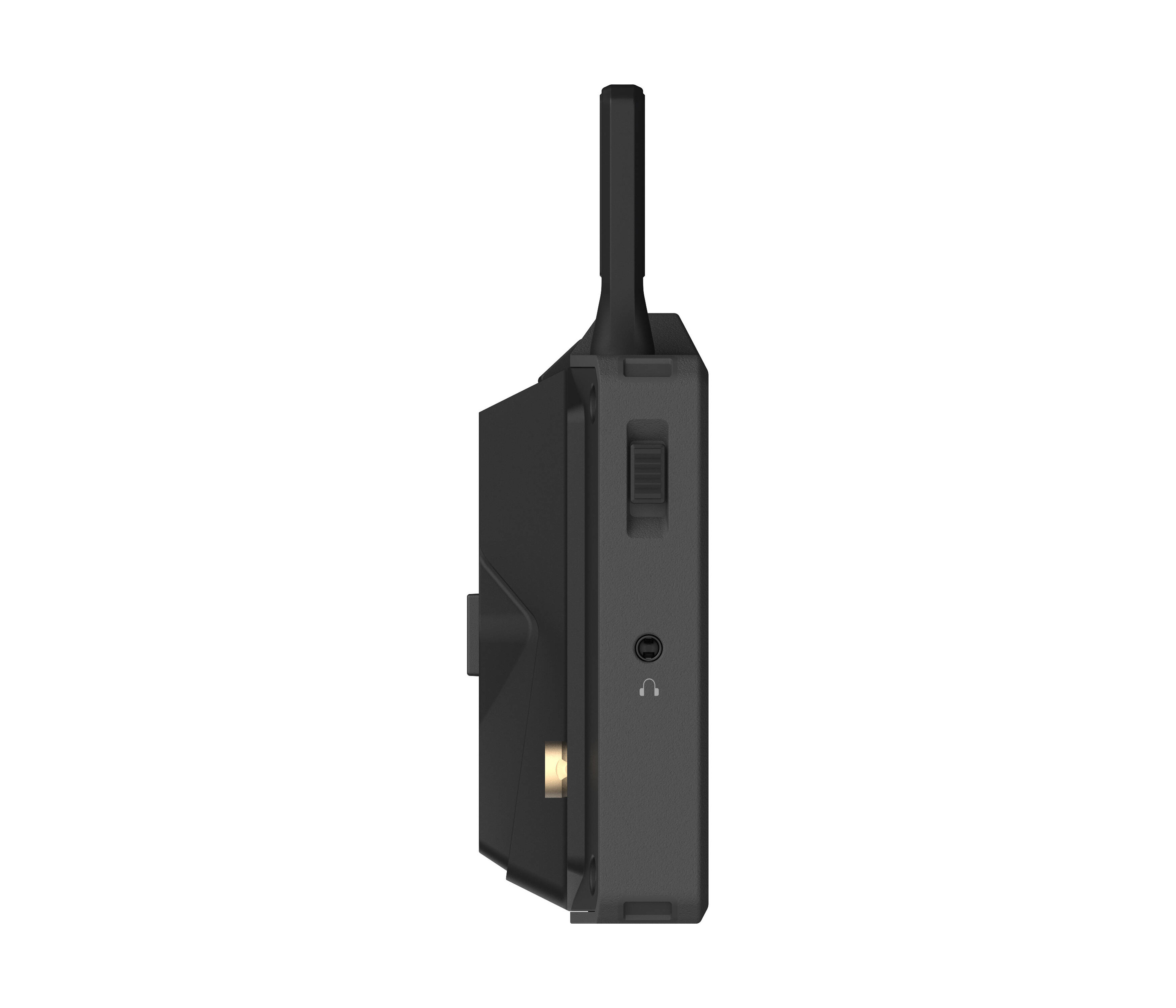

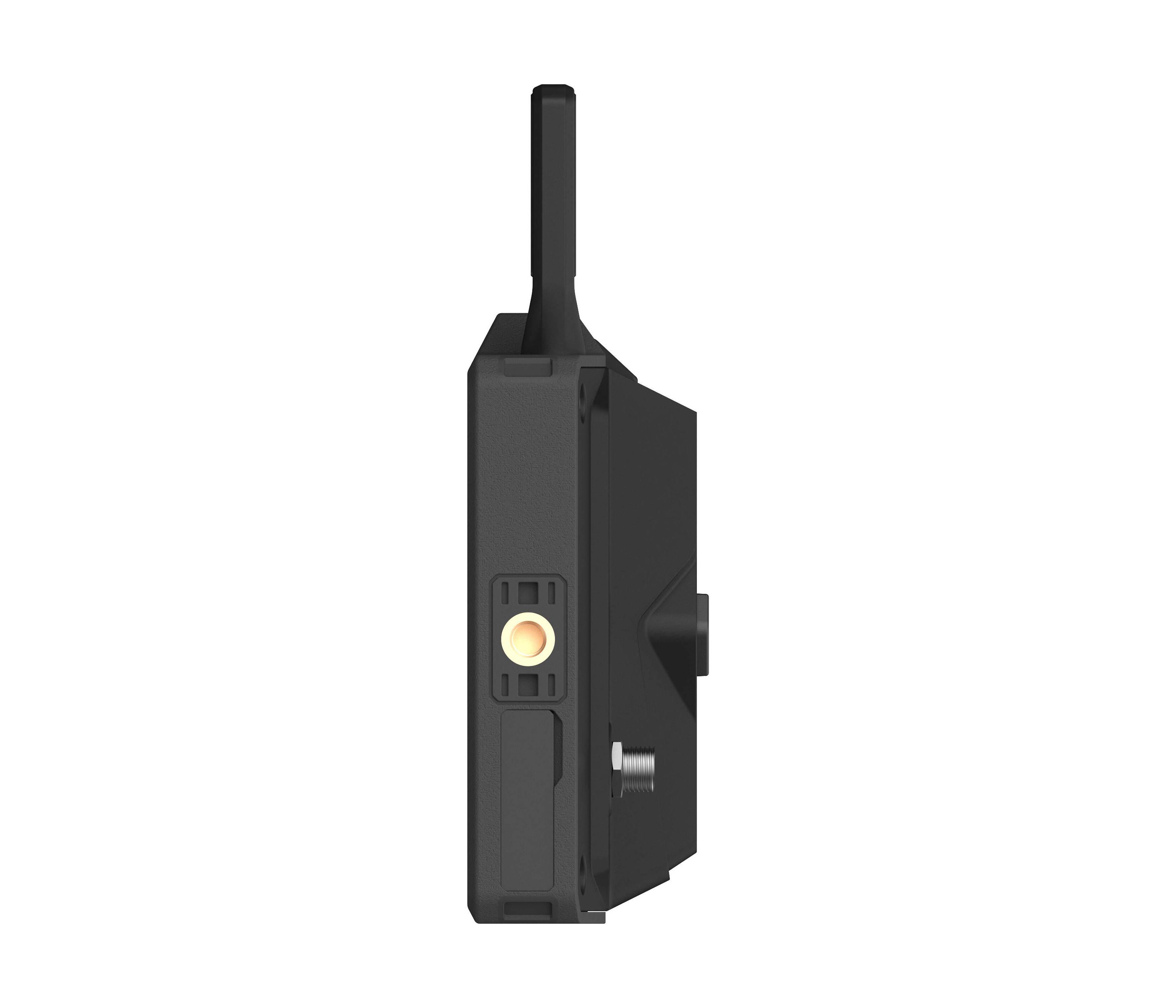

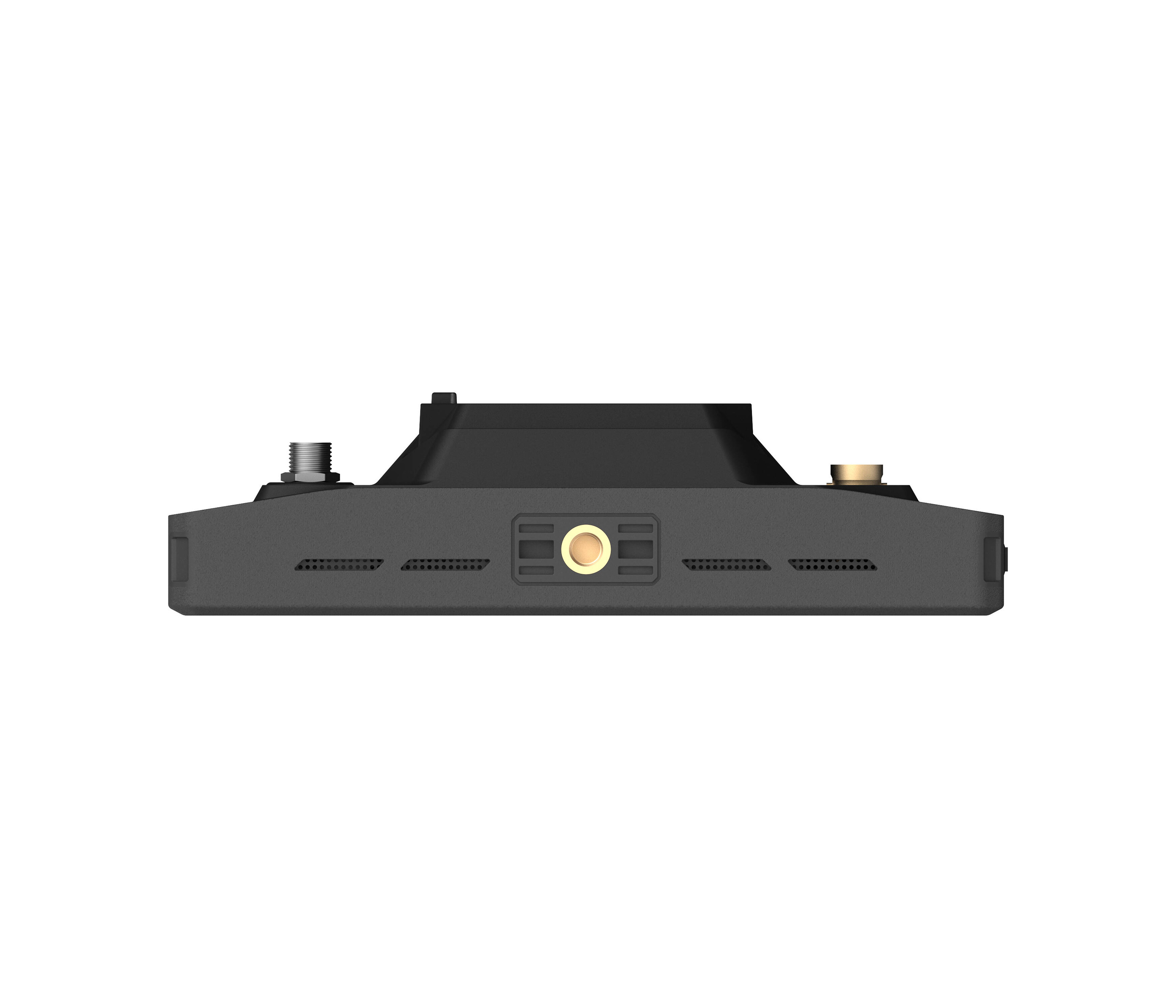

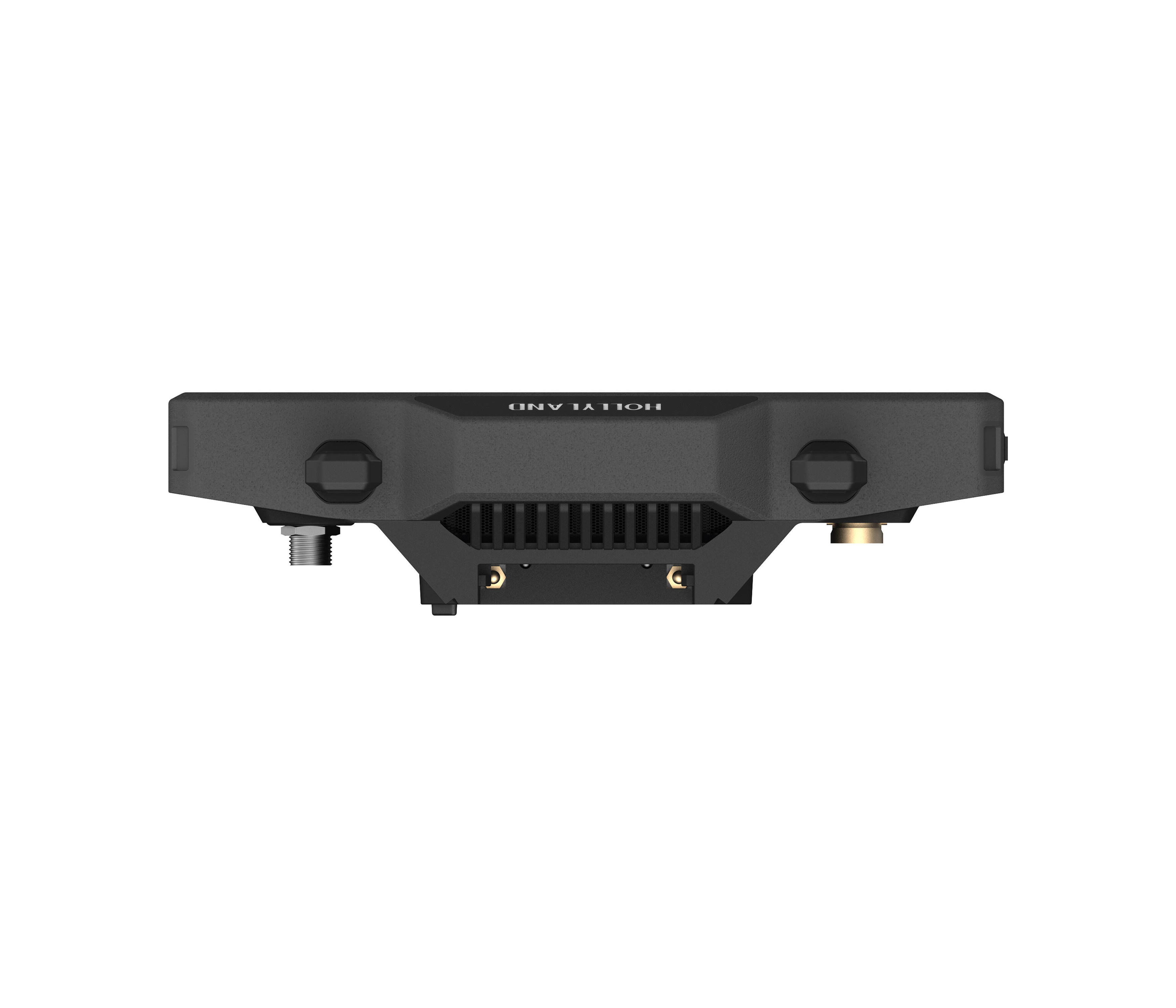

Pyro 5 is a 5.5-inch wireless monitor designed for do-it-all performance. With dual-band transmission, 4-way monitoring via Broadcast Mode, direct camera control, smart channel selection, and a 1500-nit daylight-viewable screen, it combines multiple functions into one compact tool. Proxy recording and RTMP live streaming make Pyro 5 more than just a monitor—it's your multi-tasking hub on set, built to simplify and speed up every step of production.

• 1TX & 4RX (1TX & 1RX in box)
• Range Up to 1300ft (400m) & 0.06 Latency
• 2.4GHz & 5GHz Dual Band
• Auto Frequency Hopping
• Camera Control
• 5.5-Inch & 1500 nits
• TX, RX, and Monitor - All in One
• Precise Image Analysis
• RTMP Streaming

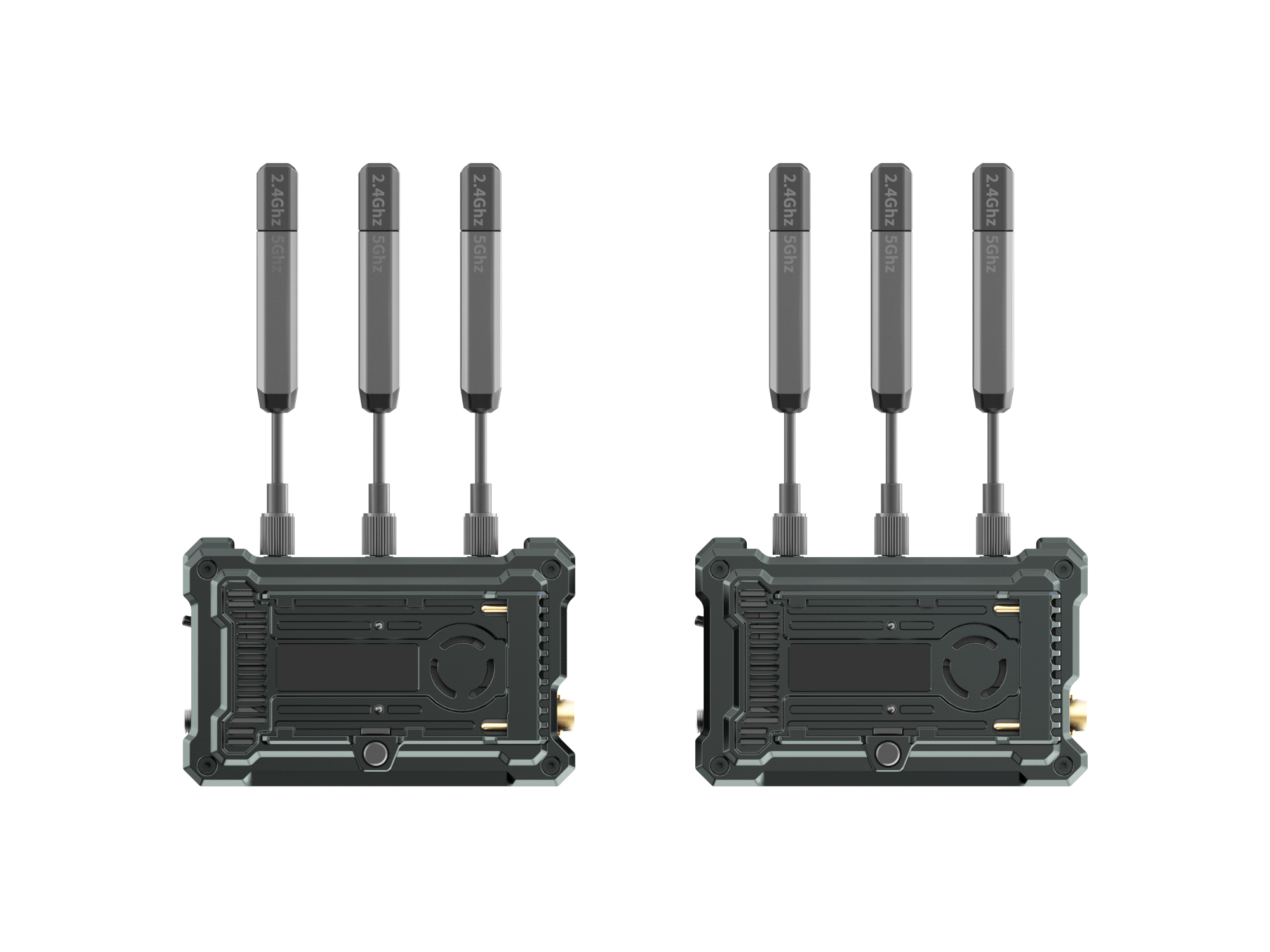

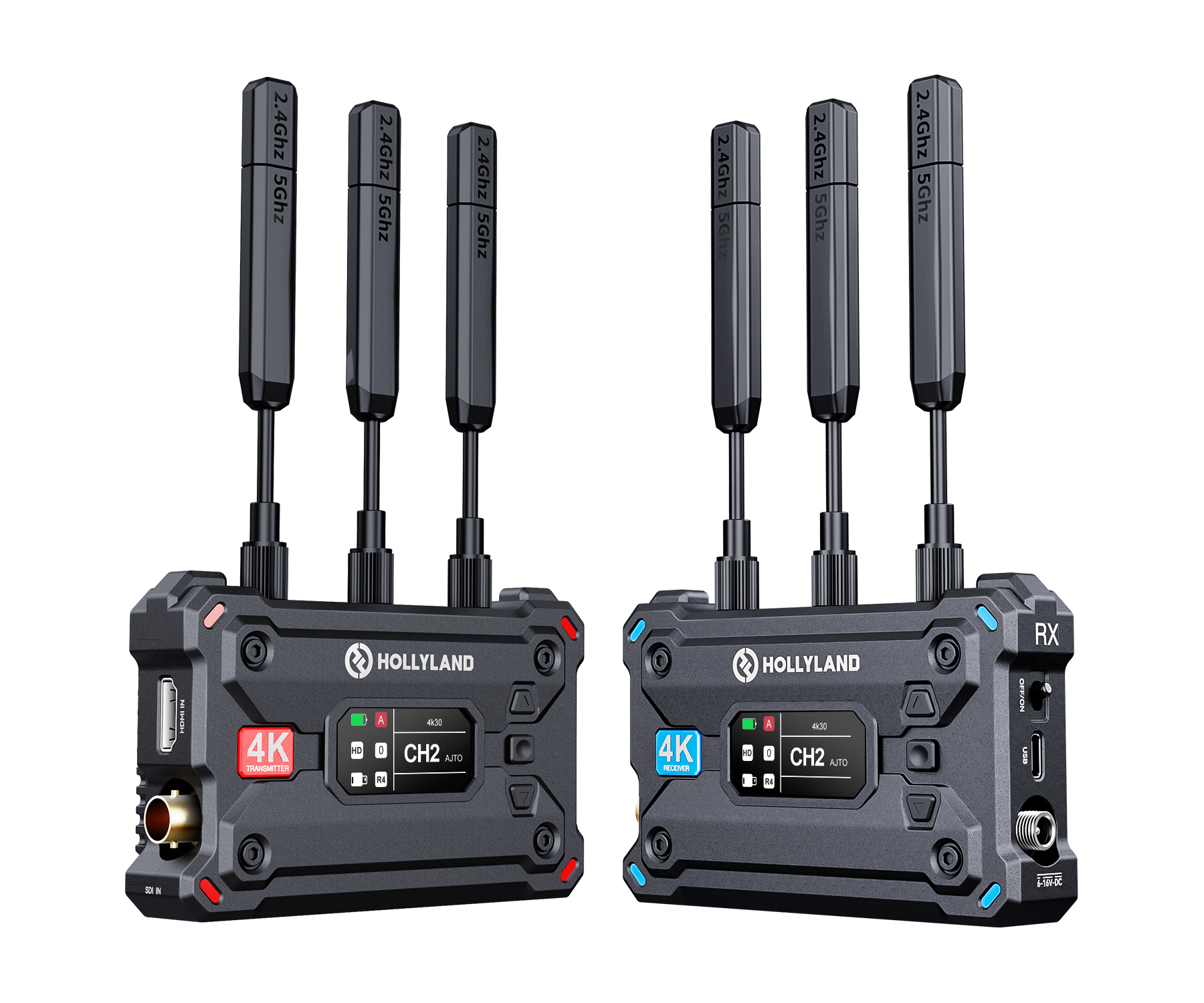

Pyro S is a groundbreaking addition to the Hollyland Pyro series lineup, which redefines wireless video transmission. Pyro S supports HDMI and SDI input/output and can transmit to up to four receivers simultaneously, with a range of up to 1,300ft (400m) and minimal latency of just 50ms. Pyro S uses advanced Auto Dual-Band Hopping (ADH) technology to ensure reliable transmission and features selectable modes for your real-world shooting needs. Lighter and more durable than traditional models, Pyro S’s magnesium alloy shell makes it easier to carry and handle. It’s ideal for multi-user monitoring in dynamic shooting scenarios, such as film production, live events, and ENG/EFP applications.

• ​1 Transmitter & 4 Receivers - Offers more flexibility when additional monitoring needs emerge on set.
• 1,300ft (400m) LOS Range - Ultra-long-range wireless transmission capability.
• 0.05s Low Latency - Excels with increased transmission distance while preserving video quality and minimizing latency.
• 2.4GHz & 5GHz Dual Band - Provides better signal transmission performance and efficiency.
• Auto Frequency Hopping - Guarantees reliable and uninterrupted wireless video transmission.
• HDMI & SDI - Supports both HDMI and SDI ports for maximum compatibility.
• Multiple Power Supply Options - Offers versatility, reliability, and convenience.
• UVC & RTMP Streaming - Suitable for streaming live content from local sites to global audiences.
• 4K30 Transmission - Presents images with superior clarity, detail, and realism.
• Ready Out of the Box - Preset grouping eliminates the need for tedious setup.

Specifications

• Pyro 5

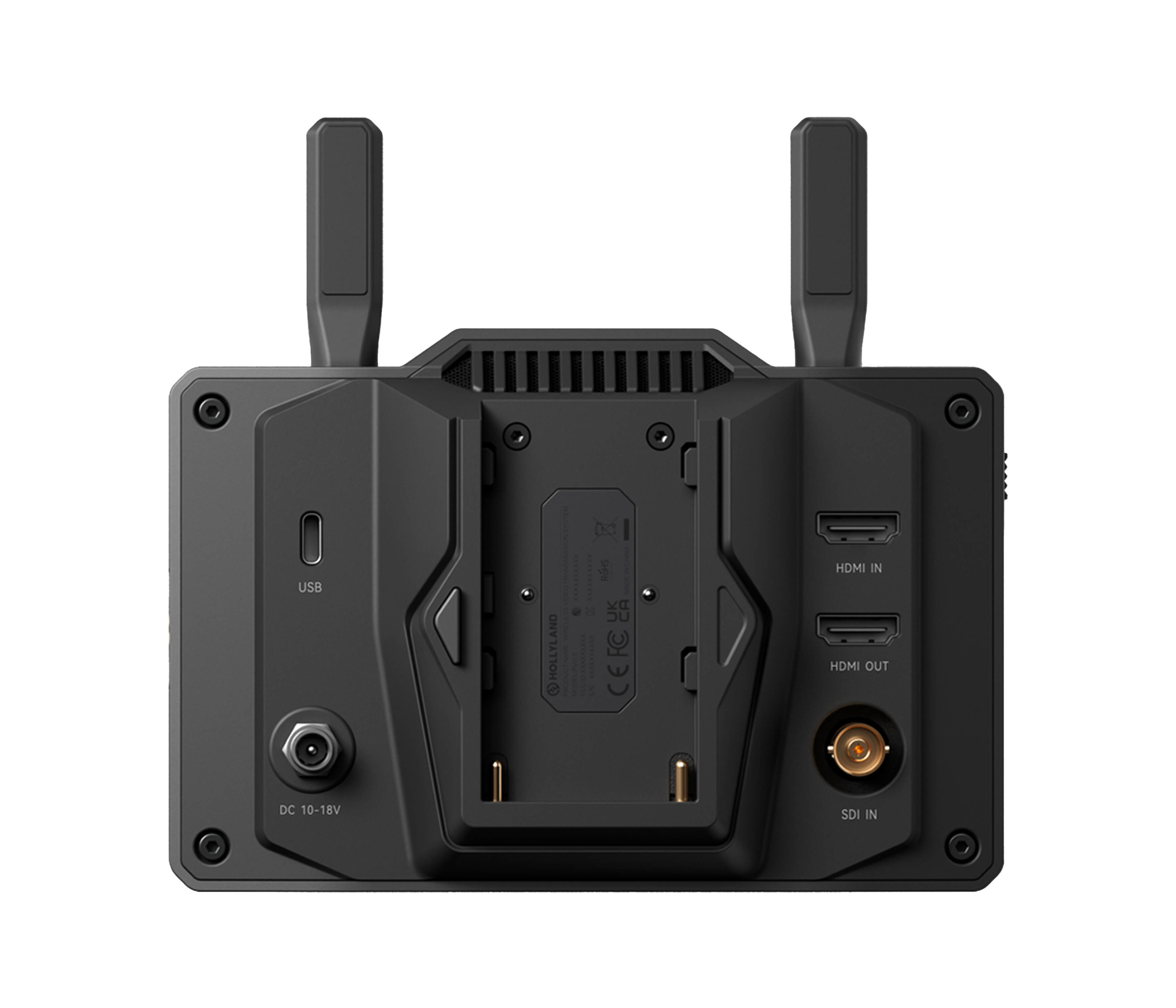

  • Input Port
    • Transmitter Mode: HDMI 1.4b + 3G SDI
    • Receiver Mode: -
  • Output Port
    • Transmitter Mode: Loop-Out HDMI 1.4b
    • Receiver Mode: HDMI 1.4b
  • Audio-Video Parameters
    • Transmitter Mode: Color Depth Capability
    • Transmitter Mode: Input Audio Format
    • Transmitter Mode: Output Audio Format
    • Receiver Mode: HDMI Input: YUV422/YUV444 8BIT
    • Receiver Mode: HDMI 1.4b 8-Channel
  • Antenna: SMA Male
  • Power Input: DC Input (2.0mm core socket)
  • Headphone Jack: 3.5mm
  • Upgrade Port: USB-C (USB 2.0 OTG) / SD Card Slot
  • Screen Size: 5.5″ Touchscreen
  • Screen Resolution: 1920*1080 Pixels
  • Color Gamut: Rec.709
  • Aspect Ratio: 16: 9
  • Screen Brightness: 1,500 nits
  • Contrast Ratio: 1000:1
  • Power Input Voltage
    • NPF: 6V~16V
    • DC-in: 10-18V DC
  • Video Processing Technology
    • Transmitter Mode: Video Bitrate
    • Transmitter Mode: Video Encoding Format
    • Receiver Mode: Maximum 12 Mbps
    • Receiver Mode: H.264
  • Power Consumption
    • Transmitter: <14W
    • Receiver Mode: <16.5W
  • Net Weight: ≈538g (19oz)
  • Dimensions (LxWxH): 180 x 127 x 45.8mm
  • Operating Frequency
    • 5.150-5.250GHz
    • 2.412~2.484GHz
    • 5.250-5.350GHz
    • 5.470-5.600GHz
    • 5.600-5.725GHz
    • 5.725-5.850GHz
  • Transmit Power: Transmitter Mode: < 23dBm
  • Receiver Sensitivity: Receiver Mode: Unicast: -85dBm; Broadcast: -80dBm
  • Transmission Latency: ≈60ms (Tested in a laboratory environment with 1080P60 signal transmission)
  • Bandwidth: Unicast: 20 MHz Broadcast: 40 MHz
  • Operating Temperature: - 10℃ - 45℃
  • Storage Temperature: - 40℃ - 60℃
  • HDMI Input
    • 720p50/59.94/60
    • 1080i50/59.94/60
    • 1080p23.98/24/25/29.97/30
    • 1080p50/59.94/60
  • HDMI Loopout/Output
    • 720p50/59.94/60
    • 1080i50/59.94/60
    • 1080p23.98/24/25/29.97/30
    • 1080p23.98/24/25/29.97/30
  • SDI Input
    • 1080p50/59.94/60 (Level A)
    • 1080p50/59.94/60 (Level B)
    • 1080i50/59.94/60
    • 1080p23.98/24/25/29.97/30
    • 1080psf23.98/24
    • 1080psf25/29.97/30
    • 720p50/59.94/60
  • SDI Loopout/Output
    • 1080p50/59.94/60(Level A)
    • /
    • 1080i50/59.94/60
    • 1080p23.98/24/25/29.97/30
    • 1080psf23.98/24
    • 1080i50/59.94/60
    • 720p50/59.94/60
• Pyro S
  • Transmitter
    • Port
      • DC Input: 2.0mm Core Socket
      • HDMI Input: HDMI 1.4b
      • SDI Input: 3G SDI
      • USB-C: USB 2.0 OTG
      • Antenna: SMA Male
    • Power Supply
      • Battery Voltage Range: 6.8 – 8.4V
      • DC Voltage Range: 6 – 16V
    • Power Consumption - < 11W
    • Net Weight - 207g
    • Dimensions (LxWxH) - 112 × 71.2 × 34.1mm (4.4 × 2.8 × 1.3in.)
    • Input/Output Format
      • HDMI Input
        • 720p50/59.94/60
        • 1080i50/59.94/60
        • 1080p23.98/24/25/29.97/30
        • 1080p50/59.94/60
        • 3840*2160 30/25/24/29.97/23.98
      • SDI Input
        • 1080p60/59.94/50
        • 1080i60/59.94/50
        • 1080p30/29.97/25/24/23.98
        • 720p60/59.94/50
        • 1080psf23.98/24
        • 1080psf25/29.97/30
    • Operating Frequency
      • 5 GHz Frequency Band
        • 5.150 – 5.250 GHz
        • 5.250 – 5.350 GHz
        • 5.470 – 5.725 GHz
        • 5.725 – 5.850 GHz
      • 2.4 GHz Frequency Band
        • 2.412 – 2.484 GHz
    • Transmit Power - < 23 dBm
    • Receiver Sensitivity - /
    • Latency - as low as 50ms
    • Bandwidth - 20 MHz (Broadcast: 40 MHz)
    • Temperature
      • -10 – 45℃ (working)
      • -40 – 60℃ (storage)
  • Receiver
    • Port
      • DC Input: 2.0mm Core Socket
      • HDMI Output: HDMI 1.4b
      • SDI Output: 3G SDI
      • USB-C: USB 2.0 OTG
      • Antenna: SMA Male
    • Power Supply
      • Battery Voltage Range: 6.8 – 8.4V
      • DC Voltage Range: 6 – 16V
    • Power Consumption - < 8W
    • Net Weight - 207g
    • Dimensions (LxWxH) - 112 × 71.2 × 34.1mm (4.4 × 2.8 × 1.3in.)
    • Input/Output Format
      • HDMI Output
        • 720p50/59.94/60
        • 1080i50/59.94/60
        • 1080p23.98/24/25/29.97/30
        • 1080p50/59.94/60
        • 3840*2160 30/25/24/29.97/23.98
      • SDI Output
        • 1080p50/59.94/60
        • 1080i50/59.94/60
        • 1080p23.98/24/25/29.97/30
        • 720p50/59.94/60
        • 1080p23.98/24
        • 1080i50/59.94/60
    • Operating Frequency
      • 5 GHz Frequency Band
        • 5.150 – 5.250 GHz
        • 5.250 – 5.350 GHz
        • 5.470 – 5.725 GHz
        • 5.725 – 5.850 GHz
      • 2.4 GHz Frequency Band
        • 2.412 – 2.484 GHz
    • Transmit Power - /
    • Receiver Sensitivity - -85 dBm (Broadcast: -80 dBm)
    • Latency - as low as 50ms
    • Port
      • DC Input: 2.0mm Core Socket
      • HDMI Input: HDMI 1.4b
      • SDI Input: 3G SDI
      • USB-C: USB 2.0 OTG
      • Antenna: SMA Male
    • Bandwidth - 20 MHz (Broadcast: 40 MHz)
    • Temperature
      • -10 – 45℃ (working)
      • -40 – 60℃ (storage)

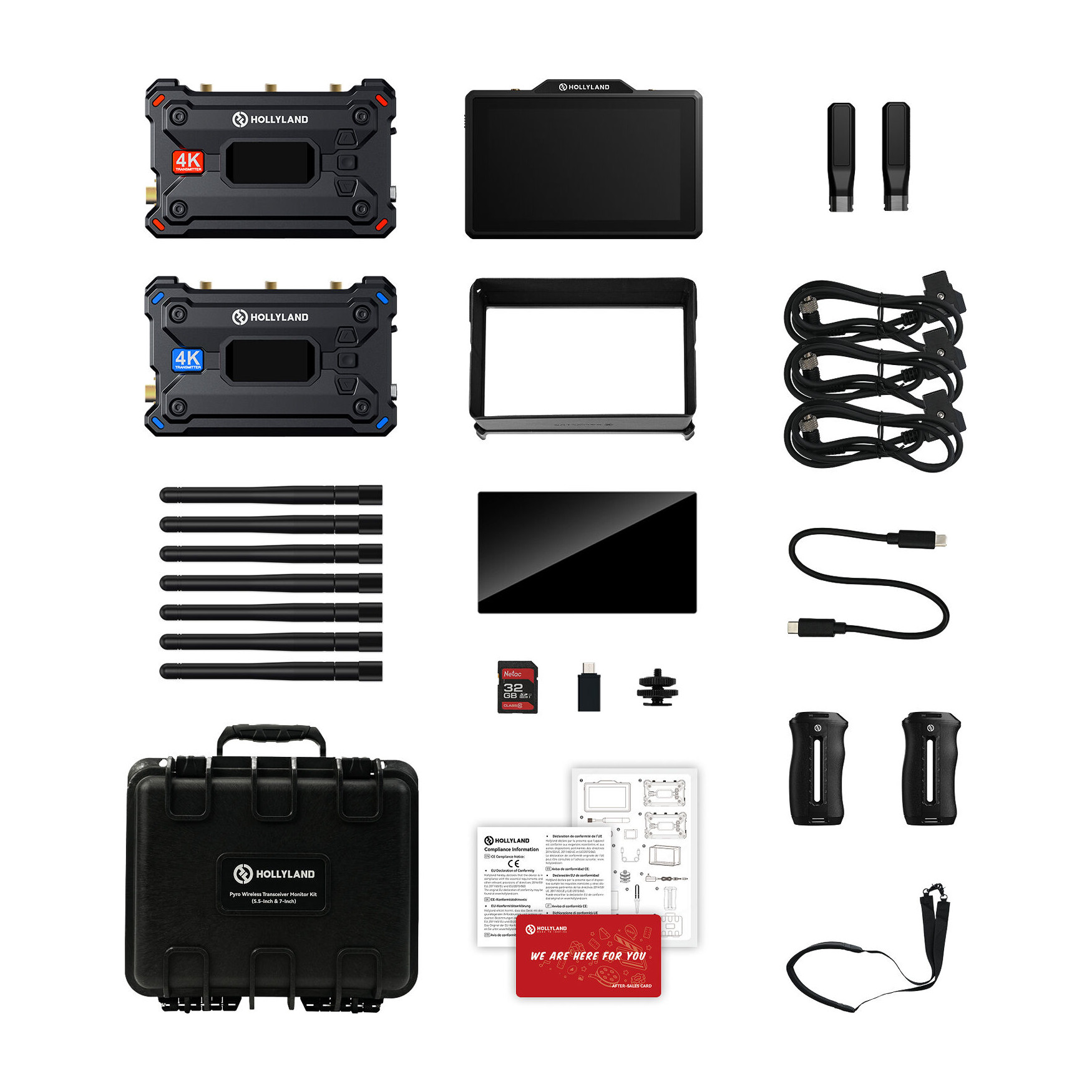

What's in the Box

• 1x Pyro 5 Wireless Transceiving Monitor
• 2x Easy-Install Short Antenna
• 1x Pyro 5 Monitor Hood（5-inch）
• 1x Pyro 5 Monitor Hood Mount
• 1x Pyro 5 Tempered Glass Screen Protector
• 1x Pyro 5 Quick Guide
• 1x Warranty Card
• 1x HL Side & Bottom Mounted Aluminum Handle
• 1x Hollyland Ecosystem Leaflet
• 1x Pyro S Wireless Video Transmitter
• 1x Pyro S Wireless Video Receiver
• 7x Paddle Antenna (2.4GHz & 5GHz)
• 1x Hot Shoe Adapter
• 1x D-Tap to Locking DC Power Adapter Cable
• 1x USB-C OTG Adapter
• 1x 12V 2A Power Adapter (Main Unit with Interchangeable Plug)
• 1x SD Card
• 1x Shoulder Strap
• 1x Outer Color Box
• 1x Pyro Ecosystem Hard-Shell Case
