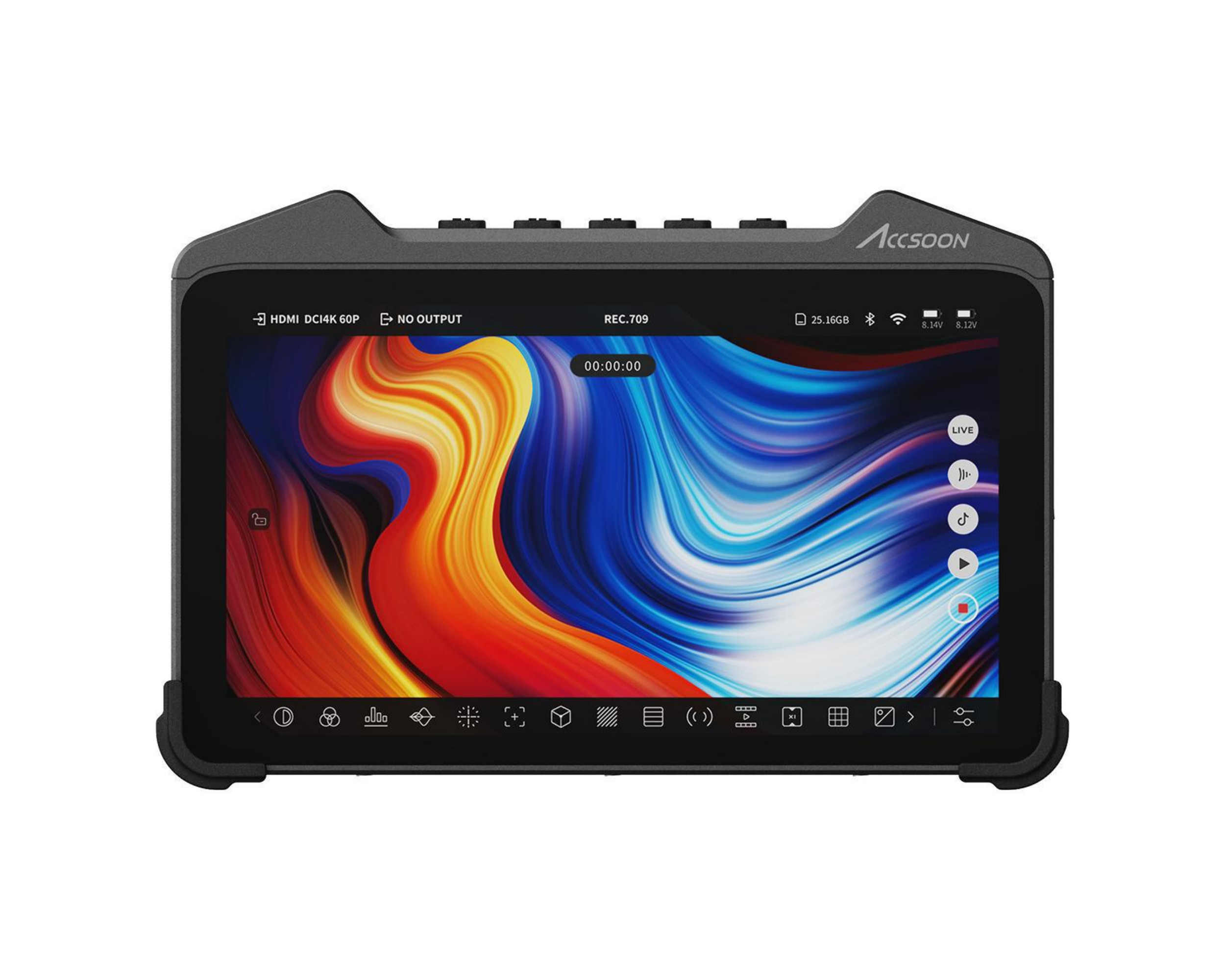

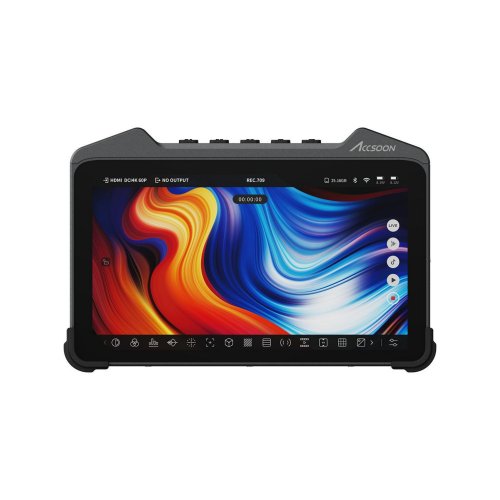

Accsoon CineView M7 4K60 7in Smart Touchscreen Monitor

About: Accsoon CineView M7 4K60 7in Smart Touchscreen Monitor

The Accsoon CineView M7 is a professional-grade 7-inch touchscreen monitor that doubles as a powerful wireless video receiver. Engineered for directors, cinematographers, and camera assistants, the M7 seamlessly combines ultra-low latency wireless transmission with a high-brightness monitor, offering a reliable all-in-one solution for on-set monitoring. With full HD resolution, 3D LUT support, and extensive monitoring tools, the CineView M7 brings precision, portability, and performance to your production workflow.

Whether you're pulling focus or supervising framing from a distance, the CineView M7 ensures you never miss a shot—delivering crisp visuals and stable wireless video with virtually no delay. It’s fully compatible with the CineView ecosystem, allowing integration with transmitters like the CineView SE and Quad.

Features

• 7-Inch 1920 x 1200 Touchscreen Display: Bright and color-accurate IPS panel with intuitive touch controls, ideal for daylight viewing and precise monitoring.
• High Brightness (Up to 1,000 nits): Provides excellent visibility in bright environments, with adjustable backlight for low-light shooting.
• Dual-Band Wireless Video Reception (2.4GHz + 5GHz): Receives high-quality 1080p60 video from Accsoon transmitters with ultra-low latency (~60ms) and strong signal stability.
• Professional Monitoring Tools: Built-in waveform, vectorscope, focus peaking, false color, zebra, histogram, and audio meters.
• 3D LUT Support: Load custom LUTs via USB-C for accurate preview of log footage or creative looks on set.
• Wide Compatibility: Works seamlessly with Accsoon CineView transmitters (SE, HE, Quad), making it a flexible tool for multi-monitor setups.
• HDMI and SDI Video Input/Output: SDI and HDMI passthrough enables simultaneous monitoring and external recording or routing.
• Long Battery Life & Power Options: Supports Sony NP-F and DC input power, ensuring reliable operation across long shoots.
• Lightweight and Durable Design: Built with a slim aluminum body for portability without compromising strength.

The Accsoon CineView M7 is more than just a monitor—it's a complete wireless video solution built for the evolving demands of modern filmmaking.

Specifications

• Display screen: 7” LCD
• Resolution: 1920 x 1080 pixels
• PPI: 323
• Aspect ratio: 16:9
• Brightness: 1000 nits
• Contrast ratio: 1000:1
• Viewing angle: 176°/176°
• Backlight type: Edge-Lit Ultra-transparent LED Backlight
• Screen color calibration: Supported
• LUT: 1D and 3D Cube LUTs Supported
  • 1D: up to 4096 points
  • 3D: up to 127 points
• Video input port: HDMI 2.0/3G-SDI
• Video output port: HDMI 2.0/3G-SDI
• HDMI video input format
  • 4K DCI (4096x2160): 23.98/24/25/29.97/30/50/59.94/60
  • 4K UHD(3840x2160): 23.98/24/25/29.97/30/50/59.94/60
  • 1080p: 23.98/24/25/29.97/30/50/59.94/60
  • 1080i: 50/59.94/60
  • 720p: 50/59.94/60
• SDI video input format
  • 1080p: 23.98/24/25/29.97/30/50/59.94/60 Level A/B
  • 1080i: 50/59.94/60
• HDMI video output format
  • 4K DCI (4096x2160): 23.98/24/25/29.97/30/50/59.94/60
  • 4K UHD (3840x2160): 23.98/24/25/29.97/30/50/59.94/60
  • 1080p: 23.98/24/25/29.97/30/50/59.94/60
  • 1080i: 50/59.94/60
  • 720p: 50/59.94/60
• SDI video output format
  • 1080p: 23.98/24/25/29.97/30/50/59.94/60 Level A
  • 1080i: 50/59.94/60
• DC port: 6.0~16.8V 5.5mm x 2.1mm Center Positive
• Compatible battery: Compatible with NP-F550, NP-F750, NP-F970 Batteries
• USB-C power input port: PD3.0 9V/3A, 12V/3A, 15V/3A
• USB-C power output port: Maximum: 5V/2A
• Microphone jack: 3.5mm TRS
• Headphone jack: 3.5mm CTIA
• Microphone input audio sampling: 16bit, 48KHz
• Power consumption: 12W~28W（Varies according to actual usage）
• Housing: Aircraft-grade Aluminum Alloy
• Heat dissipation: Active + Passive Cooling
• Work environment temperature: -10- 40℃
• Weight: 476g
• Dimensions: 182.2 x 120.7 x 31.5mm
